Morris Minor Suspension Rebuild Guide

The unmistakable charm of a Morris Minor is often matched by the nostalgic feel of its suspension. However, with age, these components inevitably wear, leading to a less than ideal driving experience. If you've noticed a significant deterioration in handling, steering precision, or simply a general sponginess, it might be time to consider a full suspension rebuild. This article will guide you through the process, identifying key wear items, explaining the benefits of modern upgrades like urethane bushings, and offering practical advice for a successful overhaul of your beloved Morris Minor's underpinnings.

Understanding Morris Minor Suspension Wear

The suspension system of a Morris Minor, while robust for its era, is comprised of numerous components that are subject to constant stress and environmental factors. Over time, these parts degrade, leading to the symptoms described by many owners: a vague steering feel, excessive body roll in corners, and a general lack of responsiveness. Identifying these worn components is the first step towards restoring your car's handling to its former glory.

Key Suspension Components to Inspect and Replace

Based on common wear patterns and owner experiences, here's a comprehensive list of parts typically replaced during a Morris Minor suspension rebuild. It's always recommended to thoroughly inspect each item, but planning for replacement of these high-wear parts will ensure you're prepared:

• Tie Bar Kit: Essential for maintaining correct wheel alignment and stability.
• Upper Trunnion: A critical pivot point that guides the suspension arm. The kingpin and its associated bushes are housed here.
• Upper Pivot Pin: Works in conjunction with the upper trunnion.
• Lower Trunnion: Another vital pivot point, connecting the suspension arm to the chassis.
• Bumpstop (under shock arm): These rubber or urethane components absorb excessive suspension travel, preventing damage.
• Bumpstop (upper): Often integrated into the trunnion kits, these protect the suspension at full compression.
• Kingpin Boots: These protect the kingpin and its bearings from dirt and moisture ingress.
• Lower Outer Trunnion Sealing Ring: Crucial for keeping grease in and contaminants out of the lower trunnion assembly.
• Torsion Bar Bushings: These locate and support the torsion bars, which provide the springing action.
• Shock Absorbers: While not strictly a 'bush' or 'link', worn shock absorbers drastically affect ride and handling. Consider a rebuild or replacement with modern units.

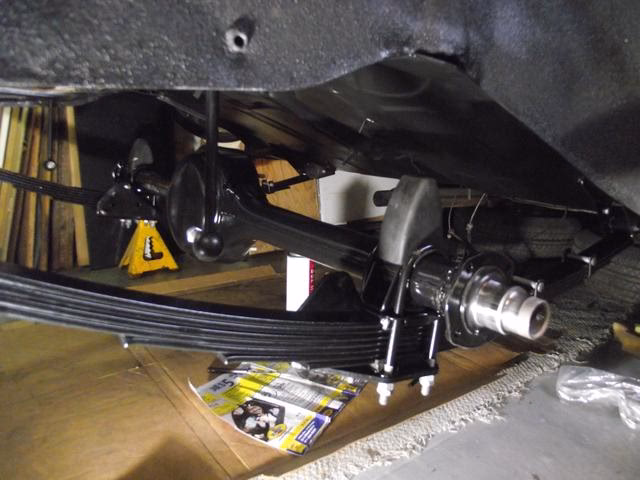

• Rear Leaf Spring Kit: The rear suspension relies on leaf springs, which can sag and weaken over time. A complete kit with new springs and associated hardware is often beneficial.
• Shock Links: These connect the shock absorbers to the suspension arms, and the bushings within them can wear.

The Urethane Advantage

Many enthusiasts opt for urethane bushings when undertaking a suspension rebuild. Unlike traditional rubber, urethane offers several advantages:

While urethane offers enhanced performance and longevity, it's worth noting that it can lead to a firmer ride and potentially transmit more noise and vibration. For critical pivot points like the upper outer link, some owners prefer to retain rubber for a balance of performance and comfort.

The Rebuild Process: A Step-by-Step Approach

Undertaking a suspension rebuild can seem daunting, but with careful planning and execution, it's a rewarding project. Here's a breakdown of the general process:

1. Preparation and Safety First

Before you begin any work, ensure you have a safe and stable working environment. Proper jacking and supporting of the vehicle are paramount. If you plan on removing the brakes for better access, this adds another layer of complexity, but can significantly ease the process of reaching lower suspension components.

2. Disconnecting and Removing Components

Begin by safely raising and supporting the vehicle. You'll need to disconnect the wheels, brake assemblies (if removing), and then carefully begin to unbolt and remove the suspension arms, links, and associated hardware. Pay close attention to the order of removal and the orientation of each part.

3. Torsion Bar Management: A Crucial Step

The torsion bars are under significant tension. It is absolutely critical to manage this tension safely and accurately. One effective method is to create a template. Before removing the lower suspension arm from the torsion bar, with the suspension at full droop and the vehicle safely supported, mark the exact spline location of the lower suspension arm onto the torsion bar. A simple piece of plywood with drilled holes corresponding to the bolt positions and marked distances to the ground can serve as a useful reference. This ensures that upon reassembly, you can return the arm to its original position, maintaining the correct ride height. Attempting to mark the torsion bar directly can be difficult due to the high-grade steel, and any damage to the splines should be avoided.

4. Cleaning, Inspection, and Refurbishment

Once components are removed, take the opportunity to thoroughly clean them. Inspect for any signs of wear, damage, or corrosion. This is also an excellent time to clean and repaint chassis components and wheel arches, as noted by some experienced mechanics. Check the threads on the swivel pins for wear; worn threads will have a pointed profile. Compare the top threads (less wear) with the lower threads.

5. Installing New Bushings and Components

Press in the new bushings, ensuring they are correctly oriented. Lubricate components as per the manufacturer's recommendations. Carefully reassemble the suspension arms, links, and associated hardware. When installing urethane bushings, ensure you use the appropriate lubricant to prevent squeaking.

6. Reassembly and Torque Settings

Refer to your service manual for the correct torque settings for all nuts and bolts. Incorrectly torqued components can lead to premature wear or even failure. Reinstall the brake assemblies, wheels, and lower the vehicle safely.

7. Alignment

After a full suspension rebuild, a professional wheel alignment is essential to ensure correct tracking and prevent uneven tyre wear.

Common Pitfalls and Expert Tips

Several common issues can arise during a suspension rebuild. Being aware of them can save you time and frustration:

• Torsion Bar Tension: As mentioned, incorrect re-installation of the torsion bar can drastically alter ride height. The template method is highly recommended.
• Swivel Pin Wear: Inspecting the swivel pin threads is crucial. If they are significantly worn, the pin itself may need replacing.
• Upper Outer Link Bushings: While urethane is popular, consider rubber for the upper outer link to mitigate potential harshness and make future replacement easier.
• Brake Access: Removing the brake assemblies can provide much better access to lower suspension points, making the job significantly easier.
• Patience is Key: The first side of the car can be a steep learning curve. The second side will almost certainly be quicker and smoother as you'll be more familiar with the process.

Frequently Asked Questions

Q1: How long does a Morris Minor suspension rebuild typically take?
This can vary significantly depending on your experience level, the tools you have available, and whether you opt to remove the brakes. A DIYer with good mechanical aptitude could expect to spend anywhere from a full weekend to a week on the project, especially if cleaning and painting are involved.

Q2: Do I need special tools for this job?
A good set of spanners and sockets, jack stands, a hydraulic jack, and potentially a ball joint separator or bush removal tool can be very helpful. For pressing in bushings, a vice or a dedicated bush press can make the job much easier and prevent damage.

Q3: Should I rebuild my shock absorbers or buy new ones?
Rebuilding original shock absorbers can be a satisfying task if you're aiming for originality. However, modern replacement shock absorbers, or having your originals professionally rebuilt with modern internals, will often offer superior performance and longevity.

Q4: What's the difference between rubber and urethane bushings?
Rubber is softer and more compliant, offering a more comfortable ride but less precise handling. Urethane is much stiffer and more durable, leading to improved handling and steering response, but can also transmit more road noise and vibration.

Q5: Is it necessary to remove the brakes?
While not strictly mandatory, removing the brake assemblies provides significantly better access to the lower trunnion and steady bar link bolts, making disassembly and reassembly much easier and reducing the risk of damaging other components.

Conclusion

Rebuilding the suspension of your Morris Minor is a rewarding project that can dramatically improve its driving characteristics. By carefully identifying and replacing worn components, opting for suitable upgrades like urethane bushings where appropriate, and following a methodical approach, you can restore your classic car's handling and enjoy a more confident and enjoyable driving experience. Remember to prioritise safety, take your time, and don't hesitate to consult service manuals or online forums for specific advice related to your vehicle.
