Mercedes Brake Disc Minimum Thickness Guide

It's a common quandary for Mercedes-Benz owners: when do those trusty brake discs finally reach the end of their service life? The workshop might suggest a replacement, but you're keen to understand the specifics yourself. Often, the minimum thickness isn't immediately obvious, with markings sometimes obscured by rust or simply not present on the disc itself. This guide aims to demystify the process of checking your Mercedes brake disc wear, focusing on identifying the minimum thickness and understanding related components like brake pads and wear sensors.

Understanding Brake Disc Wear Limits

Brake discs, also known as rotors, are critical safety components. They work in conjunction with brake pads to slow and stop your vehicle through friction. Over time, this friction causes the disc surface to wear down. Exceeding the minimum thickness can severely compromise braking performance and lead to catastrophic failure. Mercedes-Benz, like all reputable manufacturers, specifies a minimum thickness for their brake discs to ensure optimal safety and performance.

Where to Find the Minimum Thickness Markings

The minimum thickness specification is typically stamped directly onto the brake disc itself. However, as many owners discover, these markings can be difficult to find or read, especially on older vehicles or those subjected to harsh conditions. Here's where to typically look:

• Edge of the Disc: The most common location is on the outer edge of the disc, often near the circumference.
• Cylindrical Part: On some models, particularly older ones like the W210 mentioned in user feedback, the thickness might be stamped on the cylindrical part of the rotor, often where the rear parking brake shoes would sit. This area might require some cleaning and degreasing to reveal the markings.
• Hub Face: While less common for the thickness itself, the hub face is where the wheel mounts, and sometimes other brake-related information might be present, though not usually the wear limit.

What if the markings are gone? If corrosion or wear has rendered the stamped minimum thickness illegible, you have a few options. You can consult your vehicle's owner's manual, which may contain this information. Alternatively, a Mercedes-Benz dealership or a specialist independent garage should have access to this data via their technical databases. You can also often find this information on reputable Mercedes-Benz forums or by providing your VIN to a parts specialist.

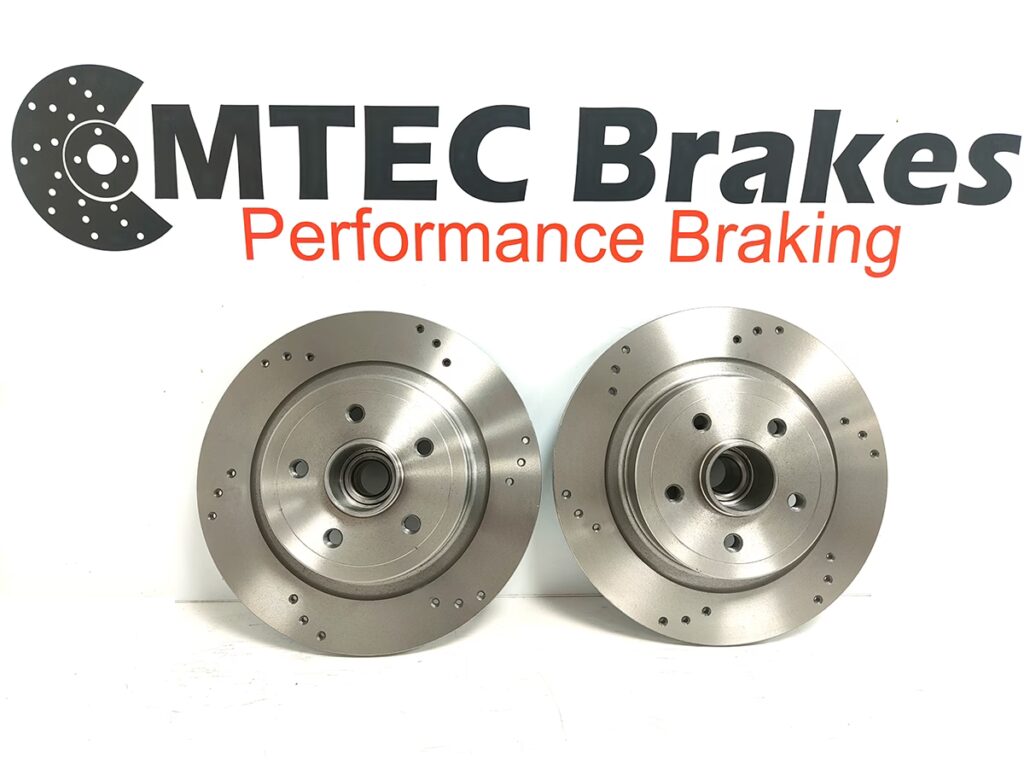

The Case of the Drilled Front Discs (AMG Brakes)

Some Mercedes models, like the 2011 E350 CDi Sport 125 Edition mentioned, feature drilled front discs, often referred to as 'AMG brakes'. These drilled discs are designed for improved heat dissipation, which can be beneficial during spirited driving or heavy braking. However, the principle of minimum thickness remains the same. The drilling pattern itself doesn't alter the fundamental wear limit of the disc material. The thickness will still be stamped on the edge or another designated area. It's crucial to remember that the holes themselves can sometimes become stress points, and cracks can form around them if the disc is significantly worn or subjected to extreme thermal cycling.

Brake Pad Minimum Thickness and Wear Indicators

While brake discs have a defined minimum thickness, brake pads also have wear limits. The quoted 12mm for new pads is typical, and a value of just over 5mm suggests they are far from needing immediate replacement, contrary to a dealer's assessment. So, what is the recommended minimum thickness for brake pads?

Generally, most manufacturers recommend replacing brake pads when the friction material reaches approximately 2-3mm. However, it's important to note that this can vary slightly between manufacturers and pad types. The 'warning light' often illuminates when the pads are nearing this critical point, typically around 2mm as observed by one user. This warning light is usually triggered by a small metal tab (wear sensor) embedded in the brake pad that makes contact with the disc when the pad has worn down to a certain level.

Pad Wear Indicators:

• Electronic Sensors: Most modern Mercedes vehicles use electronic wear sensors. These are small metal clips that sit within the brake pad assembly. As the pad wears down, the sensor makes contact with the brake disc, completing a circuit and triggering a warning light on the dashboard. The sensor itself is designed to be sacrificial and will wear away once it contacts the disc.
• Mechanical Tabs: Older or simpler systems might use a small metal tab that is positioned to scrape against the disc when the pad is worn low, creating an audible squealing noise.

Is 5mm acceptable? Based on the general guidelines and the typical activation point of warning lights, pads with just over 5mm of material remaining are generally considered safe for continued use, provided the discs are also within their service limits. The dealer's assessment of '90% worn' for pads at 5mm (from an original 12mm) is mathematically inaccurate (5mm remaining is less than 50% worn). This highlights the importance of independent checks and understanding your vehicle's components.

The Role of Brake Discs and Pads in Braking

It's worth briefly touching upon how these components work together. When you press the brake pedal, hydraulic fluid forces the brake caliper pistons to clamp down on the brake pads. The pads then press against the spinning brake disc, creating friction that converts kinetic energy into heat, thereby slowing the vehicle. The effectiveness of this process is directly related to the condition and thickness of both the pads and the discs.

When Discs are Corroded

Corrosion is a natural enemy of brake discs, especially in regions with harsh winters or coastal environments. As noted by one contributor, if a disc is so corroded that the stamped markings are no longer visible, it generally qualifies for replacement regardless of its measured thickness. Significant surface rust or pitting can reduce the contact area between the pad and disc, impairing braking efficiency and potentially causing uneven wear.

Comparison Table: Brake Disc & Pad Wear

To summarise the key wear indicators:

*Note: These are general figures. Always refer to your specific Mercedes-Benz model's technical data for precise specifications.*

Measuring Your Brake Discs Correctly

To get an accurate measurement of your brake disc thickness, you will need a vernier caliper. Here’s how to do it:

1. Ensure the vehicle is safely supported, ideally on a lift or jack stands, with the wheel removed.
2. Locate the thinnest part of the disc's friction surface. This is usually in the middle of the swept area, away from any lip that may have formed at the outer edge due to wear.
3. Place the jaws of the vernier caliper across the disc's friction surface at this thinnest point.
4. Close the caliper gently until it makes firm contact with both sides of the disc.
5. Read the measurement from the caliper.
6. Compare this measurement to the minimum thickness stamped on the disc or found in your vehicle's service manual.

Important Consideration: Disc Runout and Rotor Surface

While thickness is paramount, also be aware of the disc's surface condition. Grooves, scoring, or significant warping (runout) can also necessitate replacement, even if the disc is still above the minimum thickness. A warped disc can lead to brake judder and reduced braking effectiveness.

Frequently Asked Questions (FAQs)

Q1: Where is the minimum thickness usually stamped on a Mercedes brake disc?

A1: It's typically stamped on the edge of the disc's outer circumference or sometimes on the cylindrical part near the hub, especially on older models.

Q2: My brake disc markings are illegible due to rust. What should I do?

A2: Clean the disc thoroughly. If the markings are still unreadable, consult your owner's manual, a Mercedes-Benz dealer, or a specialist mechanic for the correct minimum thickness for your model. You can also search online forums using your vehicle's VIN.

Q3: How much brake pad material should be left before replacement is recommended?

A3: Generally, around 2-3mm of friction material is the recommended minimum. The dashboard warning light usually activates when the pads are close to this limit.

Q4: Is it okay to replace only the brake pads if the discs are still thick?

A4: Yes, provided the discs are above their minimum thickness and are not significantly grooved, warped, or corroded. However, it's often best practice to replace pads and discs together, especially if both are approaching their wear limits, to ensure optimal performance and longevity of the new components.

Q5: What are those notches on some brake discs?

A5: As noted by one user, these are not typically wear indicators. They are often manufacturing or assembly aids. True wear indicators are usually stamped minimum thickness figures or the electronic/mechanical pad wear sensors.

Conclusion: Proactive Maintenance is Key

Understanding the wear limits of your Mercedes-Benz brake discs and pads empowers you to make informed decisions about maintenance. Don't rely solely on workshop recommendations, especially when they seem excessive. Regularly inspect your brakes, learn to identify the wear limit markings, and understand the function of wear sensors. By taking a proactive approach, you can ensure your vehicle remains safe on the road and avoid unnecessary expenses. If in doubt, always seek advice from a qualified professional who prioritizes your safety.
