Unlocking the Potential: GY6 Engine Cylinder Upgrades

The GY6 engine platform, a ubiquitous powerplant found in countless scooters and ATVs originating from China, offers a fantastic foundation for customisation and performance enhancement. At the heart of many of these upgrades lies the cylinder kit, a crucial component that dictates the engine's displacement and, consequently, its power output. Many enthusiasts often ponder the possibility of specific upgrades, such as a 50mm cylinder kit for a GY6 engine. This article delves into the intricacies of GY6 cylinder kits, addressing common queries and providing valuable insights for those looking to boost their ride's performance.

Understanding the GY6 Engine Family

Before we dive into specific cylinder sizes, it's essential to grasp the general architecture of the GY6 engine. While often referred to generically as 'GY6', these engines are, in reality, copies of Honda's design and come in several variations, primarily distinguished by their displacement. The most common types you'll encounter are:

• 50cc versions: Often designated as 139QMA or 139QMB. These are the entry-level GY6 engines.
• 125cc versions: Typically known as the 152QMI engine.
• 150cc versions: Commonly referred to as the 157QMJ engine.

Despite these variations, all GY6-derived engines share fundamental characteristics. They are air-cooled, 4-stroke units, featuring a chain-driven overhead camshaft (OHC) and a carburettor for fuel delivery. While many manufacturers produce these engines, and some minor differences may exist between them, the core design remains remarkably consistent, making aftermarket parts largely interchangeable across different brands and models.

The Quest for a 50mm Cylinder Kit for GY6

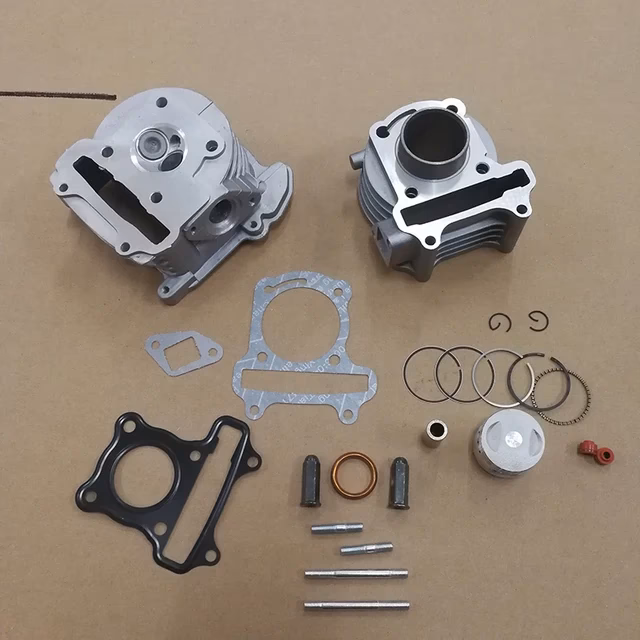

A frequent question among GY6 owners is the availability of a 50mm cylinder kit. To answer this directly: yes, 50mm cylinder kits are indeed available for GY6 engines. However, it's crucial to understand what this signifies in terms of displacement increase.

A standard 50cc GY6 engine (like the 139QMB) typically has a bore diameter of around 39mm. A 50mm cylinder kit, therefore, represents a significant increase in bore size. When you increase the bore diameter, you increase the swept volume of the cylinder, which directly translates to a larger displacement. The formula for cylinder displacement is:

Displacement (cc) = π * (Bore/2)^2 * Stroke * Number of Cylinders

For a typical 139QMB engine with a stroke of approximately 41.4mm, increasing the bore from 39mm to 50mm would result in a displacement of roughly 76cc.

Important Note: It's vital to match the cylinder kit to your specific GY6 engine base. While the 139QMA/QMB is the 50cc variant, a 50mm bore kit is an upgrade that significantly increases its displacement. Similarly, kits are available for the 125cc (152QMI) and 150cc (157QMJ) variants, offering even larger displacement increases.

Common GY6 Cylinder Kit Sizes and Their Impact

The aftermarket offers a wide array of cylinder kits for GY6 engines, allowing enthusiasts to tailor their engine's performance to their needs. Here's a look at some common sizes and their typical implications:

As you can see, a 50mm bore on a 139QMB base engine is a substantial upgrade, pushing it well beyond its original 50cc designation. These larger bore kits are often referred to as 'big bore kits'.

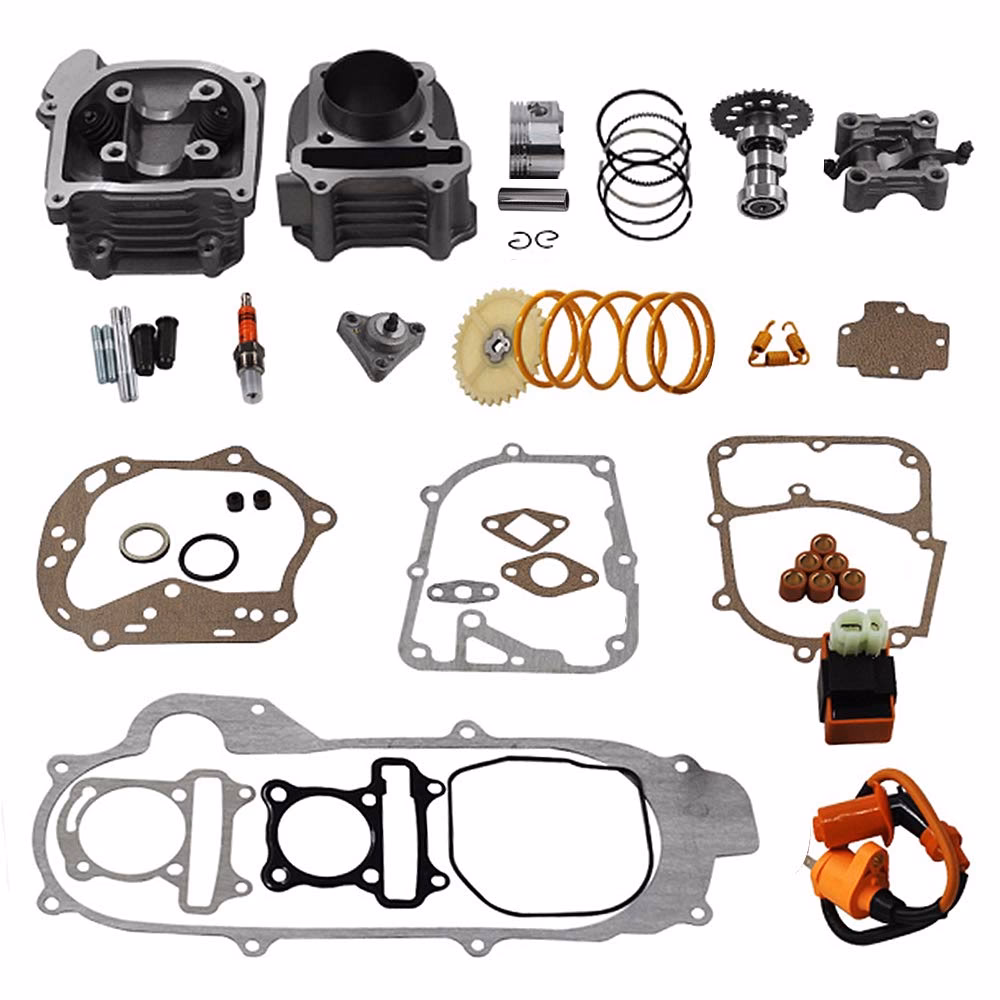

What Else Do You Need for a Big Bore Kit?

Simply fitting a larger cylinder and piston isn't always a straightforward bolt-on affair, especially when undertaking a significant displacement increase like moving to a 50mm bore. To achieve optimal performance, reliability, and to ensure the engine can handle the increased power, you'll likely need to consider other supporting modifications:

• Cylinder Head: The stock cylinder head on a 50cc GY6 may not be able to efficiently handle the increased airflow and combustion pressures of a larger displacement. Upgrading to a performance cylinder head with larger valves and improved porting is highly recommended.
• Carburettor: A larger displacement engine will require more fuel and air. The stock carburettor will likely become a restriction. A larger carburettor (e.g., 24mm, 26mm, or even larger depending on the build) will be necessary.
• Exhaust System: A less restrictive performance exhaust will help the engine expel exhaust gases more efficiently, further contributing to power gains.
• Camshaft: A performance camshaft with different lift and duration profiles can optimise the engine's breathing at higher RPMs, complementing the larger displacement.
• Variator and Clutch: The transmission components will need to be tuned to effectively utilise the increased power band. Upgraded variator rollers and a performance clutch may be required.
• Ignition System: In some cases, an upgraded CDI unit might be beneficial to allow for higher rev limits or different ignition timing.
• Cooling: While GY6 engines are air-cooled, a larger displacement means more heat. Ensuring adequate airflow and potentially considering a cylinder head with better cooling fins can be important for longevity.

Common GY6 Engine Specifications (139QMB/QMA)

For those specifically looking at the 50cc GY6 engines (139QMB/QMA), here are some of the standard specifications you'll typically find:

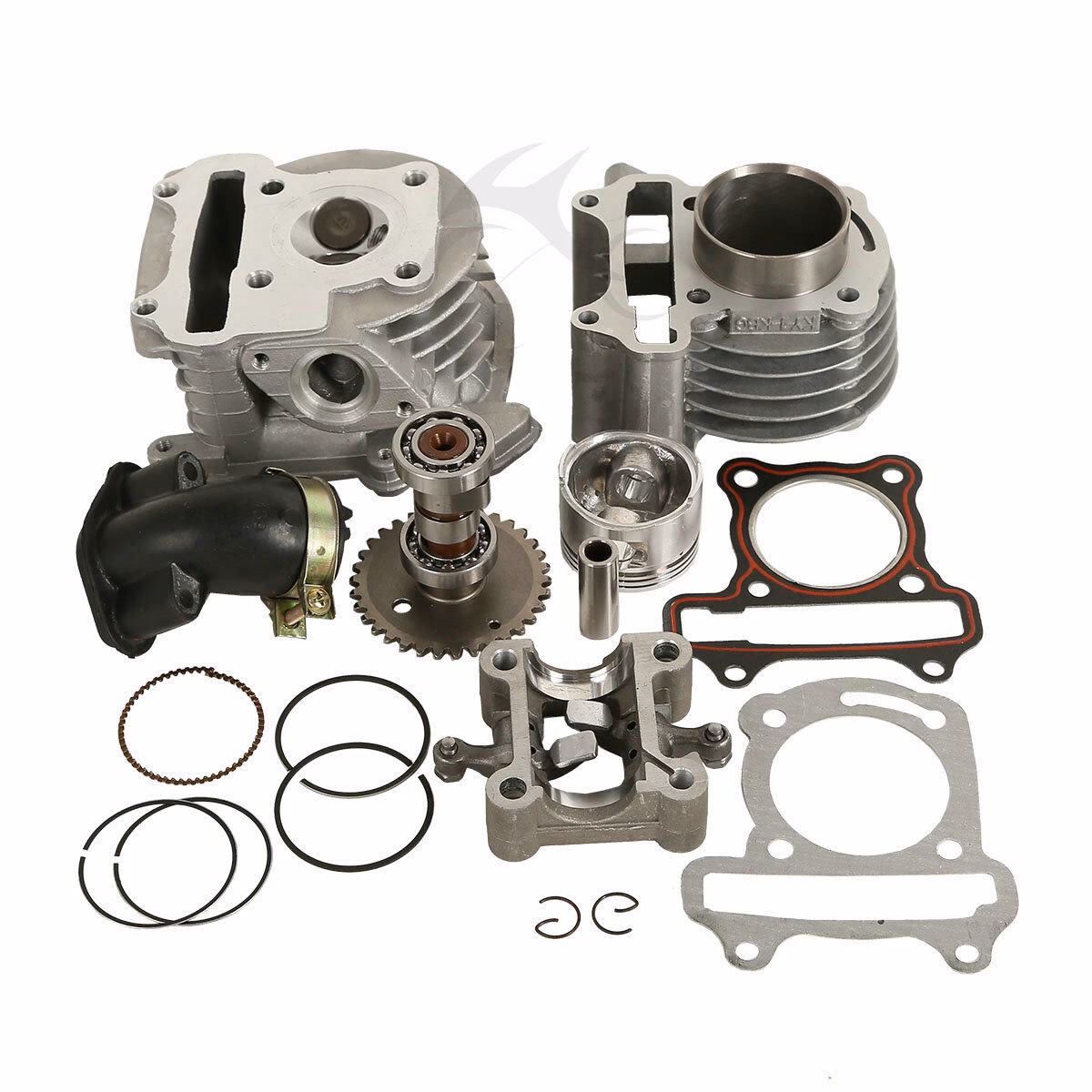

When fitting a 50mm cylinder kit to this base, you are effectively replacing the 39mm piston and cylinder with a 50mm one. This is a significant increase and requires careful consideration of the points mentioned earlier.

Frequently Asked Questions

Q1: Is a 50mm cylinder kit a direct fit for all GY6 50cc engines?

While the general engine casing is similar, you must ensure the specific kit you purchase is designed for the 139QMB/QMA engine family. Minor variations in case dimensions or bolt patterns can sometimes exist between manufacturers. Always check product descriptions and compatibility guides.

Q2: What kind of power increase can I expect from a 50mm kit on a 139QMB?

With proper supporting modifications (carburettor, exhaust, head), you could see a significant increase, potentially doubling the stock horsepower. However, without these upgrades, the gains will be limited, and reliability might be compromised.

Q3: Will a 50mm kit make my 50cc GY6 street legal?

Increasing the displacement beyond the original 50cc may affect its classification as a moped or light scooter in some regions. It's crucial to check your local regulations regarding engine modifications and vehicle classification.

Q4: What is the difference between a 139QMB and a 157QMJ engine?

The primary difference is displacement. The 139QMB is the 50cc variant, while the 157QMJ is the 150cc variant. This means the 157QMJ has a larger stock bore and/or stroke, and therefore a larger engine block and different crankcase dimensions in some cases, although many parts are still interchangeable.

Q5: Where can I buy a 50mm cylinder kit for my GY6?

These kits are widely available from online powersports retailers, specialist scooter parts suppliers, and marketplaces like eBay or Amazon. Always research the seller and product reviews to ensure quality.

Conclusion

The GY6 engine platform is incredibly versatile, and a 50mm cylinder kit is a popular and effective way to significantly boost the performance of a 50cc (139QMB/QMA) model. However, it's not just a simple piston and cylinder swap. To harness the full potential and ensure the longevity of your engine, investing in complementary upgrades such as a performance cylinder head, larger carburettor, and improved exhaust system is essential. By understanding your engine and planning your modifications carefully, you can transform your GY6-powered scooter or ATV into a much more potent machine.
