Mastering Mechanical Disc Brake Alignment

Troubleshooting Weak Mechanical Disc Brakes: A Comprehensive Guide

It's a common frustration for any cyclist: reaching for your brakes, only to find they feel spongy, weak, or simply aren't providing the stopping power you need. For those relying on mechanical disc brakes, this issue can be particularly perplexing, especially when you've tried the obvious solutions like tightening the cable or replacing pads. This guide will delve into the intricacies of mechanical disc brake alignment, helping you diagnose and resolve those frustratingly weak braking experiences. We'll cover everything from the fundamental principles of how these brakes work to practical steps for getting them performing at their best.

Understanding Mechanical Disc Brakes

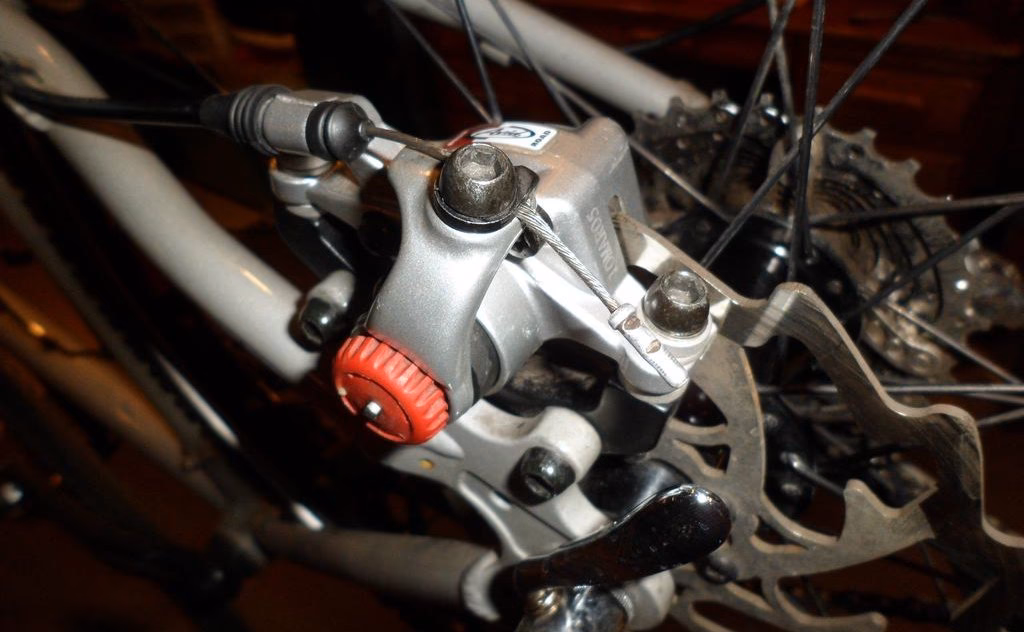

Before we dive into troubleshooting, it's essential to understand the basic mechanics of a mechanical disc brake system. Unlike their hydraulic counterparts, mechanical disc brakes use a standard brake cable, much like those found on rim brakes, to actuate the braking mechanism. When you pull the brake lever, the cable pulls a cam or lever within the brake caliper. This action, in turn, pushes one or both brake pads towards the spinning rotor. The friction generated between the pads and the rotor is what slows and stops your bicycle.

A key characteristic of many mechanical disc brake calipers, especially those found on mountain bikes (MTBs), is that they often only have one moving pad. This means that when the brake lever is pulled, one pad is pushed directly into the rotor. The rotor, being a rigid disc, then presses against the other, stationary pad, creating the clamping force. This design, while simpler and more cost-effective than hydraulic systems, can sometimes lead to alignment challenges.

Common Causes of Weak Braking

Several factors can contribute to a noticeable decline in braking performance with mechanical disc brakes:

• Improper Pad Alignment: This is perhaps the most frequent culprit. If the caliper isn't perfectly centred over the rotor, or if the pads aren't making even contact, braking power will be compromised.
• Cable Tension Issues: While you might have tightened the cable, there's an optimal tension that needs to be achieved. Too loose, and you won't get enough pull; too tight, and the pads might drag.
• Worn or Glazed Pads: Even new pads can sometimes have issues if they are not "bedded in" correctly. Old, worn, or glazed pads will significantly reduce friction.
• Contaminated Rotors or Pads: Oil, grease, or other contaminants on the rotor surface or the pad material can drastically reduce their ability to grip.
• Sticking Caliper Pistons/Mechanism: The moving parts within the caliper can become stiff or sticky due to dirt or lack of lubrication, preventing full pad engagement.
• Rotor Issues: A bent or warped rotor will cause inconsistent braking and can prevent pads from making full contact.
• Cable Friction: Old or kinked brake cables can increase friction within the housing, meaning less of the force applied at the lever reaches the caliper.

Diagnosing the Problem: A Step-by-Step Approach

Let's break down how to systematically diagnose the issue you're experiencing, mirroring the common problem of one pad being pushed into the rotor and then onto the inner pad, resulting in weak braking.

1. Visual Inspection and Initial Checks

Start with a thorough visual inspection:

• Wheel Rotation: With the wheel off the ground, and the brake lever *not* pulled, check if the rotor spins freely without any rubbing. A slight whisper of contact is sometimes acceptable, but significant rubbing indicates an alignment issue.
• Pad Position at Rest: Observe the pads when the brake lever is not engaged. Ideally, both pads should be very close to the rotor but not touching it. If one pad is already pressing against the rotor, this suggests an imbalance or a spring issue.
• Caliper Centring: Look at the caliper from the front and back. Is it centred directly over the rotor? Or does it appear to favour one side?

2. Assessing Pad Contact

The core of your issue seems to be that the pads aren't gripping the rotor effectively, allowing the wheel to be rotated even with the brake applied. You mentioned that tightening the cable didn't help significantly and that the pads seem to be flexing the rotor.

This flexing of the rotor by the pads, without achieving strong grip, points towards a few potential problems:

• Insufficient Clamping Force: The mechanism that pushes the pads together might not be generating enough force.
• Poor Pad Material/Surface: Even new pads need proper bedding in. If the bedding-in process wasn't thorough or if the pads are of a very hard compound, they might not be gripping effectively yet.
• Rotor Surface Issues: Is the rotor clean? Any signs of oil or grease? Even a slight contamination can ruin grip.

3. The Crucial Adjustment: The Fixed Pad

You've hit upon a key area in your second update: the screw for tightening the fixed pad. This is often the most important adjustment on mechanical disc brake calipers where only one pad moves. This screw directly controls the position of the stationary pad.

Here's how to use it:

1. Loosen the Cable: Release the tension on the brake cable at the caliper.
2. Adjust the Fixed Pad: Locate the adjustment screw (often an Allen bolt) that moves the fixed pad. Slowly turn this screw inwards, pushing the fixed pad closer to the rotor.
3. Centre the Caliper: While adjusting the fixed pad, you'll also need to ensure the caliper itself is centred over the rotor. Most calipers have two mounting bolts that allow for side-to-side adjustment. Loosen these slightly.
4. Initial Alignment: Position the caliper so that the rotor sits centrally within it.
5. Set the Fixed Pad: Now, using the adjustment screw, bring the fixed pad *just* close enough to the rotor so that it makes light, consistent contact. You want to eliminate any gap without causing the rotor to drag noticeably.
6. Re-attach and Tension Cable: Re-attach the brake cable. Pull the lever to the desired feel and then secure the cable at the pinch bolt.
7. Fine-Tuning: With the cable tensioned, pull the brake lever firmly. The moving pad should now engage the rotor, and the rotor should press against the fixed pad. Test the wheel's rotation. You should have significantly improved stopping power.
8. Re-centre if Necessary: If the caliper is now off-centre due to the fixed pad adjustment, loosen the caliper mounting bolts slightly, squeeze the brake lever firmly, and re-tighten the mounting bolts while holding the lever. This "self-centring" method often yields good results.

The goal is to have the fixed pad positioned so that when the caliper is centred, and the cable is tensioned, the moving pad makes firm contact, and the rotor is held securely between both.

Bedding In New Brake Pads

You mentioned that the issue seemed present with old pads too, but it's worth revisiting the bedding-in process for new pads. This process transfers a thin layer of pad material onto the rotor surface, creating an optimal friction interface.

The Process:

1. Find a safe, open area.
2. Accelerate to a moderate speed (e.g., 15-20 mph).
3. Brake firmly, but not to a complete stop. Aim to slow down by about half your speed.
4. Repeat this process 20-30 times.
5. On the last few stops, brake hard enough to come to a complete stop, but do not lock the wheels.
6. Allow the brakes to cool down.

If your pads are still flexing the rotor significantly without much grip, even after proper bedding-in and alignment, it might suggest that the pads themselves are not applying enough force, or that the caliper's internal mechanism is not performing optimally.

What If the Problem Persists?

If you've meticulously followed the steps above and still experience weak braking, consider these further possibilities:

• Cable Quality: Old, corroded, or kinked brake cables and housing can impede the smooth movement of the cable, reducing the force transmitted to the caliper. Replacing the cable and housing is a relatively inexpensive way to improve performance.
• Caliper Mechanism: Mechanical calipers have internal cams and springs. If these are dirty, corroded, or damaged, they may not operate correctly. Sometimes a thorough cleaning and re-lubrication of the caliper's moving parts can help, but in some cases, the caliper may need replacing.
• Rotor Condition: Ensure your rotor is clean, free from grease, and not significantly warped. A bent rotor will always cause issues. Minor bends can sometimes be straightened, but severe warping usually requires replacement.
• Brake Lever Issues: While less common, a problem with the brake lever itself (e.g., worn cam surfaces) could also lead to reduced cable pull.

Table: Common Mechanical Disc Brake Issues and Solutions

Frequently Asked Questions (FAQs)

Q1: How do I know if my mechanical disc brake pads need replacing?
Visual inspection is key. Most brake pads have a minimum thickness indicator. If the pad material is worn down to the metal backing plate or is very thin (less than 1-2mm), they need replacing. Also, if you've cleaned the rotor and adjusted everything correctly and braking is still weak, worn pads are a strong possibility.

Q2: Can I adjust the reach of my mechanical disc brake lever?
Some mechanical brake levers have a reach adjustment screw, typically a small knob or screw near the lever pivot. This allows you to adjust how far the lever sits from the handlebar. However, this does not affect the *power* of the brake, only the initial position of the lever.

Q3: My pads seem to be moving a lot when I brake, is this normal?
Yes, some movement of the rotor against the fixed pad is normal, as this is how the clamping force is generated. However, if the rotor is flexing excessively (bending significantly) before the pads engage firmly, it suggests that the caliper isn't applying sufficient direct force, or the pads aren't gripping effectively. This is often a sign that the fixed pad needs to be brought closer to the rotor.

Q4: What's the difference between mechanical and hydraulic disc brakes?
Mechanical disc brakes use a steel cable to actuate the caliper, similar to rim brakes. Hydraulic disc brakes use fluid within sealed hoses to transmit force from the lever to the caliper. Hydraulic systems generally offer more power, better modulation (finer control), and are less affected by cable friction and contamination, but they are also more complex and expensive.

By understanding these principles and systematically working through the diagnostic and adjustment steps, you can significantly improve the performance of your mechanical disc brakes, ensuring safer and more enjoyable rides. Remember, proper alignment and consistent adjustment are the cornerstones of reliable braking.
