Mazda DPF Regeneration Explained

Understanding Your Mazda's Diesel Particulate Filter (DPF) Regeneration

The Diesel Particulate Filter (DPF) is a crucial component in modern diesel vehicles, including many Mazda models, designed to reduce harmful soot emissions. Over time, soot accumulates within the DPF. To maintain its efficiency and prevent damage, a process called regeneration is necessary. This article will delve into the intricacies of DPF regeneration for Mazda vehicles, covering how often it should occur, what triggers it, the process of forced regeneration, and common issues owners might encounter.

What is DPF Regeneration?

DPF regeneration is an automated process where the vehicle's Engine Control Unit (ECU) intentionally raises exhaust gas temperatures to burn off the accumulated soot within the DPF. This high-temperature burn converts the trapped soot into a much smaller amount of ash. Think of it as a self-cleaning cycle for your exhaust system. There are two main types of regeneration:

• Passive Regeneration: This occurs automatically during normal driving conditions, especially at higher speeds and engine loads. The elevated exhaust temperatures are sufficient to burn off the soot without any specific intervention from the driver or a diagnostic tool.
• Active Regeneration: This is initiated by the ECU when it detects that the soot load in the DPF has reached a certain threshold. The ECU actively injects a small amount of fuel into the exhaust stream to raise the temperature and burn off the soot. You might notice a slight increase in engine revs or a change in engine sound when active regeneration is taking place.

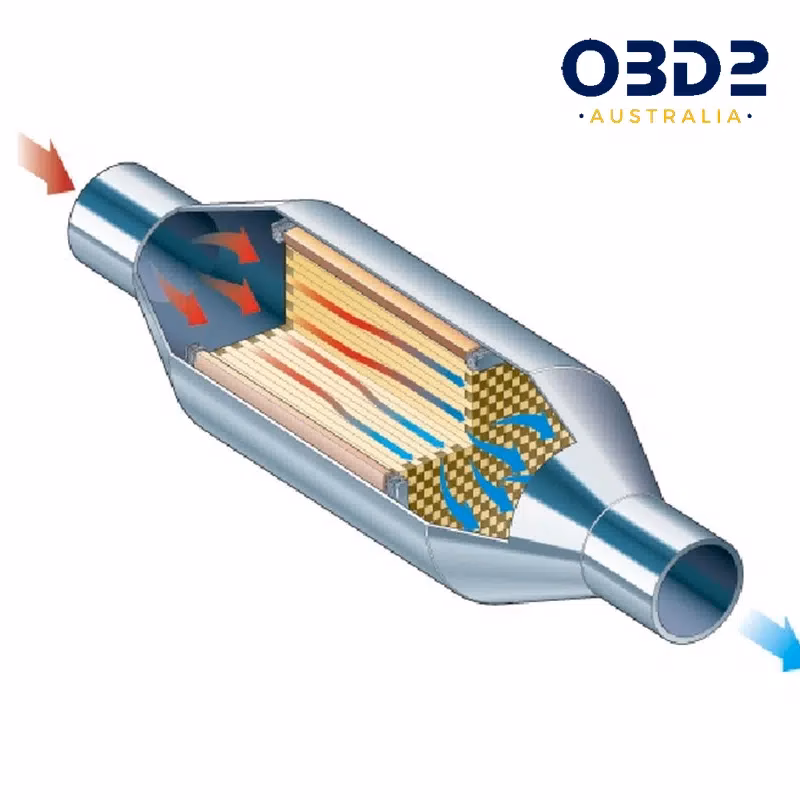

How Often Should a Mazda DPF Be Regenerated?

The frequency of DPF regeneration is not a fixed schedule like an oil change. Instead, it's driven by the amount of soot that accumulates in the filter. On average, for many Mazda diesel models, active regeneration might occur every 200 to 500 miles, depending heavily on driving style and conditions. Shorter journeys, stop-start traffic, and low-speed driving can lead to more frequent regenerations as the exhaust system doesn't reach the optimal temperatures for passive regeneration.

Several factors influence regeneration frequency:

• Driving Style: Consistent higher speeds (e.g., motorway driving) promote passive regeneration, reducing the need for active cycles.
• Driving Conditions: City driving with frequent stops and starts hinders passive regeneration, increasing the likelihood of active regeneration.
• Fuel Quality: Using high-quality diesel fuel can contribute to cleaner combustion and less soot formation.
• Vehicle Maintenance: A well-maintained engine, including properly functioning injectors and EGR systems, leads to more efficient combustion and less soot.

When Does Regeneration Need to Be Forced?

While the vehicle's ECU is designed to manage DPF regeneration automatically, there are situations where a forced regeneration becomes necessary. This is typically required when the DPF becomes too clogged for the automatic system to cope effectively, often indicated by a warning light on the dashboard.

Common reasons for needing a forced regeneration include:

• Frequent Short Journeys: If a car is primarily used for short trips, the DPF may not get hot enough to regenerate passively.
• Illuminated DPF Warning Light: If the warning light comes on, it signifies that the soot accumulation has reached a critical level. Ignoring this can lead to serious engine issues.
• Engine Performance Issues: A clogged DPF can restrict exhaust flow, leading to reduced power, increased fuel consumption, and a rougher engine.

How to Perform a Forced DPF Regeneration

Performing a forced DPF regeneration is not a DIY task for the average motorist. It requires specific diagnostic tools and knowledge of the procedure. As mentioned, filters require more maintenance than catalytic converters. Engine oil ash builds up on the surface of the inlet face of the filter, and will eventually clog the pores. This increases the pressure drop over the filter, which, when it reaches a totally clogged state, is capable of causing engine damage. Regular filter maintenance is therefore a necessity.

To carry out a forced DPF regeneration, the correct diagnostic or reset tool must be used. This operation could take up to 30 minutes. Ensure the regeneration process is conducted in a safe environment as exhaust temperatures will be very high. The process involves connecting a diagnostic tool to the vehicle's OBD-II port and selecting the DPF regeneration function. The tool then commands the ECU to increase fuel injection and manage exhaust temperatures to initiate the burn-off cycle.

Important considerations for forced regeneration:

• Safety First: The exhaust system will reach extremely high temperatures (often exceeding 600°C). Ensure the vehicle is in a well-ventilated area, away from flammable materials.
• Vehicle Condition: Before attempting a forced regeneration, it's crucial that the engine is in good mechanical condition. Issues with injectors, sensors (like differential pressure sensors, pre-DPF and post-DPF temperature sensors), or the EGR system can prevent regeneration from completing successfully or even cause damage.
• ECU Reset: If a new DPF is fitted, it is vital to reset the ECU. This informs the ECU that a new filter has been installed, allowing it to manage the regeneration process correctly from an 'empty' state. Failure to do this can lead to incorrect regeneration cycles and premature filter failure.
• Verification: After a forced regeneration, it's advisable to check the DPF and associated pipework. The steel casing of the DPF should show signs of discolouration, typically turning a 'Dark Straw' or 'Brown' colour, indicating that regeneration temperatures were reached. This visual check can help confirm the process was successful, as some diagnostic tools may not always provide accurate confirmation.

Potential DPF Issues and Solutions

While DPFs are designed to be robust, they can encounter problems. One common issue, as highlighted by user experiences, is the persistence of DPF-related problems even after dealer visits and component replacements. This can be frustrating and costly.

Let's look at some common scenarios and potential causes:

Scenario: DPF Warning Light and No Error Codes

As seen in the example of a 2014 Mazda 3 hatchback, it's possible to have a DPF warning light without any diagnostic trouble codes (DTCs) being present. This can make diagnosis challenging.

Possible Causes:

• Soot Load Thresholds Not Met: The ECU may be programmed with specific parameters for regeneration, and if these aren't met due to driving style, the soot load may increase without triggering a fault code until it's too late.
• Faulty Sensors: While no codes are present, critical sensors like the differential pressure sensor, pre-DPF and post-DPF temperature sensors, or even the MAP sensor could be providing inaccurate readings that subtly affect regeneration cycles. For example, if the differential pressure sensor incorrectly reports low pressure, the ECU might not initiate regeneration when it should.
• Injector Issues: Faulty or worn injectors can lead to incomplete combustion, producing more soot. The ECU's 'injector training' or adaptation process aims to compensate, but if injectors are significantly worn, this may not be enough and can contribute to rapid DPF clogging.
• EGR Valve Problems: A sticking or malfunctioning EGR valve can affect combustion efficiency and soot production.
• Incorrect Oil Specification: Using engine oil that does not meet the low-ash (Low SAPS) specification required for DPF-equipped vehicles can lead to premature DPF clogging due to oil ash buildup.

Solutions and Troubleshooting Steps:

1. Monitor Live Data: Using an OBD2 scanner capable of reading live data is invaluable. Monitor parameters such as soot mass (g), differential pressure across the DPF, and exhaust temperatures (pre and post DPF). This can help identify if regeneration is failing to occur or if sensors are providing erratic readings.
2. Check Injector Health: While expensive, having injectors professionally tested for spray pattern, flow rate, and leak-off can rule them out as a cause.
3. EGR Valve Check: Ensure the EGR valve is clean and functioning correctly.
4. DPF Cleaning: If the DPF is physically intact but clogged, a professional DPF cleaning service might be an option. However, if the issue is with engine management or combustion, cleaning alone won't solve the underlying problem.
5. Forced Regeneration: If live data suggests the soot load is high but regeneration isn't happening, a forced regeneration (performed by a professional) might clear it.
6. Sensor Replacement: If sensor data appears suspect during live monitoring, consider replacing the relevant sensors (e.g., differential pressure sensor).
7. ECU Software Update: In some cases, manufacturers release software updates that can improve DPF management strategies.

Scenario: DPF Replacement

If the DPF becomes irreparable blocked or damaged, replacement is the only option. As noted, if the PM (Particulate Matter) level fills to over 90% or 45g, the DPF will need replacing. This is typically not covered under warranty if the vehicle hasn't been maintained correctly or if the clogging is due to excessive neglect.

Key steps when replacing a DPF:

• Fit the Correct Part: Ensure the replacement DPF is specifically designed for your Mazda model and engine.
• Reset the ECU: This is critical. The ECU must be reset to recognise the new DPF.
• Perform Forced Regeneration: After fitting and resetting, a forced regeneration is essential to condition the new DPF.
• Verify: As mentioned earlier, visually inspect the DPF casing for signs of heat discolouration ('Dark Straw' or 'Brown') to confirm successful regeneration temperatures were achieved.

DPF Health and Longevity

Maintaining your Mazda's DPF health is paramount to avoiding costly repairs and ensuring compliance with emissions regulations. Regular servicing, using the correct engine oil, and allowing the vehicle to perform its automatic regenerations by undertaking occasional longer journeys are key preventative measures.

Table: DPF Maintenance Comparison

Frequently Asked Questions (FAQs)

Q1: Can I ignore the DPF warning light?

A: No, ignoring the DPF warning light is highly discouraged. It indicates a critical level of soot accumulation, and continued driving without addressing it can lead to severe engine damage, potentially requiring expensive repairs like turbocharger or engine failure, and ultimately necessitating a full DPF replacement.

Q2: How do I know if my car is regenerating its DPF?

A: You might notice a slight increase in engine idle speed, a subtle change in engine sound, a temporary increase in fuel consumption, and potentially a faint smell of burning. Some cars also have an indicator light or a message on the dashboard.

Q3: Is it okay to turn off the engine during a forced regeneration?

A: Absolutely not. Interrupting a forced regeneration can corrupt the process and potentially cause damage. The process must be allowed to complete fully.

Q4: Can I use regular diesel in a DPF-equipped car?

A: While regular diesel will combust, using fuel that doesn't meet the required specifications (often ultra-low sulphur diesel) can lead to increased soot production and potentially damage the DPF over time. Always use fuel recommended by Mazda.

Q5: What is the difference between DPF ash and soot?

A: Soot is the black, powdery residue from incomplete combustion that the DPF traps. Ash, on the other hand, is the non-combustible residue, primarily from engine oil and fuel additives, that remains after soot has been burned off during regeneration. Ash accumulates over time and cannot be burned away by regeneration; it requires professional cleaning or DPF replacement.

Conclusion

The DPF system on your Mazda is a sophisticated emission control device. Understanding its regeneration process, its maintenance requirements, and the potential pitfalls is crucial for keeping your vehicle running smoothly and efficiently. While automatic regeneration handles most of the work, being aware of when a forced regeneration might be needed and seeking professional help when necessary will save you from significant costs and headaches down the line. Proper maintenance and mindful driving habits are your best allies in ensuring the longevity and optimal performance of your Mazda's DPF.
