Unleashing LS Power: The Ultimate Intake Kit

When it comes to high-performance engines, the LS platform from Chevrolet stands as a true icon. Renowned for its robust design, incredible power potential, and remarkable versatility, the LS engine has become the go-to choice for countless enthusiasts, from weekend warriors to professional racers. Whether you're swapping one into a classic hot rod, upgrading a modern muscle car, or simply aiming to extract more ponies from your daily driver, the LS family – including the popular LS1, LS2, and LS6 variants – offers an unparalleled foundation for power. However, unlocking that potential often requires the right induction system. This article delves into a comprehensive solution designed to simplify the upgrade process and significantly boost your LS engine's performance: the Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit.

The LS Engine Legacy: LS1, LS2, and LS6 Explained

Before diving into the specifics of this remarkable kit, it's worth understanding the engines it's designed to complement. The LS series represents the third and fourth generations of Chevrolet's small-block V8 architecture, beginning with the LS1 in the late 1990s. These engines departed from traditional small-block designs, introducing features like coil-on-plug ignition and a unique casting process, setting new standards for efficiency and power.

The LS1, introduced in 1997, powered iconic vehicles like the C5 Corvette and fourth-generation Camaro/Firebird. It was a 5.7-litre (346 cubic inch) engine known for its impressive power output right out of the factory. Following its success, the LS6 emerged as a higher-performance variant of the LS1, primarily found in the C5 Corvette Z06 and Cadillac CTS-V. While sharing the same displacement, the LS6 featured improved cylinder heads, a more aggressive camshaft, and a better intake manifold, resulting in greater horsepower and torque.

The LS2, launched in 2005, marked a significant evolution. With a larger 6.0-litre (364 cubic inch) displacement, the LS2 brought more power and torque across the RPM range. It was featured in the C6 Corvette, Pontiac GTO, and Cadillac CTS-V, among others. All these engines share the 'cathedral port' cylinder head design, making them ideal candidates for the intake manifold kit discussed here.

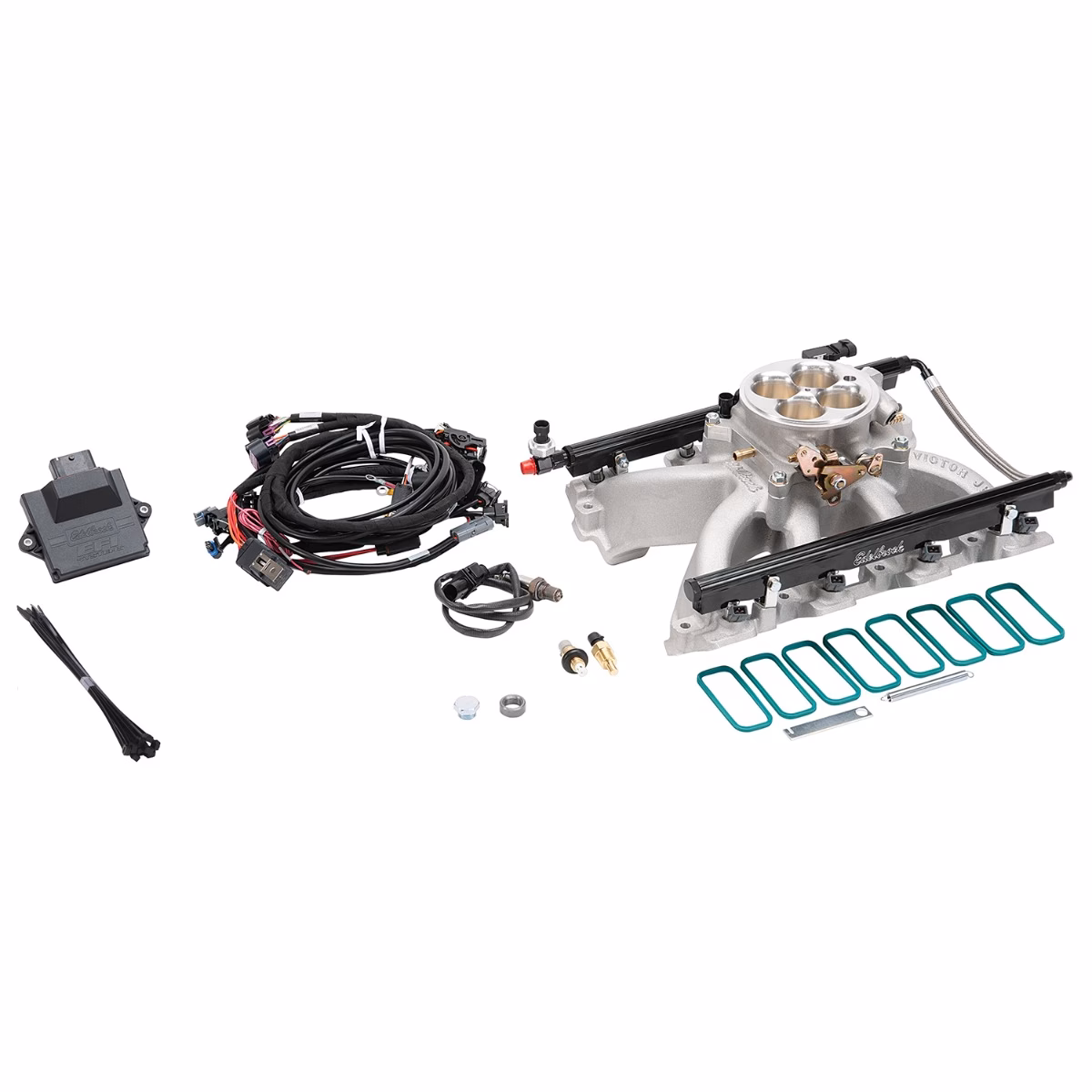

Introducing the Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit

For anyone looking to upgrade their LS engine's induction system, the process can often be daunting. Sourcing compatible parts, dealing with complex wiring harnesses, and tuning an engine can quickly become a frustrating and time-consuming endeavour. This is precisely where the Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit shines. It's engineered as a complete, self-tuning induction system, designed to simplify the entire upgrade process, making it accessible for both the seasoned do-it-yourself hot rodder and the professional EFI tuner.

Forget the hassle of mismatched components, cutting and splicing old wiring harnesses, or relying on re-flashed ECUs from uncertain sources. This kit provides everything you need to complete your LS engine's induction system, promising to get you back on the road faster and with less fuss than virtually any other system available today. Whether you're working with a junkyard-sourced 5.3-litre truck engine or a meticulously built 427 stroker, this comprehensive solution has you covered. It truly takes the guesswork out of getting your new or pull-out LS engine up and running in a flash, earning its moniker as the 'Ultimate EFI'.

Key Features and Benefits That Set It Apart

The Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit is packed with features designed for performance, ease of installation, and user-friendliness. Let's break down what makes this system so effective:

Integrated Self-Learning EFI System

• Self-Learning ECU with Touchscreen Controller: At the heart of this kit is a sophisticated self-learning ECU. This means the system can automatically adjust its fuel and spark delivery based on real-time engine conditions, significantly simplifying the tuning process. The included touchscreen controller allows for easy setup, configuration, and monitoring, eliminating the need for complex laptop software for initial setup.
• Bosch Wide-Band Controlled: The self-learning capability is driven by a high-quality Bosch wide-band O2 sensor. This sensor provides highly accurate air-fuel ratio (AFR) readings to the ECU, allowing for precise adjustments and optimal engine performance and efficiency. A stainless O2 sensor bung, which can be clamped or welded on, is also included for straightforward installation.
• Sequential Fuel and Spark Control with Individual Cylinder Trim: This advanced feature ensures that each cylinder receives the precise amount of fuel and spark at the optimal time. This level of control maximises power output, improves fuel economy, and reduces emissions. The individual cylinder trim allows for fine-tuning each cylinder, compensating for slight variations and ensuring balanced performance across the entire engine.

High-Performance Intake Manifold and Throttle Body

• Fabricated 3mm Thick Aluminium Sheet Metal TIG Welded Intake Manifold: The intake manifold itself is a work of art. Constructed from robust 3mm thick aluminium sheet metal and TIG welded for superior strength and durability, it's designed for optimal airflow. With a height of 6.5 inches and a low-profile design, it's engineered to fit a wide range of applications while providing excellent performance within the 1500-6500 RPM power band, supporting up to 500 HP at the flywheel.
• 92mm High Flow Cable Operated Throttle Body: A crucial component for maximising airflow, the 92mm throttle body is designed for high flow and smooth operation. Positioned at a 7-degree angle, it's engineered to clear most stock truck accessories. However, it's important to note that depending on your specific water pump type, you might need a new water pump bracket for optimal clearance. An optional throttle cable mounting bracket (FiTech part number 70063) is available separately if required.
• Billet Fuel Rails with AN Fittings and Fuel Crossover: The kit includes high-quality billet fuel rails, complete with AN fittings and a fuel crossover. These components ensure a robust, leak-free fuel delivery system capable of supporting the demands of a 500HP engine.

Comprehensive Compatibility and Wiring

• 24X and 58X Crank and Cam Compatible: This broad compatibility means the kit can be used with both earlier (24X) and later (58X) LS engine variants, significantly expanding its application range.
• Compatible with Car and Truck Coils: Whether your LS engine came from a car or a truck, the system is designed to work seamlessly with your existing coil packs. The custom wire harness even utilises the factory coil pack sub-harness, simplifying the wiring process.
• TPS - IAC Sensor: All necessary sensors, including the Throttle Position Sensor (TPS) and Idle Air Control (IAC) sensor, are included for proper engine management.
• Tach Output Driver (5V) and Speedometer Output Driver: The system provides outputs for most tachometers and speedometers, ensuring your dashboard gauges function correctly after the upgrade.
• Fuel Pump Relay Output: A dedicated fuel pump relay output simplifies the wiring of your electric fuel pump.

Fuel Delivery and Tuning Flexibility

• 36 lb/hr Flow-Matched Injectors: The kit comes with a set of 36 lb/hr flow-matched injectors, perfectly sized to support up to 500 HP. Flow-matching ensures consistent fuel delivery across all cylinders for optimal performance.
• On-the-Fly Programmable Target AFR and Timing: While the ECU is self-learning, it also offers the flexibility for on-the-fly programming of target AFR and ignition timing. This allows experienced tuners to fine-tune the system further for specific applications or performance goals, if desired.

Application Suitability: Which LS Engines Benefit?

This intake manifold kit is specifically designed to fit 'Cathedral Port' LS1, LS2, and LS6 cylinder heads. It's engineered for Small Block V8 GEN. III/IV LS-based Chevrolet street and performance engines within a 1500-6500 RPM power-band, supporting up to 500 HP to the flywheel. Below is a detailed list of compatible engine codes and their displacements:

This wide range of compatibility ensures that many LS enthusiasts can benefit from the kit, whether they're upgrading a stock engine or completing a new build.

Important Emissions Information

It is crucial for potential buyers to be aware of the emissions implications of installing this kit. As stated by the manufacturer, this part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing. This means if your vehicle is subject to emissions regulations in your region, this kit may not be suitable for street use. Always check your local regulations before purchasing and installing performance parts.

Frequently Asked Questions (FAQs)

Q1: What does 'self-tuning' mean for this kit?

A1: The self-tuning feature means the ECU (Engine Control Unit) in the kit automatically learns and adjusts the fuel and spark delivery based on real-time sensor data, particularly from the wide-band O2 sensor. This significantly simplifies the setup process, as you don't need extensive manual tuning or dyno time to get the engine running efficiently and powerfully. It continuously optimises performance as you drive.

Q2: Will this kit fit my specific LS engine, like a 5.3L truck engine?

A2: Yes, the kit is designed to fit a wide range of LS engines that utilise 'Cathedral Port' cylinder heads. This includes popular engines like the 4.8L (LR4), 5.3L (L33, L59, LM4, LM7), 5.7L (LS1, LS6), and 6.0L (LQ4, LQ9, LS2). If your engine has cathedral port heads, it's highly likely to be compatible.

Q3: Do I need to buy anything else for the fuel system?

A3: The kit includes billet fuel rails with AN fittings and a fuel crossover, along with 36 lb/hr flow-matched injectors. However, it does not include a fuel pump or fuel lines from the tank to the engine bay. You will need to ensure you have a fuel pump capable of supporting up to 500 HP and appropriate fuel lines for your specific vehicle application.

Q4: What about throttle cable compatibility?

A4: The kit comes with a 92mm high-flow cable-operated throttle body. While it's designed to clear most stock truck accessories, you might need an optional throttle cable mounting bracket (FiTech part number 70063, sold separately) depending on your setup and if you're retaining existing truck accessories. It's advisable to check your specific vehicle's requirements.

Q5: Is this kit suitable for a supercharged or turbocharged LS engine?

A5: The kit is rated for up to 500 HP to the flywheel in naturally aspirated applications. While the base EFI system may be adaptable to forced induction with proper tuning and potentially larger injectors, this specific kit with its included injectors and manifold design is primarily optimised for naturally aspirated setups aiming for that 500HP mark. For forced induction, you would typically need a system designed for higher horsepower and specific boost demands.

Q6: How does the custom wire harness simplify installation?

A6: The custom wire harness included with the kit is designed to be as plug-and-play as possible. Crucially, it reuses your factory coil pack sub-harness, which significantly reduces the amount of new wiring you need to run and connect, making the installation process much cleaner and quicker than piecing together a system from scratch.

Conclusion

The Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit represents a significant leap forward in simplifying high-performance LS engine upgrades. By providing a complete, self-tuning induction system with a robust intake manifold, high-flow throttle body, precise fuel control, and broad compatibility, it eliminates much of the guesswork and complexity traditionally associated with such projects. Whether you're aiming to breathe new life into an existing LS or are embarking on a fresh build, this kit offers a streamlined path to achieving impressive power figures, up to 500 HP, with remarkable ease. It's a testament to modern engineering, allowing enthusiasts to focus more on enjoying the exhilarating performance of their LS-powered vehicle and less on the intricacies of tuning and installation.
