LS327: The Modern Take on a Classic

The rumble of a V8 engine is a sound that stirs the soul of any automotive enthusiast. For decades, the Chevrolet 327 small-block has held a special place in the hearts of many, celebrated for its high-RPM prowess and surprising torque from a relatively compact displacement. Now, General Motors Performance Parts (GMPP) has resurrected this legend in a modern guise: the LS327 crate engine. This isn't just a nostalgic throwback; it's a meticulously engineered powerhouse that marries the spirit of the original 327 with the cutting-edge technology of GM's LS engine family.

The Legacy of the 327

First introduced in 1962, the 327 was a versatile performer, finding its way into a wide array of vehicles, from the iconic fuel-injected Corvettes to the very first Chevrolet Camaros. Its reputation was built on a foundation of exhilarating performance, particularly its ability to rev freely and deliver satisfying torque. While modern engines have surpassed its raw output, the original 327 remains a benchmark for its era, a testament to clever engineering and a potent package for its displacement.

Introducing the LS327: A Modern Interpretation

The LS327 crate engine, part number 19165628, pays homage to its illustrious predecessor by replicating the original 327 cubic inch (5.3-litre) displacement. However, this is where the similarities largely end, as GMPP engineers have infused this powerplant with the robust architecture and advanced technology of the LS engine series. The result is an engine that delivers 327 horsepower and 347 lb-ft of torque, offering a compelling blend of classic character and contemporary performance.

Under the Hood: LS327 Technical Specifications

To truly appreciate the LS327, it's essential to delve into its technical heart. This LS-based V8 features a cast-iron block (P/N 12568734) with a robust 6-bolt main cap design for enhanced rigidity. The nodular iron crankshaft (P/N 12553480) is built to withstand significant stress, coupled with powdered metal steel connecting rods (P/N 12568734) for durability. The pistons (P/N 12571545) are hypereutectic aluminium, featuring a Grafal coating for reduced friction and improved wear resistance, a nod to modern engine building principles.

At its core, the LS327 employs a hydraulic roller camshaft (P/N 12561721) with moderate lift and duration figures: .467 inches intake and .479 inches exhaust lift, with duration at .050 inches measuring 196 degrees intake and 201 degrees exhaust. This camshaft profile is designed to provide a good balance of low-end torque and mid-range pull, suitable for a variety of applications. The cylinder heads (P/N 12559865) are crafted from lightweight aluminium and feature cathedral ports, a hallmark of the LS engine family, with valve sizes of 1.89 inches for the intake and 1.55 inches for the exhaust. The compression ratio is set at a healthy 9.5:1, making it compatible with readily available 87 octane fuel, a significant advantage for street use.

Further enhancing its performance and reliability are investment cast roller trunnion rocker arms (P/N 10214664) with a 1.7:1 ratio. The engine is internally balanced and equipped with a 24X reluctor wheel for compatibility with modern engine management systems. The recommended maximum RPM is 6000, a figure that, while lower than some of the high-winding original 327s, ensures longevity and drivability in a wider range of applications.

Comparing Eras: The 327 vs. Modern LS Power

The provided text offers a fascinating comparison between the legendary L76 327 and a modern 5.3L LS truck engine (LM7). This comparison highlights the evolution of engine technology and how modern designs, even those intended for trucks, can rival the performance of classic muscle car powerplants.

Original L76 327 vs. 5.3L LM7: Stock Performance

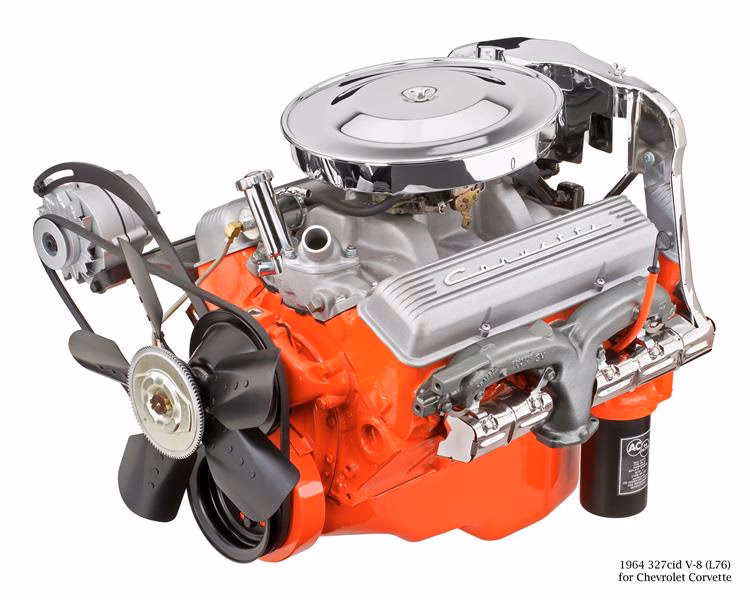

The L76 327, particularly the fuel-injected L84 version, was factory rated at a formidable 375 horsepower, with the carbureted L76 variant at 365 hp. These figures made the 327 the most powerful original muscle-car small block. However, the comparison with a stock 5.3L LM7 reveals just how far engine technology has advanced. While the 327 achieved its power through a higher compression ratio (11.0:1 vs. 9.5:1) and aggressive camshaft timing (254 degrees vs. 191 degrees @ .050), the 5.3L, despite being designed for truck duty, benefited from improved head flow and a long-runner intake manifold.

In a dyno test scenario, a reproduction L76 327 (equipped with 11.0:1 compression, Fuelie heads, Duntov 30/30 cam, dual-plane intake, headers, and a Holley 750 carb) produced 354 horsepower at 6,300 rpm and 363 lb-ft of torque at 4,200 rpm. Astonishingly, a stock 5.3L LM7, also equipped with headers, produced a nearly identical 353 horsepower but at a lower 5,300 rpm, with a superior 384 lb-ft of torque at 4,300 rpm. This demonstrates the 5.3L's inherent low-end grunt, a characteristic often prioritised in truck applications. The L76, however, retained the advantage in high-RPM power delivery.

Modified Performance: Bridging the Gap

The true revelation comes when both engines are subjected to performance upgrades. By adding aftermarket heads, camshafts, and intake manifolds, the performance gap narrows and, in some cases, reverses. The modified L76 327, with AFR 195 Eliminator heads, a COMP 274S cam, and a single-plane intake, reached 462 horsepower at 6,800 rpm and 412 lb-ft of torque at 5,200 rpm. This significantly boosted its high-RPM capabilities.

The modified 5.3L LM7, fitted with ported factory 706 heads and a Crane cam (.590 lift, 224/232 duration), achieved an even more impressive 471 horsepower at 6,500 rpm and 425 lb-ft of torque at 5,200 rpm. These results clearly show that modern, even entry-level, LS engines can be readily transformed into formidable performance packages that rival or even surpass the output of classic muscle car engines, especially when considering their torque characteristics and overall drivability.

Applications and Considerations

The LS327 crate engine is marketed as a versatile option for re-powering trucks, classic vehicles, or street rods. Its blend of classic displacement and modern technology makes it an attractive choice for builders seeking a balance of performance, reliability, and a nod to automotive history. However, it's crucial to be aware of potential implications:

• Emissions Regulations: Depending on your location, certain engine swaps or modifications may be subject to emissions regulations. Always check with your state or local regulatory agency to ensure compliance.
• Warranty: Some applications or modifications may affect the engine's warranty. It's advisable to review the specific warranty information provided by GMPP.
• Application Validation: The suggested applications are merely recommendations. It's the responsibility of the installer to ensure the engine is suitable for their specific build.

The 327 in Corvettes: A Special Connection

The 327 engine holds a particularly esteemed place in the history of the Chevrolet Corvette. The L76 and L84 variants of the 327 were exclusive to Corvettes, cementing the engine's association with America's sports car. This exclusivity, combined with the engine's impressive performance credentials, contributed to the enduring "Corvette engine" moniker that is still used today in enthusiast circles. While the LS327 isn't a direct replica of these Corvette-specific engines, it captures the spirit of performance that made them so revered.

Frequently Asked Questions

What is the displacement of the LS327 engine?

The LS327 has a displacement of 327 cubic inches, which is equivalent to 5.3 litres.

What is the horsepower and torque output of the LS327?

The LS327 crate engine is rated at 327 horsepower and 347 lb-ft of torque.

What type of fuel does the LS327 recommend?

The LS327 is designed to run on 87 octane regular unleaded fuel.

Can the LS327 be used in classic car restorations?

Yes, the LS327 is an excellent option for re-powering classic vehicles, street rods, and trucks, offering a modern interpretation of a classic engine.

How does the LS327 compare to the original 327 engines?

The LS327 shares the 327 cubic inch displacement but utilises the modern LS engine architecture, including different block, head, and camshaft designs, resulting in improved reliability, efficiency, and a different power delivery profile compared to original 327s.

Conclusion

The LS327 crate engine from GMPP is more than just a nod to the past; it's a forward-thinking approach to automotive performance. By blending the iconic displacement and character of the original 327 with the proven technology and robustness of the LS engine family, GMPP has created a powerplant that is both a fitting tribute and a capable performer for today's automotive landscape. Whether you're restoring a classic muscle car, building a custom truck, or embarking on a unique street rod project, the LS327 offers a compelling package that honours a legendary engine while embracing modern engineering excellence.
