KTM 65 SX: Maintenance Essentials

KTM 65 SX: Essential Maintenance for Young Racers

The KTM 65 SX is a fantastic entry point into the world of motocross for young riders, typically aged between 8 and 12, and up to approximately 1.60m in height. It's a machine built for fun, learning, and the beginnings of a competitive spirit. However, like any high-performance off-road vehicle, consistent and correct maintenance is paramount to ensuring longevity, reliability, and optimal performance. This guide delves into the essential aspects of keeping your KTM 65 SX in peak condition, covering everything from routine checks to more involved servicing.

Understanding the core components and their needs will not only prevent costly breakdowns but also enhance the rider's experience and confidence. A well-maintained bike is a safer and faster bike. Let's explore what it takes to keep this mini-motocrosser roaring.

Understanding Your KTM 65 SX Engine

The heart of the KTM 65 SX is its potent 65cc, single-cylinder, 2-stroke engine. This water-cooled powerhouse features reed intake and exhaust control, designed for punchy power delivery. The engine relies on a mixture of premium unleaded fuel and 2-stroke engine oil, typically at a ratio of 1:60, for lubrication. This mixture is crucial for protecting the internal components from wear and tear.

The engine is paired with a smooth-shifting, six-speed transmission, which is claw-shifted. This setup allows young riders to learn gear selection and manage power effectively on the track. The cooling system is liquid-cooled, meaning it utilises a coolant to dissipate heat, preventing the engine from overheating during demanding use. Regular checks of the coolant level and the condition of the hoses are vital.

Key Maintenance Intervals and Checks

Regular servicing is the bedrock of motorcycle ownership. For a KTM 65 SX, especially one being used regularly for off-road riding, adhering to a strict maintenance schedule is non-negotiable. While a dedicated service manual is the ultimate reference, here’s a breakdown of common checks and intervals:

After Every Ride: The Immediate Post-Ride Check

This is perhaps the most critical time to inspect your bike. A quick once-over after each session can catch minor issues before they escalate.

• Clean the Bike: Remove mud, dirt, and debris. This not only keeps it looking good but also allows you to spot any leaks or damage easily. Pay attention to the air filter housing and the carburettor area.
• Check Fluids: Briefly check the coolant level and look for any obvious fluid leaks around the engine, hoses, and clutch master cylinder.
• Inspect Tyres: Ensure tyre pressures are correct and check for any signs of damage, cuts, or excessive wear.
• Chain and Sprocket Check: Inspect the drive chain for proper tension and lubrication. Ensure the sprockets aren't excessively worn.
• General Visual Inspection: Look for loose bolts, damaged levers, or any signs of stress on the frame or suspension components.

Every 5-10 Hours of Riding: Intermediate Servicing

These tasks require a bit more time and attention but are essential for maintaining engine health and performance.

• Air Filter Cleaning/Replacement: This is one of the most important maintenance tasks for a 2-stroke off-road bike. A dirty air filter restricts airflow, reducing power and potentially allowing dirt into the engine. Clean or replace the air filter using the correct filter oil.
• Spark Plug Inspection: Remove, inspect, and clean or replace the spark plug. Check the electrode for wear and deposits. Ensure the gap is set correctly.
• Carburettor Check: Inspect the carburettor for cleanliness. Ensure the jets are clear and the float bowl is free of debris.
• Chain Lubrication and Adjustment: Properly lubricate the drive chain and adjust its tension according to the manufacturer's specifications.
• General Bolt Check: Go over all accessible bolts and nuts on the bike and ensure they are tightened to the correct torque.

Every 20-30 Hours of Riding: Major Service

These intervals typically involve more in-depth work on the engine and drivetrain.

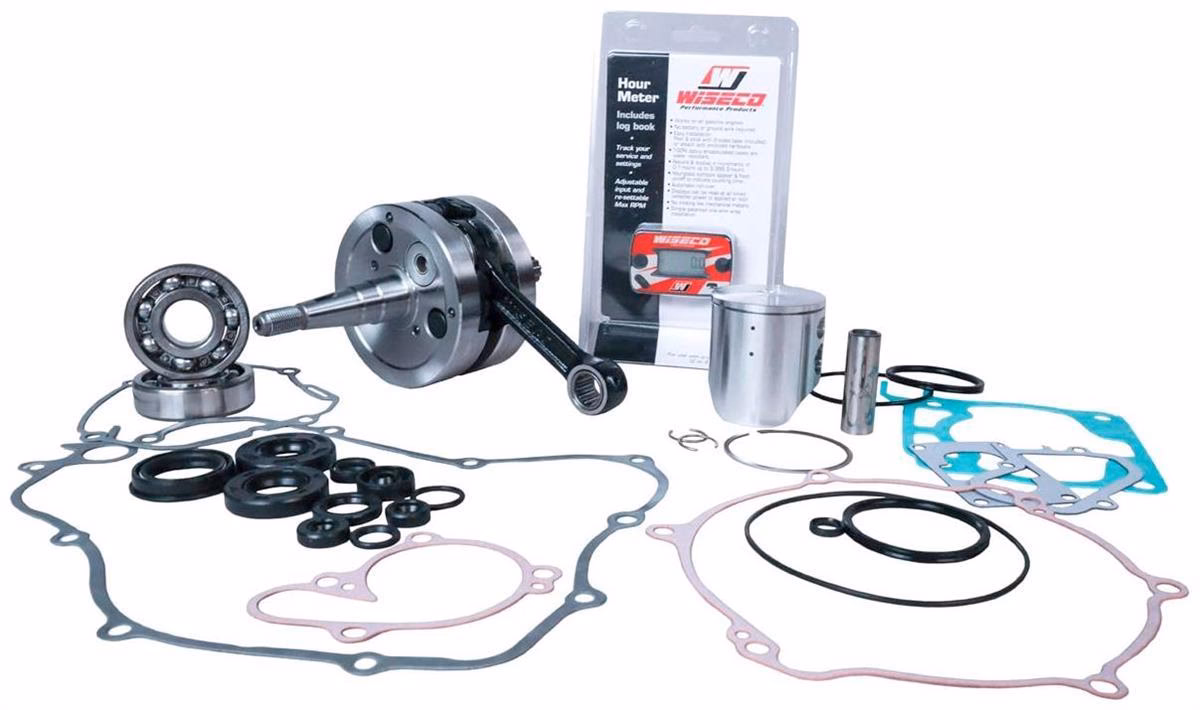

• Top-End Rebuild (Piston and Rings): For a 2-stroke, the piston and rings are wear items. Depending on riding conditions and how hard the bike is ridden, a top-end rebuild might be necessary every 20-30 hours. This involves replacing the piston, piston rings, and possibly the small-end bearing.
• Transmission Oil Change: While not explicitly stated for the 65 SX in the provided text, many motorcycles benefit from periodic transmission oil changes. Consult a service manual for specific recommendations if available.
• Brake System Inspection: Check brake fluid levels, inspect brake pads for wear, and ensure the brake discs are in good condition. Bleeding the brake system might be necessary if the feel is spongy.
• Suspension Service: Fork seals and oil can degrade over time. A service involving fork oil changes and seal inspection can significantly improve suspension performance.
• Coolant Flush and Replacement: Over time, coolant can lose its anti-corrosive properties. Flushing and replacing the coolant ensures the cooling system remains protected.

Common Issues and Troubleshooting

While the KTM 65 SX is a robust machine, like any performance off-road bike, it can encounter specific issues. Being aware of these can save time and frustration.

• Carburettor Jetting: Incorrect jetting can lead to poor performance, bogging, or the engine running too lean or too rich. This is often influenced by altitude, temperature, and humidity. Experimenting with different jet sizes might be necessary for optimal performance in your specific riding environment.
• Clutch Drag: If the clutch doesn't disengage fully, it can make shifting difficult and cause premature wear. Ensure the clutch fluid is at the correct level and that the clutch plates are not sticking.
• Overheating: Ensure the cooling system is functioning correctly, the radiator is clean and free of blockages, and the coolant level is adequate. Air pockets in the cooling system can also cause overheating.
• Chain Wear: A worn chain and sprockets can lead to poor power transfer and can be a safety hazard if they break. Regular cleaning, lubrication, and tension checks are key.

Brakes: Formula for Success

KTM equipped the 65 SX with a capable brake system developed by FORMULA. This includes robust 4-piston brake callipers at the front and rear, clamping down on lightweight Wave brake discs (198mm front, 160mm rear). Proper brake maintenance is crucial for rider safety and control.

• Pad Wear: Regularly inspect the brake pads for thickness. Replace them when they reach their minimum thickness specification.
• Disc Condition: Check the brake discs for warping, scoring, or excessive wear.
• Brake Fluid: Brake fluid absorbs moisture over time, reducing its boiling point and performance. It's recommended to flush and replace the brake fluid periodically, typically every 1-2 years, or as per the service manual.
• Bleeding: If the brake lever feels spongy, the system may need to be bled to remove air.

Suspension: WP Performance

The WP suspension components, including the upside-down telescopic fork and the rear shock absorber, are a significant part of the KTM 65 SX's performance. These are designed to be adjustable for both rebound and compression damping, allowing riders to fine-tune the bike's handling to their weight and riding style.

• Adjustments: Understanding how to adjust the compression and rebound damping is key. Generally, more compression damping slows the suspension's reaction to bumps, while more rebound damping controls how quickly the suspension returns. Start with the manufacturer's recommended settings and adjust incrementally.
• Seal Care: Keep the fork stanchions clean. Dirt and debris can damage the fork seals, leading to oil leaks and poor suspension performance.
• Oil Changes: As mentioned in the major service, fork oil and shock oil should be changed periodically to maintain their lubricating and damping properties.

Service Manual: The Ultimate Guide

While this article provides a comprehensive overview, a dedicated KTM 65 SX service manual is the definitive resource for detailed procedures, torque specifications, and troubleshooting guidance. If you are serious about maintaining your child's KTM 65 SX, investing in an official service manual is highly recommended. These manuals provide step-by-step instructions for almost every maintenance and repair task, ensuring that work is carried out correctly.

Frequently Asked Questions (FAQs)

• Q1: How often should I clean the air filter on my KTM 65 SX?
  A1: For regular use, cleaning the air filter after every ride is highly recommended. If riding in very dusty conditions, it may need cleaning more frequently.
• Q2: What is the correct fuel/oil mixture for the KTM 65 SX?
  A2: The typical mixture is 1:60 (1 part 2-stroke oil to 60 parts premium unleaded fuel). Always refer to your specific model's recommendations if available.
• Q3: My KTM 65 SX is bogging when I accelerate. What could be the cause?
  A3: This is often due to incorrect carburettor jetting, a dirty air filter, or a clogged fuel filter. Start by checking the air filter and then investigate the carburettor.
• Q4: Can a beginner rider perform these maintenance tasks?
  A4: Many basic maintenance tasks, like cleaning the air filter, checking fluids, and cleaning the bike, are suitable for beginners with adult supervision. More complex tasks like engine rebuilds are best left to experienced individuals or professionals.
• Q5: Where can I find a KTM 65 SX service manual?
  A5: Official service manuals can often be purchased from authorised KTM dealerships or reputable online motorcycle parts retailers.

By investing time and care into the maintenance of your KTM 65 SX, you ensure that young riders can enjoy their passion safely and competitively. Regular attention to detail will pay dividends in performance, reliability, and the overall enjoyment of motocross.
