Jaguar XF X250 Oil Capacity & Service Guide

Maintaining a luxury saloon like the Jaguar XF X250 is paramount for its longevity, performance, and the sheer driving pleasure it offers. One of the most fundamental aspects of this maintenance is ensuring your engine has the correct amount and type of oil. While the process might seem straightforward, as many seasoned DIY mechanics can attest, it can sometimes present unexpected challenges, turning a routine service into a memorable troubleshooting session. Understanding your vehicle's specific requirements, such as its oil capacity, is the first step towards a successful and stress-free service.

The Jaguar XF X250, produced between 2007 and 2015, came with a range of sophisticated engines, both petrol and diesel, each with slightly different oil requirements. Knowing the precise quantity of engine oil your specific model needs is crucial to prevent under-filling, which can lead to inadequate lubrication and engine wear, or over-filling, which can cause excessive pressure, oil foaming, and seal damage. This guide will delve into the specifics of oil capacity for common XF X250 engines, discuss the importance of oil type, walk you through best practices for an oil change, and even help you navigate those surprising post-service hiccups that can leave you scratching your head.

Jaguar XF X250 Engine Oil Capacities

The amount of engine oil your Jaguar XF X250 requires largely depends on the specific engine fitted to your vehicle. It's always advisable to consult your owner's manual for the most accurate and up-to-date information, as capacities can sometimes have minor variations even within the same engine code, perhaps due to slight design revisions or market-specific differences. However, here are the typical oil capacities for the most common Jaguar XF X250 engine variants, including the oil filter:

• 2.2L Diesel (e.g., AJ-i4D): Typically requires around 5.9 to 6.5 litres of engine oil. This efficient four-cylinder diesel was popular for its balance of performance and economy.
• 3.0L V6 Diesel (e.g., AJ-V6D): These powerful V6 diesels usually need between 6.5 and 7.2 litres of engine oil. This engine was available in various power outputs (240PS, 275PS, 300PS for later models).
• 3.0L V6 Petrol (e.g., AJ126 Supercharged): For the supercharged V6 petrol engines, the capacity is generally in the range of 6.5 to 7.0 litres.
• 5.0L V8 Petrol (e.g., AJ133 Naturally Aspirated and Supercharged): The mighty V8 engines, both naturally aspirated and supercharged, typically require around 7.0 to 7.5 litres of engine oil. These engines are known for their robust performance.

It's important to note that these figures are approximate and include the oil that will fill the new oil filter. When refilling, always add slightly less than the stated capacity, then start the engine for a minute or two to circulate the oil and fill the filter. Switch off, wait a few minutes for the oil to settle, and then check the dipstick (or electronic oil level indicator if your model has one). Top up gradually until the oil level is between the minimum and maximum marks, ideally closer to the maximum mark without exceeding it.

Choosing the Right Engine Oil: Specification and Viscosity

Beyond the quantity, the specification and viscosity of the engine oil are critically important for the health and longevity of your Jaguar XF's engine. Modern engines, especially those with advanced emission control systems like Diesel Particulate Filters (DPFs), require very specific oil formulations.

• Viscosity (e.g., 5W-30, 0W-30): This refers to the oil's thickness at different temperatures. The 'W' stands for winter, indicating its flow at cold temperatures. A 5W-30 oil is very common for the XF X250, offering good cold-start protection and stable performance at operating temperatures. Some later models or specific engines might recommend 0W-30. Always adhere to the manufacturer's recommended viscosity for your climate.
• Specification (e.g., ACEA, API, OEM Standards): Jaguar Land Rover (JLR) specifies particular oil standards for their engines. For many XF X250 models, particularly the diesels, oils meeting ACEA C1 or C2 are often required. These are 'low SAPS' (Sulphated Ash, Phosphorus, Sulphur) oils, designed to protect DPFs from clogging. For petrol engines, ACEA A5/B5 or specific JLR standards like STJLR.03.5003 might be specified. Using an oil that does not meet the correct specification can lead to premature engine wear, DPF issues, and even void your warranty. Always look for the specific JLR approval code on the oil bottle.

Using the correct oil is non-negotiable. It ensures proper lubrication, heat dissipation, and keeps the engine clean by suspending contaminants.

The Oil Change Procedure: Draining vs. Extraction

The user's experience highlights the common debate: draining oil from underneath or extracting it through the dipstick tube. Both methods have their proponents and detractors.

Draining from Underneath (The 'Old School' Way)

This method involves raising the car safely, placing a drain pan beneath the sump, and removing the drain plug. Many mechanics, like the user, prefer this method as it offers a visual confirmation that all oil is draining. The belief is that gravity helps remove more sludge and contaminants that might settle at the bottom of the sump. It also allows for the inspection of the drain plug and sump for any damage or metal shavings, which could indicate internal engine issues. However, it can be messier and requires proper lifting equipment and safety precautions.

Top Extraction

This method uses a vacuum pump to draw oil out through the dipstick tube. It's generally cleaner, quicker, and doesn't require lifting the vehicle. It's often favoured by workshops for efficiency. The main concern raised by some is whether it truly removes all the old oil, especially any heavier sludge that might settle at the very bottom of the sump. For most modern engines, however, the design of the sump and dipstick tube is such that extraction is highly effective.

Ultimately, both methods are effective if performed correctly. For the DIY enthusiast, draining from underneath can be more satisfying and offers a greater sense of thoroughness, as the user found.

Step-by-Step Oil Change (Draining Method)

1. Warm Up the Engine: Drive the car for 10-15 minutes to warm the oil. Warm oil flows more easily and carries more contaminants.
2. Prepare the Vehicle: Park on a level surface. Apply the handbrake. Safely raise the front of the vehicle using a jack and secure it with axle stands. Never rely solely on a jack.
3. Locate and Prepare: Place a large drain pan beneath the sump. Locate the drain plug on the oil sump.
4. Drain the Oil: Carefully remove the drain plug (use the correct size socket). Be prepared for the oil to come out quickly and hot. Allow ample time for the oil to drain completely – this can take 15-30 minutes.

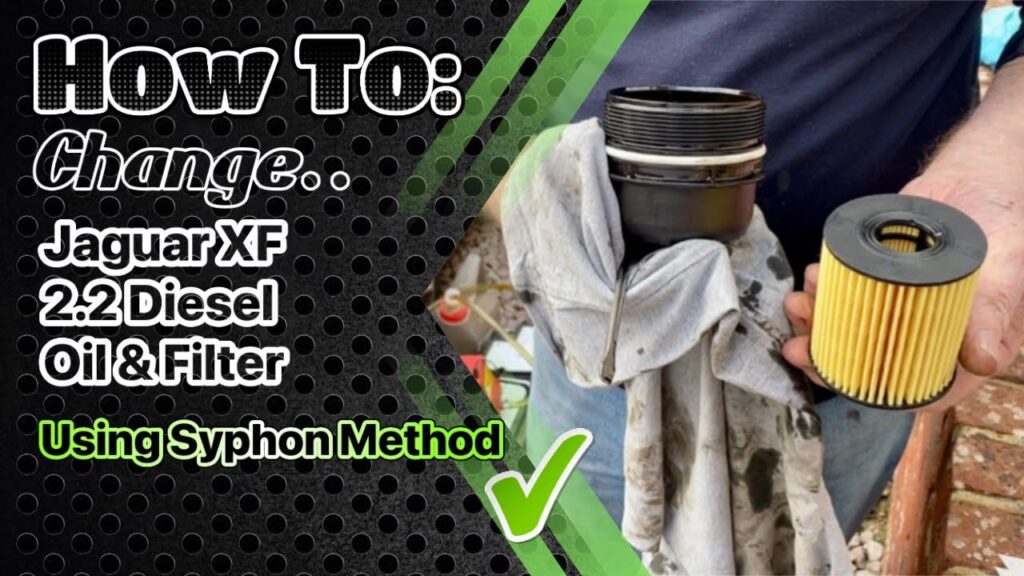

5. Replace Oil Filter: While the oil is draining, locate and remove the oil filter. This is where the XF X250 can be tricky! As the user mentioned, the filter location (often on the side of the engine, sometimes requiring specific tools or a flexible wrench) can be tight and lead to spills. Have rags or absorbent material ready. Ensure the old O-ring is removed from the filter housing if it's a cartridge type.
6. Install New Filter: Lubricate the rubber seal of the new filter with a little fresh engine oil. Install the new filter, tightening it by hand until snug, then a further quarter to half turn (consult filter instructions for torque). For cartridge filters, ensure the new O-rings are correctly seated and tighten the housing to the specified torque.
7. Replace Drain Plug: Once the oil has fully drained, clean the drain plug and replace its washer with a new one. This new washer is crucial for preventing leaks. Reinsert the drain plug and tighten it to the manufacturer's specified torque. Do not overtighten.
8. Refill with New Oil: Lower the vehicle. Using a funnel, slowly add the recommended amount of new, correct specification engine oil to the filler cap.
9. Check Level: Start the engine and let it run for a minute or two to circulate the oil and fill the filter. Switch off and wait 5-10 minutes for the oil to settle. Check the oil level using the dipstick (or electronic indicator) and top up as necessary until it's between the min/max marks.
10. Final Check: Check under the car for any leaks around the drain plug or oil filter. Dispose of the old oil and filter responsibly at an authorised recycling centre.

Troubleshooting Post-Service Starting Issues

The user's experience with the car starting then cutting off, and then refusing to start after a B service (which included a fuel filter change), is a classic symptom of air in the fuel system, particularly common in diesel engines. This is a critical point to address, as it caused significant distress and battery drain for the user.

The Fuel System Priming Challenge

When a fuel filter is changed, especially on a diesel engine, air can enter the fuel lines. Diesel injection systems are very sensitive to air and cannot operate effectively with it present. The engine will crank, perhaps even briefly fire, but then immediately cut out as it starves for fuel. This is where priming the fuel system becomes essential.

• How to Prime (General for Diesel XF):
  • Ignition Cycling: For many modern diesels, simply turning the ignition to the 'ON' position (without starting the engine) for 10-15 seconds, then turning it 'OFF', and repeating this cycle several times (5-10 times or more) is sufficient. This allows the electric fuel pump (if fitted, or the high-pressure pump to draw) to push fuel through the lines and expel air back to the tank. You might hear the pump working during this process.
  • Manual Priming Pump: Some older or commercial diesel systems have a manual priming pump (often a plunger or bulb) on the fuel filter housing itself. The XF X250 typically relies on the electric pump.
  • Bleeding Screws: In some cases, especially if a lot of air has entered, it might be necessary to slightly loosen a bleed screw on the fuel filter housing or injection pump to allow air to escape while the ignition is cycled, then retighten once fuel flows without bubbles. However, this is less common for the XF X250 and generally not recommended unless you are certain of the procedure.
• Why it Happened: The initial start-and-cut was the engine trying to run on the small amount of fuel left in the high-pressure lines. Once that was gone, and with air blocking the flow from the tank, it wouldn't restart.
• Battery Drain: Repeated cranking attempts quickly drain a car battery, especially if it's not in peak condition. The user's need for a jump start highlights this. When priming, avoid excessive cranking; focus on cycling the ignition.
• Hesitation After Starting: Even after the engine fires, there might still be small amounts of air working their way through the system, leading to initial hesitation or rough running. A few short drives, as the user found, typically clear this up as the fuel system fully purges itself.

This experience underscores the importance of knowing the correct post-fuel filter change procedure for your specific vehicle. For diesel Jaguars, always anticipate the need to prime the fuel system.

Other Post-Service Checks

• Fluid Levels: Double-check all fluid levels (oil, coolant, power steering, brake fluid).
• Leaks: Inspect thoroughly for any oil, fuel, or coolant leaks.
• Tightness: Ensure all caps, plugs, and filter housings are correctly tightened.
• Warning Lights: Confirm no new warning lights are illuminated on the dashboard.

The Importance of Regular Oil Changes

Engine oil is the lifeblood of your vehicle. It performs several critical functions:

• Lubrication: Reduces friction between moving parts, preventing wear and tear.
• Cooling: Helps dissipate heat generated by the engine's internal combustion.
• Cleaning: Contains detergents that suspend contaminants and carry them to the oil filter.
• Sealing: Forms a seal between the piston rings and cylinder walls to prevent combustion gases from escaping.
• Corrosion Protection: Protects metal components from rust and corrosion.

Over time, oil breaks down, loses its lubricating properties, and becomes contaminated with combustion by-products, dirt, and metal particles. Neglecting oil changes can lead to:

• Increased engine wear and premature component failure.
• Reduced fuel efficiency.
• Overheating.
• Sludge build-up.
• Catastrophic engine damage, potentially leading to expensive repairs or even engine replacement.

For the Jaguar XF X250, service intervals are typically recommended annually or every 10,000 to 16,000 miles (16,000 to 26,000 km), whichever comes first. Always refer to your vehicle's service schedule in the owner's manual.

Essential Tools and Materials for an Oil Change

Having the right tools makes the job safer and easier:

• Socket wrench set (for drain plug and potentially filter housing)
• Torque wrench (for drain plug and filter housing)
• Oil filter wrench (specific type might be needed for the XF's filter)
• Drain pan (large enough for full oil capacity)
• Jack and axle stands (for safety when working underneath)
• Funnel
• New engine oil (correct specification and quantity)
• New oil filter (correct part number)
• New drain plug washer
• Gloves and safety glasses
• Rags or absorbent pads

Table: Common Jaguar XF X250 Engine Oil Specifications & Capacities

Note: Always verify exact specifications and capacities in your vehicle's owner's manual.

Frequently Asked Questions (FAQs)

Q1: Can I use a different viscosity oil if the recommended one isn't available?

A: It's strongly advised to stick to the manufacturer's recommended viscosity. Using an oil that is too thick or too thin can compromise lubrication, fuel efficiency, and engine protection, especially in extreme temperatures.

Q2: What happens if I overfill the engine oil?

A: Overfilling can be as damaging as underfilling. It can lead to increased pressure in the crankcase, causing oil to foam (aeration), which reduces its lubricating properties. This can damage seals, leading to leaks, and potentially cause hydraulic lock if enough oil gets into the combustion chambers.

Q3: How often should I check my oil level?

A: It's a good habit to check your oil level regularly, ideally once a month or before a long journey. Many modern cars consume a small amount of oil between services, and regularly checking ensures you catch any significant drops early.

Q4: What is a 'B Service' on a Jaguar XF?

A: A 'B Service' typically refers to a more comprehensive maintenance interval than a basic oil change ('A Service'). It usually includes an oil and filter change, air filter replacement, fuel filter replacement (especially on diesels), cabin filter replacement, and a thorough inspection of brakes, suspension, steering, and fluid levels. The specific items can vary slightly by model year and region.

Q5: My XF has an electronic oil level indicator, not a dipstick. How do I check it?

A: Consult your owner's manual. Typically, the electronic oil level can be checked via the infotainment screen or instrument cluster menu. The car usually needs to be on a level surface and the engine switched off for a few minutes to allow the oil to settle for an accurate reading.

Q6: Why is my oil filter so difficult to access on my XF X250?

A: Many manufacturers design engines to be compact, which can sometimes lead to awkward component placement for maintenance. The XF X250's oil filter location is a known challenge for some engine variants. Special oil filter wrenches (e.g., cap-style wrenches specific to Jaguar filters) and patience are often required. Preparing for spills with absorbent pads is also wise.

Conclusion

Performing your own maintenance on a Jaguar XF X250 can be a rewarding experience, offering both satisfaction and significant cost savings. However, it requires meticulous attention to detail, adherence to manufacturer specifications, and an understanding of potential pitfalls. Knowing the correct oil capacity for your specific engine, using the right oil specification, and being prepared for issues like fuel system priming after a filter change are all vital aspects of a successful service. While challenges may arise, as experienced by the user with their post-fuel filter starting issue, arming yourself with knowledge and the right tools ensures that your elegant Jaguar XF continues to perform at its best, providing miles of refined driving pleasure.
