Why 2-Stroke Engines Emit More Hydrocarbons

Understanding Hydrocarbon Emissions in 2-Stroke Engines

Two-stroke engines, renowned for their simplicity, high power-to-weight ratio, and compact design, are commonly found in a variety of applications, from chainsaws and leaf blowers to older motorcycles and outboard motors. However, a significant characteristic that distinguishes them from their four-stroke counterparts is their tendency to emit higher levels of hydrocarbons (HC). This article delves into the reasons behind this phenomenon, exploring the fundamental operating principles of 2-stroke engines and the technological advancements aimed at mitigating these emissions.

What Exactly is a 2-Stroke Engine?

At its core, a 2-stroke engine is an internal combustion engine that completes a power cycle in just two movements of the piston, or one revolution of the crankshaft. This contrasts with a 4-stroke engine, which requires four piston movements (two crankshaft revolutions) to complete a cycle. This rapid cycle allows a 2-stroke engine to deliver a power stroke for every revolution, contributing to its characteristic briskness and power density. This design makes them particularly attractive for applications where reducing weight and complexity is paramount, without compromising on immediate power delivery.

The 2-Stroke Cycle Explained

The magic of the 2-stroke engine lies in its ability to combine the intake, compression, power, and exhaust functions into just two strokes:

• Upstroke (Compression and Intake): As the piston moves upwards, it compresses the air-fuel mixture already present in the combustion chamber. Simultaneously, this upward movement creates a vacuum in the crankcase. This vacuum draws a fresh charge of air and fuel through an intake port, often controlled by a reed valve, into the crankcase. The reed valve acts as a one-way gate, preventing the mixture from escaping back out.
• Downstroke (Power and Exhaust/Transfer): At the peak of the upstroke, the spark plug ignites the compressed air-fuel mixture, initiating the power stroke. The resulting explosion forces the piston downwards. As the piston descends, it first uncovers the exhaust port, allowing the burnt gases to escape. Shortly after, it uncovers the transfer port(s). The downward movement of the piston also pressurises the crankcase, forcing the fresh air-fuel mixture that was drawn in during the upstroke, through the transfer ports, and into the combustion chamber. This fresh charge helps to scavenge (push out) the remaining exhaust gases, a process crucial to the engine's operation.

Key Components of a 2-Stroke Engine

Understanding the components helps in grasping the emission dynamics:

• Cylinder and Piston: The heart of the engine where combustion takes place, converting chemical energy into mechanical force.
• Crankcase: This acts as both a housing for the crankshaft and, crucially, as a pre-compression chamber for the incoming air-fuel mixture.
• Spark Plug: Initiates combustion.
• Fuel Intake System: Typically a carburetor, but increasingly sophisticated fuel injection systems are used.
• Exhaust System: Manages the expulsion of burnt gases. The timing of the exhaust port opening is critical for performance and can influence emissions.
• Cooling System: Essential to prevent overheating, often air-cooled for simplicity.

The Role of Lubrication in 2-Stroke Engines

Unlike 4-stroke engines that have a dedicated oil sump and circulation system, 2-stroke engines lubricate their internal moving parts (crankshaft, connecting rod, piston rings, cylinder walls) by mixing oil directly with the fuel or injecting it into the crankcase. This oil is then burned along with the fuel and expelled through the exhaust. This method, while simple, is a primary contributor to higher hydrocarbon emissions because:

• Unburned Oil: A portion of the lubricating oil does not fully combust and is expelled as unburned hydrocarbons.
• Scavenging Loss: During the simultaneous exhaust and transfer port opening, some of the fresh, unburnt fuel-air mixture (which includes the oil) can escape directly into the exhaust system before it has a chance to be burned.

Why the Higher Hydrocarbon Output?

The inherent design of the 2-stroke engine leads to several factors contributing to elevated hydrocarbon emissions compared to 4-stroke engines:

• Incomplete Combustion: The rapid cycle and the overlap between the exhaust and intake/transfer processes mean that combustion may not always be as complete as in a 4-stroke. Some fuel-air mixture can escape unburned.
• Fuel-Oil Mixture: The lubricating oil, when mixed with fuel, is also combustible. However, it's designed for lubrication, not optimal combustion. Incomplete burning of this oil contributes significantly to hydrocarbon and particulate matter emissions.
• Scavenging Inefficiency: The process of using the incoming fresh charge to push out exhaust gases (scavenging) is not perfectly efficient. Some fresh charge inevitably mixes with or escapes past the exhaust port, carrying unburned fuel and oil with it.
• Crankcase Lubrication: The oil that lubricates the crankcase and crankshaft is also drawn into the combustion chamber and burned. This oil combustion is a major source of unburned hydrocarbons.

2-Stroke vs. 4-Stroke Engines: A Comparison

To better understand the emission differences, let's compare key aspects:

Can 2-Stroke Oil Go Bad?

Yes, 2-stroke oil, like most petroleum-based products, can degrade over time. While it has a relatively long shelf life if stored correctly—in a sealed container, in a cool, dry place away from direct sunlight—factors like extreme temperatures, moisture, and air exposure can accelerate its breakdown. Signs of degradation include separation, discoloration, or unusual odours. Using degraded oil can lead to reduced lubrication effectiveness, potentially causing engine damage. While there isn't a strict expiration date, it's advisable to use it within a few years of purchase to ensure optimal performance and engine protection.

Environmental Impact Reduction: Technological Advancements

The environmental concerns associated with 2-stroke engines have spurred significant innovation:

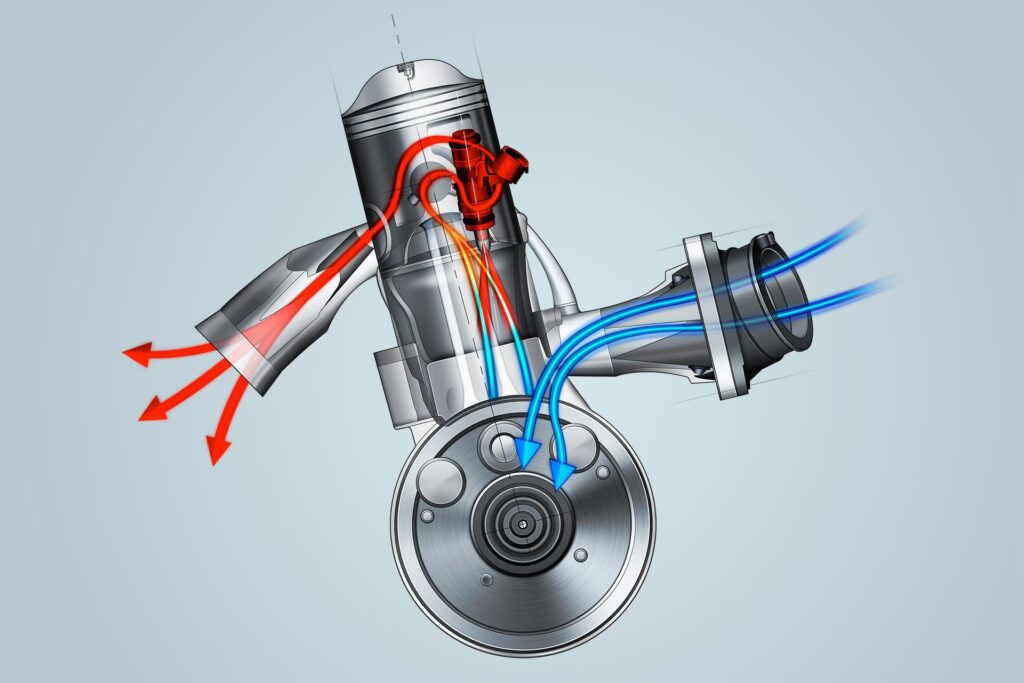

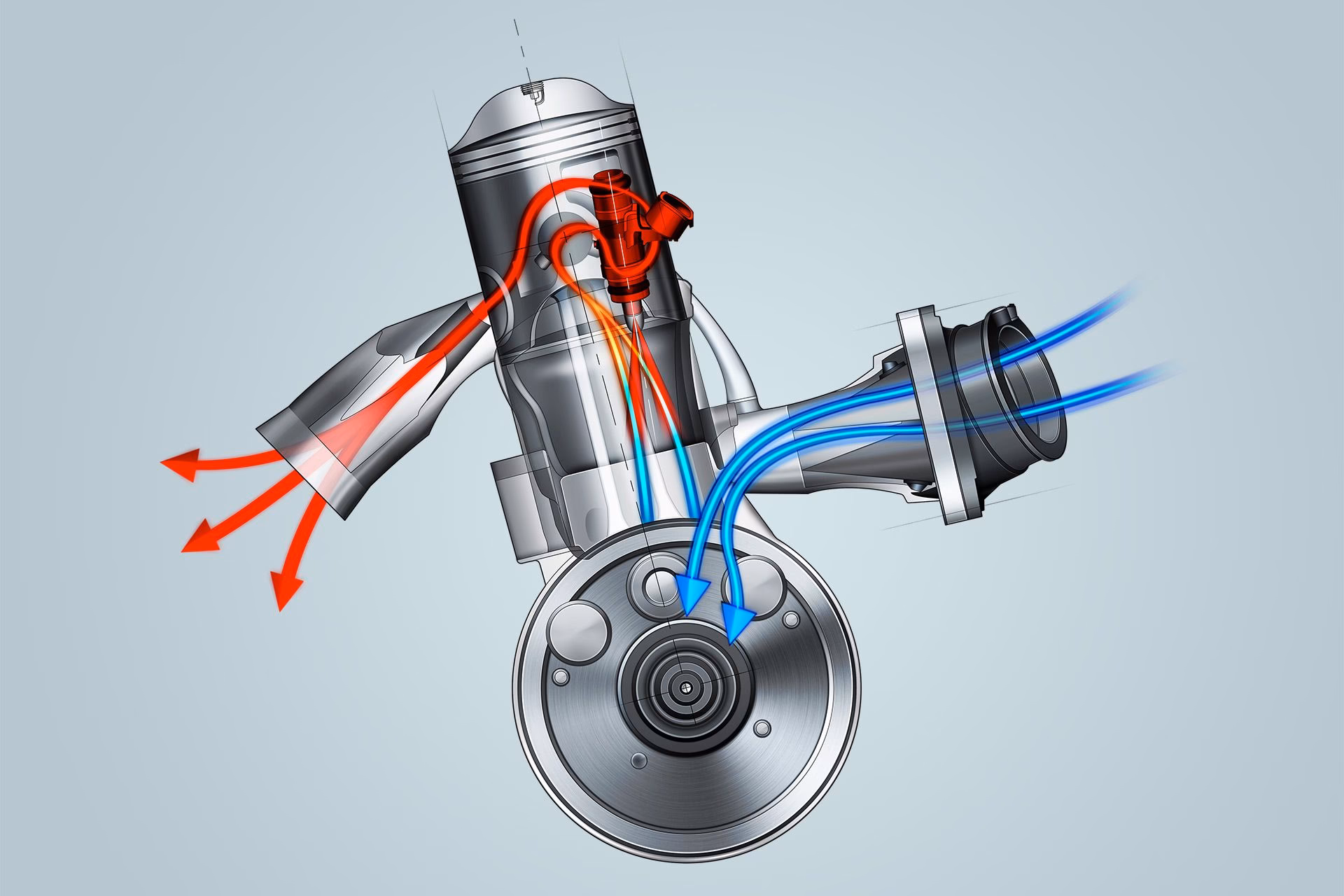

• Direct Fuel Injection (DFI): This is a game-changer. In DFI systems, fuel is injected directly into the cylinder at the precise moment needed for combustion, bypassing the crankcase. This dramatically reduces the amount of unburned fuel and oil that escapes through the exhaust. Modern DFI 2-stroke engines can see hydrocarbon emission reductions of up to 70% compared to older carburetted models.
• Improved Lubricants: The development of synthetic and biodegradable 2-stroke oils has also played a role. These oils are often formulated for more complete combustion and reduced emissions.
• Exhaust After-treatment: Similar to 4-stroke engines, some advanced 2-stroke engines may incorporate catalytic converters or other exhaust treatment systems to further reduce harmful emissions.

These advancements have significantly narrowed the gap between 2-stroke and 4-stroke engines in terms of emissions and fuel efficiency. Modern 2-stroke engines with DFI can achieve emission levels and fuel economy figures that were once unthinkable for this engine type, sometimes reducing the hydrocarbon emission difference to as little as 20-30% under specific operating conditions.

Frequently Asked Questions

Q1: Why do 2-stroke engines smell different?
The distinct smell often associated with 2-stroke engines comes from the burning of the lubricating oil mixed with the fuel, as well as the less complete combustion compared to 4-stroke engines.

Q2: Can I use regular 4-stroke oil in my 2-stroke engine?
No, absolutely not. 2-stroke oil is specifically formulated to be mixed with fuel and burned. 4-stroke oil is designed for a recirculating system and will not lubricate a 2-stroke engine properly, leading to rapid engine failure. It will also cause excessive smoke and fouling.

Q3: How can I reduce emissions from my older 2-stroke engine?
Ensure you are using the correct, high-quality 2-stroke oil at the recommended ratio. Keep the engine well-maintained, including the carburetor and exhaust system. Using a modern, high-performance 2-stroke oil can also help.

Q4: Are 2-stroke engines banned?
In many regions, the sale and use of new 2-stroke engines, particularly in vehicles and marine applications, are restricted or banned due to emissions regulations. However, they remain popular in many small engine applications where their advantages are significant, and modern technologies are making them cleaner.

Conclusion

The higher hydrocarbon emissions from 2-stroke engines are a direct consequence of their design, particularly the combined intake/exhaust cycle and the necessary practice of mixing lubricating oil with the fuel. While these engines offer distinct advantages in terms of power density and simplicity, their environmental impact has historically been a concern. However, through significant technological advancements like direct fuel injection and improved lubricants, the emission profile of modern 2-stroke engines has been dramatically improved, making them a more environmentally viable option for many applications.
