Mastering Your Jaguar's Braking System

The braking system in your Jaguar is arguably its most critical safety feature, designed to bring your vehicle to a swift, controlled stop when needed. While the thrill of acceleration is often celebrated, the assurance of reliable stopping power is what truly provides peace of mind on the road. Understanding how your brakes work, what components are involved, and recognising the signs of wear are fundamental aspects of responsible car ownership. This guide aims to demystify the intricacies of your Jaguar's braking system, empowering you with the knowledge to maintain its peak performance and, more importantly, your safety.

The Anatomy of Your Jaguar's Braking System

At the heart of any modern vehicle's braking system, including Jaguars, lies a sophisticated hydraulic setup that translates the pressure from your foot on the brake pedal into immense stopping force at each wheel. While the specific configurations may vary slightly between models like the Jaguar X-Type or XE, the core principles remain consistent.

Brake Pads: The Friction Fighters

Brake pads are the unsung heroes of your braking system. They consist of a specially formulated friction material bonded to a sturdy steel backing plate. When you depress the brake pedal, hydraulic pressure forces the brake pads to clamp down on the brake rotors. This action generates the friction necessary to slow and eventually stop your car's wheels. Over thousands of miles, this friction material naturally wears away, much like the sole of a shoe, necessitating replacement to maintain effective braking.

Brake Rotors: The Heat Dissipators

Working in tandem with the brake pads are the brake rotors, often referred to as brake discs. These are heavy, flat discs typically made of cast iron, attached to the wheel hub. As the brake pads press against the rotor's surfaces, the friction not only slows the wheel but also generates significant heat. Modern rotors often feature internal cooling fins to dissipate this heat efficiently, preventing overheating and maintaining consistent braking performance. Like brake pads, rotors also experience wear over time and may develop grooves, warpage, or become too thin, requiring replacement.

Calipers: The Clamping Mechanism

The brake caliper is the component that houses the brake pads and the pistons that apply pressure to them. When brake fluid is pushed into the caliper by the master cylinder, it forces the pistons to extend, pushing the brake pads against the rotor. Calipers can be either 'floating' (which move slightly to centre themselves) or 'fixed' (which have pistons on both sides of the rotor).

Brake Fluid and Lines: The Hydraulic Lifeline

Brake fluid is a non-compressible hydraulic fluid that transmits the force from your brake pedal to the calipers. It flows through a network of robust brake lines made of steel and flexible rubber hoses. Maintaining the correct level and quality of brake fluid is crucial, as it can absorb moisture over time, leading to a reduced boiling point and compromised braking efficiency.

Advanced Braking Technologies

Modern Jaguars, including models like the X-Type and XE, are equipped with advanced braking technologies that enhance safety and control. These typically include:

• Anti-lock Braking System (ABS): Prevents the wheels from locking up during hard braking, allowing the driver to maintain steering control.
• Electronic Brakeforce Distribution (EBD): Optimises the braking force applied to each wheel based on road conditions and vehicle load.
• Traction Control System (TCS) & Electronic Stability Control (ESC): Work with the braking system to prevent wheel spin and help maintain vehicle stability during cornering or slippery conditions.

Identifying Brake Pad Problems: When to Act

Recognising the early signs of worn brake pads or other braking system deficiencies is crucial for your safety and to prevent more costly repairs down the line. Driving a vehicle with a known braking system issue is unsafe and strongly discouraged. Here are the key indicators that your Jaguar's brake pads – or indeed the entire system – might need attention:

Unusual Noises

• Squealing: Often the first sign of worn pads. Many pads have a small metal indicator that squeals when the friction material is low.
• Grinding: A much more serious sound, indicating that the brake pads are completely worn down, and the metal backing plate is grinding against the rotor. This can rapidly damage your rotors and lead to significantly increased stopping distances.
• Clicking/Clunking: Could indicate loose brake components, worn caliper pins, or issues with the brake pad shims.

Changes in Pedal Feel

• Soft or Spongy Pedal: The brake pedal feels "mushy" or goes too far down when pressed. This could indicate air in the brake lines, a fluid leak, or a failing master cylinder.
• Hard Pedal: Requires excessive force to press, often suggesting a problem with the brake booster or a blockage in the vacuum lines.
• Pulsating Pedal (Vibration): A pulsating sensation felt through the brake pedal, especially when braking from higher speeds, is a classic sign of warped brake rotors.

Increased Stopping Distances

If you notice that your Jaguar takes longer to slow down or stop than you are accustomed to, this is a critical safety concern. Worn brake pads, contaminated brake fluid, or other system failures can severely compromise your vehicle's stopping capability.

Vehicle Pulling to One Side

If your car veers sharply to one side when you apply the brakes, it could indicate a problem with a caliper, unevenly worn brake pads, or an issue with the brake lines causing uneven pressure distribution to the wheels.

Brake System Warning Light

Modern Jaguars feature dashboard warning lights that illuminate when a fault is detected in the braking system. This could be due to low brake fluid, worn brake pads (if equipped with wear sensors), or an ABS system malfunction. If this light comes on, it warrants immediate investigation by a qualified mechanic.

While unusual noises like squealing might allow you to proceed cautiously to your destination if stopping distances are normal and the pedal feels firm, any other symptom, particularly increased stopping distances or a warning light, demands prompt professional service. When it comes to brakes, always err on the side of caution.

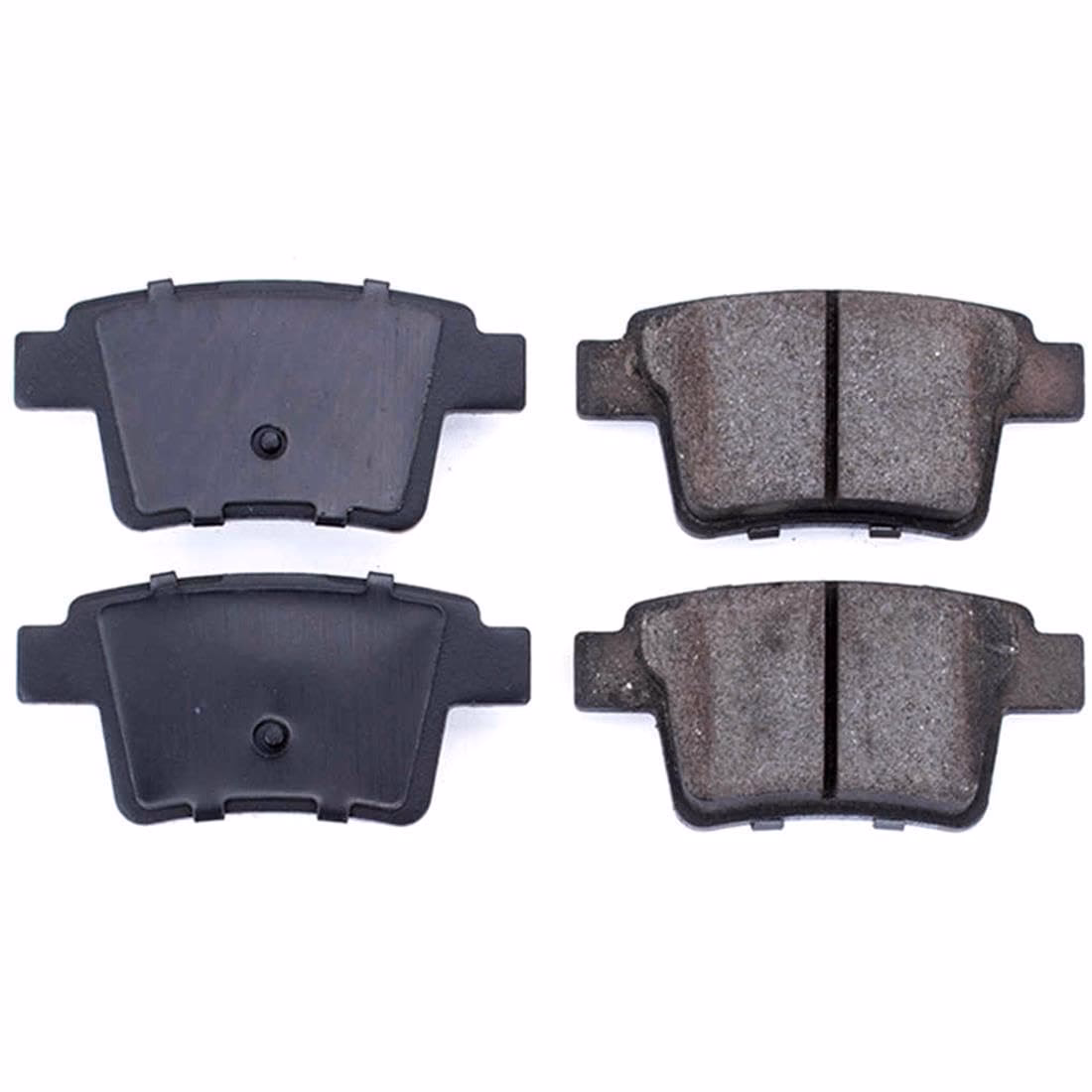

Jaguar XE Brake Pad Replacement: What to Expect

While a precise cost for Jaguar XE brake pad replacement cannot be provided without specific details (labour rates vary, parts costs fluctuate, and the extent of wear differs), we can discuss the factors that influence the overall expense and the process involved.

Factors Influencing Cost

• Parts Cost: The type and quality of brake pads (OEM vs. aftermarket), and whether rotors also need replacing (often recommended or necessary with pad replacement).
• Labour Rates: Varies significantly by region and the specific service centre (main dealer vs. independent specialist).
• Additional Repairs: Sometimes, other components like brake calipers, brake lines, or brake fluid flushes are needed, adding to the cost.
• Axle Replacement: Brake pads and rotors are almost always replaced in pairs across an axle (front or rear) to ensure even braking performance.

When you take your Jaguar XE in for brake service, the mechanic will typically perform a thorough inspection of the entire braking system, checking pad thickness, rotor condition, caliper function, and brake fluid quality. They will then provide a detailed quotation for any necessary work.

The Replacement Process

A standard brake pad and rotor replacement involves:

1. Lifting the vehicle and removing the wheels.
2. Removing the brake caliper, then the old brake pads and rotor.
3. Cleaning and lubricating the caliper components and mounting hardware.
4. Installing the new rotor, then the new brake pads within the caliper.
5. Reinstalling the caliper and wheels.
6. Finally, bedding in the new brakes (a process of gentle braking to properly mate the pads and rotors) and checking the brake fluid level.

Understanding the Electronic Park Brake (EPB)

Many modern Jaguars, including the XE and X-Type (depending on specification), feature an Electronic Park Brake (EPB) system, which replaces the traditional handbrake lever with a button. This system typically uses electric motors to actuate the rear brake calipers, holding the vehicle stationary.

Common EPB Issues and Maintenance

While convenient, EPBs can present unique challenges. Common issues include:

• Actuator Faults: The electric motors (actuators) that operate the park brake can fail, leading to error codes and the inability to engage or disengage the brake.
• Wiring Problems: Damaged wiring or connectors can disrupt communication with the EPB module.
• Maintenance Mode: When replacing rear brake pads on an EPB-equipped vehicle, the system usually needs to be put into a 'maintenance mode' or 'service mode' using a diagnostic tool. This retracts the caliper pistons electronically, allowing the pads to be replaced. Failing to do so can damage the EPB motor or the caliper itself.

The user's experience of difficulty exiting maintenance mode and a tight right wheel brake suggests an EPB system issue, possibly related to an actuator or calibration. When an EPB is in maintenance mode, the wheels should typically be able to move freely, or at least with minimal resistance, as the brake should be disengaged. If one side is very tight, it could indicate a seized caliper, a faulty actuator not fully retracting, or a problem with the EPB module's control over that specific wheel. Given the complexity and safety implications, EPB issues are best diagnosed and repaired by a specialist with the appropriate diagnostic equipment.

DIY vs. Professional Brake Service

While some car enthusiasts might consider brake pad replacement a DIY task, for a sophisticated vehicle like a Jaguar, professional service is highly recommended. Here's why:

Brake System Maintenance Checklist

Regular maintenance is key to extending the life of your braking system and ensuring your safety. Here's a quick checklist:

• Regular Inspections: Have your brakes inspected at least annually, or every 10,000 miles, whichever comes first.
• Brake Fluid Check: Monitor brake fluid level and condition. Most manufacturers recommend flushing and replacing brake fluid every 2-3 years.
• Listen & Feel: Pay attention to any unusual noises or changes in pedal feel.
• Tyre Rotation: Regular tyre rotation can help promote even brake wear.
• Driving Habits: Avoid aggressive braking where possible. Smooth, controlled stops reduce wear.

Frequently Asked Questions About Jaguar Brakes

Q1: How long do Jaguar brake pads typically last?

The lifespan of brake pads varies significantly based on driving style, road conditions, and the type of pads. Generally, front brake pads might last between 20,000 to 40,000 miles, while rear pads can last longer, often 40,000 to 60,000 miles, as front brakes do most of the stopping. Aggressive driving, heavy city traffic, and frequent hard braking will significantly reduce their lifespan.

Q2: Do I need to replace brake rotors every time I replace pads?

Not always, but it's often recommended. Rotors can typically be 'machined' or 'resurfaced' if they have enough material left and are not warped. However, with modern thinner rotors, it's increasingly common to replace them with new pads to ensure optimal braking performance and avoid issues like pulsation or uneven wear. If the rotors are below their minimum thickness, warped, or severely grooved, replacement is essential.

Q3: What does it mean if my brake pedal is low?

A low brake pedal means you have to push the pedal further towards the floor before the brakes engage effectively. This can indicate several issues, including air in the brake lines, low brake fluid, a failing master cylinder, or excessively worn brake pads that require the pistons to extend further than normal. It's a serious safety concern and should be investigated immediately.

Q4: Can I drive with squealing brakes?

If the squealing is light and only occurs occasionally, particularly in damp conditions or when the brakes are cold, it might be permissible to drive to your destination and schedule service soon. However, if the squealing is loud, constant, or accompanied by grinding noises, a soft pedal, or increased stopping distances, it is unsafe to drive, and you should seek immediate professional assistance.

Q5: What is the purpose of ABS (Anti-lock Braking System)?

The ABS system prevents the wheels from locking up during hard braking or on slippery surfaces. By rapidly modulating the brake pressure to each wheel, ABS allows the tyres to maintain traction with the road, enabling the driver to steer and maintain control of the vehicle while braking. This significantly reduces the risk of skidding and improves stopping stability.

Ultimately, the braking system of your Jaguar is a complex, interconnected network of components designed for your safety. Regular vigilance, understanding the warning signs, and entrusting your vehicle to qualified professionals for maintenance and repairs are paramount. By doing so, you ensure your Jaguar continues to deliver not just performance and luxury, but also the peace of mind that comes with reliable, consistent stopping power.
