Mastering Your Jaguar TC Fluid Change

For many Jaguar owners, the transfer case (TC) often remains an unsung hero, quietly ensuring power is distributed effectively to all four wheels in all-wheel drive (AWD) models. Yet, like any vital component, its fluid requires diligent attention and periodic replacement. Traditionally, changing the transfer case fluid in a Jaguar, especially models with automatic transmissions, has been a task fraught with challenges due to limited access and awkward drain/fill plug locations. However, what if there was a simpler, more efficient way to perform this crucial maintenance, making it accessible for the dedicated DIY enthusiast? This guide delves into the precise fluid capacity for your Jaguar's TC and introduces an innovative method that promises to transform this daunting task into a manageable and even routine part of your vehicle's upkeep.

Understanding the Importance of Your Jaguar's Transfer Case

The transfer case is a fundamental component in all-wheel drive and four-wheel drive vehicles, acting as a sophisticated gearbox that distributes power from the transmission to both the front and rear axles. It allows your Jaguar to adapt to varying road conditions, providing enhanced traction, stability, and control, whether you're navigating slippery surfaces or simply enjoying the spirited performance on a dry road. Inside the TC, a complex array of gears, chains, and bearings operates under immense stress, generating significant heat and friction. This is where the transfer case fluid comes into play.

This specialised lubricant serves multiple critical functions: it lubricates the moving parts to minimise wear, dissipates heat generated by friction, and helps to clean the internal components by suspending contaminants. Over time, this fluid degrades due to thermal breakdown, shearing, and contamination from microscopic metal particles. When the fluid loses its lubricating properties, the internal components of the transfer case are subjected to increased friction, leading to premature wear, excessive heat buildup, and potentially catastrophic failure. Ignoring TC fluid maintenance can lead to expensive repairs, making regular changes an essential aspect of preventative care for your high-performance Jaguar.

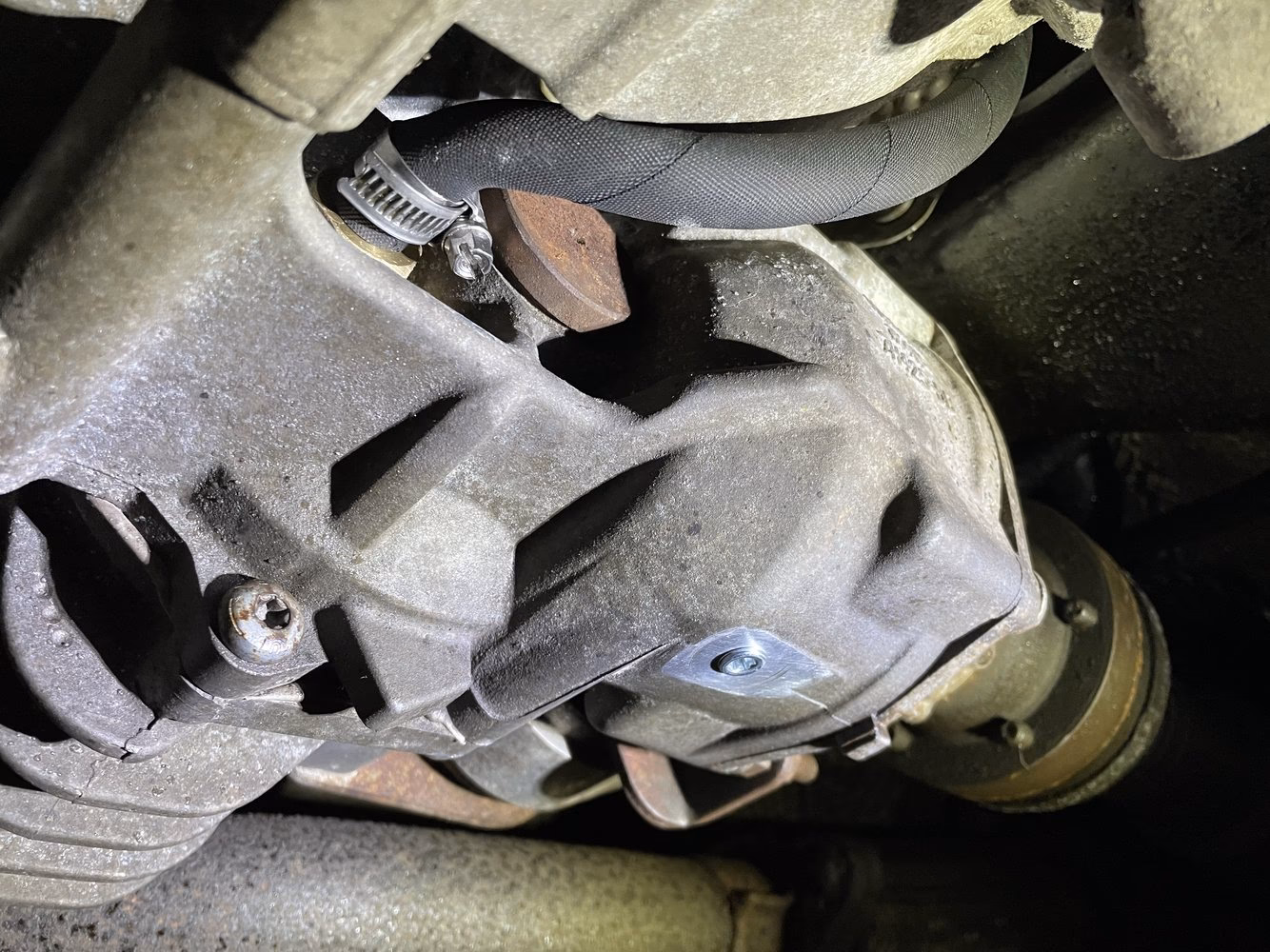

How Much Fluid Does a Jaguar Transfer Case Hold?

One of the most frequently asked questions regarding transfer case maintenance is, naturally, "How much fluid does it actually take?" Based on practical experience and common practices for a correctly filled Jaguar transfer case, the typical volume of fluid that can be drained and subsequently replaced is approximately 400 ml. This measurement, equivalent to roughly 13.5 fluid ounces, is a critical figure for anyone undertaking a fluid change. It's important to note that this 400 ml figure refers to the amount you can drain from a properly filled unit, which is the volume you'll be replacing to ensure optimal performance.

While the total internal capacity might be slightly higher, the "drain and fill" method relies on replacing the volume that can be extracted. The precision of this volume is paramount. Too little fluid can lead to inadequate lubrication and overheating, while overfilling can cause excessive pressure buildup, seal damage, and potential leaks. Therefore, accurately measuring the 400 ml of approved gear lubricant for replenishment is key to maintaining the health and longevity of your Jaguar's transfer case.

Recognising the Signs Your Transfer Case Fluid Needs Attention

Even if you're not on a strict maintenance schedule, your Jaguar will often give you subtle (or not-so-subtle) clues that its transfer case fluid is past its prime. Being attuned to these indicators can save you from more significant issues down the line. One of the most common signs is unusual noises emanating from the drivetrain, particularly during turns or when engaging drive. These might include whining, clunking, or grinding sounds, which often point to increased friction within the TC due to degraded fluid or worn components.

Another tell-tale sign is a noticeable change in your vehicle's driving dynamics. You might experience a sensation of binding or shuddering, especially at lower speeds or when making tight turns. This can be attributed to the transfer case struggling to distribute power smoothly between the axles. Additionally, if you detect any leaks around the transfer case housing, it's a clear indication that either a seal has failed or the unit has been subjected to undue pressure, often exacerbated by neglected fluid. Finally, though less common for the average driver, if your vehicle's diagnostic system triggers a warning light related to the drivetrain or AWD system, it warrants immediate investigation, with the transfer case fluid being a primary suspect.

The Traditional Challenges of TC Fluid Replacement

For years, the prospect of changing transfer case fluid in a Jaguar has been a source of frustration for many mechanics and DIY enthusiasts alike. The primary culprit is often the location of the drain and fill plugs, particularly on models equipped with automatic transmissions. The tight confines of the engine bay and transmission tunnel leave very little room for manoeuvre, making it incredibly difficult to access these plugs with standard tools. Many have resorted to creative, often messy, solutions involving cutting down Allen keys or improvising with various adapters.

Furthermore, once the drain plug is removed, managing the flow of old fluid in such a cramped space can be challenging, leading to spills and an untidy workspace. Refilling the unit is equally problematic. The fill port is often positioned in an awkward spot, requiring specialised pumps or ingenious funnels to introduce the new fluid without spillage. This inherent difficulty not only makes the task time-consuming but also deters owners from performing the fluid change as often as recommended, inadvertently shortening the lifespan of this crucial component. The desire for an easier, cleaner, and more accessible method has long been a dream for Jaguar owners.

An Innovative Approach to Jaguar TC Fluid Replacement

Inspired by the persistent challenges of traditional transfer case fluid changes, a resourceful method has emerged, focusing on simplifying the process and making it accessible even in the tightest of spaces found in automatic transmission Jaguars. This innovative approach centres around replacing the standard drain plug with a custom-engineered one-way valve and utilising a precise hand pump for refilling.

The Custom One-Way Valve: A Game Changer

At the heart of this novel method is a specially designed one-way valve. Unlike a conventional drain plug, this valve allows fluid to be pumped in without it escaping, effectively turning the drain point into a convenient fill point. The valve body is typically crafted from high-carbon steel, featuring male pipe threads to screw directly into the transfer case, replacing the original drain plug. Internally, it houses a carbon steel gate or plunger, a stainless steel spring, and a robust Dupont Viton seal, rated specifically for petroleum products. Crucially, the valve is designed with an extremely low cracking pressure (e.g., 0.125 PSI), meaning it requires minimal pressure to open and allow fluid flow. Its compact length (approximately 1.3 inches) ensures it sits slightly recessed within the TC's pocket when installed, protecting it and making it less obtrusive.

The Precision Pumping System

Complementing the one-way valve is a simple yet effective pumping system. This typically involves a hand pump, such as a CRC model, designed to deliver a precise volume of fluid per stroke (e.g., 1 fluid ounce). To facilitate the process in confined areas, a 90-degree elbow with a short male nipple can be threaded into the valve. Further extensions, like a 2-inch nipple and reducer, can be added to connect the flexible plastic hose from the pump securely. This setup allows for accurate metering of the new fluid directly into the transfer case, eliminating the mess and guesswork associated with traditional refill methods. Once the required volume of fluid is pumped in, the pump, nipple, and elbow are removed, leaving the one-way valve to hold the fluid securely. A magnetic plug is then installed into the valve's female end, serving both as protection from the elements and a reliable secondary seal.

Step-by-Step Guide to the Innovative Fluid Change

This method significantly streamlines the process, making it a viable DIY option. Here's a detailed breakdown:

Required Tools and Materials:

• Approved transfer case gear lubricant (400 ml)
• Custom one-way valve (to replace drain plug)
• 90-degree elbow with short male nipple
• 2-inch nipple and reducer (optional, for pump connection)
• CRC-style hand pump (delivering 1 fl. oz. per stroke, or similar accurate pump)
• Magnetic drain plug (to fit female end of one-way valve)
• Petroleum-specific Teflon sealing tape
• Drain pan
• Basic hand tools (spanners/wrenches)
• Rags for cleanup

The Procedure:

1. Prepare the Vehicle: Ensure your Jaguar is on a level surface and safely supported on jack stands or a lift. Allow the transfer case to cool slightly, as hot fluid can cause burns. Locate the transfer case drain plug.
2. Remove the Original Drain Plug: Carefully remove the existing drain plug from the transfer case. Be prepared for fluid to drain out, as your TC might, surprisingly, be dry. (As one enthusiast discovered, sometimes the TC can be completely empty, underscoring the vital need for this maintenance.) Collect the old fluid in a suitable drain pan for proper disposal.
3. Install the One-Way Valve: Apply petroleum-specific Teflon sealing tape to the male threads of the custom one-way valve. Screw the valve into the transfer case opening, ensuring it is snugged into place. The design ensures it's slightly recessed.
4. Assemble the Pumping Connection: Loosely thread the 90-degree elbow into the one-way valve (two turns is typically sufficient). Then, loosely install the reducer and the 2-inch nipple into the elbow. This loose assembly allows for slight adjustments in the tight space.
5. Connect the Pump: Slide the flexible plastic hose from your hand pump securely over the nipple. Ensure a tight connection to prevent leaks during pumping.
6. Pump in New Fluid: Begin pumping the approved gear lubricant into the transfer case. Based on the 400 ml capacity and a pump delivering 1 fl. oz. per stroke, this would equate to approximately 13 strokes (since 1 fl. oz. ≈ 29.57 ml, 400 ml / 29.57 ml/stroke ≈ 13.5 strokes, so 13-14 strokes). Be precise with your measurements.
7. Remove Pumping Apparatus: Once the full 400 ml has been dispensed, carefully remove the pump hose, the nipple, and the elbow. The one-way valve will prevent the fluid from draining out.
8. Install the Magnetic Plug: Screw the magnetic drain plug into the female end of the one-way valve. This plug serves two purposes: it protects the valve from external elements and acts as an additional, crucial backup seal. The magnetic tip also helps to collect any metallic wear particles, providing an extra layer of preventative maintenance.
9. Final Checks: Double-check all connections for tightness and clean up any spilled fluid. Lower your vehicle safely.

Comparative Overview: Traditional vs. Innovative TC Fluid Change

To highlight the advantages of this novel method, let's compare it with the traditional approach:

Frequently Asked Questions (FAQs)

Q: How often should I change my Jaguar's transfer case fluid?

A: While Jaguar often states "lifetime" fluid for many components, this is generally misleading. For optimal longevity and performance, especially in AWD models, it's highly recommended to change the transfer case fluid every 30,000 to 50,000 miles (approximately 48,000 to 80,000 kilometres), or every 3-5 years, whichever comes first. If your driving involves frequent towing, off-road use, or aggressive driving, more frequent changes would be beneficial.

Q: What type of fluid should I use for my Jaguar transfer case?

A: Always refer to your Jaguar owner's manual for the precise fluid specification. Most Jaguar transfer cases require a specific type of gear lubricant, often a synthetic fluid with certain viscosity and additive packages. Using the incorrect fluid can lead to severe damage and premature wear. Common specifications might include certain GL-4 or GL-5 rated fluids, but always verify the exact OEM recommendation.

Q: Can I ignore changing my TC fluid? What happens if it's dry?

A: Ignoring TC fluid changes is a recipe for expensive repairs. As demonstrated by one enthusiast's discovery of a completely dry TC, neglect can lead to catastrophic failure. Without proper lubrication, the gears and bearings within the transfer case will experience extreme friction, leading to overheating, grinding, and eventual seizure. A dry transfer case will very quickly destroy itself, necessitating a costly replacement rather than a simple fluid change. Regular fluid changes are a small investment to prevent a major breakdown.

Q: Is this innovative fluid change method suitable for all Jaguar models?

A: The method, particularly the custom one-way valve, was specifically designed with the challenges of automatic transmission Jaguar models in mind, where space is extremely tight. While the principle applies broadly to many transfer cases with a drain plug, the specific dimensions and thread type of the custom valve are tailored for Jaguar applications. Always ensure compatibility for your specific model year and transfer case type.

Q: What should I do if my transfer case was found to be dry or critically low?

A: If you discover your transfer case was dry or very low on fluid, it's a serious concern. While refilling it is the immediate step, it's crucial to acknowledge that significant wear may have already occurred. Monitor your vehicle closely for any unusual noises, vibrations, or changes in driving feel. It might be wise to consider a follow-up fluid change sooner than usual to flush out any new contaminants, and in some cases, a professional inspection of the transfer case's internal components might be warranted.

Ultimately, proactive maintenance of your Jaguar's transfer case fluid is non-negotiable for ensuring the long-term health and performance of your vehicle. The innovative method discussed here, with its custom one-way valve and precise pumping system, offers a pragmatic and efficient solution to what was once a cumbersome task. By understanding the exact fluid capacity and adopting an easier approach to its replacement, you can ensure your beloved big cat continues to deliver its renowned power and refinement for many years and miles to come. Embrace this simpler path to fluid change and keep your Jaguar purring contentedly.
