Toyota 22R-E Engine: A Comprehensive Guide

The Toyota 22R-E engine is a name synonymous with reliability and enduring performance, particularly within the realm of trucks and SUVs. Manufactured by Toyota Motor Corporation from 1983 to 1995, this 2.4-litre (2,366 cc) straight-four engine has cemented its place in automotive history as a workhorse that can withstand the test of time and demanding conditions. If you're a proud owner of a vehicle equipped with a 22R-E, or simply an enthusiast curious about this legendary powerplant, this comprehensive guide will delve into its intricate details, from its core specifications to its notable applications and the secrets behind its famed durability.

Engine Configuration and Core Specifications

At its heart, the 22R-E is a natural aspirated gasoline engine from Toyota's R-family. It features a robust cast-iron block, a testament to its built-to-last design, paired with an aluminium cylinder head for efficient heat dissipation. The valvetrain is configured with a single overhead camshaft (SOHC), actuating a total of eight valves (two per cylinder). This configuration, while not the most modern, has proven to be exceptionally reliable and straightforward to maintain.

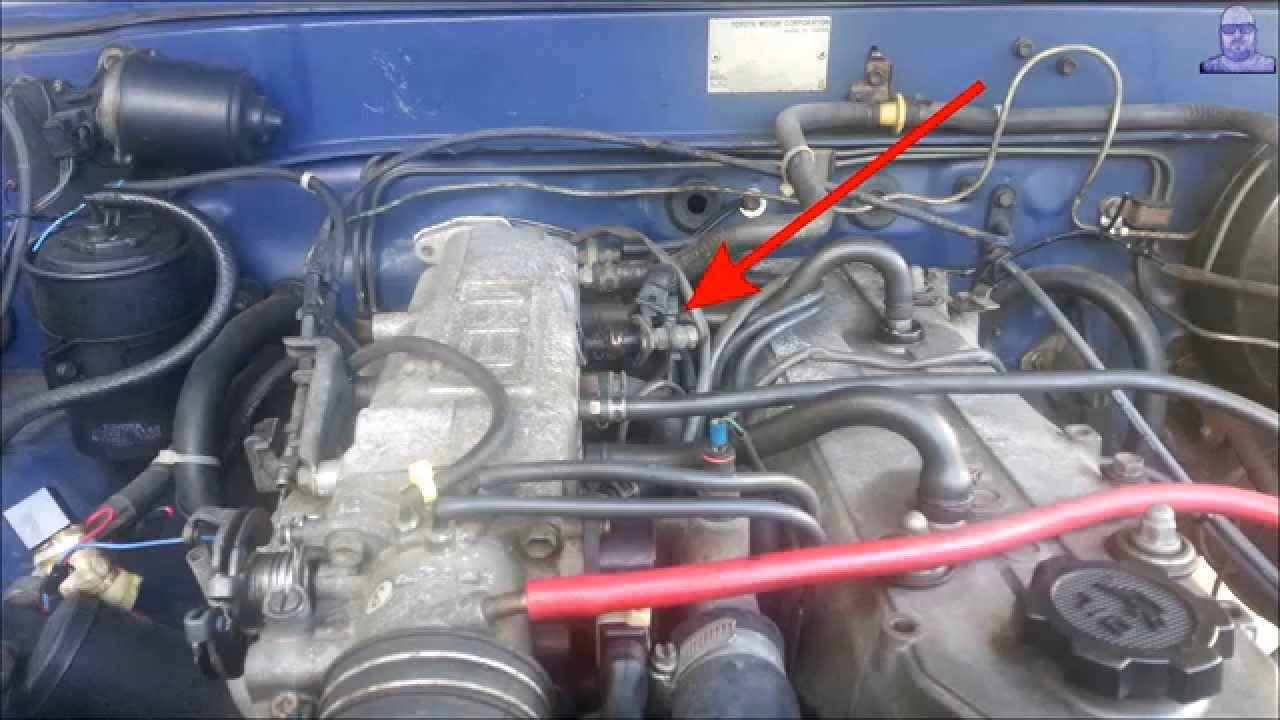

The engine boasts a bore of 92.0 mm (3.62 in) and a piston stroke of 89.0 mm (3.5 in), contributing to its 2.4-litre displacement. The compression ratio is set at 9.0:1, a figure that balances performance with fuel efficiency for its era. A key technological advancement for its time was the integration of an electronic fuel injection (EFI) system, which replaced carburettors in earlier R-series engines, offering improved fuel delivery and throttle response. The ignition system typically incorporates a mechanical distributor.

Key Specifications Overview

The Evolution: 22R vs. 22R-E

It's important to note the distinction between the 22R and the 22R-E. The original 22R engine, while also a capable unit, predates the EFI system. A significant redesign occurred in 1985, affecting parts compatibility. Many components from the post-1985 22R-E, including the cylinder head, block, pistons, timing chain, and associated pumps, are not interchangeable with pre-1985 22R engines. This 1985 update brought improvements, including a slight bump in power and torque figures for the 22R-E, pushing its output towards the higher end of its quoted range.

What Makes the 22R-E So Reliable?

The legendary reliability of the 22R-E isn't down to a single factor, but rather a combination of robust engineering principles. The use of a cast-iron block contributes significantly to its durability, offering superior strength and resistance to deformation under stress compared to lighter alloys. While this adds weight, the trade-off is a longer service life and greater resilience.

The SOHC design, with its relatively simple valvetrain, is inherently less complex than a DOHC (Double Overhead Camshaft) setup. Fewer moving parts generally translate to fewer potential failure points and easier maintenance. The engine's power and torque delivery are geared towards low to mid-range performance, meaning it's not typically pushed to extreme RPMs in its intended applications. This avoids excessive wear and tear on critical components like the crankshaft, connecting rods, and valvetrain.

The EFI system, a significant upgrade for its time, ensures precise fuel metering, leading to more efficient combustion and reduced stress on the engine compared to carburetted engines that could run too lean or too rich.

Common Maintenance and Potential Issues

While the 22R-E is known for its longevity, like any engine, it requires regular maintenance to ensure it continues to perform optimally. One of the most frequently discussed maintenance points is the timing chain. Toyota swapped the earlier dual-row timing chain for a single-row chain with plastic guides around 1983. While this reduced engine drag, the plastic guides can become brittle and break over time, typically after around 100,000 miles (160,000 km). If this occurs, the chain can stretch and potentially jump a tooth, leading to rough running or even catastrophic engine failure. A common symptom is a chattering noise from the front of the engine, especially when cold. Many owners opt for aftermarket timing chain kits with more durable steel-backed guides, though some mechanics advocate for the stock plastic guides as they act as an early warning system by breaking when the chain stretches.

Regular oil changes are also critical. The recommended oil is typically a 5W-30 or 10W-30 viscosity, meeting API SF or higher classifications. The engine oil capacity is around 4.2 litres (with filter change). Adhering to recommended oil change intervals, usually every 3,000-6,000 miles (4,800-10,000 km) or every 3-6 months, is paramount for lubricating and cooling the engine's internal components.

Maintenance Schedule Snapshot

Vehicle Applications

The versatility and reliability of the 22R-E engine led to its inclusion in a range of popular Toyota vehicles, as well as some rebadged models. Its stout construction made it an ideal choice for vehicles that were often used for work, off-roading, or long-distance travel.

Notable Applications:

• Toyota Hilux: Perhaps the most iconic application, the Hilux pickup trucks from the mid-80s to mid-90s are renowned for their 22R-E powered endurance.
• Toyota 4Runner: The early generations of the 4Runner SUV also featured the 22R-E, providing dependable power for adventurous excursions.
• Toyota Pickup: Complementing the Hilux, the Toyota Pickup (often sold in North America) shared the same robust engine.
• Toyota Celica: For a period in the early to mid-80s, some Celica models utilized the 22R-E, offering a blend of sporty styling with a durable powerplant.
• Toyota Corona: This family sedan also benefited from the 22R-E's efficiency and reliability.
• Volkswagen Taro: Interestingly, the Volkswagen Taro, a rebadged Toyota Hilux produced for the European market, also came equipped with the 22R-E engine.

Frequently Asked Questions (FAQs)

Q1: Is the Toyota 22R-E engine reliable?

Yes, the Toyota 22R-E is widely considered one of the most reliable and durable four-cylinder engines ever produced. Its robust construction, simple design, and Toyota's engineering prowess contribute to its legendary longevity.

Q2: What are the common problems with a 22R-E engine?

The most notable issue is the potential for the timing chain guides to break after high mileage, leading to chain stretch and potential engine damage. Regular maintenance and timely replacement of worn components are key to preventing this.

Q3: What is the best engine oil for a 22R-E?

Generally, a 5W-30 or 10W-30 multi-viscosity engine oil meeting API SF or higher is recommended. Always consult your vehicle's owner's manual for the most precise recommendations.

Q4: Can I put a 22R-E engine in a car that originally had a 22R?

While both engines share the R-family designation, compatibility can be an issue, especially with pre-1985 22R engines due to design changes. The EFI system on the 22R-E also requires different wiring and fuel delivery components compared to a carbureted 22R.

Q5: What are the power and torque figures for the 22R-E?

The 22R-E typically produced between 106 to 114 horsepower (78-84 kW) and 185 to 190 N·m of torque, with figures varying slightly depending on the specific model year and application.

Conclusion

The Toyota 22R-E engine stands as a testament to Toyota's commitment to building engines that last. Its blend of simplicity, durability, and efficiency has earned it a loyal following among mechanics and owners alike. While it may not boast cutting-edge technology or blistering horsepower figures by today's standards, its proven track record of reliability and ease of maintenance makes it a highly sought-after engine for classic trucks, off-road vehicles, and anyone who values a powerplant that simply keeps on going. Understanding its specifications and maintenance needs is key to preserving this automotive icon for years to come.
