Understanding P0251: Fuel Metering Control Faults

Decoding the P0251: Injection Pump Fuel Metering Control A Malfunction

The P0251 fault code, often described as "Injection pump fuel metering control A malfunction (cam/rotor/injection)," is a common indicator that your vehicle's engine management system has detected an issue with how fuel is being regulated by the high-pressure fuel pump. This can manifest in various ways, from rough idling and reduced power to difficulty starting or even the engine cutting out unexpectedly. Understanding the components involved and the potential causes is key to getting your vehicle back to optimal running condition.

What Exactly is Fuel Metering Control?

At its core, fuel metering control is all about precisely regulating the amount of fuel delivered to the engine. In modern diesel engines, particularly those equipped with common rail systems, this is a sophisticated process. The high-pressure fuel pump is responsible for generating the immense pressure required for efficient combustion. However, it doesn't simply pump a fixed amount of fuel. Instead, it needs a way to adjust the fuel flow based on engine load, speed, and other operating parameters.

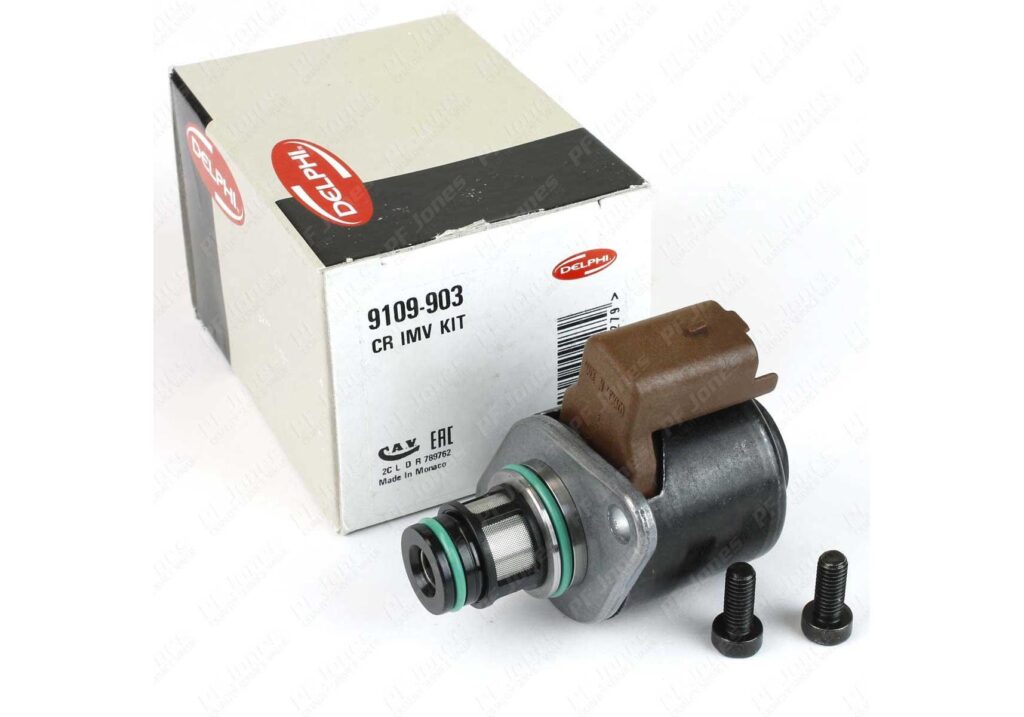

This is where the fuel metering valve, also known as the Inlet Metering Valve (IMV), comes into play. As described, this valve is typically located at the rear of the fuel pump. Its primary function is to regulate the amount of low-pressure fuel entering the high-pressure pump's chamber. It achieves this by reducing the cross-sectional area of the fuel inlet channel. By controlling how much fuel can enter the pump, the IMV effectively controls the output pressure and volume of fuel that the pump subsequently delivers to the common rail and injectors.

The engine control unit (ECU) monitors various sensor inputs, such as throttle position, engine speed, and manifold pressure, to determine the optimal fuel delivery. It then sends signals to the IMV to adjust its position, thereby controlling the fuel flow into the high-pressure pump. If the ECU detects that the actual fuel delivery or pressure deviates from the expected values, despite the IMV's commanded position, it flags a fault code like P0251.

Common Causes of P0251

Several factors can lead to the P0251 fault code. It's often a process of elimination, starting with the simplest and most common issues:

• Blocked Fuel Filter: This is frequently the first suspect and the easiest to address. A clogged fuel filter restricts the flow of fuel to the pump. If the fuel supply is insufficient, the IMV may struggle to maintain the correct pressure, leading to the P0251 code. It's crucial to replace the fuel filter regularly according to your vehicle manufacturer's recommendations.
• Faulty Inlet Metering Valve (IMV): Over time, the IMV can become sticky, contaminated, or simply fail. If the valve is stuck in a position that restricts fuel flow, or if its internal mechanisms are malfunctioning, it will directly impact the fuel metering control. This is a common problem with ageing TDCi engines, for instance.
• Fuel Pump Issues: While less common than IMV problems, the high-pressure fuel pump itself could be failing. This might involve internal wear or damage that prevents it from generating the required pressure, even with a properly functioning IMV. If the pump is breaking up, it can sometimes produce fine, dust-like particles that can contaminate the fuel system.
• Injector Problems: While the P0251 code specifically points to the pump's metering control, faulty injectors can sometimes indirectly cause issues. If injectors are leaking excessively or are clogged, they can affect the overall fuel system pressure and flow, potentially triggering a fault code related to fuel metering. A leak-off test can help identify injector issues, though it may not detect all types of injector faults.
• Wiring and Electrical Connections: Damaged wiring, loose connections, or corrosion in the electrical circuit leading to the IMV or fuel pump can disrupt the signals from the ECU, leading to incorrect operation and triggering the P0251 code.
• Fuel Quality: Using contaminated or poor-quality diesel fuel can lead to blockages and premature wear in fuel system components, including the IMV and fuel pump.

Troubleshooting and Repair Steps

When faced with a P0251 code, a systematic approach to diagnosis and repair is essential:

1. Check and Replace the Fuel Filter: As mentioned, this is the most straightforward step. Ensure you use a high-quality replacement filter that meets or exceeds the manufacturer's specifications.
2. Consider a Diesel Additive: Before replacing components, you might try a reputable diesel additive designed to clean and protect the fuel system. Products like Forte or BG244 are often recommended by enthusiasts. Add the additive at the correct concentration (e.g., one bottle to a quarter tank of fuel).
3. Inspect Injectors: A leak-off test can provide an indication of injector health. If you're not comfortable performing this yourself, a diesel specialist can test your injectors on a dedicated rig. This is generally the most reliable way to diagnose injector issues.
4. Test or Replace the IMV: If the fuel filter is good and injector tests are satisfactory, the IMV becomes a strong suspect. Depending on your comfort level and the availability of diagnostic tools, you might be able to test the IMV's operation. If not, or if it's deemed faulty, replacement is the next logical step. The IMV is generally a more affordable part compared to the entire fuel pump.
5. Diagnose the Fuel Pump: If replacing the IMV doesn't resolve the issue, the fuel pump itself may need to be inspected or replaced. This is a more significant repair and should ideally be carried out by a qualified mechanic or diesel specialist.
6. Check Wiring and Connections: A thorough inspection of the wiring harness and electrical connectors associated with the fuel pump and IMV is crucial. Look for any signs of damage, corrosion, or loose connections.

Cost Considerations

The cost of resolving a P0251 fault code can vary significantly depending on the root cause:

It's important to get a proper diagnosis from a reputable garage or diesel specialist to avoid unnecessary expenditure on incorrect parts.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car with the P0251 code?
While your car might still be drivable, it's not recommended for extended periods. The fault indicates an issue with fuel delivery, which can lead to poor performance, increased fuel consumption, potential stalling, and could cause further damage to the fuel system or engine if left unaddressed.

Q2: My idle is getting worse, is this related to P0251?
Yes, a worsening idle is a common symptom of fuel delivery problems, including those indicated by the P0251 code. The IMV's ability to precisely control fuel at low engine speeds is critical for a smooth idle.

Q3: What is the difference between the IMV and the fuel pressure regulator?
While both control fuel pressure, the IMV (Inlet Metering Valve) is typically located on the high-pressure fuel pump and controls the amount of fuel entering the pump's high-pressure chamber. A fuel pressure regulator, often found in petrol systems or at the fuel rail in some diesel systems, usually controls pressure by bypassing excess fuel.

Q4: My mechanic just wants to replace all the injectors. Is this necessary?
Be cautious of mechanics who immediately suggest replacing all injectors without thorough testing. While injectors can fail, it's essential to diagnose them properly. A leak-off test or a full bench test by a specialist is a more reliable approach.

Q5: Is it safe to use 'Easy Start' to help start a diesel engine with fuel issues?
It's generally advised against using 'Easy Start' (ether-based starting fluid) on diesel engines with fuel system problems. Some forum reports suggest it can potentially cause the timing chain to jump a tooth, leading to more severe engine damage.

Conclusion

The P0251 fault code signifies a problem with the fuel metering control system, most commonly pointing towards the Inlet Metering Valve (IMV) or a restricted fuel supply. By following a logical diagnostic process, starting with the simplest checks like the fuel filter, and progressively investigating other components, you can effectively pinpoint and resolve the issue. Always consult a qualified professional if you're unsure about any diagnostic or repair procedures. Keeping your fuel system clean and performing regular maintenance will significantly reduce the likelihood of encountering this troublesome fault code.
