Fuel Atomisation: The Key to Engine Efficiency

In the intricate world of automotive engineering, where every drop of fuel and every breath of air counts, the process by which fuel is introduced into your engine is nothing short of critical. Whether your vehicle purrs with the classic thrum of a carburettor or hums with the precise rhythm of a modern fuel injection system, one fundamental principle remains paramount for efficient power generation: the effective atomisation of fuel. This isn't just a technical detail; it's the very foundation upon which optimal engine performance, fuel economy, and reduced emissions are built. Understanding this process unveils a crucial aspect of how your car truly comes alive on the road.

The Indispensable Role of Fuel Atomisation

At its core, fuel atomisation is the process of breaking down a liquid fuel into a fine mist or spray of tiny droplets. Imagine trying to light a puddle of petrol versus a fine, airborne spray – the latter ignites almost instantaneously and burns far more completely. This analogy perfectly illustrates why atomisation is so vital within an internal combustion engine. For efficient and complete combustion to occur, the fuel needs to mix intimately with air, forming a homogenous, combustible mixture. Large fuel droplets simply cannot achieve this effectively.

The primary benefit of atomisation is the dramatic increase in the fuel's surface area. A single large drop has a relatively small surface area compared to the sum of the surface areas of hundreds of thousands of tiny droplets formed from that same large drop. This vastly increased surface area allows the fuel to vaporise much more rapidly when exposed to the heat and pressure within the engine's cylinders. Rapid vaporisation is essential because it's the fuel vapour, not the liquid droplets, that truly burns. Without proper atomisation, a significant portion of the fuel might not vaporise or mix adequately with air, leading to incomplete combustion, wasted fuel, reduced power, and higher emissions.

Moreover, effective atomisation ensures that the fuel is evenly distributed throughout the air charge within the combustion chamber. This uniformity is crucial for consistent and predictable ignition, leading to smoother engine operation and less likelihood of issues like knocking or misfires. Factors such as the pressure at which fuel is delivered, the design of the injector nozzle, and even the airflow patterns within the intake manifold all play a significant role in determining the quality of atomisation. Even after the initial spray from the injector, the swirling air inside the cylinder continues to break down droplets, further aiding the mixing and vaporisation process.

Carburetion vs. Fuel Injection: A Pivotal Evolution

For decades, carburettors were the standard for mixing fuel and air in petrol engines. However, the advent of fuel injection marked a revolutionary leap forward in engine technology, driven by the increasing demands for efficiency, power, and environmental responsibility. While both systems share the fundamental duty of preparing a combustible mixture, their methods of achieving fuel atomisation and overall mixture control differ profoundly.

The Carburetion System: A Legacy Approach

In a carburetion system, fuel atomisation is primarily achieved with the help of high-velocity air. As air is drawn into the engine through a constricted passage known as a venturi, its velocity increases, creating a low-pressure area. This pressure differential draws fuel from a fuel bowl through a jet and into the airflow, where the sheer force of the fast-moving air shears the liquid fuel into droplets. While ingenious for its time, carburettors are largely mechanical devices that struggle with precision. Their performance can be significantly affected by external factors such as ambient temperature, altitude, and engine load, often leading to less than ideal air-fuel ratios across varying operating conditions. This inherent lack of precision results in compromises in fuel economy and higher pollutant emissions.

The Fuel Injection System: The Modern Standard

In stark contrast, a fuel injection system atomises fuel for combustion primarily with the help of the velocity and pressure of the fuel itself. Fuel is delivered under high pressure to an injector, which then sprays it through a precisely engineered nozzle. The high pressure forces the fuel through a tiny orifice, breaking it into an extremely fine, highly atomised mist. This method allows for far greater control over the exact quantity of fuel delivered, the timing of its delivery, and the spray pattern, leading to a much more accurate and adaptable air-fuel mixture. The control is typically managed electronically by an Engine Control Unit (ECU), which constantly monitors numerous engine parameters.

Comparative Overview: Carburetion vs. Fuel Injection

The table below highlights the key differences between these two fundamental fuel delivery systems:

The Anatomy and Functional Requirements of a Modern Fuel Injection System

A contemporary fuel injection system is a sophisticated network of components working in concert to ensure optimal fuel delivery. Each part plays a vital role in meeting the stringent functional requirements for engine performance and efficiency.

Key Components of the System:

• Fuel Tank: The primary reservoir where petrol or diesel is stored. It's designed to safely contain fuel and prevent leaks or evaporation.
• Fuel Feed Pump (Low-Pressure Pump): Often located within the fuel tank, this pump draws fuel from the tank and sends it under relatively low pressure to the rest of the injection system, ensuring a constant supply.
• Fuel Filter: A crucial component that removes dirt, rust, and other contaminants from the fuel before it reaches the delicate and precision-engineered parts of the injection system, such as the fuel pump and injectors. Clogged filters can severely impede fuel flow and damage components.
• High-Pressure Fuel Pump (for Direct Injection/Diesel Common Rail): In many modern systems, particularly direct injection petrol engines and common rail diesels, a secondary high-pressure pump is used to elevate fuel pressure to hundreds or even thousands of bar. This extreme pressure is essential for achieving the ultra-fine atomisation required for efficient direct cylinder injection.
• Fuel Rail: A pipe or manifold that distributes pressurised fuel evenly to all the injectors. It acts as a common supply line, ensuring each injector receives fuel at the same pressure.
• Fuel Pressure Regulator: This device maintains a consistent fuel pressure within the fuel rail, regardless of engine speed or load, ensuring stable operation of the injectors.

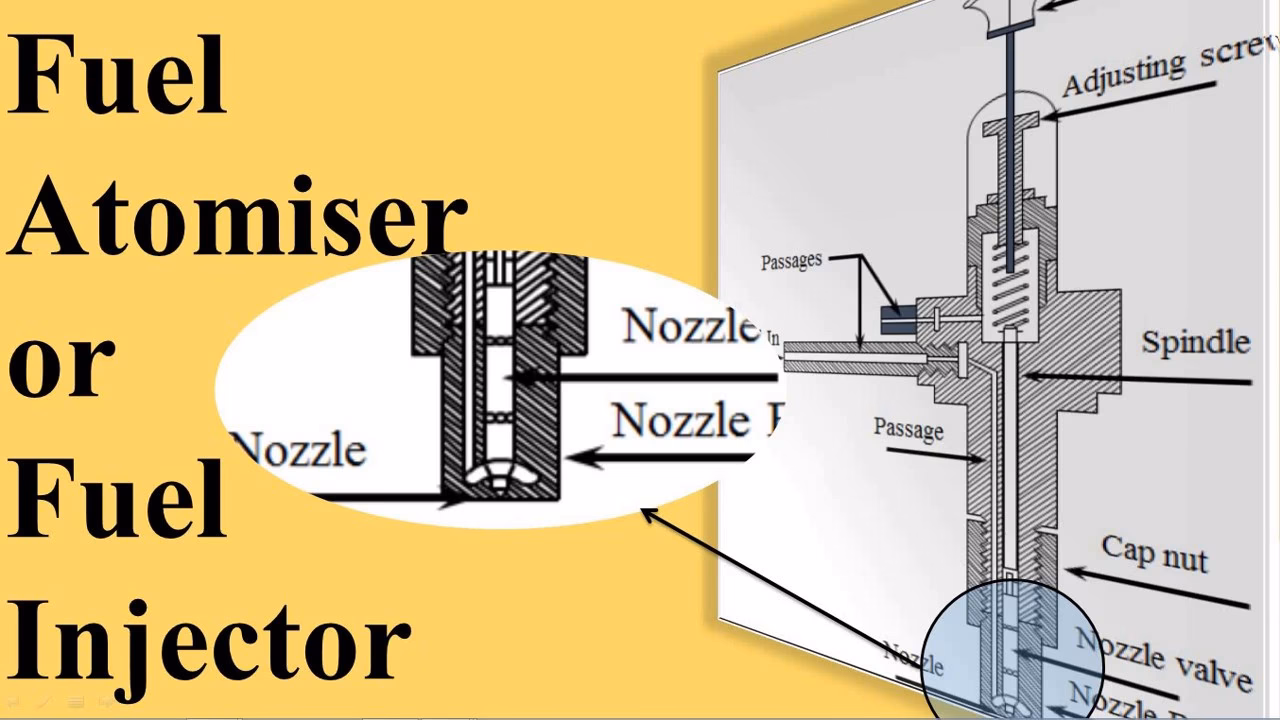

• Injectors: These are the nozzles that spray the atomised fuel. Each cylinder typically has one or more injectors. They are precision electronic valves that open and close very rapidly to deliver a precisely metered amount of fuel. The design of the injector nozzle is critical for achieving the correct spray pattern and atomisation quality.
• Engine Control Unit (ECU): Often referred to as the "brain" of the engine, the ECU is a sophisticated computer that receives data from numerous sensors (e.g., oxygen sensor, crankshaft position sensor, throttle position sensor, manifold absolute pressure sensor) and calculates the exact amount of fuel to be injected, the timing, and the duration of the injection pulse. It continuously adjusts these parameters in real-time to optimise performance, emissions, and fuel economy.

Functional Requirements for Peak Performance:

For a fuel injection system to deliver truly optimal engine performance, it must consistently meet several critical requirements:

• Accurate Metering of Fuel Injected per Cycle: The system must deliver precisely the right amount of fuel for the prevailing conditions. Too much fuel leads to rich running, wasted fuel, and high emissions; too little leads to lean running, power loss, and potential engine damage.
• Correct Fuel Injection Timing: The fuel must be injected at the precise moment in the engine's cycle to ensure it vaporises and mixes properly before ignition. Incorrect timing can lead to poor combustion, reduced power, and increased emissions.
• Full Control Over Rate of Fuel Injection: The speed at which fuel is injected and the duration of the injection pulse are crucial. This control affects the spray characteristics and how quickly the fuel mixes with air.
• Proper Atomisation of the Fuel: As discussed, breaking the fuel into the finest possible droplets is paramount for rapid vaporisation and complete combustion.
• Proper Spray Pattern to Ensure Mixing of Air and Fuel: The shape and spread of the fuel spray must be optimised to match the design of the combustion chamber and the airflow within it, promoting thorough mixing. Different engines require different spray patterns.
• Uniform Distribution of Fuel in the Combustion Chamber: The atomised fuel-air mixture must be evenly spread throughout the cylinder to ensure consistent and efficient combustion across the entire volume.
• To Supply Equal Quantity of the Fuel in All the Cylinders (in case of multi-cylinder engine): For smooth operation and balanced power output, each cylinder in a multi-cylinder engine must receive an identical amount of fuel. Variations can lead to rough idling, vibrations, and uneven wear.
• No Lag Between Beginning and End of Injection Process: The system must respond instantaneously to the ECU's commands, with no delay in starting or stopping the fuel flow, ensuring precise control over the combustion event.

Common Types of Fuel Injection Systems

While the core principles remain, fuel injection systems have evolved into several distinct types, each with its own advantages:

• Port Fuel Injection (PFI) / Multi-Point Fuel Injection (MPFI): This is perhaps the most common type for petrol engines. Injectors are located in the intake manifold, just upstream of the intake valves. Fuel is sprayed onto the back of the hot intake valve, where it vaporises and mixes with air before entering the cylinder. PFI offers good atomisation and mixture control but is less precise than direct injection.
• Direct Injection (DI) / Gasoline Direct Injection (GDI): In these systems, fuel is injected directly into the combustion chamber, similar to how diesel engines operate. This allows for extremely precise control over fuel delivery, enabling leaner air-fuel ratios, higher compression ratios (due to the cooling effect of the fuel spray), and improved power and fuel economy. However, DI engines can sometimes be susceptible to carbon buildup on intake valves, as fuel no longer washes over them.
• Common Rail Direct Injection (CRDI) for Diesel Engines: Diesel engines have always used direct injection due to their compression-ignition nature. Modern diesel engines utilise a "common rail" system, where a single high-pressure pump feeds a common rail that maintains extremely high fuel pressure. Individual injectors, controlled electronically, then precisely spray fuel directly into each cylinder. This allows for multiple injection events per combustion cycle, significantly improving efficiency, reducing noise, and lowering emissions.

Maintaining Your Fuel Injection System for Longevity

Given the critical role and precision of fuel injection components, proper maintenance is key to ensuring your engine continues to run efficiently. Neglecting the fuel system can lead to reduced fuel economy, poor performance, and costly repairs.

• Regular Fuel Filter Replacement: This is arguably the most important maintenance item for your fuel system. A clogged fuel filter restricts flow, strains the fuel pump, and can lead to lean running conditions or even starvation. Always follow your vehicle manufacturer's recommended service intervals.
• Use Quality Fuel: Opting for reputable fuel stations helps ensure you're putting clean, consistent fuel into your tank, reducing the risk of contaminants.
• Address Warning Signs Promptly: Symptoms like a check engine light, misfires, rough idling, reduced power, or decreased fuel economy can all point to fuel system issues, especially with injectors. Early diagnosis can prevent more severe damage.
• Injector Cleaning (if recommended): While modern fuels contain detergents, over time, injectors can still accumulate deposits, particularly in direct injection engines. Professional ultrasonic cleaning or specific fuel system cleaners can help restore injector performance, but always consult with a qualified mechanic before using additives or attempting DIY cleaning.

Frequently Asked Questions About Fuel Atomisation and Injection

Q: Why is atomisation so important for fuel economy?

A: Proper atomisation ensures that fuel vaporises quickly and mixes thoroughly with air. This leads to more complete combustion, meaning more energy is extracted from each drop of fuel, directly translating to better fuel economy and less wasted fuel.

Q: How often should I replace my fuel filter?

A: The replacement interval varies significantly by vehicle manufacturer and model, typically ranging from every 30,000 to 100,000 miles. Always refer to your car's owner's manual for the precise recommendation.

Q: Can a faulty fuel injector be repaired, or does it need to be replaced?

A: Sometimes, a partially clogged injector can be cleaned. However, if the internal components are worn or electrically faulty, replacement is usually the only effective solution. A qualified mechanic can diagnose the issue and advise on the best course of action.

Q: Is direct injection always superior to port fuel injection?

A: Direct injection generally offers superior fuel economy and power output due to its precise control. However, it can be more expensive to repair and may be more prone to carbon buildup on intake valves. Some modern engines even use a "dual injection" system, combining both port and direct injection to leverage the benefits of both.

Q: Does the quality of atomisation affect engine emissions?

A: Absolutely. Poor atomisation leads to incomplete combustion, which generates higher levels of harmful pollutants like unburnt hydrocarbons and carbon monoxide. Excellent atomisation, conversely, promotes cleaner and more efficient burning, significantly reducing tailpipe emissions and helping your car comply with environmental regulations.
