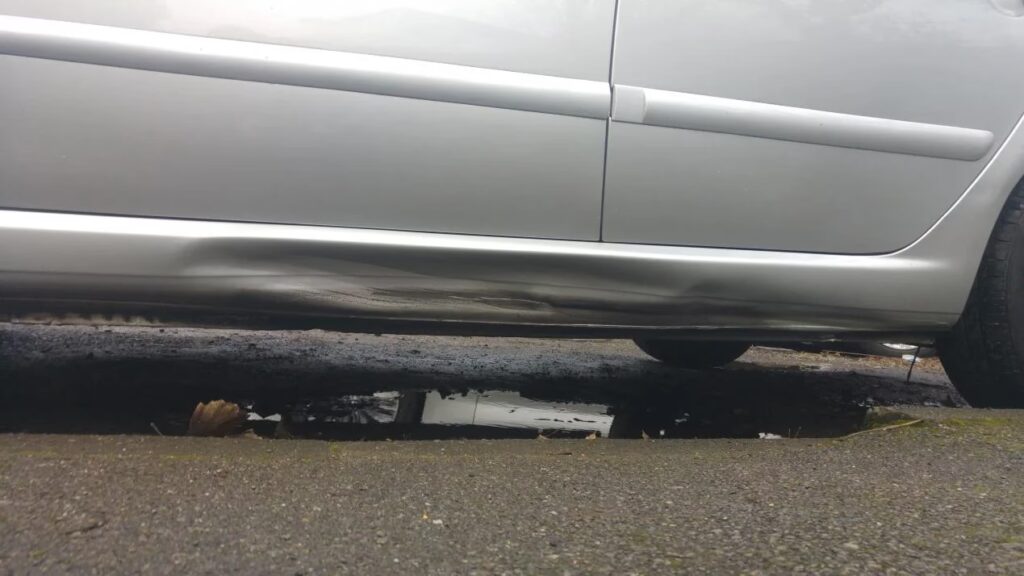

Sill Dents: Tight Manoeuvres & Repair Solutions

It's a common scenario that can instantly sour your day: a moment of misjudgement, a tight squeeze, and that gut-wrenching scrape as your car's sill connects with something solid. Whether it's a kerb during a tight turn in a busy yard, a bollard in a car park, or even an unseen obstacle in your blind spot, sill dents are surprisingly common, even at speeds so low they barely register on the speedometer. The frustration is compounded when you've been meticulously careful, perhaps even watching another vehicle to avoid a different collision, only to find the damage has occurred elsewhere.

This particular type of damage, often sustained while manoeuvring slowly, highlights a critical point: it's rarely about speed. Instead, it's the sheer concentrated weight of the vehicle pressing down on a small, unforgiving point of impact that causes the significant creasing or denting you see. The sill, an often-overlooked but vital part of your car's structure, bears the brunt of these low-impact collisions. But what exactly is the sill, why is it so vulnerable, and more importantly, can these dents be effectively repaired?

Understanding Your Car's Sill

The sill, also known as the rocker panel, is the part of your car's bodywork located directly beneath the doors, running the length between the front and rear wheel arches. It's not just a decorative strip; it plays a crucial role in your vehicle's structural integrity. Sills are essentially part of the car's chassis, contributing significantly to its rigidity and crash protection. They also serve as the designated jacking points, meaning they're designed to withstand considerable localised pressure when lifting the vehicle for tyre changes or maintenance.

Because of its position, close to the ground and along the side of the vehicle, the sill is highly susceptible to damage from various hazards. It’s often the first point of contact with kerbs, speed bumps, parking blocks, or even debris on the road.

How Sills Get Dented, Even at Low Speeds

The incident you described – clipping a kerb during a tight turn while pulling away slowly, all while focusing on avoiding a van on the other side – is a classic example of how sill damage occurs without excessive speed. Here's a breakdown of the mechanics:

• The Concentrated Weight Factor: Unlike a high-speed impact where kinetic energy is broadly distributed, a slow-speed scrape against a fixed object like a kerb concentrates the car's substantial weight onto a very small area of the sill. This immense pressure, even without speed, is more than enough to deform the metal. Think of it like pressing a sharp object into a soft material – it doesn't need to be moving fast to create an impression.
• Angular Impact: When turning tightly, the angle at which the sill meets the obstacle can be highly unfavourable. Instead of a glancing blow, it becomes a direct, perpendicular push or scrape, often digging into the metal.
• Blind Spots and Perspective: Modern cars, while offering excellent visibility forward, often have significant blind spots along their lower sides, especially when manoeuvring in tight spaces. Your focus on the van to avoid one collision inadvertently left the kerb on the other side unseen or misjudged. Mirrors, while helpful, don't always provide a clear view of the very bottom edge of the vehicle in relation to ground-level obstacles.
• Unforgiving Obstacles: Kerbs, concrete blocks, and metal posts are rigid and unyielding. They don't absorb impact, meaning all the force is transferred directly to your car's bodywork.
• Vehicle Dimensions Misjudgment: Even experienced drivers can misjudge the exact width or turning circle of their vehicle, particularly when driving a works car that might differ from their personal vehicle.

It's a scenario where caution, ironically, can still lead to damage. Your slow speed and vigilance over the van simply demonstrate that the physics of weight and impact angle, not velocity, were the primary culprits.

The Repercussions of a Dented Sill

While aesthetically displeasing, a dented sill can lead to more significant issues if left unaddressed:

• Aesthetics and Resale Value: A visible dent, especially on a prominent part like the sill, immediately detracts from the vehicle's appearance and can significantly lower its resale value. Potential buyers will scrutinise bodywork damage.
• Risk of Rust: If the paintwork is compromised – which is highly likely with a dent of this nature – the exposed bare metal becomes vulnerable to moisture, salt, and grime. This can quickly lead to rust formation, which will spread beneath the paint and eventually compromise the sill's structural integrity. Rust repair is far more complex and costly than dent repair.
• Compromised Jacking Points: If the dent is severe or located directly on a designated jacking point, it can make it unsafe or impossible to lift the car correctly. Using a jack on a damaged sill can cause further damage to the car or, more dangerously, lead to the vehicle slipping off the jack.
• Structural Weakness (in severe cases): While a minor dent from a low-speed kerb clip is unlikely to severely compromise the overall structural integrity, a large, deep crease or a puncture can weaken the chassis in that area, particularly if the inner structure is also affected. This could potentially have implications for crash safety.

Assessing the Damage and Repair Feasibility

The good news is that most sill dents, even those caused by the car's weight, are repairable. The key is to accurately assess the extent of the damage. Consider the following:

• Depth and Shape: Is it a shallow crease, a deeper indent, or a sharp fold?
• Paint Damage: Is the paint merely scuffed, or is it chipped, cracked, or completely missing, exposing bare metal?
• Location: Is the dent on a flat, accessible part of the sill, or is it on a curved section, near a seam, or directly on a jacking point?
• Inner Structure: Can you tell if the inner metal structure of the sill has also been affected, or is it just the outer skin? This usually requires a professional inspection.

For a works car, repair is almost certainly the required course of action, both for appearance and to prevent long-term issues like rust. Leaving it could also lead to issues with fleet management or end-of-lease inspections.

Repair Options for Dented Sills

When it comes to repairing a dented sill, you generally have two main avenues: DIY methods or professional body shop services. The best choice depends on the severity of the dent, your budget, your skill level, and your expectations for the finish.

1. DIY Repair Options (For Minor Dents and Scrapes)

For very minor, shallow dents with minimal paint damage, some DIY approaches might be considered. However, it's crucial to manage expectations; achieving a factory-perfect finish at home is extremely challenging, especially on a sill which is often a complex, structural part.

• Paintless Dent Repair (PDR) Kits (Limited Application): While PDR is excellent for dents on flat, accessible panels where the paint isn't broken, it's rarely suitable for sill dents. Sills are often multi-layered, reinforced, and have limited access from behind, making the specialised tools of PDR ineffective for pushing out the metal. If the dent is a simple, shallow one without sharp creases and perfect paint, a professional PDR technician might be able to work magic, but it’s uncommon for kerb damage.
• Body Filler & Touch-Up Paint: This is the most common DIY approach for superficial sill damage. The process involves:
  • Cleaning and Preparation: Thoroughly clean the area.
  • Sanding: Sand down any rough edges and scuffs, feathering out the paint around the dent. If bare metal is exposed, use a rust-inhibiting primer.
  • Applying Body Filler: Mix and apply thin layers of body filler to the dent, building it up slightly above the surrounding surface. Allow each layer to cure.
  • Sanding and Shaping: Carefully sand the filler down with progressively finer sandpaper until it's perfectly flush with the original bodywork and the correct contour.
  • Priming: Apply a primer to the filled area.
  • Painting: Apply layers of colour-matched paint, followed by clear coat.
  • Polishing: Buff and polish for a smooth finish.

  This method requires patience, a steady hand, and an understanding of bodywork. The challenge with sills is their shape and the need for a durable finish that can withstand future impacts and road debris.

2. Professional Body Shop Repair (Recommended for Most Sill Dents)

For most sill dents, especially those involving creasing, significant paint loss, or suspected structural impact, a professional body shop is the best and safest option. They have the expertise, tools, and materials to restore your sill to its original condition.

• Traditional Body Repair: This is the most common method. The process typically involves:
  • Assessment: Technicians will thoroughly assess the damage, often removing trim or even wheels for better access.
  • Straightening and Hammering: Using specialized tools, they will attempt to pull, push, or hammer out the major part of the dent. For sills, this might involve welding pulling tabs onto the surface.
  • Filling: Once the metal is as straight as possible, a minimal amount of body filler is applied to achieve a perfectly smooth contour.
  • Sanding and Priming: The filler is meticulously sanded, and the area is primed to ensure paint adhesion and corrosion protection.
  • Painting: The area is precisely colour-matched and painted, often blending the new paint into the surrounding panels to ensure an invisible repair. Multiple layers of base coat and clear coat are applied.
  • Curing and Finishing: The paint is cured (often in a heated spray booth), and the area is polished to a factory-quality finish.
• Sill Replacement: In cases of very severe damage – such as a deep puncture, significant structural deformation, or extensive rust that has compromised the metal – the entire sill section may need to be cut out and replaced. This is a complex and costly procedure, involving welding in a new panel and extensive painting. It's typically reserved for major collision damage, but if your low-speed impact caused a particularly nasty crease that compromises the jacking point, it might be necessary.

Factors Affecting Repair Cost

The cost of repairing a sill dent can vary widely based on several factors:

• Severity of the Dent: A shallow crease is less expensive than a deep, complex dent or one that requires significant reshaping.
• Extent of Paint Damage: If only a small area needs repainting, it's cheaper than needing to blend paint across a larger section or an adjacent panel.
• Location: Dents on flat, easily accessible parts of the sill might be cheaper than those on curved sections or near wheel arches, which require more intricate work.
• Labour Rates: These vary significantly between regions and individual body shops.
• Vehicle Make and Model: Some vehicles have more complex sill designs or more expensive paint systems.

For a typical kerb-induced sill dent with paint damage, professional repair costs in the UK can range from a few hundred pounds for a localised repair to upwards of £500-£1000 or more if the damage is extensive or requires significant fabrication/replacement.

Prevention is Always Better

While repairs are possible, preventing sill dents in the first place is always the best approach. Here are some tips:

• Be Vigilant in Tight Spaces: Always take extra time when manoeuvring in car parks, yards, or narrow streets.
• Utilise Sensors and Cameras: Rely on parking sensors and reversing cameras, but don't solely depend on them. They provide excellent assistance but have limitations.
• Check Your Surroundings: If in doubt, get out of the vehicle and physically check the clearance. This is especially important in unfamiliar environments or with larger vehicles.
• Know Your Vehicle's Dimensions: Understand your car's turning circle and its exact width, including mirrors.
• Take it Slowly: As your incident proves, slow speed doesn't prevent damage, but it gives you more time to react and potentially avoid impact altogether.
• Adjust Mirrors: When parking or manoeuvring in tight spaces, consider tilting your wing mirrors downwards to get a better view of the kerb and the lower side of your vehicle.

Frequently Asked Questions (FAQs)

Q1: Can I ignore a small sill dent?

While a tiny, superficial dent might seem harmless, it's generally not advisable to ignore any sill damage, especially if the paint is broken. Exposed metal can quickly lead to rust, which will spread and eventually compromise the sill's structural integrity. Even minor rust can become a major headache if left untreated.

Q2: Is Paintless Dent Repair (PDR) suitable for sill dents?

PDR is rarely suitable for sill dents. Sills are often reinforced and have limited access from behind, making it difficult for PDR tools to manipulate the metal effectively. PDR works best on shallow dents on flat, accessible panels where the paint is undisturbed. For kerb damage, where the metal is often creased and paint is broken, traditional body repair is almost always required.

Q3: How much does it typically cost to repair a sill dent in the UK?

Costs vary widely based on the severity and location of the dent, as well as the body shop's rates. For a standard kerb-induced dent with paint damage, expect to pay anywhere from £250 to £700+. More severe damage requiring extensive reshaping or partial replacement could run into £1,000 or more.

Q4: Does a sill dent affect my car's MOT?

Yes, a sill dent can affect your MOT, particularly if it's severe or has led to significant corrosion. The MOT test checks for excessive corrosion in "prescribed areas" which include the sills, as they are crucial for structural integrity. If the dent has caused rust that weakens the sill or creates sharp edges, it could result in an MOT failure. Minor cosmetic dents without rust are less likely to fail, but it's at the discretion of the MOT tester.

Q5: Can I drive with a dented sill?

For most typical kerb-induced dents, driving the car is usually safe in the short term. However, it's not recommended to leave it indefinitely. The primary concern is the potential for rust if the paint is broken, which can quickly spread and lead to more significant structural issues. If the dent is extremely severe, compromises a jacking point, or you suspect it has affected the inner structure, it's best to have it inspected by a professional before continuing to drive long distances.

Conclusion

A dented sill, even from a slow-speed kerb clip, is a frustrating but common occurrence. It's a testament to the concentrated force exerted by a vehicle's weight on a small impact point. While it might seem like a minor cosmetic flaw, addressing it promptly is crucial to prevent more serious issues like rust and compromised structural integrity, especially for a works vehicle where appearance and safety standards are paramount. Consulting a professional body shop for an assessment and repair quote is almost always the best course of action to ensure a durable, high-quality finish and maintain your vehicle's value and safety.
