Keeping your machinery running smoothly is paramount for any operation, whether you're a professional landscaper, a diligent farmer, or a dedicated DIY enthusiast. At the heart of many powerful machines lies the transaxle, a vital component responsible for transmitting power from the engine to the drive wheels. Just like any other intricate part, your transaxle requires regular maintenance to ensure peak performance and to prevent costly breakdowns. This is where a transaxle oil service kit comes into play. But what exactly is it, and why is it so important?
Understanding the Transaxle
Before delving into the service kit itself, it's essential to grasp the function of the transaxle. A transaxle is a single unit that combines the gearbox (transmission) and the final drive (differential) into one housing. This clever integration is common in front-wheel-drive vehicles and, importantly for this discussion, in many zero-turn mowers and other heavy-duty outdoor power equipment. The transaxle's internal gears, bearings, and seals rely on a specific type of lubricating oil to function correctly. This oil reduces friction, dissipates heat, and protects the internal components from wear and tear.

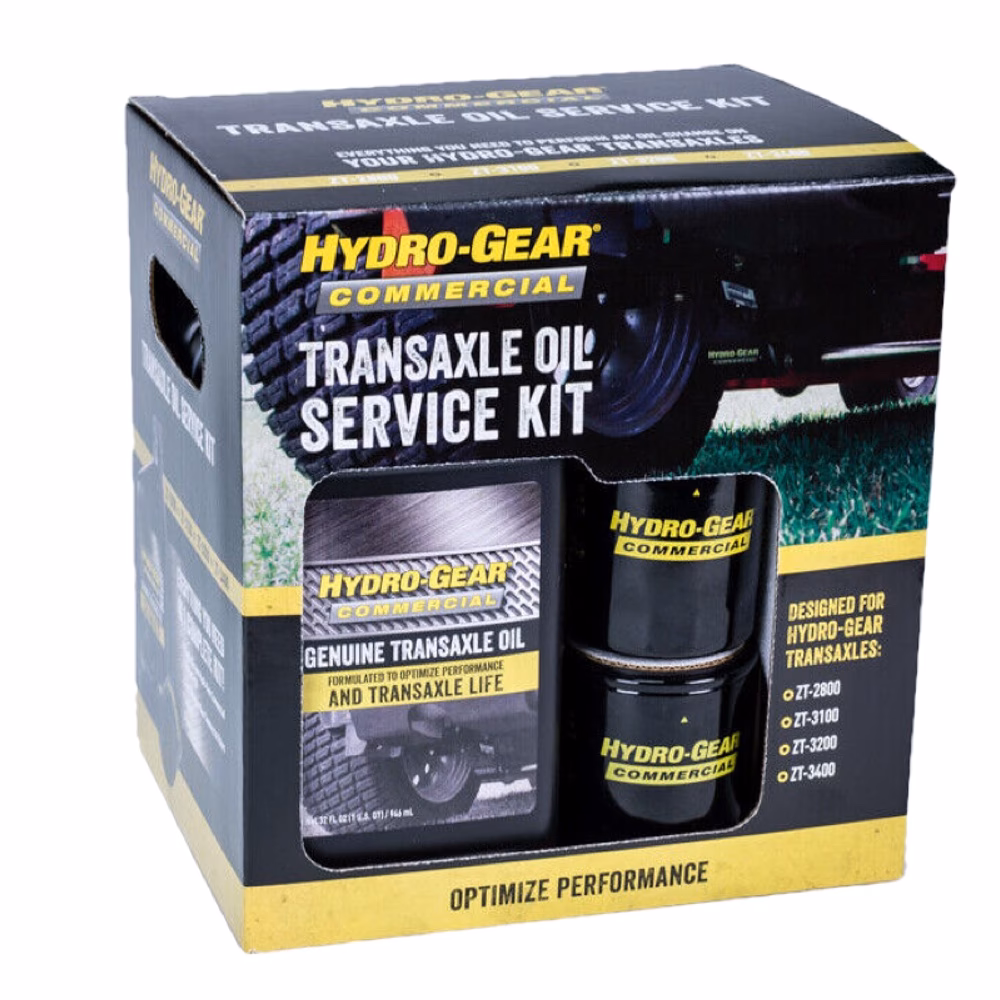

What is a Transaxle Oil Service Kit?
A transaxle oil service kit is a pre-packaged collection of all the necessary consumables and often some basic tools required to perform a routine oil change on your transaxle. Think of it as a one-stop solution for this specific maintenance task. Typically, these kits are designed by the original equipment manufacturer (OEM) or a reputable aftermarket supplier to ensure compatibility and optimal performance for a particular transaxle model or series.
Key Components of a Transaxle Oil Service Kit:
- Transmission Fluid: This is the core of the kit. The specific type and quantity of fluid will be tailored to the requirements of your transaxle. Using the correct fluid is non-negotiable for the longevity of the unit.
- Seals and Gaskets: During an oil change, it's often recommended to replace certain seals and gaskets, such as drain plugs or filler caps, to prevent leaks and maintain the integrity of the transaxle housing.
- Filters (if applicable): Some transaxles incorporate internal or external filters that trap debris. A service kit may include these replacement filters.
- O-Rings: Small but crucial, O-rings are often found in various connection points and are included to ensure a tight seal.
- Instruction Manual/Guide: While not a consumable, a clear guide on how to perform the service is often included, making the process more straightforward.
- Tools (sometimes): Some premium kits might even include specialized tools like specific wrenches or oil extraction pumps, although this is less common.
Why is a Transaxle Oil Service Important?
Regularly changing the transaxle oil is crucial for several reasons:
- Lubrication: The oil lubricates all the moving parts, reducing friction and wear. Over time, this oil can degrade, lose its lubricating properties, and become contaminated with metal shavings and other debris.
- Cooling: The transaxle generates a significant amount of heat during operation. The oil helps to dissipate this heat, preventing overheating and potential damage to sensitive components.
- Cleaning: As the oil circulates, it picks up small particles of wear and tear. Fresh oil and a clean filter (if applicable) ensure that these contaminants are removed or prevented from circulating, keeping the internal mechanisms clean.
- Preventing Leaks: Worn seals and gaskets can lead to oil leaks, which not only results in oil loss but can also allow contaminants to enter the transaxle. Replacing these during a service helps maintain a sealed system.
- Extending Lifespan: By ensuring proper lubrication, cooling, and cleanliness, regular transaxle oil services significantly extend the operational life of the unit, saving you from premature replacement costs.
- Maintaining Performance: A well-maintained transaxle operates more efficiently, providing consistent power to your drive wheels and ensuring your machinery performs at its best.
Identifying Your Transaxle and Sourcing a Kit
One of the most common challenges when it comes to transaxle maintenance is correctly identifying the specific model you have. This is especially true with the wide variety of equipment available on the market. For Hydro-Gear transaxles, a reliable method is to consult their Support page. This resource usually provides clear instructions on how to locate the model and serial number on your transaxle, often found on a tag or stamped directly onto the housing. Knowing these details is critical for ordering the correct service kit.
Once you've identified your Hydro-Gear transaxle, obtaining the right kit is straightforward. The provided information suggests using the Dealer Locator. It is highly recommended to call your local dealer in advance to verify that they have the specific Hydro-Gear Commercial Transaxle Oil Service Kits in stock. For models ranging from ZT-2800 through ZT-3600, you'll need to ask for Part No. 72750. For the larger ZT-4400 through ZT-5400 series, the required kit is Part No. 72881.
DIY vs. Professional Service
Performing a transaxle oil service can be a rewarding DIY task for those comfortable with basic mechanical procedures. The availability of comprehensive kits simplifies the process significantly. However, if you're unsure about any step, lack the necessary tools, or simply prefer to have the job done by a professional, taking your equipment to an authorized service centre is always a wise option. They have the expertise and equipment to ensure the service is performed correctly and efficiently.
What to Expect During a Service
A typical transaxle oil service involves several steps:
- Preparation: Ensure the transaxle is at a moderate operating temperature (warm, but not scalding hot) to allow the oil to flow freely. Park the machine on a level surface and engage the parking brake.
- Draining the Old Oil: Locate the drain plug on the transaxle. Place a suitable drain pan underneath and carefully remove the plug. Allow all the old oil to drain completely.
- Replacing Seals/Plugs: Inspect the drain plug and its associated seal. If a new seal or plug is provided in the kit, replace the old one. Clean the drain plug and the area around the drain hole before reinserting and tightening the plug to the manufacturer's specified torque.
- Filling with New Oil: Locate the fill plug or dipstick tube. Using a funnel, carefully add the new, correct type and amount of transaxle fluid as specified in your owner's manual or the kit's instructions.
- Checking the Level: Once filled, replace the fill plug or dipstick. Start the engine and run the machine for a few minutes, engaging the drive system briefly if possible. Shut off the engine, wait for a few minutes for the oil to settle, and then check the oil level using the dipstick or by removing the fill plug. Top up if necessary.
- Final Checks: Inspect for any leaks around the drain plug and fill cap. Dispose of the old oil responsibly.
Troubleshooting Common Issues
Even with regular maintenance, you might encounter issues. Here are a few common ones and their potential causes:
| Symptom | Potential Cause | Solution |
|---|---|---|
| Whining noise | Low oil level, worn bearings, or incorrect oil viscosity. | Check oil level and top up if necessary. Consider an oil change with the correct fluid. If the noise persists, internal damage may be present. |
| Difficulty shifting or engaging drive | Low oil level, contaminated oil, or internal transmission problems. | Check oil level and condition. Perform an oil service. If problems continue, consult a professional. |
| Overheating | Low oil level, blocked cooling fins, or excessive load. | Ensure adequate oil level. Clean any debris from the transaxle housing and cooling fins. Reduce operating load if possible. |
| Oil leaks | Loose drain/fill plugs, damaged seals, or cracked housing. | Tighten plugs. Replace damaged seals. Inspect housing for cracks. |
Frequently Asked Questions
Q1: How often should I change my transaxle oil?
A1: The frequency depends on your usage and the manufacturer's recommendations. For heavy-duty use, an annual service or every 200-300 operating hours is common. Always refer to your equipment's manual.
Q2: Can I use any type of oil in my transaxle?
A2: Absolutely not. Transaxles require specific oil formulations. Using the wrong type can lead to premature wear, overheating, and catastrophic failure. Always use the oil type recommended by the transaxle manufacturer, which is often included in a service kit.
Q3: What is the difference between a transaxle and a gearbox?
A3: A gearbox (transmission) is solely responsible for changing gear ratios. A transaxle combines the gearbox and the differential (which allows wheels to rotate at different speeds when turning) into a single unit.
Q4: My transaxle is making a grinding noise. What should I do?
A4: A grinding noise often indicates serious internal damage, such as worn or broken gears. Check the oil level immediately. If the oil level is correct and the noise persists, cease operation and seek professional diagnosis and repair.
Conclusion
A transaxle oil service kit is an invaluable tool for maintaining the health and performance of your machinery. By understanding what's in the kit, why the service is important, and how to identify and obtain the correct parts, you can ensure your transaxle operates efficiently for years to come. Regular maintenance is not just about preventing breakdowns; it's about maximising the productivity and lifespan of your valuable equipment. Don't overlook this critical aspect of machinery care – invest in a quality service kit and keep your operation running smoothly.
