Mastering Hydraulic Oil Changes

Changing the hydraulic oil in your machinery might seem like a straightforward task, a simple matter of draining the old and filling with the new. However, for those operating in demanding environments or with high-value equipment, the process can be far more intricate. This isn't just about lubrication; it's about maintaining the lifeblood of your hydraulic system, ensuring reliability, and preventing costly breakdowns. The question often arises: what happens when you switch brands or types of hydraulic oil? The primary concern is compatibility, as you can never completely drain all the original oil. This means some mixing is inevitable. So, how do you ensure the new and old oils are miscible? Even major oil manufacturers face this challenge when conducting field trials. Their method offers valuable insights for us. In one trial, a new oil was tested across various excavators and wheel loaders. The procedure involved draining the hydraulic tank, refilling with the new oil, operating the machine for 10-15 minutes, and repeating this cycle until analysis showed less than 5% of the original oil remained. It was found that a minimum of four complete reservoir changes were needed to achieve this 5% threshold. This highlights two key points: firstly, the sheer volume of oil that can be wasted, especially in larger systems, and secondly, the critical need for the new oil to be compatible with the original, even at a 95:5 mix ratio. To assess compatibility, the testers mixed the old and new oils in various ratios (100:0, 75:25, 50:50, 25:75, 0:100) and stored them at different temperatures (-18°C, 0°C, 20°C, and 65°C) for a month, observing for any precipitates or changes. While this rigorous approach might not be practical for every user, the principle remains. A single reservoir change often results in a significant mix ratio, potentially as high as 25:75 or more. Therefore, a basic 'compatibility study' – mixing, shaking, waiting, and observing – is highly recommended. Neglecting this simple test could lead to expensive errors.

The "Bulletproof" Hydraulic Oil Change Process

When dealing with high-value hydraulic equipment, a standard "drain and fill" approach might not suffice. The risk of attributing any subsequent breakdown to the recent service is high. To mitigate this, a more meticulous process is often required, especially when OEM technicians are unavailable. This detailed approach provides documentation and assurance that the service was performed to industry standards. Let's walk through a comprehensive, "bulletproof" process, exemplified by a recent service call involving a large hydraulic power unit (HPU) at a mine.

Step 1: Preparation is Key

Effective preparation is crucial for a smooth oil change. Ideally, request the clean oil to be delivered to the worksite well in advance and placed in a location that is easily accessible for your oil transferring gear and will remain undisturbed. This addresses logistics, avoiding delays often encountered with large suppliers and their inherent bureaucracy. Furthermore, allowing the new oil containers to rest ensures that heavier sediment particles settle at the bottom, which can then be avoided during transfer. You never truly know what might be lurking in "new" oil, so a settled container is always preferable to one that has experienced an agitated journey.

In the case of the mine, four 1000-litre IBCs of hydraulic oil were delivered two days prior to the scheduled maintenance, a perfect scenario for starting the job.

Step 2: Draining and Inspecting the Old Oil

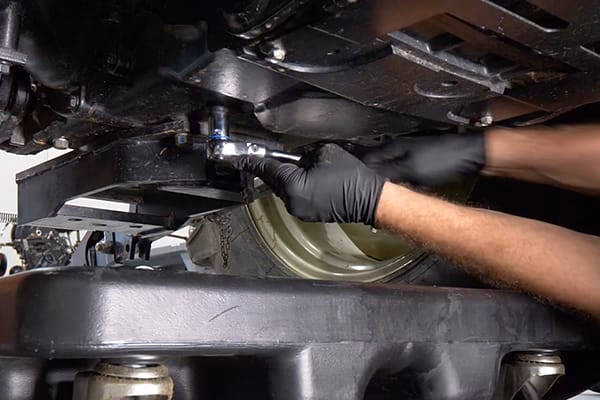

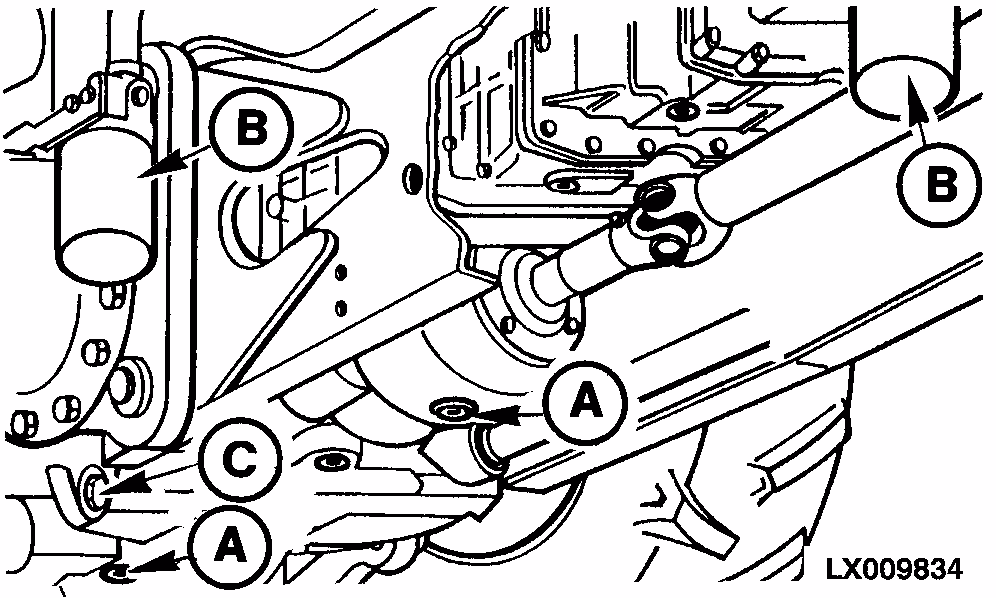

Draining the old oil is straightforward, but a few points warrant attention. If the drained oil appears degraded, retain a sample for potential analysis. The ease of draining depends on the system's design, so familiarise yourself with it beforehand. A thin layer of oil often remains at the bottom of the tank after draining; inspect this layer meticulously, documenting any findings. Also, consider draining actuators, as they can retain a significant volume of fluid, particularly if the old oil was in a "remarkably sad" condition.

During the mine service, after the bulk of the oil was drained, about an inch remained. The technician donned a "clean suit" to enter the tank, inspect the bottom layer, and use a squeegee to guide the remaining oil towards the drain.

Step 3: Internal Tank Inspection

This step involves a thorough visual inspection of the tank's interior. For steel tanks, look for rust spots, peeling paint, or varnish deposits. In this instance, the tank was in excellent condition, with a commendable paint job. Minor condensation corrosion was noted on the "ceiling," but it was not considered alarming, even with sealed tanks and desiccant air breathers.

Step 4: Filter Inspection

The return filter is often the most telling component regarding the health of a hydraulic system. Inspecting the bottom of the filter housing for any anomalies can reveal valuable information about the system's internal condition. In this particular case, the filters were found to be "clean as a whistle."

Step 5: Cleaning and Corrective Actions

This is the hands-on part of the job where all identified issues are addressed, and meticulous cleaning takes place. This can involve a range of tools, from simple rags and lint rollers to more sophisticated cleaning equipment. Crucially, ensure that the cleaning materials used do not leave behind fibres. A vacuum cleaner is an indispensable tool for this stage.

Step 6: Sealing the Tank

Before closing the tank, ensure no tools or cleaning supplies are accidentally left inside. A double-check by another person is highly recommended, as overlooked items are often discovered this way. It's also vital to confirm the location of your work light before closing the inspection cover. Misplacing a light inside the tank can lead to an unsettling "what if" scenario for the remainder of the equipment's operational life.

Step 7: Filter Replacement

When replacing filters, meticulously document the elements used. Always opt for high-quality, preferably fibre-based, filter elements. Cellulose elements are generally considered inferior.

Step 8: Oil Transfer

If the tank isn't already equipped with a suitable filling coupling, install one. New oil should always enter the hydraulic system through the system's return filter. Regarding the transfer process, a higher flow rate isn't always better. High-flow oil carts can lead to worse filtration, and since oil transfer is often a single-pass operation, maximising filtration efficiency is paramount. Furthermore, transferring cold oil at high speeds increases the risk of cracking the return filter's by-pass valve, negating the purpose of filtering the oil during transfer. A slower, controlled flow ensures better filtration and reduces the risk of component damage.

A portable, low-flow pump (around 2.5 gallons per minute) that has proven reliable over seven years was used for this task. Its removable suction and pressure elements and affordable price make it a valuable tool. In this instance, hoses were prepared, and the night shift handled the transfer.

Step 9: Flushing and Cleanliness Verification

For high-end hydraulic systems, it's essential to log the oil's cleanliness code (ISO 4406) before starting the system after an oil change. This is crucial for liability and ensuring system health. Flushing the oil using an external filter bank is often the preferred method. Many large HPUs have cooling or filtering circuits that can be isolated for this purpose. Using a particle counter alongside the external filter bank allows you to monitor and improve the oil's cleanliness level.

Target Cleanliness Level: Determining when the oil is sufficiently clean is critical. While manufacturers provide recommended cleanliness levels (e.g., Rexroth specifies at least 20/18/15 according to ISO 4406), aiming for a higher standard is advisable. Modern filtration can often achieve levels significantly below these recommendations. For the HPU in question, a 375 l/min cooling circuit was utilised for flushing. A Hydac FCU 2210-1 particle counter was used to monitor cleanliness. After an hour of flushing, a steady 16/10/7 was achieved. Leaving the pump running overnight improved this to 14/10/7, indicating the system was ready for the final stage.

Step 10: System Start-up and Final Sampling

Before starting the HPU, perform preliminary checks, such as verifying accumulator pre-charge and ensuring no air pockets are in the suction lines. With the FCU installed at the outlet of a charge pump, the HPU was started. Key pressures were monitored and found to be within limits. The oil cleanliness was re-checked, initially reading 13/11/08, and after a couple of hours of operation, it stabilised at 12/10/07. The high-quality filtration system, coupled with the absence of suction strainers, contributed to the significant improvement in oil cleanliness, which is a testament to the system's design and the effectiveness of the flushing process.

Summary of Key Considerations

The process of changing hydraulic oil, especially for critical machinery, is far more involved than a simple drain and fill. It requires meticulous preparation, thorough inspection of both the oil and system components, and rigorous flushing and cleaning procedures. The goal is not just to replace the oil but to ensure the entire hydraulic system is operating with the cleanest possible fluid. This not only safeguards the equipment against premature wear and failure but also provides documented evidence of adherence to best practices, crucial for managing liability and ensuring operational continuity. Remember, the quality of your hydraulic system is intrinsically linked to the quality of its filtration and the diligence of its maintenance. By following a comprehensive approach, you can significantly extend the life of your machinery and minimise the risk of costly downtime.

Frequently Asked Questions

• Q1: How often should hydraulic oil be changed?
  A1: The frequency depends on the application, operating conditions, and oil analysis results. Regular oil analysis is the best way to determine the optimal change interval.
• Q2: Can I mix different brands of hydraulic oil?
  A2: It's generally not recommended. While some oils may be compatible, mixing can lead to reduced performance, deposit formation, or system damage. Always consult the manufacturer's recommendations.
• Q3: What is the significance of ISO 4406 cleanliness codes?
  A3: ISO 4406 is a standard for reporting the particle contamination level in hydraulic fluid. A lower number indicates cleaner oil. Manufacturers often specify a minimum cleanliness level required for their components to operate reliably.
• Q4: Why is it important to avoid leaving tools or debris in the hydraulic tank?
  A4: Any foreign object left in the tank can be circulated through the system, causing damage to pumps, valves, and actuators. It can also contaminate the new oil.
• Q5: What are the risks of using high-flow oil transfer pumps?
  A5: High-flow pumps can lead to inadequate filtration during transfer, potentially damage filter elements (especially by cracking bypass valves), and may not allow sufficient time for contaminants to be captured by the filters.
