Cracked Cylinder Head: UK Mechanic's Guide

When it comes to vehicle malfunctions, some issues strike more fear into a car owner's heart than others. A cracked cylinder head is undoubtedly one of them. This is not merely a minor inconvenience; it signals a potentially severe internal engine problem that, if ignored, can lead to catastrophic failure and exorbitant repair bills. Understanding the symptoms, causes, and necessary actions is crucial for any responsible car owner in the UK.

This comprehensive guide delves deep into the world of cracked cylinder heads. We'll explore the tell-tale signs that your engine might be suffering from this critical fault, illustrate how these symptoms manifest, and discuss the underlying reasons why cylinder heads fail. Furthermore, we'll cover the complexities of diagnosing such a problem and provide a realistic overview of the associated repair costs. By the end, you'll be well-equipped to recognise the signs, understand the implications, and know the best course of action to protect your vehicle.

Understanding the Cylinder Head and Its Vital Role

Before diving into the problems, it's essential to appreciate the cylinder head's function. Situated atop the engine block, the cylinder head is a complex component that forms the combustion chamber's upper part. It houses vital components such as the valves (intake and exhaust), camshafts, and spark plugs. Crucially, it also contains intricate passages for both coolant, to regulate engine temperature, and oil, for lubrication. Its design ensures a sealed environment for combustion and efficient gas flow for optimum engine performance. A crack in this intricate structure compromises the entire engine's integrity.

Key Symptoms of a Cracked Cylinder Head

Detecting a cracked cylinder head early can mitigate further damage and potentially reduce repair costs. The symptoms often overlap with other engine issues, such as a blown head gasket, making accurate diagnosis by a professional even more critical. However, being aware of these signs can help you identify a potential problem quickly.

1. Dashboard Warning Lights

Modern vehicles are equipped with sophisticated diagnostic systems that can alert you to problems. If the crack is significant enough to cause a noticeable malfunction, your dashboard might light up. The most common warning is the Check Engine Light (CEL), especially if the crack leads to misfires or other combustion irregularities. Beyond the CEL, you might see a low coolant level warning light or a high-temperature light, directly indicating issues with the cooling system's integrity or performance. Any illumination of these lights warrants immediate investigation.

2. Oil and Coolant Contamination

One of the most concerning and definitive signs of a cracked cylinder head is the mixing of engine oil and coolant. The cylinder head has passages for both fluids, and a crack can breach the barrier between them. You might notice a milky, frothy substance resembling mayonnaise on your oil filler cap, dipstick, or within the coolant expansion tank. This emulsion is a clear indicator that these two vital fluids are intermingling, which can severely compromise their lubricating and cooling properties. Additionally, combustion gases can also enter the cooling system, appearing as bubbles in the coolant reservoir, which can sometimes be mistaken for an oil mixture, though it's typically more distinct in appearance.

3. White Smoke from the Exhaust

The engine's cooling system routes coolant through passages in the cylinder head to dissipate heat. If a crack allows coolant to leak into the combustion chamber, it will be burned alongside the fuel-air mixture. The result is a distinct plume of white smoke emanating from the tailpipe. This isn't typical exhaust vapour; it's steam. Often, this steam can carry a noticeable, sweet odour due to the burning coolant, which is quite unique and unlike the smell of burning oil or fuel. This symptom is a strong indicator of internal coolant leakage.

4. Lower Coolant Levels

As coolant seeps into the combustion chambers or mixes with oil due to a crack, the overall volume of coolant within your cooling system will inevitably decrease. You might find yourself frequently topping up the coolant reservoir, only for the level to drop again relatively quickly. The rate at which the coolant level depletes is directly proportional to the severity and size of the crack. Consistent, unexplained coolant loss is a major red flag.

5. Overheating Engine

A direct consequence of dwindling coolant levels is an engine that struggles to maintain optimal operating temperatures. With insufficient coolant circulating to dissipate heat, the engine will begin to overheat. Your dashboard temperature gauge will likely climb into the red zone, and the engine overheat warning light may illuminate. Driving an overheating engine, even for short distances, can cause irreversible and extensive damage to other critical components, potentially leading to a complete engine seizure or requiring a full engine replacement. It's imperative to switch off the engine immediately if it begins to overheat.

6. Rough Engine Performance

For an engine to run smoothly and efficiently, it requires optimal compression within its cylinders, a precise air-to-fuel ratio, and correctly timed ignition. A cracked cylinder head can compromise cylinder compression, as the crack allows combustion gases to escape, reducing the pressure needed for efficient power generation. This loss of compression can lead to noticeably rough engine performance, including misfires, a lack of power, hesitation during acceleration, and an overall uneven idle. The engine might feel sluggish or struggle under load, especially when maximum power is required.

Here's a quick summary of the symptoms and their implications:

Why Does the Cylinder Head Crack?

While cylinder heads are engineered to last for the vehicle's lifespan, typically outliving other components like gaskets or valves, they are not immune to failure. Modern cylinder heads are often made from aluminium for its lightweight and heat dissipation properties, while older vehicles might feature cast iron heads. Regardless of material, cracks can occur due to several factors, with overheating being the most prevalent cause.

1. Overheating and Thermal Shock

The single most common reason for a cylinder head to crack prematurely is severe and prolonged engine overheating. When an engine overheats, the metal components, including the cylinder head, expand significantly. If the engine then cools down too rapidly (e.g., cold water is added to an extremely hot engine, or the vehicle is driven into a cold environment after overheating), the rapid contraction of the metal can induce immense stress, leading to a phenomenon known as thermal shock. This sudden stress can cause the metal to crack, often in thin or stressed areas around valve seats or coolant passages. Even a single instance of severe overheating can be enough to compromise the cylinder head's integrity.

2. Defective Cooling System

Linked directly to overheating, a malfunctioning cooling system is often the root cause. Issues such as a failed water pump, blocked radiator, faulty thermostat, collapsed hoses, or persistent coolant leaks (from hoses, radiator, or reservoir) can all lead to the engine running hotter than its design parameters. If these cooling system issues are not addressed promptly, the cumulative thermal stress on the cylinder head significantly increases the risk of cracking.

3. Manufacturing Defects or Poor Design

In some rarer cases, a cylinder head might crack due to inherent flaws in its manufacturing process or a poor design. If there are casting imperfections, weak spots, or inadequate material thickness in certain areas, the head might be more susceptible to cracking under normal operating conditions or minor thermal stress. This is often observed in certain engine designs that develop a reputation for cylinder head issues early in their lifespan.

4. Improper Repair or Maintenance

Incorrect torquing of cylinder head bolts during a previous repair (e.g., head gasket replacement) can induce uneven stress on the head, leading to warping or cracking. Similarly, using the wrong type of coolant or neglecting regular coolant flushes can lead to corrosion and deposits within the cooling passages, impeding heat transfer and increasing the risk of localised overheating.

How to Diagnose a Cracked Cylinder Head

Diagnosing a cracked cylinder head is not a straightforward DIY task. While observing the symptoms can point towards a potential problem, definitively confirming a cracked cylinder head requires specialised equipment and expertise. Many symptoms, such as oil/coolant mixing or white smoke, are also characteristic of a blown head gasket, which is a different, albeit related, issue.

A professional mechanic will typically employ a combination of diagnostic methods:

• Cooling System Pressure Test: This involves pressurising the cooling system and observing if the pressure drops, indicating a leak. While it confirms a leak, it doesn't specify if it's external or internal.
• Combustion Leak Detector (Block Tester): This chemical test involves drawing air from the coolant reservoir through a liquid that changes colour if exhaust gases (CO2) are present in the coolant. This indicates a breach between the combustion chamber and the cooling system, strongly suggesting a cracked head or blown head gasket.
• Cylinder Leak-Down Test: This test involves injecting compressed air into each cylinder at Top Dead Centre (TDC) and measuring how much pressure is lost. If air escapes into the cooling system or adjacent cylinders, it can indicate a crack or a blown head gasket.

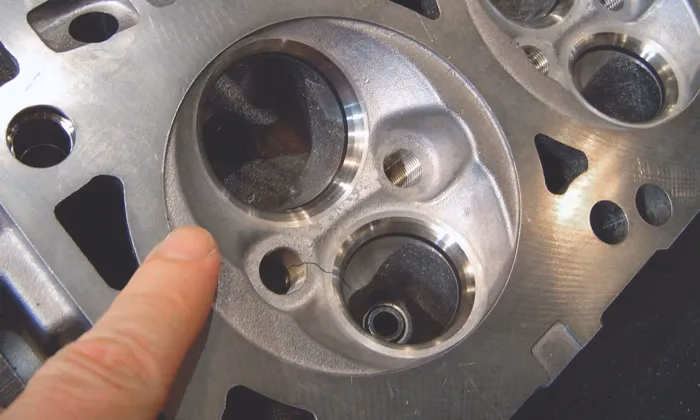

• Visual Inspection (After Disassembly): In severe cases, or if other tests are inconclusive, the cylinder head might need to be removed for a thorough visual inspection. Cracks can sometimes be seen with the naked eye, especially after cleaning, or with the aid of dye penetrant testing. This is a labour-intensive process.
• Oil Analysis: Sending a sample of your engine oil for laboratory analysis can detect the presence of coolant (glycol) or combustion byproducts, confirming internal leakage.

Due to the complexity and the need for partial engine disassembly, it's crucial to take your vehicle to a reputable mechanic with experience in diagnosing and repairing such intricate engine problems. Attempting a DIY diagnosis without the right tools or knowledge can lead to misdiagnosis and unnecessary expenses.

Cracked Cylinder Head Repair Cost in the UK

The cost of repairing a cracked cylinder head is significant and highly variable. It largely depends on several factors: the make and model of your vehicle, the type of engine (e.g., 4-cylinder vs. V6/V8, which might have two cylinder heads), the extent of the damage, and the labour rates of the garage you choose. Generally, a cracked cylinder head almost always necessitates a replacement rather than a repair, especially with modern aluminium heads.

In the UK, the typical cost for a cylinder head replacement can range from £750 to £4,250 per head. This broad range accounts for:

• Parts Cost: A new or reconditioned cylinder head can cost anywhere from £300 to £2,000+, depending on the vehicle. Gaskets, seals, and other associated components (like new head bolts, manifold gaskets, and potentially spark plugs or valve train components) will also add to this.
• Labour Cost: This is often the largest component. Replacing a cylinder head is an extremely labour-intensive job, requiring many hours of work to disassemble, reassemble, and test the engine. Labour rates in the UK can vary significantly, from £60 to £120+ per hour. The job can easily take 8-20+ hours of labour.
• Diagnostic Fees: Before any repair, there will be a diagnostic charge to accurately pinpoint the problem.
• Additional Damage: If the crack caused other issues, such as coolant/oil contamination, the engine's oil and cooling systems will need to be thoroughly flushed and refilled, adding to the cost. If the engine overheated severely, there might be further damage to pistons, rings, or the engine block itself, potentially leading to a complete engine rebuild or replacement, which could cost upwards of £5,000 - £10,000.

For older vehicles, while it was once common to repair (weld or resurface) cast iron cylinder heads, modern aluminium heads are much harder to repair reliably. Welding aluminium can be complex, and ensuring the head retains its structural integrity and flatness is challenging. Therefore, replacement with a new or reconditioned unit is almost always the recommended and more cost-effective long-term solution.

Preventing Cylinder Head Cracks

Prevention is always better than cure, especially when it comes to such costly repairs. The most effective way to prevent a cracked cylinder head is to diligently maintain your vehicle's cooling system and address any issues promptly.

• Regular Coolant Checks: Periodically check your coolant level and ensure it's at the correct mark when the engine is cold.
• Coolant Flushes: Follow your manufacturer's recommendations for coolant flushes and replacements. Old or contaminated coolant loses its protective properties and can lead to corrosion and reduced cooling efficiency.
• Inspect for Leaks: Regularly check hoses, radiator, and the engine for any signs of coolant leaks. Look for puddles under the car or white/green/pink residue on engine components.
• Monitor Temperature Gauge: Pay attention to your engine's temperature gauge. If it starts to rise above normal, investigate immediately. Do not continue driving an overheating engine.
• Address Warning Lights Promptly: Never ignore dashboard warning lights, especially those related to engine temperature or coolant levels.
• Professional Servicing: Ensure your vehicle receives regular servicing from qualified mechanics who can spot potential issues before they escalate.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car with a cracked cylinder head?

A: No, absolutely not. Driving with a cracked cylinder head can quickly lead to severe and irreparable damage to your entire engine. The symptoms like overheating, oil/coolant mixing, and loss of compression indicate that the engine is already compromised. Continuing to drive will exacerbate the problem, potentially causing a complete engine seizure or requiring a full engine replacement, which is far more expensive than just replacing the cylinder head.

Q2: What's the difference between a cracked cylinder head and a blown head gasket?

A: Both issues share many similar symptoms because they involve a breach between the combustion chambers and the oil/coolant passages. A blown head gasket is a failure of the seal (gasket) between the cylinder head and the engine block. A cracked cylinder head is a structural failure of the cylinder head itself. While a blown head gasket is often a simpler (though still costly) repair, a cracked cylinder head typically requires a full replacement of the head, making it generally more expensive and labour-intensive.

Q3: How long does it take to replace a cracked cylinder head?

A: The time required varies significantly depending on the vehicle's make, model, and engine complexity. Generally, it's a labour-intensive job that can take anywhere from 8 to 20+ hours of mechanic labour. This means your car could be in the garage for several days, possibly even a week or more, once parts are sourced and the work can begin.

Q4: Can a cracked cylinder head be repaired (welded)?

A: While older cast iron cylinder heads could sometimes be successfully welded and machined, it's much less common and often not recommended for modern aluminium cylinder heads. Aluminium is more prone to warping when heated for welding, and ensuring the repair is structurally sound and perfectly flat (critical for sealing) is extremely difficult. In most cases, replacing the cracked aluminium cylinder head with a new or reconditioned unit is the only reliable and long-term solution.

Q5: Is it worth repairing a cracked cylinder head on an older car?

A: This is a critical question and depends on the car's overall value, condition, and your budget. If the repair cost (which can be £750-£4,250+) exceeds the vehicle's market value, or if the car has other significant issues, it might be more economical to scrap the vehicle or sell it for parts and invest in a new one. A mechanic can help you weigh the repair cost against the car's book value and overall reliability.

Q6: What happens if I ignore a cracked cylinder head?

A: Ignoring a cracked cylinder head will inevitably lead to catastrophic engine failure. Continued driving will cause further overheating, mixing of oil and coolant, severe lubrication breakdown, and potentially damage to pistons, connecting rods, and the crankshaft. This will result in a completely seized engine that will require a full engine replacement, a cost that often outweighs the value of the vehicle.

Conclusion

A cracked cylinder head is a serious engine malady that demands immediate attention. Recognising the symptoms – from dashboard lights and coolant loss to white smoke and rough performance – is the first crucial step. Understanding that overheating is the primary culprit behind these failures underscores the importance of diligent cooling system maintenance. While the diagnosis and repair are complex and costly, addressing the issue promptly can prevent even more severe and financially crippling damage to your vehicle. If you suspect your cylinder head is cracked, seek professional mechanical assistance without delay. It's an investment in your car's longevity and your peace of mind.
