Clutch Slave Cylinder Return Spring: Essential or Not?

The question of whether a clutch slave cylinder needs a return spring, particularly when dealing with different clutch types and pressure plate designs, is a common point of confusion for many mechanics and vehicle owners. The presence or absence of a return spring on a slave cylinder is directly linked to the design of the clutch pressure plate and the associated throw-out bearing. Understanding this relationship is crucial for correct clutch operation, longevity, and preventing costly damage. This article will delve into the intricacies of clutch return springs, exploring their function, when they are necessary, and the consequences of an improper setup, drawing upon practical experience and technical knowledge.

Understanding the Clutch System

Before we can determine the necessity of a return spring, it's important to have a basic understanding of how a manual clutch system operates. The clutch, located between the engine and the gearbox, allows the driver to engage and disengage the engine's power from the transmission. This is achieved through the interaction of the flywheel, clutch plate, pressure plate, and the release mechanism, which includes the slave cylinder, master cylinder, and pedal.

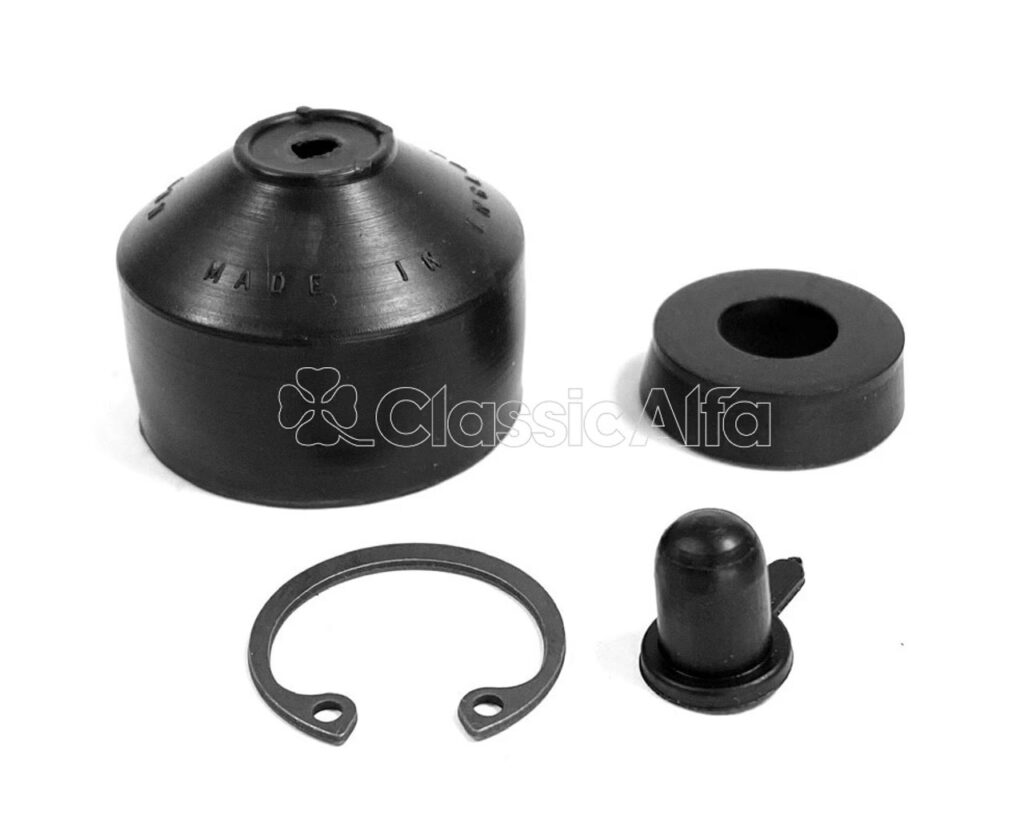

The Role of the Slave Cylinder

The slave cylinder is the hydraulic actuator that pushes the clutch release fork, which in turn disengages the clutch. When the clutch pedal is pressed, hydraulic fluid from the master cylinder forces a piston within the slave cylinder to extend. This extension moves the release fork, pushing the throw-out bearing against the pressure plate's diaphragm fingers or release levers. This action disengages the clutch, allowing gear changes.

Pressure Plate Designs and Return Springs

The critical factor determining the need for a return spring on the slave cylinder is the design of the pressure plate and how the throw-out bearing interacts with it. There are two primary types of pressure plates commonly encountered:

1. Diaphragm Clutch (Modern Design)

Modern diaphragm clutches, often seen in many passenger vehicles, feature a single, large diaphragm spring. The throw-out bearing in these systems is designed to remain in constant light contact with the tips of the diaphragm fingers. This constant contact ensures that the throw-out bearing is always spinning at the same speed as the clutch plate. Why is this important? Because the throw-out bearing is lubricated by splash lubrication from the spinning clutch assembly. If the bearing were stationary while the clutch spun, it would quickly overheat and fail. For this type of clutch, a return spring on the slave cylinder is generally not used. The design of the pressure plate itself, with the throw-out bearing resting on the diaphragm fingers, effectively keeps the bearing in place and ready for engagement.

2. Three-Finger Clutch (Older Design)

Older clutch designs, often referred to as 'three-finger' or 'lever' type clutches, utilise a different mechanism. In these systems, the throw-out bearing does not necessarily maintain constant contact with the pressure plate. When the clutch pedal is released, there is a gap between the throw-out bearing and the pressure plate levers. To ensure that the throw-out bearing is retracted and not dragging on the pressure plate, a return spring is fitted to the slave cylinder or the release fork mechanism. This spring pulls the slave cylinder's piston back, retracting the release fork and the throw-out bearing away from the pressure plate, thereby eliminating any potential for drag and wear.

The Crucial Question: Will a Slave Cylinder Retract Without a Return Spring?

This is where the core of the issue lies. If your vehicle originally came with a diaphragm clutch and no slave cylinder return spring, and you've replaced it with another diaphragm clutch system, then the slave cylinder should naturally retract when the hydraulic pressure is released (i.e., when the clutch pedal is let go). The throw-out bearing, being in light contact with the diaphragm fingers, will be held in its retracted position by this contact. However, if you have a system that requires a return spring (like an older three-finger clutch) and you do not fit one, the slave cylinder's piston may not fully retract. This can lead to the throw-out bearing remaining in contact with the clutch release levers, causing it to continuously spin even when the clutch pedal is released.

Consequences of Incorrect Spring Configuration

Fitting a return spring to a diaphragm clutch system that is not designed for one can lead to severe damage. As described in the provided information, the throw-out bearing is intended to be in light contact with the diaphragm fingers, allowing it to spin at clutch speed. If a return spring forces the slave cylinder to retract further than intended, or if the throw-out bearing is constantly pressed against the diaphragm fingers by an external spring, it can cause the bearing to spin unnecessarily. This unnecessary spinning generates significant heat due to friction. The thin fingers of a diaphragm clutch are particularly susceptible to this heat. Over time, this excessive heat can cause the diaphragm fingers to soften, warp, and eventually collapse inwards, leading to clutch failure. This is often described as the diaphragm fingers getting 'soft and folding inward'.

Conversely, failing to fit a return spring to a system that requires one (e.g., an older three-finger clutch) will result in the throw-out bearing potentially dragging on the release levers. This constant drag will cause premature wear on both the throw-out bearing and the clutch release levers. It can also lead to a less precise clutch engagement and disengagement, making gear changes more difficult.

Can a Longer Shaft Affect Return Spring Necessity?

The mention of a 'longer shaft' likely refers to the input shaft of the gearbox or the slave cylinder pushrod. If a longer shaft necessitates a different slave cylinder or release fork geometry, it could indirectly influence the required spring setup. However, the fundamental principle remains: the pressure plate design dictates whether a return spring is needed. If a different shaft length necessitates a different slave cylinder or fork, you must ensure the entire assembly is compatible with the pressure plate type. Using a return spring on a diaphragm clutch, regardless of shaft length, is generally a bad idea due to the heat generation issue.

Identifying Your Clutch Type

How can you tell which type of clutch you have? Here are some indicators:

• Visual Inspection: If you can remove the gearbox and inspect the pressure plate, a diaphragm clutch will have a single large, bell-shaped spring. A three-finger clutch will have three distinct levers or 'fingers' protruding from the pressure plate cover.
• Vehicle Age and Model: Older vehicles (pre-1980s, generally) are more likely to have three-finger clutches, while most modern vehicles use diaphragm clutches. However, this is not a definitive rule.
• Parts Catalogue: Checking a reputable parts catalogue for your specific vehicle model and year can help identify the correct clutch kit and its components.
• Original Manual: If you have the original service manual for your vehicle, it will specify the clutch type and any associated components like return springs.

Table: Pressure Plate Types and Slave Cylinder Return Spring Requirements

Frequently Asked Questions (FAQs)

Q1: My clutch feels heavy. Could this be related to the slave cylinder return spring?
Possibly. If a return spring is fitted to a diaphragm clutch, it could add extra resistance to the pedal. Conversely, if a system needs a spring and doesn't have one, the drag could also affect pedal feel.

Q2: I've fitted a new clutch kit, and it didn't come with a return spring. Should I use the old one?
Only if your new pressure plate is a three-finger type that requires it. If it's a diaphragm type, do not use the old return spring, as it will likely cause damage.

Q3: What happens if the throw-out bearing seizes?
A seized throw-out bearing will prevent the clutch from disengaging properly, making it impossible to change gears. It can also damage the pressure plate and clutch fork.

Q4: Is it possible to convert a three-finger clutch to a diaphragm clutch?
Yes, it is often possible, but it requires ensuring that the flywheel, pressure plate, clutch disc, release bearing, and slave cylinder/fork mechanism are all compatible. This can be a complex conversion.

Q5: How often should the slave cylinder be inspected?
It's good practice to inspect the slave cylinder, its seals, and the operation of the release fork whenever the gearbox is removed for clutch maintenance. Check for leaks or signs of wear.

Conclusion

In summary, the necessity of a return spring for a clutch slave cylinder is entirely dependent on the design of the clutch pressure plate. Diaphragm clutches, which ensure the throw-out bearing remains in constant light contact with the pressure plate fingers, typically do not require a return spring. Attempting to use one with a diaphragm clutch can lead to catastrophic failure due to excessive heat. Conversely, older three-finger clutches rely on a return spring to keep the throw-out bearing retracted and prevent drag. Always ensure you are fitting the correct components and adhering to the original design specifications for your vehicle's clutch system to guarantee optimal performance and longevity.
