Car Firewall: Installation & Repair Guide

The firewall in your car is far more than just a sheet of metal separating the engine bay from the passenger compartment; it's a critical safety barrier and an integral part of your vehicle's structural integrity. This robust partition serves multiple vital functions: it acts as a primary fire barrier, preventing engine fires from spreading into the cabin, insulates against heat and noise from the engine, and contributes significantly to the overall rigidity of the chassis. Whether you're restoring a classic, repairing damage, or simply needing to run new wiring, understanding the proper techniques for working with your car's firewall is paramount for safety and performance.

Ignoring firewall issues can lead to serious consequences, from increased cabin noise and heat to, more critically, compromised safety in the event of an accident or engine fire. This comprehensive guide will delve into the nuances of firewall installation, repair, and modification, providing you with the knowledge needed to tackle these tasks effectively and safely, drawing on real-world techniques and expert advice.

Understanding Your Car's Firewall

Before diving into the practicalities, it’s essential to appreciate the design and purpose of the firewall. Typically constructed from robust steel, often ranging from 16 to 18 gauge, the firewall is engineered to withstand significant forces and temperatures. Its shape is often complex, featuring contours and depressions to accommodate various engine components, wiring harnesses, and steering columns. Beyond its role as a physical barrier, it's also a mounting point for numerous components, including the brake master cylinder, wiper motor, and sometimes even parts of the HVAC system. This complexity means that any work on the firewall requires precision and a thorough understanding of its surrounding systems.

In classic cars, like the 1967 Chevy Chevelle mentioned, firewalls often have a multitude of factory holes for various purposes, which can become a challenge during restoration. Modern vehicles tend to have fewer, more strategically placed openings. Regardless of the era, maintaining the firewall's integrity is non-negotiable for the vehicle's long-term safety and structural health.

The Cost of Car Firewall Installation

One of the most common questions is, "How much does it cost to install a car firewall?" Unfortunately, there isn't a simple, fixed answer. The cost can vary dramatically depending on several key factors:

• Vehicle Type and Age: Installing a new firewall in a classic car like a 1967 Chevy Chevelle, especially during a full rebuild, often involves custom fabrication or sourcing specific reproduction parts, which can be costly. Modern vehicles might require more complex integration with existing systems.
• Part Cost: Reproduction firewalls for classic cars can range from a few hundred to over a thousand pounds, depending on the make, model, and supplier. Custom-fabricated firewalls will incur material costs plus the labour for creation.
• Labour Hours: This is typically the largest variable. A full firewall replacement is a highly labour-intensive job. It involves removing the old firewall (which might mean dismantling a significant portion of the front end and interior), preparing the chassis, test fitting the new panel, welding, grinding, sealing, and potentially painting. This could easily run into dozens of hours, with specialist body shop labour rates varying significantly across the UK.
• Complexity of the Job: A complete replacement is far more involved than patching a few small holes. If the surrounding areas of the chassis also require repair, or if custom modifications are being made, the cost will naturally increase.
• Geographic Location: Labour rates for skilled mechanics and bodywork specialists can differ between urban and rural areas, and across different regions of the UK.

Given these variables, it's virtually impossible to provide a definitive price without a detailed assessment of the specific vehicle and scope of work. For a professional installation, you should expect the labour component to be substantial, often outweighing the cost of the part itself. Always obtain multiple quotes from reputable body shops or restoration specialists.

Step-by-Step: Installing a New Firewall

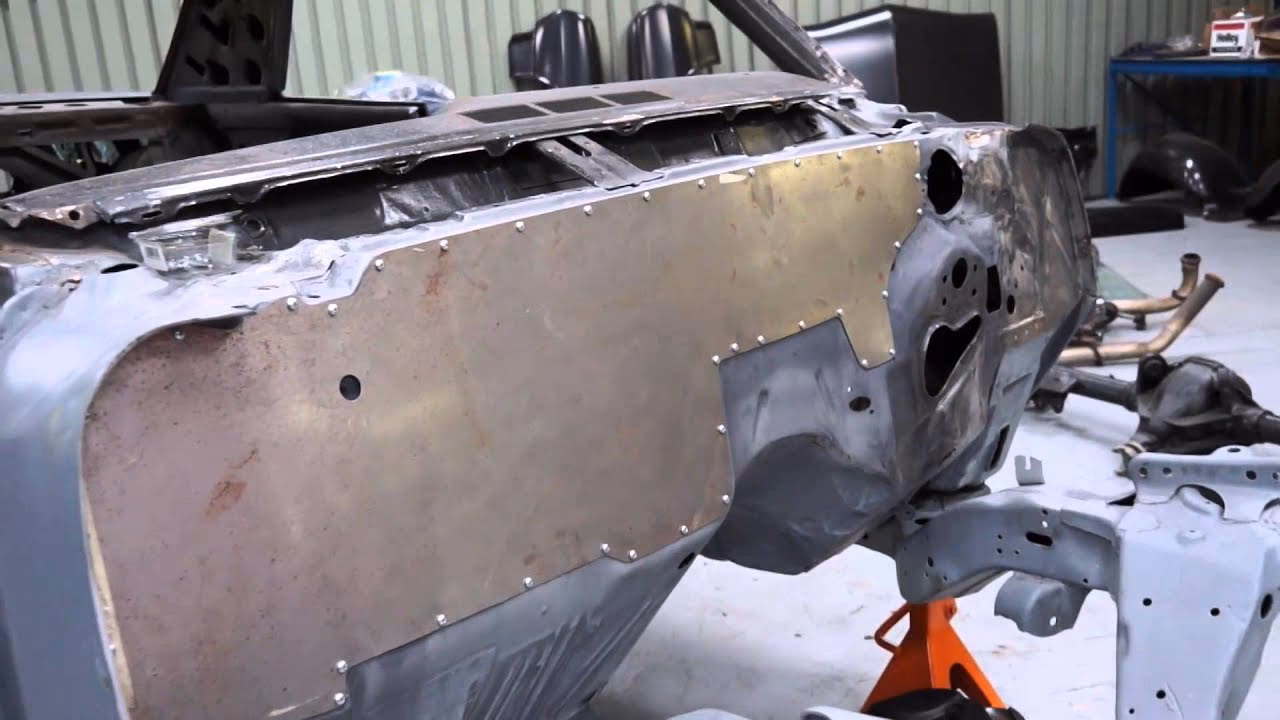

When embarking on a complete firewall replacement, as in a classic car rebuild, precision and patience are key. Here's a general outline of the process, drawing inspiration from the professional approach:

1. Disassembly and Preparation: The first crucial step involves carefully removing all components attached to the existing firewall and engine bay. This might include the engine, transmission, steering column, brake booster, wiring harnesses, and interior dashboard elements. The old firewall is then carefully cut out, ensuring that the surrounding chassis structure remains intact and undamaged. Clean the mating surfaces thoroughly, removing any rust, old sealant, or paint to ensure a good weld.
2. Test Fitting and Alignment: Position the new firewall panel in place. This is where meticulous attention to detail is vital. Use numerous clamps to hold the panel securely. You'll need to ensure perfect alignment with existing body lines, mounting points, and structural elements. For a 1967 Chevelle, as demonstrated by Craig Hopkins, this stage is critical to ensure everything lines up correctly before any permanent attachment.
3. Clamping Techniques: Employ a variety of clamps to hold the firewall firmly against the chassis. Self-tapping screws can also be used in strategic, non-critical areas to temporarily secure panels, but clamps provide more flexibility for fine adjustments. The goal is to eliminate any gaps and ensure the panel is flush.
4. Spot-Welding and Tack Welding: Once the alignment is perfect, begin the welding process. Spot-welding is often used in factory-style installations, creating strong, localised welds. For home restorers, a MIG welder can replicate this effect. Start with a series of tack welds – small, intermittent welds – around the perimeter of the firewall. These tacks hold the panel securely in place and prevent distortion from heat build-up during subsequent full welds.
5. Full Seam Welding: After the tack welds are complete and you're confident in the alignment, proceed with full seam welds where necessary. Work in short bursts, moving around the panel to distribute heat and minimise warping. Allow the metal to cool between welds.
6. Grinding and Finishing: Once all welding is complete, grind down the welds smooth. This is a crucial step for aesthetics and for preparing the surface for paint and sealant. Use a flap disc or a grinding wheel, taking care not to remove too much parent metal.
7. Sealing and Rust Prevention: Apply a high-quality seam sealer to all welded joints to prevent water ingress and provide an extra layer of protection against rust. Finish with an appropriate automotive primer and paint to match the vehicle or provide a durable protective coating.

Repairing Holes in an Existing Firewall

Often, a full replacement isn't necessary; instead, you might need to repair existing holes, whether they're from previous modifications, rust, or simply factory holes that are no longer needed. Mikey's method for dealing with numerous holes in a '51 Chevy provides an excellent, cost-effective solution:

1. Assess and Plan: Identify all holes that need filling. Note their sizes and locations.
2. Sourcing/Creating Metal Plugs (Slugs): Instead of meticulously cutting patches for each hole, a clever approach is to use pre-punched metal slugs. Visit a local sheet metal shop and ask them to punch out a variety of common sizes (e.g., 5/16", 5/8", 1") from 18-gauge steel. This is often cheap, as you're essentially asking for their waste product. Alternatively, you can find assorted slugs at scrap metal yards. Flatten any dimples left by the punch pilot with a body hammer.
3. Preparing Holes to Fit Plugs: Use a drill and a unibit (step drill) to enlarge the existing holes in the firewall to precisely match the size of your chosen slugs. The goal is a very close fit. For larger or irregularly shaped holes, you may still need to cut custom patches.
4. Tack Welding the Plugs:
• TIG Welding: If using a TIG welder, position the slug from the back of the firewall and hold it flush with a magnet from the front. Tack weld the slug in place with the TIG, then remove the magnet and fuse the plug all the way around. TIG welding allows for very clean, precise welds with minimal heat distortion.
• MIG Welding: If using a MIG welder, it's often better to leave the fit slightly looser and weld from behind. This saves on grinding time, as MIG welds typically require more finishing than TIG welds.
5. Finishing: After welding, a little hammer work can help flatten any slight distortions. A quick once-over with a grinder will smooth the weld, making it virtually undetectable after painting.

The Art of Tack Welding for Firewall Work

Tack welding is a fundamental technique in sheet metal fabrication, especially when working on a firewall. Its primary purpose is to hold pieces of metal together temporarily and accurately before applying the full, continuous weld. This prevents movement and, critically, minimises distortion caused by heat input.

• Preventing Distortion: Metal expands when heated and contracts when cooled. A continuous weld on a large panel like a firewall can cause significant warping if not managed properly. Tack welds, applied intermittently and allowed to cool, help to "stitch" the panel in place, distributing the heat and preventing large-scale deformation.
• Achieving a Flush Fit: When installing a new firewall or patching holes, getting a perfectly flush surface is key. Tack welds allow you to make minor adjustments to the panel's position before committing to a full weld. Using clamps and magnets in conjunction with tack welds ensures the panel stays exactly where you want it.
• TIG vs. MIG for Tack Welds:
• TIG Welding: Offers superior control and a smaller heat-affected zone. TIG tacks are very precise and ideal for thin sheet metal, leading to minimal grinding later.
• MIG Welding: Faster and easier for beginners. MIG tacks are quicker to apply but generate more heat. It's often recommended to make slightly larger tacks and spread them out more when MIG welding to avoid localised heat build-up.

Always start with a clean surface, use appropriate settings for your welder and material thickness, and wear proper personal protective equipment (PPE).

Drilling Through Your Firewall Safely

Running new cables or wires through the firewall is a common task, but it requires careful planning to avoid damaging critical components and ensure long-term integrity. Many people assume it's easy to find a safe spot, but there are vital considerations:

1. Identify Safe Locations: Before drilling, thoroughly inspect both sides of the firewall. Look for existing grommets or unused factory holes. If none are suitable, choose a location clear of wiring harnesses, fuel lines, brake lines, air conditioning lines, and any structural supports. A common strategy is to look for areas with a clear "path" on both sides.
2. Choose the Right Drill Bit:
• Pilot Hole: Start with a small pilot hole to confirm your chosen location is safe.
• Step Drill Bit (Unibit): These are excellent for gradually enlarging holes in sheet metal without deforming the panel. They create clean, round holes and are less prone to snagging than twist drills.
• Hole Saw: For very large holes, a hole saw might be necessary, but use with caution and ensure you have a pilot drill.
3. Deburring and Rust Prevention: After drilling, the edges of the hole will be sharp (burrs). Use a deburring tool, file, or a larger drill bit (gently) to smooth these edges. Apply an anti-rust primer or paint to the bare metal edges to prevent corrosion, especially in the damp engine bay environment.
4. Sealing the Hole: This is perhaps the most critical step after drilling.
• Grommets: Always use a rubber grommet to protect the cable from the sharp edges of the hole and to provide a weather-tight seal. Choose a grommet that fits snugly in the hole and around the cable.
• Silicone Sealant: After installing the grommet and routing the cable, apply a bead of high-quality automotive-grade silicone sealant around the grommet, on both sides of the firewall if possible, to ensure a watertight seal. This prevents water, exhaust fumes, and engine noise from entering the cabin.
5. Cable Routing: Ensure the cable is routed away from hot engine components, moving parts (like steering linkages), and sharp edges. Use cable ties to secure the cable, preventing it from chafing or becoming entangled.

Essential Tools and Materials

Tackling firewall work requires a specific set of tools and materials:

• Welding Equipment: MIG welder (most common for home use), TIG welder (for precision), or a spot welder (for factory-style welds).
• Grinders and Sanders: Angle grinder with cutting discs, grinding discs, and flap discs for weld preparation and finishing.
• Clamping Tools: Welding clamps, vice grips, C-clamps, and magnets for securing panels and slugs.
• Drilling Equipment: Electric drill, various drill bits (twist, step drills/unibits), hole saws.
• Sheet Metal: 16-18 gauge steel for patches or slugs.
• Measuring and Marking Tools: Tape measure, straight edge, marker.
• Body Hammer and Dollies: For flattening metal and correcting minor distortions.
• Safety Gear: Welding helmet, leather gloves, safety glasses, ear protection, respirator, fire extinguisher.
• Consumables: Welding wire/rods, grinding discs, cutting discs, sealant (automotive-grade silicone or urethane seam sealer), anti-rust primer, paint, rubber grommets.

Safety First: Crucial Precautions

Working on a car's firewall involves welding, cutting, and grinding, all of which carry inherent risks. Safety must always be your top priority:

• Fire Prevention: Always have a fire extinguisher (ABC rated) readily available. Clear the work area of any flammable materials. Be aware of fuel lines, brake lines, and electrical wiring that could ignite. Disconnect the car's battery.
• Personal Protective Equipment (PPE): Wear a welding helmet (auto-darkening is best), leather welding gloves, long-sleeved clothing, and sturdy footwear. Safety glasses are essential even when not welding, for grinding and drilling.
• Ventilation: Welding fumes can be toxic. Ensure your workspace is well-ventilated, ideally with an exhaust fan or by working outdoors.
• Eye Protection: Grinding and drilling produce flying debris. Always wear safety glasses or a face shield.
• Electrical Safety: Ensure your welding equipment is properly grounded and in good working order. Avoid working in wet conditions.

Comparative Table: Welding Methods for Firewall Repair

Frequently Asked Questions (FAQs)

Here are some common questions regarding car firewall maintenance:

Q: Can I use body filler instead of welding for holes in the firewall?
A: No. Body filler is not structural and will not provide the necessary fire protection or rigidity. It will also likely crack and fail over time due to heat and vibration. Welding with metal patches is the only safe and durable solution for firewall holes.

Q: How thick should the replacement metal be for a firewall patch?
A: It's generally recommended to use metal of the same gauge or slightly thicker than the original firewall. For most automotive firewalls, 16 to 18 gauge steel is appropriate.

Q: What kind of sealant is best for firewall holes and seams?
A: Automotive-grade seam sealer (urethane or silicone-based) is ideal for sealing welded joints. For drilled holes with grommets, a high-quality RTV silicone sealant designed for automotive use will provide a durable, watertight seal.

Q: Is it legal to modify my firewall?
A: Generally, minor modifications for wiring or component installation are acceptable, provided they are done safely and do not compromise the firewall's structural integrity or its ability to prevent fire spread. For major modifications or custom builds, it's wise to consult with local vehicle inspection authorities or certified automotive engineers to ensure compliance with safety regulations.

Q: How do I know if my firewall needs replacing or just repairing?
A: If the firewall has extensive rust, large areas of damage, or significant structural compromise (e.g., from an accident), replacement is usually the safest option. If the damage is limited to small, isolated holes or minor cracks, careful patching and repair can be sufficient. Always err on the side of caution when it comes to a safety-critical component like the firewall.

Conclusion

The car firewall is a silent guardian, working tirelessly to protect you from the hazards of the engine bay. Whether you're undertaking a full restoration, patching up a few errant holes, or simply needing to run some new wiring, approaching firewall work with care, precision, and the right techniques is crucial. By understanding its purpose, utilising proper welding methods, ensuring safe drilling practices, and never compromising on safety, you can maintain the integrity of this vital component. A well-maintained firewall contributes significantly to the safety, comfort, and longevity of your vehicle, ensuring that your ride remains a pleasure for years to come.
