Retracting Caliper Pistons Without a C Clamp

Mastering Brake Caliper Piston Retraction: Your Guide to Pad Replacement

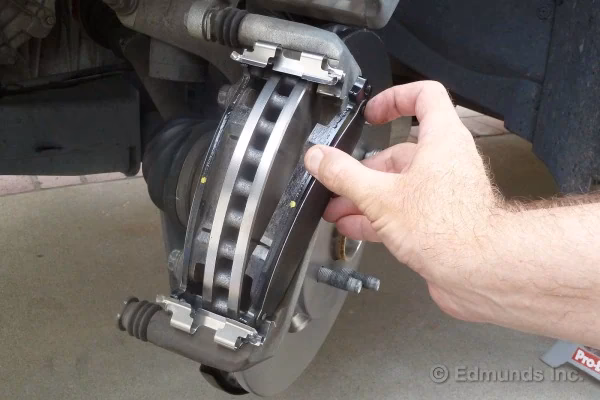

The process of replacing your car's brake pads is a fundamental aspect of vehicle maintenance, crucial for ensuring optimal stopping power and overall safety on the road. While the task itself is manageable for many DIY enthusiasts, a common stumbling block arises when it comes time to retract the brake caliper pistons. These pistons are the vital components that, when activated, press the brake pads firmly against the brake rotors, initiating the braking action. When fitting new, thicker brake pads, it becomes necessary to push these pistons back into their housing to accommodate the fresh pads. Often, a dedicated C-clamp tool is recommended for this, but what if you don't have one to hand? Fear not! This comprehensive guide will equip you with a variety of effective alternative methods to successfully retract brake caliper pistons without the need for a C-clamp, empowering you to tackle this essential task with confidence.

Understanding the Mechanics of Caliper Pistons

Before diving into the 'how-to', it's essential to grasp the basic function of a brake caliper piston. Within the caliper assembly, one or more pistons reside, typically housed in a cylinder. When you depress the brake pedal, hydraulic pressure is transmitted through the brake fluid, forcing these pistons outwards. This outward movement clamps the brake pads onto the rotating brake disc (rotor), generating friction that slows and stops the vehicle. To install new brake pads, which are naturally thicker than worn-out ones, the pistons must be pushed back into their original positions within the caliper bore. This creates the necessary clearance, allowing the new pads to be fitted without obstruction.

Alternative Methods for Pushing Caliper Pistons In

For those without a specialised C-clamp brake caliper piston tool, several practical alternatives can be employed. Each method requires a degree of care and the right tools, but all are designed to achieve the same outcome: safely retracting the piston.

1. The Pry Bar or Flathead Screwdriver Approach

This is perhaps the most accessible method, as most home mechanics will have access to either a pry bar or a large flathead screwdriver. The key here is gentle, controlled leverage. Carefully insert the tip of the pry bar or screwdriver between the existing brake pad and the caliper piston. Apply steady, inward pressure to lever the piston back into its bore. It is imperative to avoid applying excessive force or prying against the rubber dust seal, as this can lead to damage. Work slowly and methodically, and if you encounter significant resistance, consider an alternative method.

2. Leveraging a Large Socket or Pipe

If you have a socket set, a socket that is slightly larger than the piston diameter can be an excellent tool. Alternatively, a sturdy piece of pipe with an appropriate diameter can also serve the purpose. Place the socket or pipe squarely over the face of the caliper piston. Then, using a hammer, deliver gentle, controlled taps to the top of the socket or pipe. The aim is to use the impact to gradually push the piston back into its housing. Ensure the socket or pipe remains centred on the piston to avoid tilting and potential damage.

3. Employing Vise Grips (Locking Pliers)

Vise grips, also known as locking pliers, offer a secure way to grip and retract the piston. Adjust the vise grips so they can securely clamp around the caliper piston. Once locked in place, gradually tighten the adjustment screw or lever. This will apply steady, inward pressure, retracting the piston. It's crucial to be mindful of the pressure applied; overtightening can still potentially damage the piston or its seals. This method is particularly useful for pistons that are slightly stubborn.

4. The Hydraulic Brake Caliper Compressor

For those who undertake brake maintenance regularly, investing in a hydraulic brake caliper compressor is a worthwhile consideration. These specialized tools are designed specifically for this task and offer superior control and efficiency. They typically feature a screw mechanism, often actuated hydraulically, that applies even pressure directly to the piston, making the retraction process smooth and risk-free. While an additional purchase, it significantly reduces the chance of damaging brake components.

5. The 'Helper' Method: Pedal Pressure Coordination

This method requires an extra pair of hands and good communication. With a helper, ask them to *slowly and steadily* apply pressure to the brake pedal. As they do this, you can observe the caliper piston extending slightly. Simultaneously, you can use one of the aforementioned tools (like a pry bar or socket) to retract the piston as it begins to move. This requires careful coordination. The helper must maintain consistent, gentle pressure, and you must be ready to retract the piston as it emerges. Crucially, the helper should *not* pump the pedal; steady pressure is key. Once the piston is retracted, the helper should release the pedal. This method can be very effective but demands precision and clear communication.

6. Utilising a Floor Jack (with extreme caution)

While less conventional, a floor jack can, in certain situations, be used with extreme caution. The idea is to position the jack's lifting point against the underside of the caliper body, ensuring it's stable and not pressing against any brake lines or flexible hoses. As you carefully raise the jack, the upward force can help push the piston back into its housing. This method carries a higher risk of damaging the caliper or other components if not executed with the utmost care and stability. It is generally recommended to use more direct methods first.

7. The Brake Pad Spreader Tool

A brake pad spreader is a dedicated tool, distinct from a C-clamp, that is specifically designed to create space for new pads. It typically features two prongs that are inserted between the brake pads, and a screw mechanism that gradually forces the pads apart. By spreading the pads, you are effectively pushing the caliper piston back into its bore. This is a clean, safe, and efficient method, often favoured for its ease of use and minimal risk of component damage.

Essential Tips for a Successful Retraction

Regardless of the method you choose, adhering to these best practices will ensure a smooth and safe brake caliper piston retraction:

• Safety First: Always wear appropriate safety gear, including safety glasses and sturdy gloves, when working on your vehicle's braking system.
• Cleanliness is Key: Before you begin, thoroughly clean the area around the brake caliper and piston. Remove any dirt, rust, or debris that could impede the retraction process or contaminate the brake fluid.
• Lubrication: Applying a small amount of high-temperature brake caliper grease to the piston face can help reduce friction and facilitate smoother retraction. Use grease specifically designed for brake components.
• Gradual Pressure: Move the piston slowly and progressively. Avoid sudden, jerky movements or excessive force, which can damage the piston, its seals, or the caliper itself.
• Inspect for Damage: As you retract the piston, take the opportunity to inspect it for any signs of pitting, corrosion, or damage to the rubber dust boot. Any damage here may necessitate caliper replacement.
• Monitor Brake Fluid: As you push the pistons back, the brake fluid level in the master cylinder reservoir will rise. Keep an eye on this and be prepared to remove excess fluid if it reaches the 'max' line to prevent overflow.
• Seek Professional Help: If you encounter significant resistance, are unsure about any step, or notice any damage, do not hesitate to consult a qualified mechanic. Your brakes are critical safety systems.

Common Questions and Answers

Empowering Home Mechanics: A Summary

Replacing brake pads is a rewarding DIY task that can save you money and enhance your understanding of your vehicle. While a C-clamp is a common tool for retracting caliper pistons, the methods outlined above demonstrate that this is not the only way. By understanding the principles involved and employing careful technique with readily available tools like pry bars, sockets, or vise grips, you can successfully complete this crucial maintenance. Remember to prioritise safety, work methodically, and always inspect your brake components for any signs of wear or damage. With the right approach, you can confidently maintain your vehicle's braking system and ensure safe, reliable stopping power.
