Flawless Fit: Installing Your TRP Disc Caliper

When it comes to cycling, few components are as critical as your brakes. A well-maintained and correctly installed braking system provides not only the stopping power you need in an emergency but also the confidence to tackle any terrain. TRP disc brakes, particularly models like the Spyre, are renowned for their reliable performance, offering a significant upgrade in modulation and stopping power over traditional rim brakes. However, achieving this performance hinges on a meticulous installation process. This comprehensive guide will walk you through every step of installing your TRP disc brake rotor and caliper, ensuring your ride is as safe as it is thrilling.

Safety First: Non-Negotiable Precautions

Before you even pick up a wrench, it's paramount to understand the inherent risks associated with brake work. Disc brakes, by their very nature, generate immense heat during use. Ignoring these warnings can lead to serious injury or damage to your components. Always prioritise safety.

• Extreme Heat Warning: Disc brakes, calipers, and rotors become intensely hot during normal operation. Never touch or attempt to service these components immediately after use. Allow ample time for them to cool down completely.
• Performance Acclimatisation: TRP disc brakes offer a significant performance boost. Take the time to get accustomed to their braking characteristics, especially after installation or component replacement. Follow the recommended bedding-in procedures to ensure optimal performance and rider familiarity.
• Post-Crash Inspection: If your bicycle is involved in a fall or crash, immediately stop and thoroughly inspect your entire braking system. This includes checking that the lever, caliper, and rotor are securely attached, the pads are correctly installed and functioning, the cable operates smoothly, and the lever feels firm when actuated. If you have any doubts whatsoever, seek assistance from a qualified bicycle mechanic.

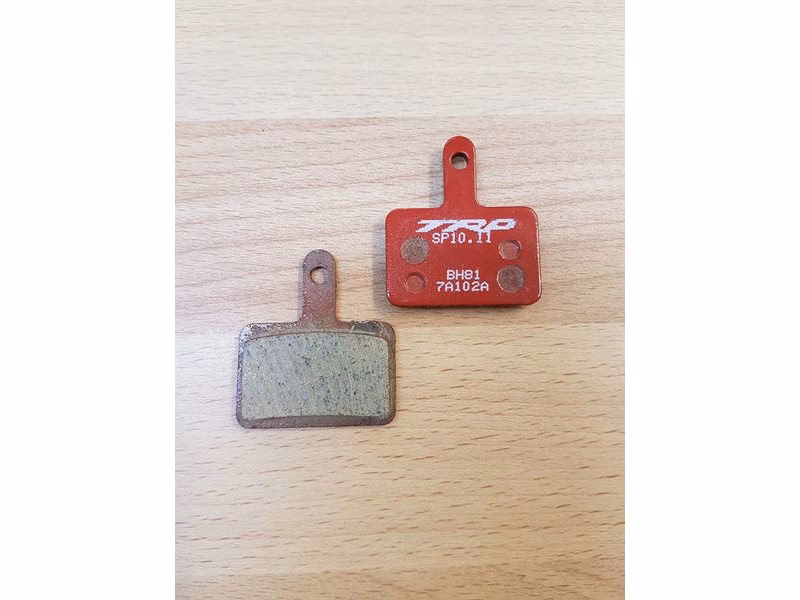

• Pad Thickness: Before every ride, verify that your brake pads have a minimum thickness of 0.8 mm. If pads become contaminated with oil or hydraulic fluid, they must be discarded and replaced immediately. Keep your pads clean and free from any contaminants.
• Cable Housing Security: Ensure that your brake cable housing is always securely fastened to the frame and/or fork before every ride. Never ride a bicycle where the cable housing can come into contact with the tyres, as this poses an extreme safety hazard.
• Read the Manual: This guide complements, but does not replace, the official TRP manual. If you're unfamiliar with any aspect of assembly or maintenance, always consult a qualified mechanic.
• Keep Out of Reach: Small parts and tools should always be kept out of reach of children.

Essential Tools for the Job

Having the correct tools makes the installation process smoother and prevents potential damage to your components. For TRP Spyre mechanical disc brakes, you'll need the following:

• 5mm Allen Wrench
• 3mm Allen Wrench
• T25 Torx® Wrench
• Isopropyl Alcohol (and clean rags/paper towels)
• Torque Wrench (highly recommended for precise tightening)

Step-by-Step: Mounting the Rotor

The rotor is the heart of your disc braking system, and its proper installation is fundamental to reliable stopping power. Take your time with these steps to ensure a perfect foundation.

1. Wheel Removal: Begin by carefully removing the wheel from your bicycle frame or fork. This provides clear access to the hub and allows for easier manipulation of the rotor.
2. Preparation is Key: Clean the disc (rotor) and the hub-mounting surface thoroughly using isopropyl alcohol. This step is critical to prevent contamination, which can severely impair braking performance. Do NOT use standard disc brake cleaner, as some formulations can leave residues that contaminate pads. Isopropyl alcohol evaporates cleanly, leaving no residue.
3. Attach the Rotor: Position the rotor onto the hub's mounting surface. Using your T25 Torx driver, attach the rotor to the hub with the supplied bolts.
4. The Star Pattern: Begin to tighten the bolts, but do not fully tighten them yet. The key here is the tightening sequence. You must use a star-pattern sequence. Instead of tightening them clockwise or counter-clockwise sequentially, tighten opposing bolts incrementally. For a 6-bolt rotor, this means tightening bolt 1, then bolt 4, then bolt 2, then bolt 5, then bolt 3, then bolt 6. This method ensures even pressure distribution and prevents warping of the rotor, which can lead to brake rub and reduced performance.
5. Torque Specification: Once all bolts are lightly seated using the star pattern, use your torque wrench to tighten them to the specified torque of 6 – 8 Nm (53 – 71 in-lbs). Adhering to this specification is vital. Under-tightening can lead to loose bolts and dangerous rotor wobble, while over-tightening can strip threads or damage the rotor or hub. Repeat the star pattern as you bring each bolt up to the final torque specification.
6. Rotation Arrows: Before replacing the wheel, double-check that the rotation arrows on the rotor (if present) point in the same direction as the forward rotation of the wheel. This ensures the rotor's design works optimally with the direction of travel.
7. Replace the Wheel: Carefully reinstall the wheel onto your bicycle, ensuring it is properly seated in the dropouts or thru-axle mounts according to your bicycle manufacturer's specifications.
8. Post-Installation Check: After a few hours of the initial installation, and again after your first ride or two, check and re-torque the disc screws. Components can settle, and a re-check ensures everything remains securely fastened.

Rotor Bolt Torque Guide

Ensuring your rotor bolts are tightened correctly is paramount for safety and performance.

Component	Tool	Torque Specification	Notes
Rotor Bolts (6-bolt)	T25 Torx Wrench	6 – 8 Nm (53 – 71 in-lbs)	Use a star-pattern sequence. Re-torque after initial rides.

Always use a calibrated torque wrench for accurate results.

Precision Placement: Mounting the Caliper

With the rotor securely in place, the next step is to mount the caliper. This process requires precision to ensure the caliper aligns perfectly with the rotor, preventing rubbing and ensuring efficient braking.

1. Adapter Orientation (if applicable): If your bike uses IS (International Standard) or PM (Post Mount) adapters to fit the caliper to your frame or fork, ensure the adapter is held so that the stamped "F" (front) or "R" (rear) is facing you, away from the bike, rotor, and wheel. For direct post mount frames/forks, you can skip this step.
2. Align the Caliper: Carefully align the caliper with the mounting holes on your fork or frame. It should sit squarely over the rotor without making contact.
3. Initial Attachment: Attach the caliper to the fork or frame using the two mounting bolts. At this stage, only thread them in enough to hold the caliper in place; do not fully tighten them. The caliper needs to be free to move slightly for the next crucial step: alignment.

The Crucial Step: Caliper Alignment

This is where many DIY installations go wrong. Proper alignment of the caliper is absolutely critical to prevent brake rub, reduce noise, and ensure even pad wear. Since TRP Spyre is a mechanical brake with a dual-piston design, precise alignment ensures both pads engage the rotor simultaneously and evenly.

1. Loosen, but Don't Remove: Ensure the caliper mounting bolts are loose enough to allow the caliper to shift slightly from side to side.
2. The Squeeze Method: Squeeze your brake lever firmly and hold it. While holding the lever, carefully tighten the caliper mounting bolts incrementally, alternating between the two bolts. The idea is that the brake pads, being pressed against the rotor, will self-centre the caliper.
3. Visual Check: After releasing the lever and spinning the wheel, visually inspect the gap between the rotor and each brake pad. You should see an even, small gap on both sides. If the rotor rubs against one pad, loosen the caliper bolts slightly, manually shift the caliper away from the rubbing side, re-tighten while holding, and re-check. Repeat until the rotor spins freely without rubbing. This can sometimes take a few attempts to get perfect.
4. Final Torque: Once satisfied with the alignment, use your 5mm Allen wrench to fully tighten the caliper mounting bolts. While the provided documentation does not specify a torque for these bolts, a common range for caliper mounting bolts is typically 8-10 Nm. Always refer to the specific TRP Spyre manual or your bicycle's frame/fork manufacturer's recommendations if available. Over-tightening can strip threads, while under-tightening can lead to a loose caliper and dangerous braking.

Cable Connection and Adjustment

As a mechanical disc brake, the TRP Spyre requires a cable connection for actuation. This step ensures proper lever feel and brake engagement.

1. Route the Cable: Ensure your brake cable is cleanly routed through the frame's cable guides and housing. The housing should be cut to the correct length, allowing smooth bends without excessive slack or tension.
2. Insert the Cable: Thread the inner brake cable through your brake lever and then through the outer cable housing, guiding it towards the caliper.
3. Connect to Caliper: At the caliper, thread the cable through the barrel adjuster and secure it using the cable pinch bolt. The TRP Spyre has a unique dual-piston mechanism; ensure the cable is routed correctly as per the diagrams in your TRP manual.
4. Initial Tensioning: Pull the cable taut by hand and tighten the cable pinch bolt. Ensure there's no slack in the system.
5. Lever Feel Adjustment: Use the barrel adjuster on the caliper or at the brake lever (if present) to fine-tune the cable tension. You want a firm, consistent lever feel without excessive free play. The pads should move quickly and firmly when the lever is pulled. Ensure the brake lever does not touch the handlebar when fully squeezed.
6. Pad Adjustment (if applicable): Some mechanical disc brakes allow for independent adjustment of the stationary pad (if it has one) or the initial position of both pads. TRP Spyre allows for adjustment of both pad positions via a 3mm Allen bolt to fine-tune the gap and lever throw. Refer to your TRP manual for precise instructions on this micro-adjustment.

Bedding-In Your New Brakes

After installation, your new brakes won't offer their full stopping power immediately. They require a process called bedding-in (or break-in) to transfer a thin layer of pad material onto the rotor surface. This process is crucial for optimal performance, reduced noise, and increased pad life.

1. Find a Safe Area: Choose a safe, open area with no traffic, such as a quiet car park or a long, gentle slope.
2. Accelerate and Brake: Accelerate to a moderate speed (around 10-15 mph) and then firmly, but not aggressively, apply one brake at a time until you slow down to a walking pace. Do not come to a complete stop, as this can leave a 'ghost impression' of the pad on the rotor.
3. Repeat: Repeat this process about 20-30 times for each brake. You should feel the braking power gradually increase as the pads bed in.
4. Cool Down: Allow the brakes to cool down between sets of repetitions to prevent overheating.
5. Final Check: After bedding-in, your brakes should feel much more powerful and consistent. Perform a final check of all bolts and cable tension.

Troubleshooting Common Issues

Even with careful installation, you might encounter minor issues. Here are some common problems and their solutions:

• Brake Rubbing: This is the most common issue. Revisit the caliper alignment steps. Ensure the wheel is properly seated in the dropouts. Check for a bent rotor (which might require professional truing or replacement).
• Squealing Brakes: Often caused by contamination of pads or rotor. Clean the rotor thoroughly with isopropyl alcohol. If the noise persists, the pads might be contaminated beyond cleaning and require replacement. Improper bedding-in can also cause squealing.
• Weak Braking: Ensure the cable tension is adequate. Check pad wear; if they are too thin, replace them. Ensure the rotor and pads are clean and not contaminated. Re-do the bedding-in procedure if necessary.
• Spongy Lever: This indicates too much slack in the cable or housing. Adjust the barrel adjuster to take up slack. Check for kinks or damage in the cable housing.

Frequently Asked Questions (FAQs)

How often should I check my brake pads for wear?

It's advisable to check your brake pads before every ride, or at least weekly, especially if you ride frequently or in adverse conditions. The minimum pad thickness is 0.8 mm.

Can I use any disc brake cleaner?

No, it's strongly recommended to use only isopropyl alcohol for cleaning your rotors. Many commercial disc brake cleaners can leave residues that contaminate your pads, leading to reduced performance and noise.

Why is torque so important during installation?

Proper torque ensures that bolts are tightened to the precise specification required to hold components securely without overstressing them. Under-torquing can lead to loose parts and dangerous failures, while over-torquing can strip threads, crack components, or cause stress fractures that lead to catastrophic failure.

What are IS and PM mounts?

These refer to different mounting standards for disc brake calipers on bicycle frames and forks. IS (International Standard) mounts use two bolts perpendicular to the frame/fork, while PM (Post Mount) uses two bolts parallel to the frame/fork. Adapters are often used to fit different caliper types or rotor sizes.

My brakes are still rubbing after alignment, what else could it be?

Beyond caliper alignment, common culprits include a bent rotor (which may need truing or replacement), a wheel that isn't seated correctly in the frame/fork, or even a slightly bent frame or fork tab (less common but possible, requiring professional assessment).

Conclusion

Installing a TRP disc brake rotor and caliper might seem daunting at first, but by following these detailed steps and paying close attention to alignment and torque, you can achieve a professional-grade setup. Remember, patience and precision are your best tools here. A correctly installed and bedded-in braking system not only enhances your riding experience but, more importantly, ensures your safety on every journey. If you ever feel out of your depth, don't hesitate to consult a qualified bicycle mechanic. Happy riding!
