Harley Dyna Glide Brakes: Ultimate Upgrade Guide

For any motorcyclist, the braking system is arguably the most critical component on their machine, and this holds especially true for the robust Harley Davidson Dyna Glide. While the roar of the engine and the feel of the open road are central to the Harley experience, the ability to stop safely and effectively is paramount. The brake system on your Dyna Glide is a relentlessly hard-working assembly, constantly generating friction to bring your powerful machine to a halt. This continuous action, while essential, inevitably leads to wear and tear on its various components. Neglecting this vital system can not only compromise your safety but also lead to significantly higher repair costs down the line. This comprehensive guide will walk you through understanding, maintaining, and upgrading your Dyna Glide's brake system, covering everything from routine pad replacements to more involved rotor and caliper upgrades, ensuring your Harley remains safe and responsive on every journey.

Understanding Your Dyna Glide's Braking System

The braking system on your Harley Davidson Dyna Glide is composed of several interconnected parts that work in harmony to provide stopping power. The primary components include the brake pads, the brake rotors (or discs), and the brake calipers. Each time you engage the brake lever, hydraulic pressure forces the brake pads to clamp down on the rotors, creating the friction necessary to slow and stop the motorcycle. This friction, while effective, is the very reason these components are subject to wear.

The Wear and Tear of Brake Components

The brake pads are designed to be the sacrificial element in the braking process. Made from a composite material, they are engineered to wear down over time as they rub against the rotors. Regular inspection and timely replacement of brake pads are crucial. If neglected, severely worn pads can lead to metal-on-metal contact between the pad backing plates and the rotors, causing significant damage to the rotors themselves. This not only compromises braking performance but also turns a relatively inexpensive pad replacement into a much costlier rotor replacement.

The brake rotors, large metal discs attached to your wheels, are designed to withstand the heat and friction generated during braking. While more durable than pads, they are not immune to wear. Consistent friction from the pads can cause them to thin, warp, or develop grooves and scoring. As mentioned, riding with worn pads will accelerate rotor damage dramatically. A damaged rotor can lead to a pulsating brake lever, reduced braking efficiency, and an overall unsafe riding experience.

And what about the brake calipers? The common question, 'Do Harley Davidson Dyna Glide brake calipers go bad?' is an important one. While the calipers themselves are robust and aren't typically known to 'go bad' in the same way pads or rotors wear out, they can certainly experience issues that severely impair braking performance. The most common problem with calipers involves their internal pistons. These pistons, which push the brake pads against the rotor, can become stuck or seize due to corrosion, dirt, or degraded brake fluid. A stuck piston will cause consistent friction between the pads and rotors, even when you're not applying the brakes. This leads to premature wear of both pads and rotors, excessive heat build-up, reduced fuel efficiency, and a dangerous pulling sensation on the handlebars. Addressing a sticking caliper promptly is essential to avoid unnecessary costs and ensure rider safety.

When to Consider Brake Component Replacement

Knowing when to replace your brake components is key to maintaining your Dyna Glide's performance and your safety. Here's a quick guide:

Materials and Tools Required for Your Brake Upgrade

Before you begin any work on your Dyna Glide's braking system, ensure you have all the necessary tools and replacement parts to hand. Having everything ready will streamline the process and prevent unnecessary delays.

• Socket set
• Wrench
• Allan wrench
• Philips screwdriver
• Rubber mallet
• Hose (for bleeding)
• Bottle (for collecting old brake fluid)
• Motorcycle jack (or suitable stand)
• New brake parts (pads, calipers, or rotors, as needed)
• Fresh brake fluid (ensure it's the correct DOT rating for your Dyna Glide)

Step-by-Step Guide: Replacing Your Dyna Glide's Front Brake Components

This guide focuses on the front brake system, as it typically handles the majority of stopping power. Always work on a stable, level surface and ensure your motorcycle is securely supported.

Step 1: Replacing Brake Pads

Replacing brake pads is often the most frequent maintenance task for your braking system. It's a relatively straightforward process but requires attention to detail.

1. Secure the Motorcycle: Ensure your Dyna Glide is stable, ideally on a motorcycle jack or a sturdy stand.

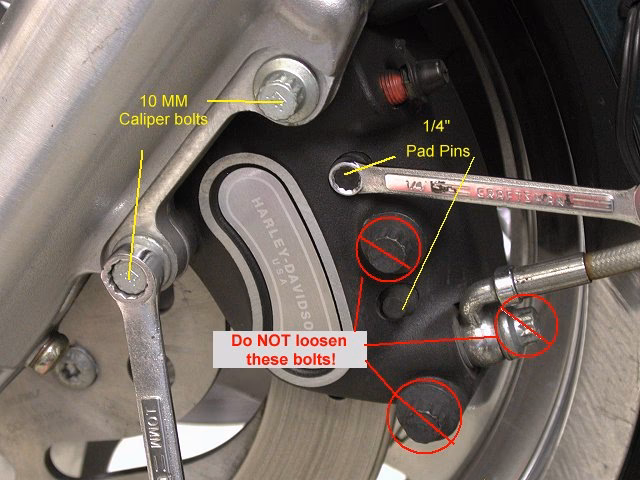

2. Access the Caliper: Locate the front brake caliper. You will see two bolts that secure the caliper to the fork leg. Using the appropriate socket or wrench, carefully remove these two bolts. Keep them safe, as you'll need them for reinstallation.
3. Remove the Caliper: Once the bolts are removed, gently pull the brake caliper upwards and away from the rotor. Do not let it hang freely by the brake line, as this can damage the line. If it's still connected, support it securely.
4. Remove Old Brake Pads: Inside the caliper, you'll find the old brake pads. Depending on your specific Dyna Glide model, there might be an Allen head screw or a pin holding the pads in place. Remove this screw or pin if present. Then, simply slide the old brake pads out. Take note of their orientation for later.
5. Prepare for New Pads: Before installing new pads, it's often a good idea to gently push the caliper pistons back into their bores. You can use a C-clamp or a brake pad spreader tool for this, being careful not to damage the pistons. This creates space for the thicker new pads. If you are not replacing the caliper, ensure the pistons move freely.
6. Install New Brake Pads: Carefully install the new brake pads, ensuring they are oriented correctly, just as the old ones were. If there was an Allen head screw or pin, reinsert and secure it.
7. Reinstall the Caliper: Carefully slide the brake caliper back over the rotor, aligning it with the mounting holes on the fork. Reinsert the two bolts you removed earlier and tighten them securely. It's advisable to consult your service manual for the correct torque specifications for these bolts to ensure they are neither too loose nor overtightened.

Step 2: Replacing the Brake Rotor

Replacing the rotor is a more involved process as it requires removing the front wheel. Take your time and ensure the bike is stable throughout.

1. Raise the Motorcycle: Using your motorcycle jack, carefully raise the front of your Dyna Glide slightly off the ground, ensuring the front wheel is clear and can spin freely.
2. Remove the Brake Caliper: As in Step 1, remove the two bolts holding the brake caliper to the fork. Gently remove the caliper and set it aside. Crucially, do not let it hang from the brake line; support it with a bungee cord or wire to prevent damage to the brake hose.
3. Remove the Axle Nut: On the left side of the front wheel, locate and remove the large axle nut.
4. Loosen the Axle Bolt: On the right side of the fork, there will be a bolt that clamps the axle in place. Loosen this bolt; you don't need to remove it, just loosen it enough for the axle to slide.
5. Remove the Front Axle: Using a rubber mallet, gently tap the axle from the left side, pushing it towards the right. As the axle slides out, the front wheel will become dislodged. Be prepared to support the wheel as it comes free.
6. Remove the Front Wheel: Carefully pull the front wheel away from the motorcycle.
7. Remove the Old Rotor: Lay the wheel down on a clean, protected surface. The brake rotor is typically held to the wheel hub by several lug nuts or bolts. Use the appropriate wrench or socket to loosen and remove these. Carefully lift the old, worn rotor off the wheel.
8. Install the New Rotor: Clean the wheel hub surface where the rotor mounts. Place the new brake rotor onto the wheel, aligning the bolt holes. Reinsert and tighten the lug nuts/bolts. Again, refer to your service manual for the correct torque specifications for these fasteners.
9. Reinstall the Front Wheel: Carefully align the front wheel back into the forks. Ensure the spacers (if present) are correctly positioned.
10. Reinsert the Axle: Push the axle back through the wheel and fork legs from the right side. You may need to jiggle the wheel slightly to get the axle to slide through smoothly.
11. Secure the Axle: Once the axle is fully seated, tighten the bolt on the right side of the fork that clamps the axle. Then, tighten the axle nut on the left side of the bike securely.
12. Reinstall the Brake Caliper: Finally, reattach the brake caliper to the fork, ensuring it's properly aligned over the new rotor. Tighten its two mounting bolts to specification.

Step 3: Replacing the Brake Caliper and Bleeding the Brakes

Replacing the caliper is a more significant task as it involves disconnecting the hydraulic brake line, which will introduce air into the system. Be prepared for a small amount of brake fluid spillage.

1. Prepare for Fluid: Have rags and a drip tray ready to catch any brake fluid. Brake fluid can damage paint, so exercise caution.
2. Disconnect the Brake Line: With the old caliper still in your hand (or supported), locate the bolt that connects the brake line to the caliper. This is often a banjo bolt. Using the correct wrench, quickly loosen and remove this bolt. As soon as it's off, immediately transfer the brake line and its washers (if present) onto the new caliper and insert the banjo bolt. This minimises fluid loss and air entry.
3. Tighten Brake Line Bolt: Securely tighten the banjo bolt on the new caliper. Again, consult your service manual for the correct torque specification.
4. Mount the New Caliper: Align the new caliper in its position over the rotor and reinsert its two mounting bolts, tightening them securely to the specified torque.
5. Bleeding the Brakes: This is a critical step. Whenever the brake line is opened, air can enter the system. Air in the brake lines will make your brakes feel spongy and ineffective. You must bleed the brakes to remove this air.
• Prepare for Bleeding: Locate the bleeder screw on the new caliper (it usually has a small black cap). Remove the cap. Attach one end of your hose securely to the bleeder screw. Place the other end of the hose into a clean bottle, ensuring the end of the hose is submerged in a small amount of fresh brake fluid at the bottom of the bottle. This prevents air from being sucked back into the system.
• Pump and Hold: Go to your handlebars and pump the brake lever a few times (typically 5-10 pumps) to build pressure in the system. After pumping, keep the brake lever firmly pressed in.
• Bleed the System: While the brake lever is held down, use your wrench to loosen the bleeder screw on the caliper. You will see brake fluid and potentially air bubbles coming out through the hose into the bottle. As soon as you stop seeing bubbles and only fluid is coming out, tighten the bleeder screw. Only then should you release the brake lever.
• Repeat: Repeat the 'pump and hold, loosen and tighten, release' process several times until no more air bubbles appear in the fluid coming out of the hose. The brake lever should feel firm and consistent.
• Monitor Master Cylinder: Throughout the bleeding process, constantly monitor the brake fluid level in your master cylinder reservoir (usually on your handlebars). You will need to remove its cover (often held by two screws) to access it. As fluid is expelled during bleeding, the level in the master cylinder will drop. It is absolutely crucial to top off the master cylinder with fresh brake fluid frequently to prevent the fluid level from dropping too low and sucking more air into the system. Use only the specified type of brake fluid for your Dyna Glide.
6. Final Check: Once the bleeding is complete and the brake lever feels firm, replace the bleeder screw cap. Top off the master cylinder to the correct level, replace its cover, and clean up any spilled brake fluid immediately.

Post-Installation and Final Checks

After completing any brake component replacement, a thorough check is essential before riding.

• Inspect for Leaks: Double-check all connections (caliper mounting bolts, brake line banjo bolt, bleeder screw) for any signs of brake fluid leaks.
• Test Brake Lever: Pump the brake lever several times to ensure it feels firm and consistent. There should be no sponginess.
• Bed-In New Pads: New brake pads need to be 'bedded in' to the rotors. This process helps transfer a layer of pad material to the rotor surface, improving braking performance and longevity. Consult your pad manufacturer's instructions, but generally, it involves several moderate stops from increasing speeds, allowing the brakes to cool between each stop. Avoid hard, emergency stops during this period.
• Test Ride: Perform a low-speed test ride in a safe, open area to confirm proper braking function before heading out onto the road. Pay close attention to any unusual noises, pulling, or reduced braking power.

Frequently Asked Questions About Harley Dyna Glide Brakes

Q1: How often should I inspect my Dyna Glide's brakes?

It's highly recommended to inspect your brake pads, rotors, and fluid levels at every oil change, or at least every 5,000 miles, whichever comes first. If you ride aggressively or in challenging conditions, more frequent checks are advisable. Listen for unusual noises and feel for changes in brake lever feedback.

Q2: What are the tell-tale signs of a failing brake caliper on a Dyna Glide?

The most common signs of a caliper with a stuck piston include the bike pulling to one side when braking (or even when not braking), a noticeable drag or resistance from the wheel, excessive heat emanating from the wheel or caliper after a ride, and rapid, uneven wear of your brake pads on one side. You might also notice a burning smell due to constant friction.

Q3: Can I replace just one brake pad if only one looks worn?

No, you should always replace brake pads in complete sets for both wheels. Even if one appears more worn, the other is likely close behind. Replacing them as a set ensures even braking performance and consistent wear across the axle.

Q4: Why is bleeding the brakes so important after replacing a caliper?

Bleeding the brakes removes air that has entered the hydraulic system. Air is compressible, unlike brake fluid. If air remains in the lines, when you apply the brake lever, the force will first compress the air instead of directly transmitting pressure to the caliper pistons. This results in a spongy brake lever, reduced braking power, and a significant safety hazard.

Q5: What type of brake fluid should I use for my Harley Davidson Dyna Glide?

Harley Davidson motorcycles typically use DOT 4 brake fluid. However, always double-check your owner's manual or the cap of your master cylinder reservoir to confirm the exact type of brake fluid specified for your specific Dyna Glide model year. Using the wrong type of fluid can cause serious damage to your braking system components.

Q6: How do I 'bed in' new brake pads and why is it necessary?

Bedding in, also known as 'burnishing', is the process of gently wearing in new brake pads and rotors to ensure optimal performance. It involves a series of moderate stops from increasing speeds, allowing the brakes to cool between stops. This process helps transfer a thin, even layer of friction material from the pads onto the rotor surface. This material transfer creates a highly effective friction couple, reduces noise, prevents judder, and significantly improves the lifespan and performance of your new brakes. Failing to bed in new pads can lead to reduced stopping power, excessive noise, and premature wear.

By understanding your Dyna Glide's brake system and following these guidelines for maintenance and replacement, you can ensure your motorcycle remains a reliable and safe companion on all your adventures. Regular checks and proactive replacement of worn components are small investments that yield significant returns in terms of safety and riding pleasure.
