The Oil Breather Tube: Your Engine's Unsung Hero

In the intricate world of automotive mechanics, countless components work in harmony to keep your vehicle running smoothly. While some parts, like the engine block or the gearbox, are widely recognised, others often go unnoticed, quietly performing their essential duties. One such unsung hero is the oil breather tube. Many drivers are entirely unfamiliar with this component, yet its function is critical for the longevity and efficient operation of your engine. Often considered low-maintenance, understanding its purpose and potential issues can save you from significant headaches and repair bills down the line.

So, what exactly is this unassuming tube, and why is it so important? Let's delve into the mechanics of the oil breather tube, exploring its role within your vehicle's engine system and how it contributes to overall performance and environmental compliance.

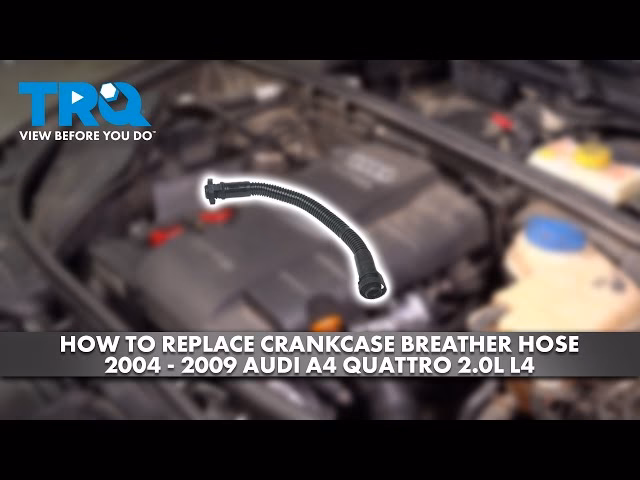

What Exactly is an Oil Breather Tube?

At its core, an oil breather tube is a conduit, typically made of plastic, rubber, or sometimes metal, designed to manage the pressure and gases within your engine's crankcase. It connects directly to the engine and, in older or simpler systems, would vent directly into the atmosphere. In modern vehicles, however, it's usually part of a more sophisticated system that recirculates these gases back into the engine's intake for re-combustion, making them environmentally friendly.

To understand its purpose, we first need to grasp what happens inside an engine. When your engine runs, the combustion process generates extreme pressure. While most of this pressure is contained within the combustion chambers to push the pistons, a small amount of exhaust gases inevitably escapes past the piston rings and enters the crankcase – the lower part of the engine where the crankshaft rotates and the engine oil resides. This phenomenon is known as 'blow-by'.

Without a way to manage this blow-by, pressure would rapidly build up inside the crankcase. This excessive pressure could lead to a host of problems, including oil leaks from seals and gaskets, reduced engine performance, and even potential damage to internal components. The oil breather tube, therefore, acts as a vital pressure relief and ventilation system, allowing these gases to escape or be managed.

Historically, breather tubes simply vented these gases to the outside air, often referred to as 'road draft tubes'. While effective at relieving pressure, this practice was environmentally detrimental due to the release of unburnt hydrocarbons and other pollutants. Modern systems, mandated by emissions regulations, are far more advanced, incorporating the breather tube into a Positive Crankcase Ventilation (PCV) system. In these systems, the breather tube (or an equivalent hose) works in conjunction with a PCV valve to draw these blow-by gases back into the intake manifold, where they are re-burned. This not only prevents pressure build-up but also significantly reduces harmful emissions, making your vehicle more environmentally compliant and efficient.

The Critical Importance of Crankcase Ventilation

The significance of a properly functioning oil breather tube, and the broader crankcase ventilation system it's part of, cannot be overstated. It's not just about preventing oil leaks; it's fundamental to engine health and longevity.

Preventing Pressure Buildup

As mentioned, blow-by gases constantly enter the crankcase. If these gases are not effectively removed, the pressure inside the crankcase will rise. This increased pressure can push engine oil out through seals and gaskets that are designed to contain oil under normal operating conditions. Common symptoms include oil leaks around the valve covers, oil pan, crankshaft seals, and even the dipstick tube, which might pop out under extreme pressure. These leaks not only lead to messy engine bays and costly oil consumption but can also cause damage to other components if oil drips onto hot exhaust parts or rubber hoses.

Maintaining Oil Quality

Blow-by gases contain unburnt fuel vapours, water vapour (a byproduct of combustion), and other contaminants. If these gases are allowed to condense and mix with the engine oil, they will dilute and contaminate it. Contaminated oil loses its lubricating properties, leading to increased friction, accelerated wear of internal engine components, and ultimately, premature engine failure. The ventilation system helps to draw out these harmful vapours, keeping the engine oil cleaner and extending its effective lifespan.

Reducing Sludge Formation

The combination of water vapour, unburnt fuel, and engine oil can lead to the formation of engine sludge, particularly in colder climates or during short trips where the engine doesn't reach optimal operating temperature. Sludge is a thick, tar-like substance that can clog oil passages, restrict oil flow, and starve critical engine components of lubrication. A well-functioning breather tube ensures proper ventilation, helping to evaporate water and other volatile contaminants before they can contribute to sludge formation.

Environmental Compliance

Modern vehicles are designed with strict emissions standards in mind. The PCV system, which the oil breather tube is an integral part of, prevents blow-by gases (which contain harmful hydrocarbons) from being released directly into the atmosphere. Instead, these gases are routed back into the engine's combustion chambers to be burned off, significantly reducing tailpipe emissions and making your vehicle more eco-friendly. A faulty breather tube or PCV system can lead to increased emissions, potentially causing your vehicle to fail emissions tests.

Engine Performance

While not a direct performance enhancer, a well-ventilated crankcase contributes to optimal engine performance. Excessive pressure or contaminated oil can lead to rough idling, misfires, reduced power, and decreased fuel efficiency. By maintaining proper internal engine conditions, the breather tube indirectly supports consistent and efficient engine operation.

Symptoms of a Clogged or Faulty Oil Breather Tube

Despite being low-maintenance, oil breather tubes can become clogged or damaged over time, especially due to oil vapour condensation, carbon deposits, or simply material degradation. Recognising the symptoms of a faulty breather tube is key to preventing more serious engine problems.

• Increased Oil Leaks: This is one of the most common and noticeable signs. If the tube is clogged, crankcase pressure builds up, forcing oil out through the weakest seals and gaskets (e.g., valve cover gaskets, oil pan gasket, crankshaft seals). You might notice fresh oil stains under your vehicle or a visibly oily engine.
• Whistling or Hissing Noises: A clogged breather tube or a malfunctioning PCV valve (often associated with the breather system) can create a vacuum or pressure differential that causes a distinct whistling or hissing sound from the engine, particularly at idle.
• Rough Idle or Engine Misfires: In PCV systems, a clogged or leaking breather hose can disrupt the air-fuel mixture by creating a vacuum leak or preventing proper crankcase ventilation. This can lead to an unstable idle, hesitation, or even misfires as the engine struggles to maintain consistent operation.
• Increased Oil Consumption: While oil leaks are a direct cause, a faulty breather system can also lead to increased oil consumption if blow-by gases are not properly managed, causing oil to be drawn into the intake and burned.
• Oil in the Air Filter Housing/Intake: If the breather system is blocked, pressure can force oil vapour into the air intake system, contaminating the air filter or coating the inside of the intake manifold and throttle body with oil.
• Check Engine Light (CEL): In modern vehicles, a severe blockage or leak in the PCV system (which includes the breather tube) can trigger the Check Engine Light, often accompanied by specific diagnostic trouble codes (DTCs) related to engine vacuum or emissions.
• Difficulty Removing Oil Filler Cap/Dipstick: If there's excessive pressure in the crankcase, you might find it difficult to remove the oil filler cap or the dipstick while the engine is running, or they might even pop out slightly.

Maintenance and Inspection: Keeping Your Engine Breathing Free

While often described as low-maintenance, 'low' does not mean 'no'. Regular inspection of your oil breather tube and the associated PCV system can prevent costly issues. Here's what you should know:

• Visual Inspection: During routine service or even a DIY under-bonnet check, visually inspect the breather tube for cracks, splits, kinks, or signs of deterioration. Rubber and plastic components can become brittle over time due to heat and oil exposure. Look for excessive oil residue around the connections, which could indicate a leak.
• Check for Blockages: The tube can become clogged with oil sludge, carbon deposits, or even ice in extremely cold conditions. If you suspect a blockage, carefully remove the tube (when the engine is cool) and inspect its interior. You might be able to clean it with a suitable solvent, but replacement is often the more reliable option.
• PCV Valve Check: If your vehicle has a PCV valve (most modern cars do), it's crucial to check its functionality as it works hand-in-hand with the breather tube. A common test involves removing the valve from its grommet (while the hose is still attached) and shaking it. You should hear a rattle. If not, it's likely stuck and needs replacing. You can also feel for vacuum at the valve's port with the engine running.
• Replacement: If the tube is cracked, brittle, or severely clogged, replacement is usually the best course of action. They are typically inexpensive parts, and the labour involved is often minimal. Consult your vehicle's service manual for recommended inspection intervals, though it's often part of a general inspection during major services.

Types of Crankcase Ventilation Systems

Understanding the evolution of crankcase ventilation helps contextualise the oil breather tube's role:

1. Open Breather Systems (Older Vehicles)

In older vehicles, the crankcase ventilation was very simple. A tube, often called a road draft tube, would extend from the crankcase to below the vehicle. Blow-by gases were simply vented directly into the atmosphere, relying on the vehicle's motion to create a vacuum effect that drew the gases out. The oil breather tube in these systems was purely for venting pressure.

2. Closed Positive Crankcase Ventilation (PCV) Systems (Modern Vehicles)

Introduced in the 1960s to combat air pollution, closed PCV systems are standard on virtually all modern vehicles. In this setup, blow-by gases are not released into the atmosphere. Instead, they are drawn from the crankcase, through a PCV valve (which regulates flow based on engine vacuum), and then into the intake manifold to be re-burned in the engine's combustion chambers. The oil breather tube in a PCV system typically functions as a fresh air inlet to the crankcase, or as a return path for gases to the intake, working in conjunction with the PCV valve to create a continuous flow of air through the crankcase, ensuring proper ventilation.

Table: Open vs. Closed Breather Systems

Frequently Asked Questions About Oil Breather Tubes

Q1: Can I drive with a bad oil breather tube?

A: While you might be able to drive for a short period, it's highly advisable not to. A faulty oil breather tube can lead to excessive crankcase pressure, causing oil leaks, reduced engine performance, increased oil consumption, and potentially long-term damage to engine seals and internal components. It can also lead to increased emissions and potentially trigger your Check Engine Light. Address the issue as soon as possible.

Q2: How often should an oil breather tube be replaced?

A: Unlike some other service items, there isn't a strict replacement interval for the oil breather tube itself. It's usually replaced on an 'as needed' basis, typically when visual inspection reveals cracks, hardening, or blockages. However, it's good practice to inspect it during every major service (e.g., every 20,000-40,000 miles or 2-4 years) and replace it if any signs of wear or damage are present. The associated PCV valve often has a recommended replacement interval, usually between 30,000 and 60,000 miles.

Q3: Is an oil breather tube the same as a PCV valve?

A: No, they are related but distinct components. The oil breather tube is a hose or pipe that forms part of the crankcase ventilation system. The PCV (Positive Crankcase Ventilation) valve is a one-way valve that regulates the flow of blow-by gases from the crankcase into the intake manifold. The breather tube often connects to or works in conjunction with the PCV valve or other parts of the PCV system to ensure proper air circulation and gas removal from the crankcase.

Q4: Can I clean my oil breather tube?

A: Yes, in some cases, if the tube is only lightly clogged with oil residue, it can be carefully cleaned using a suitable solvent or degreaser. However, if the tube is cracked, brittle, or severely hardened, cleaning will not resolve the underlying issue, and replacement is necessary. Always ensure the tube is completely dry before reinstallation. If it's a flexible hose, check for internal collapse.

Q5: What causes an oil breather tube to fail?

A: The most common causes of failure include: 1) Age and heat: The materials (rubber, plastic) can become brittle, crack, or harden over time due to constant exposure to engine heat and oil vapours. 2) Clogging: Oil sludge, carbon deposits from blow-by gases, or even moisture can accumulate and block the tube, especially in colder climates or if oil changes are neglected. 3) Physical damage: Accidental damage during other repairs or general wear and tear can also compromise the tube's integrity.

Q6: Is it an expensive repair?

A: Generally, replacing an oil breather tube is a relatively inexpensive repair. The part itself is usually quite affordable, and the labour involved is often minimal, particularly if it's easily accessible. The cost can vary depending on your vehicle's make and model, and whether other components of the PCV system (like the PCV valve or other hoses) also need replacing.

Conclusion

The oil breather tube, though often overlooked, plays a fundamental role in your engine's health, longevity, and environmental performance. By effectively managing crankcase pressure and removing harmful blow-by gases, it prevents oil leaks, maintains oil quality, reduces sludge formation, and keeps your vehicle's emissions in check. While it's a relatively low-maintenance component, understanding its function and recognising the signs of a fault can save you from significant engine problems down the road. Regular visual inspections during your routine maintenance checks are a simple yet effective way to ensure this unsung hero continues to perform its vital duties, keeping your engine breathing easy and your vehicle running smoothly for years to come.
