Land Rover Haldex Service: The Definitive Guide

The Haldex all-wheel-drive (AWD) system is a critical component in many Land Rover models, particularly the Freelander 2, ensuring optimal traction and handling across varied terrains. Like any sophisticated piece of engineering, it requires diligent maintenance to perform at its best and avoid costly failures. One of the most overlooked aspects of this maintenance is the regular servicing of the Haldex unit, specifically the fluid and filter change. Neglecting this vital service can lead to sluggish AWD engagement, excessive wear, and ultimately, system failure. This guide will walk you through the essential steps and considerations for servicing your Land Rover Freelander 2's Haldex system, providing you with the knowledge to tackle this important task.

How Often Should a Land Rover Haldex Filter Be Changed?

While the provided service information often focuses on the fluid, the filter is an equally crucial component that prevents contaminants from circulating within the Haldex pump and valve body. For Land Rover models fitted with the Haldex Generation 4 system, such as the Freelander 2, it is generally recommended to change the Haldex fluid and filter every 3 years or 30,000 miles, whichever comes first. Some enthusiasts and specialists advocate for even more frequent changes, especially if the vehicle is regularly used off-road or for towing, putting additional strain on the AWD system. It's always best to consult your vehicle's specific service manual for the most accurate and up-to-date recommendations. Regular preventative maintenance is key to the longevity and reliability of your Haldex unit.

Over time, the Haldex fluid can degrade due to heat and shear forces, losing its lubricating properties. Concurrently, the filter can become clogged with microscopic metallic particles and debris generated from normal wear and tear within the unit. A clogged filter restricts fluid flow, forcing the pump to work harder, leading to overheating and potential damage to the pump itself. This can manifest as intermittent or complete loss of AWD capability. Therefore, adhering to a strict service schedule for both fluid and filter is paramount.

Does a Freelander 2 Have a Haldex Gen4?

Yes, the Land Rover Freelander 2 (also known as the LR2 in some markets) is indeed equipped with the Haldex Generation 4 AWD system. This system represents a significant advancement over earlier generations, offering faster engagement and more precise control of power distribution between the front and rear axles. Unlike some earlier systems that relied on mechanical pressure, the Gen4 system is electronically controlled, allowing for proactive engagement of the rear wheels even before slip occurs. This sophisticated control relies heavily on clean fluid and an unobstructed filter to function correctly. Understanding that your Freelander 2 utilises this specific generation is important, as service procedures and fluid specifications can vary between Haldex generations.

Preparing for the Haldex Service: Safety First

Before you begin any work underneath your vehicle, safety must be your absolute priority. Ensure the vehicle is parked on a flat, stable surface and properly supported. While you don't need to lift the vehicle excessively high, it must be elevated enough to allow comfortable and safe access to the rear differential and Haldex unit. Always use sturdy axle stands in conjunction with a jack. Never rely solely on a jack for support. Disconnecting the battery's negative terminal is also a good practice to prevent accidental activation of electrical components during the procedure.

Essential Tools You'll Need:

• Lifting and Supporting Equipment: A reliable jack and sturdy axle stands are non-negotiable.
• E10 Torx Socket: For the propshaft CV joint bolts. A suitable ratchet handle is also required.
• 10mm Hex Socket: For the diff mounting bolts. Again, a suitable ratchet is needed.
• 18mm Spanner: For the diff mount bolts.
• Small Jack or Block of Wood: To support the front of the differential when its mount is removed. This prevents undue strain on remaining components and aids in positioning.
• Stout Chisel and Hammer: For separating the propshaft flange from the Haldex flange.
• Small Pry Bar or Stout Flat-Head Screwdriver: For gently levering the Haldex unit away from the differential.
• Suitable Container: To catch the old Haldex fluid. Ensure it has sufficient capacity and is wide enough to catch spills.
• Lint-Free Cloths or Paper Kitchen Towels: For cleaning up spills and wiping down surfaces.
• Thread Locking Compound: Recommended for reassembly of certain bolts, particularly if reusing original bolts (always check manufacturer guidelines).
• New Haldex Service Kit: This should include the correct Haldex fluid and a new filter.
• Torque Wrench: Essential for tightening bolts to the correct torque specifications upon reassembly.

The Disassembly Process: Step-by-Step

The following steps detail the removal of the Haldex unit from your Freelander 2. While there are no absolute 'hard and fast' rules, this method has proven effective and safe.

1. Disconnecting the Propshaft CV Joint

The first task is to disconnect the propshaft from the Haldex unit. This involves removing six E10 Torx bolts that secure the propshaft CV joint to the Haldex front flange. These bolts are typically grouped into three sets of two, with each pair passing through a curved strap washer. Take care when removing them, and keep them organised along with their washers for reassembly. These bolts can sometimes be stubborn, so a good quality Torx socket is vital to avoid stripping the heads.

2. Separating the Propshaft Flange

Once the six E10 bolts and their strap washers are removed and set aside, the propshaft flange needs to be separated from the Haldex flange. This can often be the most challenging part of the entire process due to the tight fit and potential corrosion. To aid in this, lowering the front of the differential slightly can provide better access and leverage.

3. Lowering the Differential (Slightly)

To facilitate the separation of the propshaft, place a small scissor jack or a sturdy block of wood underneath the differential, just behind the front mount. Next, remove the left-hand (LH) 18mm mount bolt and the four 10mm bolts that secure the differential to the mount. Then, release the right-hand (RH) 18mm mount bolt. This allows the mount to swing down and out of the way. The weight of the differential will now be supported by the jack. Carefully lower the jack by a couple of inches. This slight drop provides enough clearance to make the propshaft separation easier.

4. Releasing the Propshaft from the Haldex Flange

With the differential slightly lowered, you can now focus on popping the propshaft out of the cupped Haldex flange. There are two common methods for this:

• Chisel and Hammer Method: Hold a stout chisel at an angle on the side of the propshaft flange. Strike the chisel with a hammer. Repeat this on the opposite side. The shock should cause the propshaft to pop free from the Haldex flange. Exercise caution to avoid damaging the flanges or surrounding components.
• Hammer and Punch Method: Use a hammer and a suitable punch through one of the two access holes in the front of the Haldex flange. This allows you to strike the end of the propshaft directly, pushing it out of the flange.

Once the propshaft is free, you can lower the differential a bit more using the jack. This further improves access to the Haldex unit's mounting bolts.

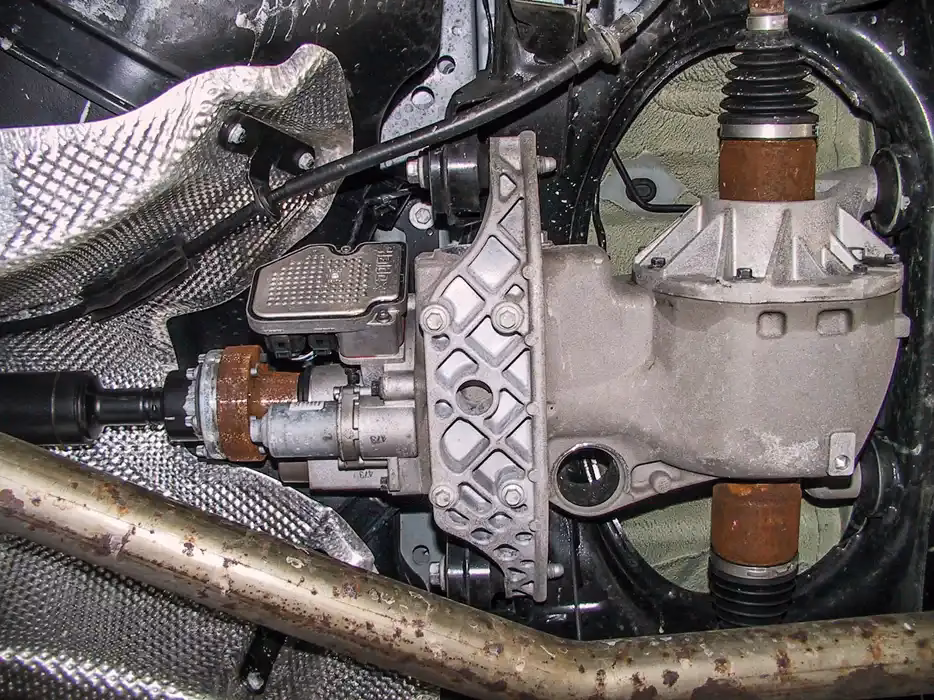

5. Removing the Haldex Unit

The Haldex unit is secured to the differential by four bolts. It's important to note that there are two different lengths of bolts used. Typically, three are shorter, and one is longer. When working under the vehicle, orient yourself as if the differential is in place. First, remove the two lower bolts. Leave the two upper bolts engaged by a few threads for safety; this prevents the Haldex unit from dropping unexpectedly. The fit between the Haldex and the differential is tight, so you'll need to gently lever the Haldex unit off the front of the differential using a stout flat-head screwdriver or a small pry bar. There are specific sections between the casings that are suitable for levering. As the Haldex unit separates, fluid will begin to spill out, so ensure your container is positioned correctly. Once it's clearly free and draining, carefully remove the remaining two loosened bolts, being prepared to support the weight of the Haldex unit (approximately 10 kg). Once fully detached, carefully manoeuvre the Haldex unit from under the vehicle to a more comfortable and clean workspace.

It is crucial not to drop the Haldex unit or allow it to become contaminated with dirt or foreign materials. Placing it on a clean surface, such as a large tray or a biscuit tin lid, will help keep it secure and clean while you work on it.

6. Cleaning the Differential Interface

With the Haldex unit removed, the front of the differential will be exposed, showing its drive spline. Any remaining fluid in the differential's front section should be carefully wiped out with a lint-free cloth or paper kitchen towel. This ensures a clean mating surface for the reinstalled Haldex unit and prevents contamination of the new fluid.

Important Note on Bolts and Reassembly

The Land Rover manual often stipulates replacing all bolts removed during this service, primarily because they are 'patch bolts' (pre-applied threadlocker). However, many experienced technicians and DIYers opt to clean these bolts thoroughly and apply fresh thread-locking compound upon reassembly. While this can be a cost-saving measure, it's a decision made at your own discretion. If in doubt, always follow the manufacturer's guidelines and replace the bolts as recommended.

One set of bolts where replacement is highly recommended, regardless of personal preference, are the six propshaft flange bolts. These bolts are subjected to significant stress and torque, and their integrity is crucial for the drivetrain. If your vehicle has previously been serviced by someone incompetent, or if the bolts show any signs of wear or damage, replacing them is a wise investment in your vehicle's reliability. When reinstalling, a dab of thread-locking compound on these and all other bolts removed for the service is a good practice to ensure they remain secure.

Always consult a reliable workshop manual for the correct torque specifications for all bolts during reassembly. Overtightening can strip threads or stretch bolts, while undertightening can lead to components loosening during operation, both of which can cause serious damage.

Bolt Replacement & Re-use Guide

Frequently Asked Questions (FAQs)

What are the symptoms of a failing Haldex system?

Symptoms can include grinding noises from the rear of the vehicle, a noticeable clunking or shuddering during acceleration, particularly when turning, loss of all-wheel-drive capability (e.g., only front wheels spinning in slippery conditions), or warning lights on the dashboard related to the drivetrain or AWD system.

Can I perform this Haldex service myself?

While this guide provides detailed steps, servicing the Haldex unit involves working under the vehicle, handling fluids, and dealing with potentially stubborn bolts. If you are not comfortable with mechanical work, lack the necessary tools, or are unsure about any step, it is highly recommended to seek professional assistance. Improper installation can lead to serious drivetrain damage.

What type of fluid do I need for my Haldex Gen4?

For Haldex Generation 4 systems (like in the Freelander 2), you must use the specific Haldex AWD fluid designed for this generation. Using incorrect fluid can lead to premature wear and system failure. Always refer to your Land Rover's owner's manual or a reputable parts supplier for the correct fluid specification.

Why is it important to replace the Haldex filter?

The filter captures metallic debris and contaminants generated within the Haldex unit from normal wear. If the filter becomes clogged, it restricts the flow of fluid to the Haldex pump, causing it to overwork, overheat, and potentially fail. A clean filter ensures optimal fluid circulation and prolongs the life of the pump and clutches.

What exactly is a Haldex system and how does it work?

The Haldex system is an electronically controlled all-wheel-drive coupling. It uses a series of clutch plates that are engaged and disengaged by hydraulic pressure to transfer power from the front wheels to the rear wheels when needed. In the Gen4 system, sensors monitor wheel slip, throttle position, and steering angle, allowing the system's control unit to proactively engage the rear wheels for improved traction and stability, often before the driver even perceives slip.

Conclusion

Servicing your Land Rover Freelander 2's Haldex system, including both fluid and filter changes, is a critical aspect of maintaining your vehicle's drivetrain health and ensuring its robust all-wheel-drive capabilities. While it might seem like a daunting task, with the right tools, careful attention to detail, and a commitment to safety, it's a manageable procedure for the home mechanic. By adhering to recommended service intervals and understanding the importance of each step, you can significantly extend the life of your Haldex unit, prevent expensive repairs, and continue to enjoy the confidence and performance your Land Rover offers on and off the road.
