Understanding Driveway Excavation Depths: A Comprehensive Guide

Laying block paving for a driveway or patio is a popular choice for homeowners seeking both aesthetic appeal and long-lasting durability. Whether you're opting for classic clay pavers or versatile concrete blocks, the foundation of a successful project lies in meticulous preparation, and at the heart of this is understanding the correct excavation depth. This guide will delve into the 'why' and 'how' of excavating your driveway area, ensuring a solid base for years to come.

Why is Excavation Depth Crucial?

The depth to which you excavate your driveway area is not arbitrary; it's a critical factor that dictates the structural integrity and longevity of your finished paving. A properly excavated base allows for the correct layering of sub-base and laying course materials, which are essential for supporting the weight of vehicles and preventing subsidence or unevenness over time. Digging too shallow can lead to premature failure, while digging too deep unnecessarily increases material and labour costs.

The Ideal Excavation Depth for Block Paving

For a typical domestic driveway using block paving, the excavation depth is generally recommended to be between 200mm and 250mm below the finished paving level. This range accounts for the various layers that will be installed on top:

It's important to note that these are general guidelines. The exact depth can vary depending on several factors, including the type of blocks used, the anticipated load (e.g., occasional car vs. heavier vehicles), and the nature of the sub-grade soil. Always remember that it's better to dig too deeply than too shallow, as any shortfall in depth can be easily rectified by adding more sub-base material.

Factors Influencing Excavation Depth

1. Type of Paving Blocks

The thickness of the paving blocks themselves plays a role. For standard domestic use, 50mm thick blocks are often sufficient. However, for areas experiencing heavier traffic, 60mm or even 80mm blocks might be specified, requiring a slightly deeper excavation to accommodate the increased block thickness and the necessary supporting layers.

2. Anticipated Load

A driveway that will only be used by cars will have different load-bearing requirements than one that might occasionally accommodate heavier vehicles like vans or small lorries. The sub-base layer is crucial for distributing these loads, and its thickness, along with the overall excavation depth, should be adjusted accordingly.

3. Sub-grade Conditions

The existing soil beneath your driveway area (the sub-grade) is the ultimate foundation. If the sub-grade is soft, clayey, or poorly draining, it may require a thicker or more robust sub-base to ensure stability. In such cases, a geotextile membrane can be laid between the sub-grade and the sub-base to prevent mixing and improve load-bearing capacity. If you are unsure about your sub-grade's competence, it is a wise investment.

4. Drainage Requirements

Proper drainage is essential to prevent water from accumulating and undermining the paving structure. Excavation should allow for a slight gradient, typically a 1cm drop for every 60cm of length, to encourage surface water runoff. Any required drainage channels or soakaways should also be incorporated into the excavation plan.

The Excavation Process: Step-by-Step

1. Planning and Marking Out: Before any digging begins, it's vital to have a clear plan. Mark out the exact area to be excavated, allowing an additional 300mm around the perimeter for easier handling of materials and for haunching edgings or kerbs. String lines and stakes are invaluable for precise marking. Crucially, identify the location of any underground services (electricity, gas, water, etc.) before you start digging.

   Pro-Tip: A detailed construction drawing can save considerable time and prevent disputes during the project.



2. Excavation: Begin digging out the marked area to the predetermined depth. For larger areas, hiring a mini-digger can significantly speed up the process. As you excavate, consider how you will dispose of the spoil. For an 115m² driveway requiring a 200mm dig, you might generate around 30m³ of spoil. Remember that excavated material bulks up by 20-30%, so 1m³ of dug material can become 1.3m³ for disposal. A grab wagon can often be a more cost-effective solution than multiple skips.

   Pro-Tip: Remove any soft spots encountered during excavation and backfill them with compacted sub-base material.
3. Sub-grade Preparation: Once excavated to the correct depth, the sub-grade should be checked for any remaining soft areas, which should be removed and replaced with compacted sub-base material. If a geotextile membrane is being used, it is laid at this stage.

   Pro-Tip: Ensure the excavated area is shaped to allow for proper drainage, with a consistent fall away from buildings.

4. Drainage Installation (if required): If any specific drainage solutions, such as channel drains, are part of the design, they should be installed and haunched with concrete at this stage to protect them.

Installing the Sub-Base

With the excavation complete and the sub-grade prepared, the next crucial step is the installation of the sub-base. This is typically a layer of crushed aggregate, such as MOT Type 1 hardcore, which provides the primary load-bearing capacity for the driveway.

• Material: Use a suitable aggregate, typically up to 40mm in size, like granite, limestone, or basalt.
• Spreading: Spread the sub-base material evenly across the excavated area. It's often beneficial to lay it in two layers, compacting each layer thoroughly before adding the next. Aim for a minimum of 100mm compacted thickness, with 150mm being preferable for heavier loads.
• Compaction: This is a vital step. Use a vibrating plate compactor (wacker plate) to compact the sub-base material thoroughly. Approximately six to seven passes per area are recommended to ensure a dense, stable base. Proper compaction prevents future sinking or settlement of the driveway.
• Profiling: The sub-base should be levelled and profiled to match the intended finished surface of the paving, with an accuracy of ±10mm.

Edge Restraints and Kerbs

Before laying the final paving course, it's essential to install robust edge restraints or kerbs. These act as a frame, holding the paving in place and preventing lateral movement.

• Setting Out: Use taut string lines to guide the correct line and level for the kerbs or edge course blocks.
• Concrete Bed: Lay the kerbs or edge course blocks onto a solid bed of lean-mix concrete.
• Haunching: Once positioned, the kerbs and edge courses must be solidly haunched with concrete on the outside, providing support and preventing them from shifting under load. The concrete haunching should be at least 75mm thick.

Laying Course Sand

The laying course, typically made of sharp sand, provides a smooth and even surface for laying the blocks and allows for fine-tuning of the finished level.

• Depth: Apply a layer of sand approximately 25-40mm deep.
• Screeding: Use screed rails (metal pipes or timber battens are preferable to flexible timber) and a screeding bar to level the sand to the precise finished height. Leave the screed slightly proud (3-5mm) to allow for compaction.
• Compaction: After screeding, the sand bed itself is often lightly compacted, or the compaction comes from the plate compactor used on the blocks.

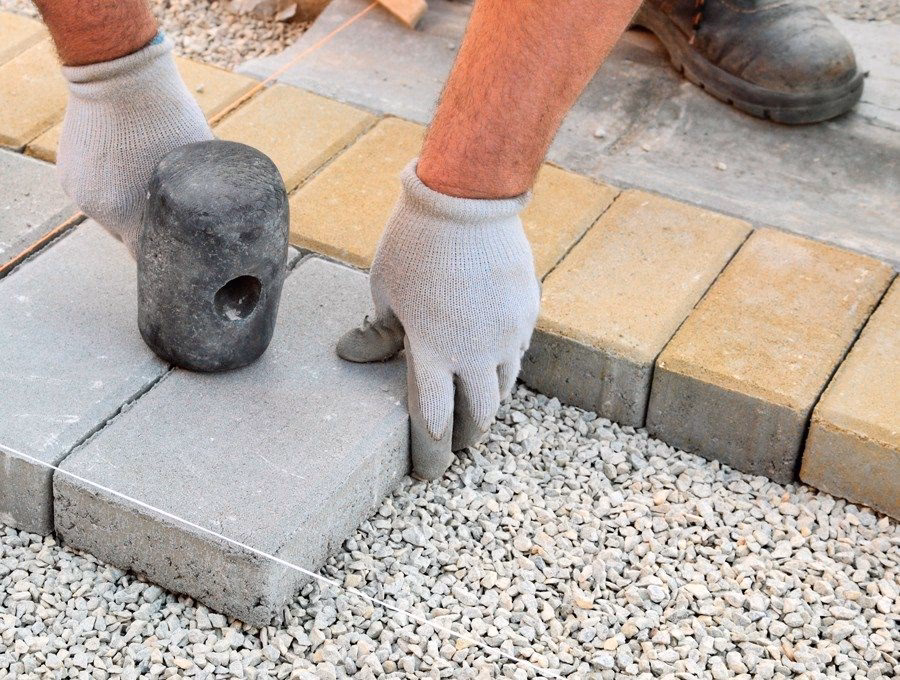

Laying the Blocks

With the foundation layers in place, the block paving can now be laid according to your chosen pattern.

• Starting Point: Begin laying blocks from a straight edge, such as a kerb or a string line, working your way across the area.
• Randomisation: To avoid colour banding, randomise the blocks by selecting them from at least three different packs before laying.
• Alignment: Use string lines to check the alignment of courses, especially diagonals, and make adjustments as needed. Clay pavers, in particular, may require more frequent alignment checks than concrete blocks.
• Cutting In: Once the main area is laid, cut in blocks to fit the edges and any intricate details. A block splitter or a bench-mounted saw with dust suppression can be used for this.

Finishing Touches: Jointing and Compaction

The final stages are crucial for locking the paving together and ensuring a neat finish.

• Jointing Sand: Spread kiln-dried jointing sand over the surface of the paving and sweep it into the gaps between the blocks using a soft brush.
• Compaction: Compact the entire paved area using a vibrating plate compactor. Make several passes, alternating the direction of the compactor by 90° for even compaction. Use a protective mat on the compactor if using softer blocks to prevent chipping.
• Topping Up: Repeat the process of sweeping and compacting until all joints are completely filled with sand.

Frequently Asked Questions

Q1: How deep should I excavate for a standard car driveway?

A: For a typical domestic driveway, excavate to a depth of 200-250mm below the finished paving level to accommodate the sub-base, laying course, and the blocks themselves.

Q2: What is the purpose of the sub-base?

A: The sub-base, usually made of crushed aggregate, provides the essential structural support for the driveway, distributing loads and preventing settlement. It's the foundation upon which the rest of the paving is built.

Q3: Can I use any type of sand for the laying course?

A: It is best to use sharp sand for the laying course. Kiln-dried sand is specifically used for filling the joints after compaction.

Q4: What happens if I don't compact the sub-base properly?

A: Improper compaction of the sub-base can lead to the driveway sinking, becoming uneven, or developing cracks over time, significantly reducing its lifespan and aesthetic appeal.

Q5: Do I need planning permission for a block paved driveway?

A: In the UK, if your new driveway covers an area of more than five square meters and uses non-permeable materials, you will likely need planning permission. However, using permeable block paving or ensuring surface water can drain away naturally may exempt you. Always check with your local authority.

Conclusion

Achieving the correct excavation depth is fundamental to creating a high-quality, durable block paved driveway. By carefully planning, excavating to the appropriate depth, and meticulously installing each layer – from the sub-base to the final jointing sand – you can ensure your driveway not only looks fantastic but also withstands the test of time and use. Remember to always prioritise safety, especially when working with heavy machinery and identifying underground services.
