Unravelling Organic Brake Pad Composition

When you press the brake pedal in your vehicle, a complex interaction of forces and materials brings your car safely to a halt. At the heart of this crucial safety system are your brake pads, and for many everyday drivers, these are often organic. But what exactly are organic brake pads made of? Far from being 'organic' in the dietary sense, these pads are a sophisticated blend of various materials, carefully selected to provide effective stopping power while minimising noise and wear on your brake discs.

Understanding the composition of organic brake pads, also known as Non-Asbestos Organic (NAO) pads, is key to appreciating their unique characteristics. They represent a significant evolution from older asbestos-based pads, offering a safer and often quieter alternative for a wide range of vehicles, particularly those used for standard commuting and light driving conditions.

What Are Organic Brake Pads?

Organic brake pads are a type of friction material used in disc brake systems. They are defined by their primary components, which typically include a mix of non-metallic fibres and fillers bound together by a resin. Historically, these pads contained asbestos due to its excellent heat resistance and friction properties. However, with the discovery of asbestos's severe health risks, manufacturers transitioned to safer, alternative materials, leading to the development of modern NAO pads.

Unlike semi-metallic or ceramic pads, organic pads tend to be softer, which contributes to their quieter operation and gentler interaction with brake discs. This softness, however, can also influence their durability and performance under extreme conditions. They are engineered for a balanced performance, prioritising a smooth feel, low noise, and good initial bite, making them a popular choice for original equipment on many passenger cars.

Key Components of Organic Brake Pads

The manufacturing of an organic brake pad is a precise process involving a carefully measured combination of around 10 to 30 different materials. These materials fall into several categories, each contributing specific properties to the final product:

Friction Modifiers

These are the components that primarily influence the brake pad's friction coefficient – how much grip it generates against the brake disc. They are crucial for controlling the stopping power and the feel of the brake pedal. Common friction modifiers include various types of carbon compounds (like graphite or coke), metal oxides, and even small amounts of non-ferrous metal shavings. Graphite, for instance, not only contributes to friction but also acts as a lubricant, helping to reduce noise and wear.

Binders

Binders are the 'glue' that holds all the other ingredients together, forming a cohesive pad. The most common binders used in organic brake pads are thermosetting resins, particularly phenolic resins. These resins are polymers that, when heated during the manufacturing process, undergo a chemical change, hardening and permanently bonding the other materials. The quality and type of binder significantly impact the pad's structural integrity, heat resistance, and ability to withstand the forces of braking without disintegrating.

Fillers

Fillers constitute a significant portion of the brake pad's volume and serve multiple purposes. They help to control the density of the pad, influence its wear rate, reduce manufacturing costs, and can even contribute to noise damping. Common fillers include rubber particles, various mineral fibres (like vermiculite or barium sulphate), and inorganic compounds. Rubber, for example, is often added to improve the pad's NVH (Noise, Vibration, and Harshness) characteristics, making braking quieter and smoother.

Reinforcing Fibres

These fibres provide the necessary structural strength and integrity to the brake pad, preventing it from breaking apart under the intense pressure and heat generated during braking. They also contribute to the friction characteristics. The shift away from asbestos led to the adoption of various alternative fibres. Aramid fibres (famously known by the brand name Kevlar) are very common due to their high strength-to-weight ratio and excellent heat resistance. Other fibres include glass fibres, carbon fibres, and even natural fibres like cellulose or wood pulp, though the latter are less common in high-performance applications.

Common Materials Used in Organic Brake Pads

Let's delve into some of the specific materials you're likely to find in a modern organic brake pad formulation:

• Aramid Fibres (e.g., Kevlar): These synthetic fibres are lightweight, incredibly strong, and highly resistant to heat and abrasion. They are a primary replacement for asbestos, providing excellent structural integrity and contributing to friction without being overly aggressive on the brake disc.
• Rubber Particles: Often derived from recycled tyres, rubber is included to improve the pad's elasticity, reduce noise, and help with heat dissipation. It's a key component in achieving the characteristic quiet operation of organic pads.
• Carbon Compounds (e.g., Graphite, Coke): Graphite is a common ingredient, acting as a lubricant to reduce noise and wear, and also helping to transfer heat away from the friction surface. Coke, a carbon-rich residue, can also be used for its abrasive and friction-generating properties.
• Phenolic Resins: These thermosetting polymers are the primary binders. They provide the necessary structural integrity, holding all the other components firmly in place even under high temperatures.
• Metal Shavings (Minor Amounts): While organic pads are primarily non-metallic, some formulations may include very small amounts of copper, brass, or iron filings. These are typically added to improve thermal conductivity or to slightly modify the friction characteristics, but in much smaller quantities than in semi-metallic pads.
• Barium Sulphate: A common inorganic filler that helps control the density of the pad and can influence its wear rate.
• Vermiculite: A mineral filler that can absorb moisture and contribute to the pad's thermal stability.
• Ceramic Particles (Small Amounts): Sometimes, small amounts of ceramic materials might be incorporated to enhance friction stability across different temperatures or to improve wear resistance, though not to the extent seen in dedicated ceramic pads.

The Manufacturing Process

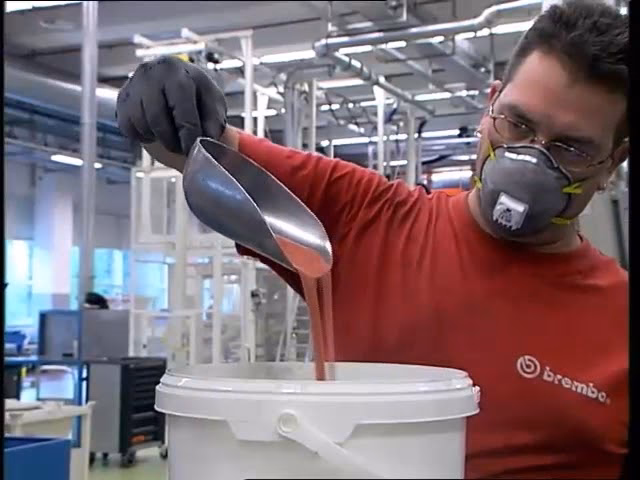

The creation of an organic brake pad is a multi-step process. First, the various raw materials are precisely weighed and mixed together to ensure a homogeneous blend. This mixture is then typically pressed under high pressure and heat into the desired pad shape, often against a steel backing plate. During this curing process, the phenolic resins activate and bind all the components into a solid, durable friction material. After pressing, the pads may undergo further heat treatments (post-curing) to fully develop their properties, followed by grinding and scorching (a process that pre-beds the pad surface) to prepare them for immediate use.

Advantages of Organic Brake Pads

Organic brake pads offer several distinct advantages that make them a popular choice for many drivers:

• Quiet Operation: Due to their softer composition and the inclusion of materials like rubber and graphite, organic pads typically produce less noise and squeal compared to harder pad types. This makes them ideal for drivers who prioritise a quiet and comfortable ride.
• Gentle on Discs: Being softer, organic pads are less abrasive on brake discs, potentially extending the lifespan of the rotors.
• Good Initial Bite: They often provide a good, immediate braking response from cold, which is beneficial for everyday driving conditions.
• Cost-Effective: Generally, organic brake pads are among the most affordable options on the market, making them an economical choice for routine maintenance.
• Low Dust (Relatively): While they do produce dust, it tends to be lighter in colour and less sticky than the dust from semi-metallic pads, making it less noticeable and easier to clean from wheels.

Disadvantages of Organic Brake Pads

Despite their benefits, organic pads do have some limitations:

• Shorter Lifespan: Their softer nature means they can wear down faster than semi-metallic or ceramic pads, especially under aggressive driving or heavy loads.
• Reduced Performance Under High Heat: Organic pads are more susceptible to brake fade at high temperatures. If subjected to prolonged heavy braking (e.g., driving down a long hill, spirited driving), the resins can start to gas out, reducing friction and braking effectiveness.
• More Dust Production: Although less noticeable than semi-metallic dust, organic pads can still produce a fair amount of dust, which might require more frequent wheel cleaning.

Organic vs. Other Brake Pad Types

To fully appreciate organic brake pads, it's helpful to compare them with their main counterparts:

Maintenance Tips for Organic Brake Pads

While organic pads are relatively low maintenance, a few practices can help maximise their lifespan and performance:

• Regular Inspections: Periodically check the pad thickness. Most pads have wear indicators that will make a squealing sound when they are low.
• Clean Wheels Regularly: This helps manage the dust produced and keeps your wheels looking good.
• Avoid Aggressive Braking: Excessive hard braking generates more heat and wear, shortening the life of organic pads. Try to brake smoothly and progressively.
• Check Brake Fluid: Ensure your brake fluid is at the correct level and replaced according to your car manufacturer's recommendations. Contaminated or old fluid can affect braking performance.

When to Replace Organic Brake Pads

The lifespan of organic brake pads varies greatly depending on driving style, vehicle weight, and driving conditions. Generally, they might last anywhere from 30,000 to 70,000 miles. However, it's crucial to look for specific signs that indicate replacement is due:

• Squealing or Grinding Noises: A high-pitched squeal often indicates the wear indicator is touching the rotor. A grinding sound usually means the pads are completely worn down, and metal is rubbing on metal.
• Reduced Braking Performance: If your car takes longer to stop or the brake pedal feels spongy.
• Vibrations: Pulsations through the brake pedal can indicate warped rotors, often caused by excessive heat, which can also be a sign of worn pads or improper braking habits.
• Visual Inspection: If you can see that the friction material on your pads is less than 3mm thick, it's time for a replacement.

Frequently Asked Questions (FAQs)

Are organic brake pads good?

Yes, organic brake pads are very good for their intended purpose: providing quiet, smooth, and effective braking for everyday driving conditions. They are excellent for commuters and those who prioritise a comfortable ride over extreme performance. Their gentleness on brake discs is also a significant benefit.

Do organic brake pads dust a lot?

Organic brake pads do produce dust, as all brake pads do, but the dust tends to be lighter in colour and less sticky than the dark, stubborn dust produced by semi-metallic pads. While noticeable, it's generally easier to clean from your wheels.

How long do organic brake pads last?

The lifespan of organic brake pads can vary widely, typically ranging from 30,000 to 70,000 miles. Factors like your driving style (aggressive vs. gentle), vehicle weight, and how much city vs. motorway driving you do all play a significant role.

Are organic pads quiet?

Organic brake pads are renowned for their quiet operation. Their softer composition and the inclusion of materials like rubber and graphite help to dampen vibrations and reduce the likelihood of squealing, making them one of the quietest brake pad options available.

Can I replace organic pads with ceramic?

Yes, in many cases, you can replace organic pads with ceramic pads, provided ceramic options are available for your specific vehicle. Ceramic pads offer lower dust, quieter operation, and excellent performance, often at a higher cost. It's always best to consult your vehicle's manufacturer recommendations or a qualified mechanic before switching brake pad types to ensure compatibility and optimal performance for your vehicle's braking system.

In conclusion, the humble organic brake pad is a marvel of material science, a carefully engineered composite designed to provide reliable, quiet, and smooth stopping power for the vast majority of vehicles on our roads. Understanding its complex blend of fibres, binders, and fillers helps us appreciate the intricate balance that keeps us safe every time we apply the brakes.
