Understanding Fuel Injection Controls

Modern vehicles rely on sophisticated systems to manage the delicate balance of air and fuel entering the engine. At the heart of this lies fuel injection control, a crucial element that dictates engine performance, fuel economy, and emissions. Understanding how these systems work can demystify a significant aspect of your car's operation. This article will explore the fundamental principles of fuel injection controls, focusing on key components and their functions, using Honda's PGM-FI system as a prime example.

The Core of Fuel Injection Control

Fuel injection controls encompass several vital functions: fuel injection amount control, fuel cut control, and fuel pump control. The primary goal is to deliver the precise amount of fuel required by the engine under varying conditions. The implementation of technologies like Honda's PGM-FI (Programmed Fuel Injection) is instrumental in achieving this accuracy, leading directly to enhanced engine power and significantly reduced fuel consumption. This sophisticated electronic system replaces older, less precise carburettor systems, offering a more efficient and responsive driving experience.

Fuel Injection Duration: The Precise Measure

The amount of fuel injected into the engine is not a static value; it's a dynamically calculated figure. The powertrain control module (PCM), the vehicle's main computer, determines the fuel injection duration. This is achieved by taking a basic injection duration – a pre-programmed value based on engine design and operating parameters – and then applying various correction values. These correction values are derived from data provided by numerous sensors monitoring engine conditions, such as air temperature, engine load, and throttle position. The PCM precisely controls the amount of fuel injected by regulating the length of time the fuel injector remains open, or energized.

Fuel Injection Timing: When to Inject

Equally important as the amount of fuel is when it is injected. Fuel injection timing is also orchestrated by the PCM. To calculate the optimal injection time for each cylinder, the PCM relies on critical signals from two primary sensors: the crankshaft position (CKP) sensor and the camshaft position (CMP) sensor. These sensors provide the PCM with information about the engine's rotational speed and the position of the pistons and valves within the cylinders. By precisely timing the injection event relative to the intake stroke, the PCM ensures the fuel is introduced into the combustion chamber at the most opportune moment for efficient combustion.

Key Sensors in the Fuel Injection System

Several sensors play a pivotal role in feeding the PCM the data it needs to make accurate fuel injection decisions. Let's examine some of the most critical:

Crankshaft Position (CKP) Sensor

The CKP sensor is typically mounted near the crankshaft, often attached to the oil pan. Its function is to monitor the engine's rotational speed and position. It works in conjunction with a crankshaft pulse plate, which has a series of teeth. As the crankshaft rotates, these teeth pass over the CKP sensor. Each time a tooth passes, the sensor generates a pulse signal that is sent to the PCM. This continuous stream of pulses allows the PCM to accurately determine the engine's RPM and the precise position of the crankshaft, which is fundamental for timing.

Camshaft Position (CMP) Sensor

The CMP sensor, usually located in the cylinder head, monitors the position of the camshaft. The camshaft controls the opening and closing of the engine's valves. In systems like Honda's PGM-FI, the camshaft pulley often has protrusions. As the camshaft rotates, these protrusions pass over the CMP sensor, generating a pulse signal. This signal is crucial for the PCM to identify which cylinder is on its intake stroke, enabling sequential fuel injection where fuel is injected into each cylinder at the correct time in its cycle.

Mass Air Flow (MAF) Sensor / Intake Air Temperature (IAT) Sensor

These sensors are often integrated into a single unit and are positioned within the intake air passage. They are responsible for measuring the volume and temperature of the air entering the engine. The MAF sensor typically uses a hot wire or film element. The resistance of this element changes based on the temperature of the incoming air and the amount of air flowing over it. The PCM monitors the electrical current required to maintain the hot wire at a constant temperature, which is directly proportional to the mass of air entering the engine. The IAT sensor, often a thermistor, measures the temperature of this incoming air. Both pieces of information are vital for the PCM to calculate the correct air-fuel ratio.

Fuel Injector

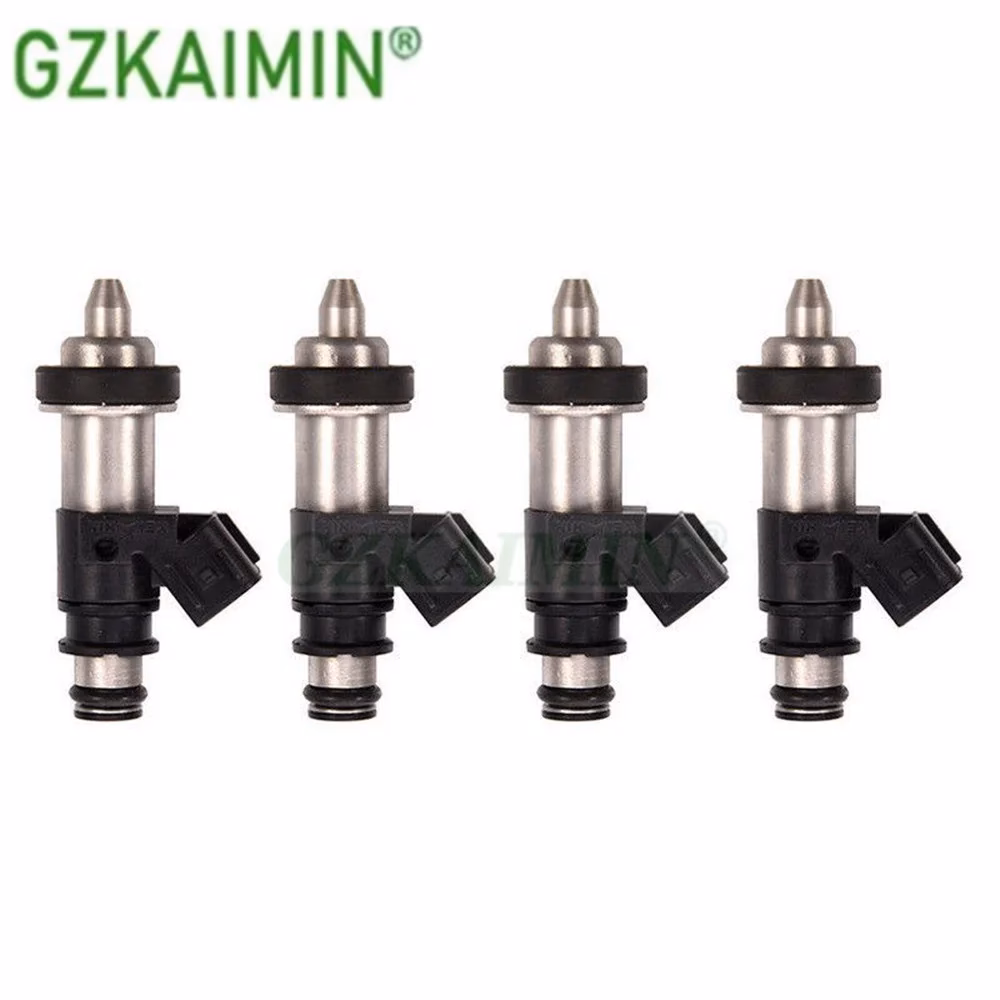

The fuel injector itself is an electronically controlled valve. For gaseous fuels, these injectors are designed with multiple small holes in the nozzle. This design promotes excellent fuel atomisation, meaning the fuel is broken down into very fine droplets. Better atomisation leads to improved mixing with the incoming air, which is essential for efficient and complete combustion. When the PCM sends an electrical signal to the injector, an internal coil is energized, pulling a plunger upwards. This plunger is connected to a needle valve, which unseats, allowing pressurized fuel, regulated by the fuel pressure regulator, to be sprayed through the nozzle into the intake manifold or directly into the cylinder.

On-Board Diagnostics (OBD) and PGM-FI

Modern fuel injection systems are also equipped with sophisticated on-board diagnostic (OBD) capabilities. The PGM-FI system description highlights this, stating that the OBD system is designed to detect failures within the emission control system. If a malfunction is identified in any of the monitored components or circuits, the PCM will store a Diagnostic Trouble Code (DTC) and alert the driver by illuminating the Malfunction Indicator Lamp (MIL), commonly known as the 'check engine' light, on the dashboard. This allows for timely identification and repair of issues that could affect emissions or engine performance.

Two-Drive Cycle Detection Method

To prevent false MIL activations, many OBD systems employ a two-drive cycle detection method. If a problem is detected in a sensor or control unit during the first drive cycle, the PCM will store a Pending DTC. The MIL will not illuminate at this stage. However, if the same fault reoccurs during a second consecutive drive cycle, the PCM considers the failure confirmed. It then stores a confirmed DTC and illuminates the MIL to inform the driver of the persistent issue. This ensures that only genuine and ongoing malfunctions trigger the warning light.

Honda Diagnostic System (HDS)

For professional diagnosis and troubleshooting, vehicles are equipped with a Data Link Connector (DLC). In Honda vehicles, this DLC is typically located under the dashboard on the driver's side. This connector allows technicians to connect a Honda Diagnostic System (HDS) or other compatible scan tools. These tools can communicate with the PCM, retrieve stored DTCs, view live sensor data, and perform various system tests, aiding in the efficient diagnosis of fuel injection and other engine management problems.

Troubleshooting and Maintenance

Issues with fuel injection systems can manifest in various ways, including rough idling, poor acceleration, decreased fuel economy, or engine misfires. Regular maintenance, such as cleaning the fuel injectors and ensuring the fuel filter is replaced at recommended intervals, can help prevent many of these problems. If the MIL illuminates, it is crucial to have the vehicle diagnosed promptly to identify the root cause and address it before it leads to more significant damage or increased emissions.

Frequently Asked Questions (FAQs)

What is PGM-FI?

PGM-FI stands for Programmed Fuel Injection. It is Honda's advanced electronic fuel injection system that precisely controls the amount and timing of fuel delivery for optimal engine performance and efficiency.

How does the PCM control fuel injection?

The PCM controls fuel injection by regulating the duration that the fuel injectors remain open (energized) and the timing of this injection event, based on data from various engine sensors.

What is the role of the CKP sensor?

The CKP sensor monitors the engine's rotational speed (RPM) and the position of the crankshaft, providing crucial timing information to the PCM.

Why is fuel atomisation important?

Good fuel atomisation, achieved by multi-hole injector nozzles, breaks fuel into fine droplets. This leads to better mixing with air, resulting in more complete and efficient combustion.

What does the MIL indicate?

The Malfunction Indicator Lamp (MIL), or 'check engine' light, indicates that the on-board diagnostic system has detected a fault in the engine or emission control system.

In summary, fuel injection controls are the sophisticated brains behind your engine's fuel delivery. By understanding the roles of components like the PCM, CKP sensor, CMP sensor, MAF sensor, and the fuel injectors themselves, you gain a deeper appreciation for the technology that keeps your vehicle running smoothly, efficiently, and with minimal environmental impact. Regular maintenance and prompt attention to warning lights are key to ensuring these complex systems operate at their best.
