Honda Civic i-Shift Actuator Repair

Can a Honda Civic i-Shift Clutch & Gearbox Actuator Be Rebuilt?

Modern Honda Civics often feature the i-Shift semi-automatic gearbox, a sophisticated system that electronically manages a manual transmission. This technology relies on a trio of electronically controlled components: the clutch actuator, the gearbox actuator, and the gearbox ECU. While offering a convenient driving experience, these i-Shift systems are unfortunately prone to developing transmission faults. It's important to note that not every failure points to the same component; rather, any of these three key parts can be the source of the problem. The good news is that a specialist can typically test and repair all three: the clutch actuator, the gear actuator, and the gearbox ECU.

Common Issues with the i-Shift System

When your Honda Civic's i-Shift gearbox encounters problems, several symptoms might manifest. Understanding these can help diagnose the issue. Some of the most frequently reported problems include:

• Selecting Wrong Gears: The transmission may shift into an unintended gear, leading to erratic driving behaviour.
• Won’t Rev in Reverse: The vehicle might fail to gain revs or move when placed in reverse gear.
• Gears Won’t Select: Difficulty or inability to engage any gear, rendering the car undrivable.
• Going in & out of Auto Mode: The gearbox may spontaneously switch between automatic and manual modes, or fail to remain in either.
• ECU Logging Clutch Actuator Faults: Diagnostic trouble codes (DTCs) indicating issues with the clutch actuator are reported by the Engine Control Unit (ECU).
• ECU Logging Gear Actuator Faults: Similarly, DTCs pointing to problems with the gear actuator are logged.
• P0810 Clutch Position Control Error: This specific code signifies a problem with the system's ability to accurately control the clutch's position.

The Cost of Replacement vs. Repair

When an i-Shift actuator fails, the immediate thought often turns to replacement. However, the cost of a new clutch and gear actuator can be substantial, typically ranging from £750 to £950 plus VAT. This figure doesn't even include the labour costs for fitting, nor does it account for any necessary coding or calibration that these complex units often require. New parts are generally sourced from dealerships and come with a limited 12-month warranty. While purchasing a second-hand unit might seem more economical, these often carry even shorter warranties, typically between 30 and 90 days, and will almost certainly require programming to function correctly with your vehicle.

This is where the option of rebuilding or repairing your existing actuators becomes a highly attractive alternative. Specialist repair services can often diagnose the specific fault within the actuator and carry out the necessary repairs, restoring it to full working order. This can represent a significant saving compared to the price of a new unit, often coupled with a more comprehensive warranty than a used part.

Can the Actuators Be Rebuilt?

Yes, in many cases, Honda Civic i-Shift clutch and gearbox actuators can be rebuilt. Specialist automotive electronics repair centres possess the diagnostic equipment and technical expertise to identify the root cause of the actuator failure. This could be due to worn internal components, electrical faults, or issues with the position sensors. By carefully disassembling the actuator, replacing faulty parts, and recalibrating the unit, it can be returned to a condition comparable to new, but at a fraction of the cost.

The Manual Clutch and Flywheel Replacement Process (for context)

While the i-Shift system is electronically controlled, understanding the mechanical components involved in clutch operation is useful. The following outlines the process for replacing the flywheel and clutch on a traditional manual Honda Civic (models 1992-2000), which requires significant mechanical work.

Why Replace the Clutch and Flywheel?

A worn-out clutch plate will eventually prevent the transmission from engaging gears, leaving you stranded. A failing hydraulic clutch system loses the necessary pressure to operate, essentially turning your car into a heavy, immobile object. While this guide is for older manual models, the principles of clutch wear and replacement are fundamental to understanding clutch systems.

Materials Needed for Manual Clutch Replacement:

• Jack and jack stands
• Impact gun
• Breaker bar
• Ratchet
• Needle nose pliers
• Screwdrivers
• Pickle fork
• Clutch alignment tool
• Hammer
• Punch
• Metric socket set
• Socket extensions
• Funnel
• Oil drain pan
• Torque wrenches

Step-by-Step Guide (Manual Civic 1992-2000):

1. Raise and Secure the Car: Use a jack and jack stands to safely lift the vehicle. This is also a good time to drain the transmission fluid.
2. Remove the Axle Nut: With the front wheels removed, use a breaker bar and a 32mm socket to loosen the seized axle nut.
3. Loosen the Lower Balljoints: Remove the cotter pin and castle nut from the lower balljoint. Use a pickle fork to separate the balljoint from the hub. Pull the hub assembly aside.
4. Remove the Axle: Gently pry the axle out of the transmission. You don't need to remove it completely, just enough to manoeuvre.
5. Remove the Shift Linkage: Disconnect the shift rods from the transmission. Use a hammer and punch to remove the keeper pin securing them.
6. Remove Transmission Components: This involves removing the transmission mount, starter motor, upper transmission bolt, wire harness bracket, clutch line bracket, slave cylinder assembly, and speed sensor. Note the specific bolt sizes (e.g., 17mm, 14mm, 12mm) for each component.
7. Lower the Transmission: Support the transmission with a jack and piece of wood. Remove the transmission mounts (top, front, and rear). Loosen the four bolts connecting the transmission housing to the engine. Carefully separate the transmission from the engine and lower it.

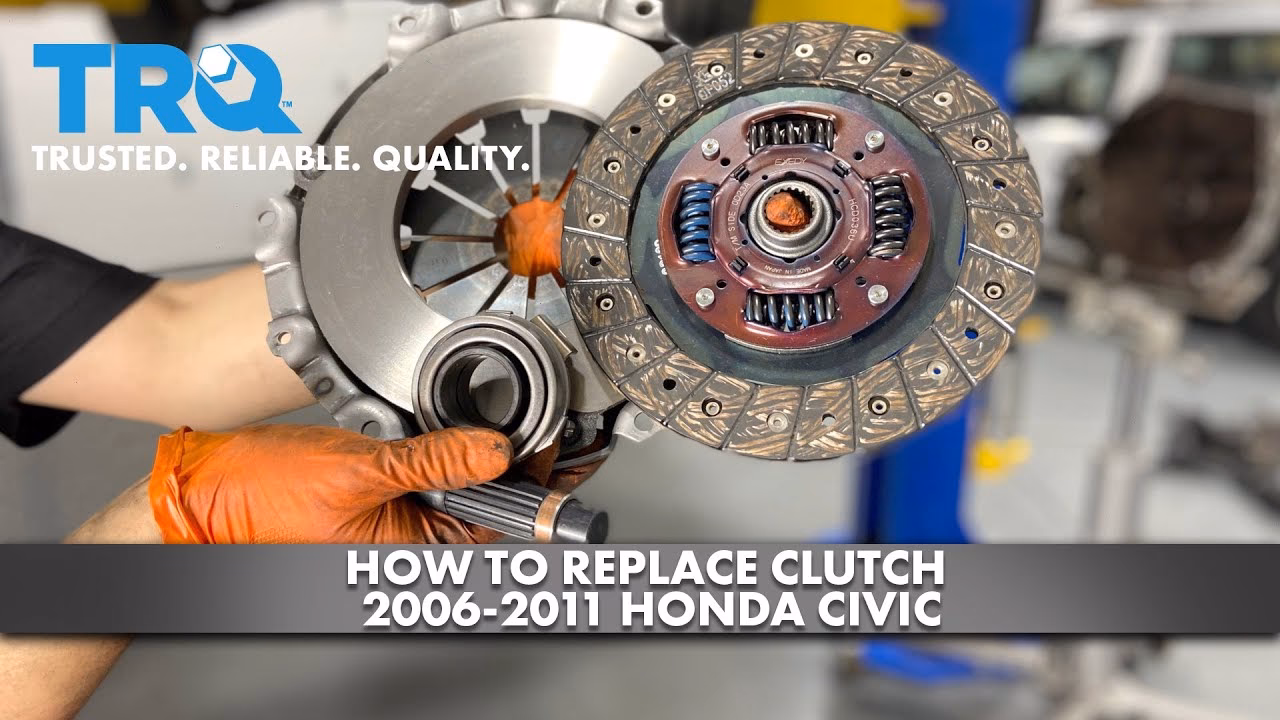

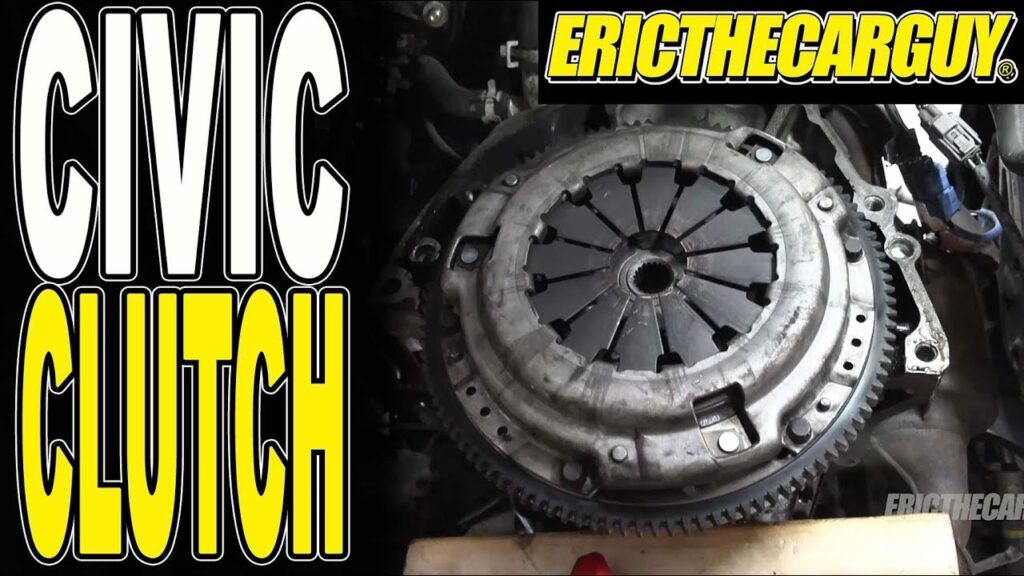

8. Remove the Clutch and Flywheel: Unscrew the six 12-point 10mm bolts holding the pressure plate to the flywheel. Then, remove the six 12-point 17mm bolts attaching the flywheel to the engine. An impact wrench is recommended for flywheel bolt removal.
9. Install the New Flywheel: Press the pilot bearing into the new flywheel using a hammer and socket. Mount the flywheel onto the engine and torque the bolts to 87 ft/lbs.
10. Mount the Clutch: Insert the clutch alignment tool through the clutch disk and position it on the new flywheel. Place the pressure plate over the clutch disk, aligning its studs with the flywheel. Tighten the pressure plate bolts to 19 ft/lbs in a criss-cross pattern. Remove the alignment tool and replace the throwout bearing within the transmission housing.
11. Mount the Transmission and Components: Carefully raise the transmission and align its splines with the engine. Reconnect the transmission to the engine block and tighten the mounting bolts. Reattach all previously removed components: shift linkage, starter, mounts, wire clips, axles, and balljoints. Ensure correct torque settings are applied (e.g., balljoints to 47 ft/lbs, axle nuts to 134 ft/lbs).

Frequently Asked Questions

Q1: What are the main symptoms of a failing i-Shift actuator?

A1: Common symptoms include gears not selecting, the car refusing to rev in reverse, the gearbox spontaneously switching modes, and diagnostic trouble codes related to clutch or gear actuator faults.

Q2: How much does a new i-Shift actuator cost?

A2: A new clutch or gear actuator typically costs between £750 and £950 plus VAT, excluding labour and calibration costs.

Q3: Is it cheaper to repair or replace an i-Shift actuator?

A3: Repairing or rebuilding a faulty actuator is generally significantly cheaper than purchasing a new one, and often comes with a better warranty than a used part.

Q4: Can I rebuild the i-Shift actuators myself?

A4: Rebuilding i-Shift actuators requires specialised knowledge, diagnostic tools, and calibration equipment. It is best left to experienced automotive electronic repair specialists.

Q5: What is the difference between a clutch actuator and a gear actuator?

A5: The clutch actuator controls the engagement and disengagement of the clutch, while the gear actuator is responsible for physically moving the gear selector forks within the gearbox to select the desired gear. Both are electronically managed in the i-Shift system.

In conclusion, while the Honda Civic i-Shift system can present reliability challenges, the associated clutch and gearbox actuators are often repairable. Opting for a professional rebuild can provide a cost-effective solution compared to the high price of new components, allowing you to keep your i-Shift Civic running smoothly.
