Rincon 680 Smoking? Diagnose & Fix It!

The Honda Rincon 680 has long been celebrated as a robust and reliable all-terrain vehicle, a true workhorse for off-road enthusiasts across the UK. Its 675cc single-cylinder engine delivers ample power for diverse terrains, coupled with user-friendly features that make it a favourite amongst riders who value hassle-free performance over extreme speed. However, even the most dependable machines can develop issues, and few are as alarming as a smoking engine. If your Rincon 680 is exhaling tell-tale puffs of smoke, it's a clear signal that something isn't quite right. Ignoring it could lead to more severe damage and costly repairs. Understanding the colour of the smoke is your first crucial step in diagnosing the problem and getting your trusty ATV back to peak condition.

Unravelling the Mystery: What Your Rincon's Smoke Colour Means

When your Honda Rincon 680 starts puffing smoke, the colour isn't just a visual anomaly; it's a critical diagnostic clue. Each hue tells a different story about what might be going wrong under the bonnet (or rather, the plastics!) of your ATV. Understanding these signs is the first step towards a swift and effective repair.

White Smoke: A Sign of Coolant Trouble

If you observe thick, persistent white smoke billowing from your exhaust, particularly if it smells sweet, you're likely dealing with burning coolant. While a small wisp of white vapour on a cold, damp morning is usually just condensation burning off, continuous, dense white smoke is a serious indicator of a coolant leak into the combustion chamber.

• Likely Causes:
  • Blown Head Gasket: This is arguably the most common culprit. The head gasket seals the combustion chambers and prevents coolant and oil from mixing or leaking. If it fails, coolant can seep into the cylinders and be burned along with the fuel.
  • Cracked Cylinder Head or Engine Block: Less common but far more severe, a crack in these critical components can also allow coolant to enter the combustion area.
  • Damaged Cylinder Sleeves: Wear or damage to the cylinder sleeves can also compromise the seal, leading to coolant intrusion.
• Accompanying Symptoms:
  • Engine overheating (often the initial sign).
  • Rapid coolant loss, requiring frequent top-ups.
  • Sweet smell from the exhaust.
  • Bubbles in the coolant reservoir.
  • Engine oil appearing milky or foamy (due to coolant mixing with oil).
  • Reduced engine power or misfires.
• What to Do:
  • Check your coolant level. If it's low, top it up, but be prepared for it to drop again.
  • Inspect your oil dipstick for any milky consistency.
  • Observe your coolant reservoir for bubbling or signs of exhaust gases.
  • A compression test or a leak-down test can help confirm a head gasket failure.
• Severity: High. Continued operation with a blown head gasket can lead to severe engine damage, including warping of the cylinder head or further internal component failure. This issue typically requires professional repair.

Black Smoke: Too Much Fuel, Not Enough Air

Dense black smoke indicates that your engine is burning too much petrol, often referred to as running "rich." This means there isn't enough air to properly combust the amount of petrol being delivered. It's essentially unburnt carbon particles exiting the exhaust.

• Likely Causes:
  • Clogged Air Filter: A dirty or blocked air filter restricts the airflow into the engine, leading to an imbalance in the air-fuel ratio.

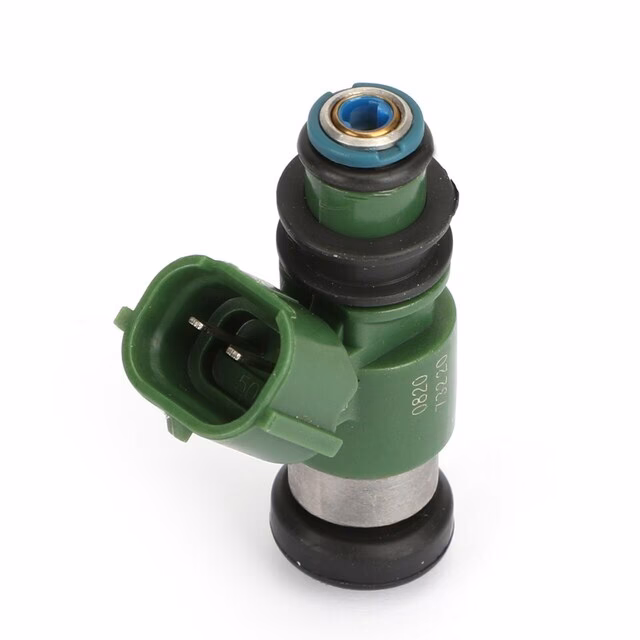

  • Faulty Fuel Injectors: If your fuel injectors are sticking open, leaking, or delivering too much fuel, the engine will run rich.
  • Malfunctioning Sensors: Sensors like the oxygen sensor or manifold absolute pressure (MAP) sensor can send incorrect readings to the engine's ECU, causing it to over-fuel.
  • Restricted Exhaust System: Though less common for black smoke, a severely clogged exhaust could indirectly affect combustion by increasing back pressure.
• Accompanying Symptoms:
  • Reduced fuel economy.
  • Poor acceleration and overall engine performance.
  • Rough idling or stalling.
  • Strong smell of unburnt fuel from the exhaust.
  • Fouled spark plugs (appearing black and sooty).
• What to Do:
  • Inspect and clean or replace your air filter. This is often the simplest fix.
  • Check your spark plugs; their condition can confirm a rich mixture.
  • Consider using a high-quality fuel system cleaner, though for persistent issues, professional diagnosis of the fuel injection system is best.
• Severity: Moderate to High. While not immediately catastrophic like a blown head gasket, running rich can damage components like catalytic converters (if fitted) and significantly impact performance and fuel efficiency.

Blue or Greyish Smoke: The Engine is Burning Oil

If the smoke from your Rincon 680's exhaust is blue or has a bluish-grey tint, it's a clear indication that your engine is burning oil. This happens when engine oil finds its way into the combustion chambers and is ignited along with the fuel.

• Likely Causes:
  • Worn Piston Rings: The piston rings seal the combustion chamber and scrape oil from the cylinder walls. If they are worn, broken, or stuck, oil can enter the combustion chamber.
  • Worn Valve Seals/Guides: These components prevent oil from leaking down the valve stems into the combustion chamber. Over time, they can harden or wear out, allowing oil to seep past.
  • Excessive Crankcase Pressure (e.g., PCV Valve Issues): A faulty Positive Crankcase Ventilation (PCV) system can lead to excessive pressure build-up, forcing oil past seals and rings.
  • Overfilling Engine Oil: While less common, simply having too much oil in the crankcase can sometimes lead to oil being pushed into the combustion chamber.
• Accompanying Symptoms:
  • Noticeable decrease in engine oil level, requiring frequent top-ups.
  • Oily residue on the exhaust tip.
  • Distinctive burning oil smell.
  • Engine may run rough or lack power.
• What to Do:
  • Check your oil level to ensure it's not overfilled.
  • Monitor your oil consumption closely.
  • A compression test and leak-down test can help assess the condition of piston rings and valves.
• Severity: Moderate to High. Burning oil indicates internal engine wear. If left unaddressed, it can lead to fouled spark plugs, reduced engine performance, and eventually, more severe engine damage due to insufficient lubrication or excessive carbon build-up.

Beyond the Smoke: Other Rincon 680 Issues to Consider

While smoke is a glaring symptom, it can sometimes be linked to other underlying problems or simply be one of several issues your Rincon 680 might be experiencing. Understanding these common problems can provide a more holistic view of your ATV's health.

Overheating Issues

Overheating is a frequent complaint among Rincon 680 owners, particularly during extended use or in challenging conditions. As mentioned, severe overheating can lead directly to white smoke if it causes a head gasket to fail. Common causes include a blocked radiator (often by mud or debris), a failing water pump, or low coolant levels. Regular inspection and cleaning of the radiator and maintaining proper coolant levels are vital.

Fuel System Woes

Modern ATVs like the Rincon 680 rely on sophisticated fuel injection systems. Problems here, such as clogged or faulty fuel injectors, can lead to your engine running rich (black smoke), poor idling, increased fuel consumption, or hard starting. Using high-quality petrol and regularly replacing fuel filters are key preventative measures.

Engine Ticking Noises

A persistent ticking noise from the engine can be incredibly irritating and often points to internal wear. While not directly causing smoke, issues like worn valve seals (which lead to blue smoke) or improper valve lash, worn camshafts, or timing chain problems can all manifest as ticking. These issues indicate internal engine wear that, if left unaddressed, could escalate.

Electric Shift Problems

Some Rincon 680 owners report issues with the electric shift mechanism, often due to cold or degraded grease making shifting difficult. While not related to engine smoke, it's a common operational problem that highlights the importance of keeping all components well-maintained and lubricated.

Preventative Maintenance: Your Rincon's Best Defence

Many of the problems discussed, especially those leading to engine smoke, can be mitigated or entirely avoided with diligent preventative maintenance. A little effort now can save you a lot of hassle and expense later.

• Adhere to the Service Schedule: Always follow Honda's recommended service intervals for your Rincon 680. This includes regular oil changes, filter replacements (air, oil, fuel), and fluid checks.
• Regular Fluid Checks: Consistently monitor your engine oil and coolant levels. Low levels can quickly lead to overheating or excessive wear, which in turn can cause smoking.
• Inspect Air Filter: Given the dusty and dirty environments ATVs operate in, the air filter can quickly become clogged. A dirty filter restricts airflow, leading to a rich fuel mixture and potentially black smoke. Clean or replace it regularly.
• Keep it Clean: Regularly wash your Rincon, paying particular attention to the radiator fins. Accumulated mud and debris can severely impede cooling efficiency, leading to overheating.
• Use the Service Manual: Your Honda Rincon 680 service manual is an invaluable resource. It contains detailed diagnostic procedures, maintenance schedules, and torque specifications. Familiarise yourself with it for routine checks and troubleshooting.
• Quality Fuel and Oil: Always use the recommended grade of petrol and engine oil. Low-quality fuels can lead to deposits and fuel injector issues, while incorrect oil can compromise lubrication and increase wear.

When to Call in the Professionals

While some basic checks and maintenance can be performed by a keen owner, diagnosing and repairing engine smoking issues often requires specialised tools and expertise. If you've identified persistent white, black, or blue smoke, especially with accompanying symptoms like significant fluid loss, overheating, or severe performance degradation, it's highly advisable to consult a qualified ATV mechanic. Engine internal repairs, such as replacing a head gasket or piston rings, are complex and best left to professionals to ensure proper reassembly and long-term reliability.

Comparative Table: Smoke Colour & Initial Actions

Frequently Asked Questions

Is a little white smoke on a cold start normal for my Rincon 680?

A small amount of white, thin vapour, especially on a cold or damp day, is typically just condensation burning off from the exhaust system. This is normal and should dissipate quickly as the engine warms up. If the smoke is thick, persistent, or smells sweet, then it indicates a problem.

Can poor fuel quality cause engine smoke?

Yes, using low-quality or incorrect fuel can certainly contribute to engine problems, including black smoke. Poor quality petrol can lead to incomplete combustion, carbon build-up, and can even clog fuel injectors. Always use the recommended unleaded petrol for your Honda Rincon 680.

How often should I service my Rincon 680 to prevent issues?

Honda provides specific service intervals in your owner's manual. Generally, oil and filter changes are recommended every 100 operating hours or annually, whichever comes first. Air filters should be checked and cleaned more frequently, especially if riding in dusty conditions. Adhering to these schedules is crucial for preventing a wide range of problems, including those that lead to engine smoke.

What are the typical costs to fix engine smoking?

The cost varies greatly depending on the cause. A simple air filter replacement might cost under £50. However, repairing a blown head gasket could range from £300 to £800 or more, depending on labour rates and parts needed. Internal engine work, such as replacing piston rings or valve seals, can easily run into four figures due to the extensive labour involved in disassembling and reassembling the engine. Early diagnosis can often prevent more expensive repairs.

Where can I find a reliable mechanic for my Rincon 680?

For complex issues, it's always best to seek out a qualified ATV mechanic. Start by checking with authorised Honda ATV dealerships in your area, as they have specialist training and access to genuine parts. Independent ATV repair shops with good reputations are also an option. Look for mechanics with experience specifically with Honda ATVs or powersports vehicles, and don't hesitate to ask for references or reviews.

Conclusion

A smoking engine on your Honda Rincon 680 is never a welcome sight, but it's a problem that can be diagnosed and, in most cases, effectively resolved. By paying close attention to the colour of the smoke and understanding its underlying causes, you empower yourself to take appropriate action. Whether it's a straightforward maintenance task or a more complex internal engine repair, prompt diagnosis and attention are paramount to protecting your investment and ensuring your Rincon 680 continues to provide exhilarating off-road adventures. Remember, a well-maintained ATV is a safe and reliable ATV, ready to tackle any trail the UK can throw at it.
