Brake Adapters: A Cyclist's Guide

When delving into the world of bicycle maintenance and upgrades, understanding the often-overlooked components is key to optimising performance and ensuring safety. One such component that plays a vital role in the functionality of your braking system is the brake adapter. While seemingly small and insignificant, these adapters are the unsung heroes that bridge the gap between your brake calipers and your bike's frame or fork, enabling a perfect fit and optimal performance. This article aims to demystify brake adapters, explaining their purpose, the various standards you'll encounter, and why they are so important for any cyclist.

What Exactly is a Brake Adapter?

At its core, a brake adapter is a small but essential piece of hardware that allows you to mount a specific type of brake caliper to a frame or fork that might not have the originally intended mounting points. Think of it as a translator for your brakes. Different brake systems and frame designs utilise different mounting standards. When these don't align perfectly, an adapter steps in to create compatibility, ensuring your brakes can be securely and correctly attached to your bicycle.

The Importance of Standards in Bicycle Braking

The bicycle industry, much like the automotive sector, relies on various standards to ensure interchangeability and compatibility between components. When it comes to disc brakes, which have become the dominant braking system on modern bicycles, several mounting standards dictate how the brake caliper is attached to the bicycle's structure. The most common standards you'll encounter are:

Post Mount (PM)

Post Mount is a widely adopted standard, particularly prevalent on mountain bikes and increasingly on road and gravel bikes. In this system, the brake caliper mounts directly onto posts that are integrated into the fork or frame. The bolts that secure the caliper screw directly into these posts. Post Mount systems typically use a 74mm spacing between the mounting centres of these posts. For larger rotors (e.g., 180mm or 203mm), adapters are used to position the caliper correctly over the rotor. For example, a Post Mount caliper might require a Post Mount to Post Mount adapter to accommodate a larger rotor.

International Standard (IS) Mount

International Standard, or IS, mounting is an older standard that was once prevalent on almost all disc-brake-equipped bicycles. With IS, the brake caliper mounts onto two protruding tabs on the fork or frame, with the bolts passing through the caliper and threading into the frame/fork. The spacing for IS mounts is typically 51mm. While less common on new frames and forks, you'll still find IS mounts on many older bikes, and some manufacturers still produce IS-compatible forks. When upgrading to a modern Post Mount caliper on a frame or fork with IS mounts, you will invariably need an adapter.

When Do You Need a Brake Adapter?

Brake adapters become necessary in several common scenarios:

• Upgrading Brake Systems: If you're replacing your old brakes with a newer, potentially more powerful set, the new calipers might use a different mounting standard than your frame or fork. For instance, fitting a modern Post Mount caliper to an older IS-mount frame requires an IS to Post Mount adapter.
• Changing Rotor Size: When you want to fit a larger brake rotor, you'll often need an adapter. Larger rotors provide more stopping power and better heat dissipation. For example, if your frame or fork is designed for a 160mm rotor using Post Mount, but you want to fit a 180mm rotor, you'll need a Post Mount to Post Mount adapter (often referred to as a "PM to PM" adapter) that repositions the caliper outwards. Similarly, an IS mount might require an IS to Post Mount adapter to run a 180mm rotor.
• Frame/Fork Compatibility Issues: Sometimes, even if the brake and frame share the same standard, the specific geometry or design of the frame/fork might necessitate an adapter for proper caliper alignment or clearance.

Types of Brake Adapters

The most common adapters are designed to facilitate the transition between different mounting standards or to allow for larger rotor sizes. Here are some of the most frequently encountered types:

IS to Post Mount Adapters

These adapters are essential for fitting Post Mount calipers onto frames or forks that have International Standard mounts. They typically bolt onto the IS tabs of the frame/fork, providing Post Mount bosses for the caliper to attach to. The specific adapter required will depend on the intended rotor size. For example, an IS to Post Mount adapter for a 160mm rotor will look different from one designed for a 180mm rotor.

Post Mount to Post Mount Adapters

These adapters are used when you want to mount a Post Mount caliper onto a Post Mount frame or fork but require a different rotor size. For instance, to mount a 180mm rotor on a frame designed for a 160mm Post Mount, you'd use a PM to PM adapter that increases the caliper's reach. The numbering on these adapters often indicates the rotor size they are designed for. A "PM 20" adapter, for example, is typically used to mount a 200mm rotor on a frame/fork intended for a 160mm rotor (adding 40mm to the reach).

Post Mount to IS Adapters

These are less common, as the trend is towards Post Mount. However, they exist for specific applications, allowing a Post Mount caliper to be fitted to an IS mount. Again, the rotor size dictates the specific adapter.

Choosing the Right Adapter: A Practical Guide

Selecting the correct brake adapter is crucial for safety and performance. Incorrectly fitted adapters can lead to poor braking, uneven pad wear, and even damage to your components. Here's what you need to consider:

1. Identify Your Frame/Fork Mount: Determine whether your frame or fork has Post Mount or International Standard mounts. This is usually clearly marked or can be identified by looking at the mounting points.
2. Identify Your Caliper Mount: Most modern calipers are Post Mount. Check your caliper's specifications if you are unsure.
3. Determine Your Desired Rotor Size: What size rotor are you planning to use? This is often dictated by the intended use of the bike (e.g., larger rotors for downhill mountain biking, smaller for road cycling) and the maximum size supported by your frame and fork.
4. Consult a Compatibility Chart: Many manufacturers provide detailed charts that cross-reference frame mounts, caliper mounts, rotor sizes, and the required adapter. A quick online search for "disc brake adapter chart" will yield useful results.
5. Example Scenario: Let's say you have an older frame with IS mounts and you want to fit a new Post Mount caliper with a 180mm rotor. You would need an IS to Post Mount adapter designed for a 180mm rotor. If your frame has Post Mounts and is designed for a 160mm rotor, but you want to use a 180mm rotor with a Post Mount caliper, you'd need a Post Mount to Post Mount adapter for a 180mm rotor (often labelled as a 40mm or +40 adapter).

Brake Pads and Adapters: A Note on Compatibility

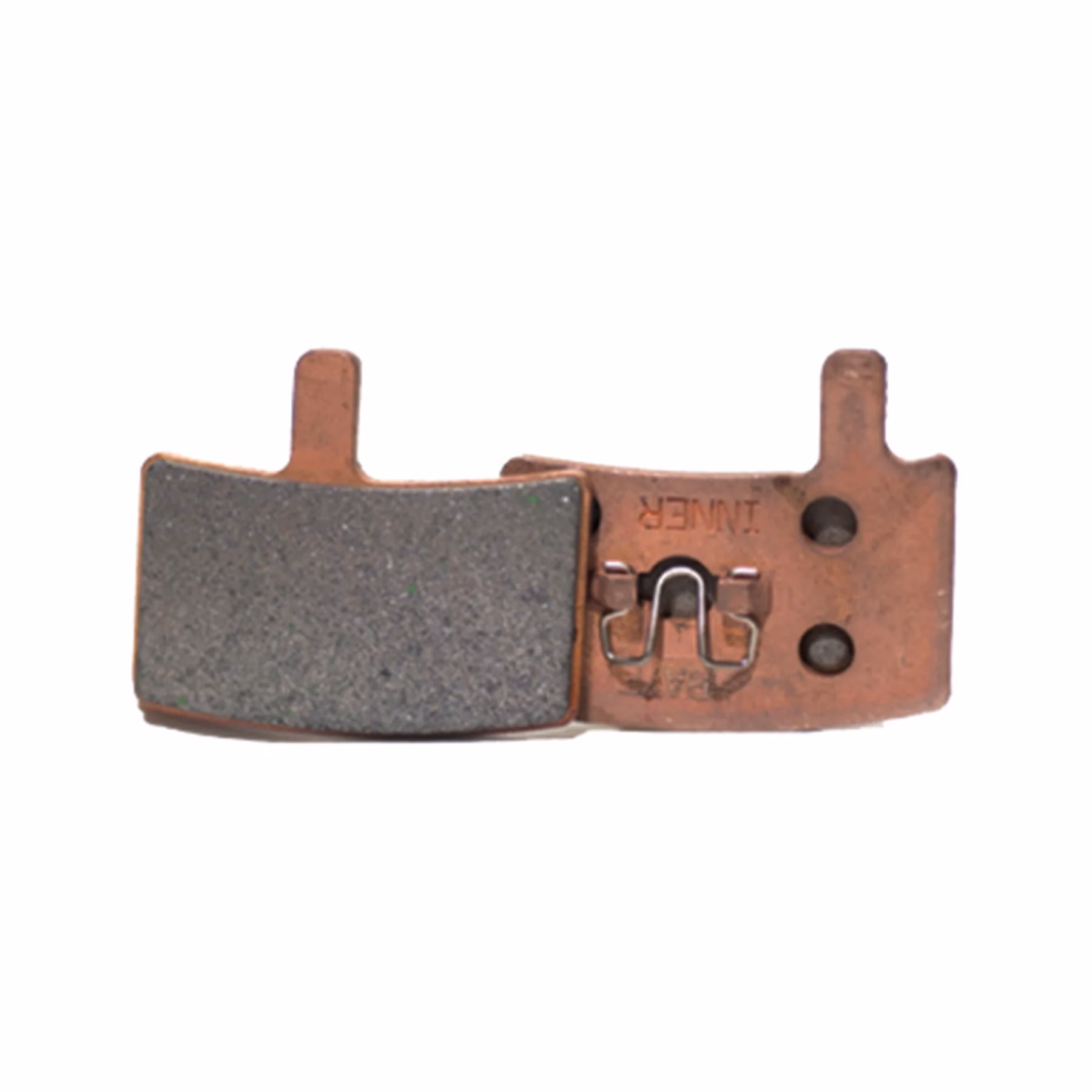

While adapters primarily deal with the physical mounting of the caliper, it's worth mentioning brake pads. Your chosen brake pads (e.g., semi-metallic, organic, or sintered) need to be compatible with your brake caliper. The adapter itself does not directly affect brake pad compatibility, but ensuring your caliper is correctly positioned via the adapter will allow the brake pads to engage the rotor surface properly.

Table: Common Adapter Scenarios

Here's a simplified table to illustrate common adapter needs:

Note: The "(+XXmm)" indicates the increase in caliper positioning relative to a standard Post Mount setup.

Frequently Asked Questions

Q1: Can I use any brake adapter with any brake system?

No, you cannot. Adapters are specifically designed for particular mount types (IS, Post Mount) and rotor size increases. Using the wrong adapter can lead to improper fit, poor braking, and safety issues.

Q2: How do I know if my frame supports larger rotors?

Your frame and fork will have a maximum rotor size specification. This is usually printed on the frame/fork itself or can be found in the manufacturer's documentation. Attempting to fit a rotor larger than what the frame/fork is designed for, even with an adapter, can be dangerous.

Q3: Do adapters affect braking performance?

When correctly installed and used within the designed parameters, adapters should not negatively impact braking performance. In fact, by allowing you to use larger rotors, they can often improve braking. However, a poorly manufactured or incorrectly fitted adapter could lead to a spongy feel or reduced stopping power.

Q4: Are adapters universal for Post Mount systems?

No. While Post Mount is a standard, adapters for Post Mount systems are specific to the rotor size increase required. A PM to PM 180mm adapter is different from a PM to PM 200mm adapter.

Conclusion

Brake adapters are indispensable components for cyclists looking to customise or upgrade their braking systems. They are the key to unlocking compatibility between different brake standards and achieving the desired rotor sizes for enhanced stopping power and control. By understanding the various standards like Post Mount and International Standard, and by carefully selecting the correct adapter for your specific needs, you can ensure your brakes perform optimally, keeping you safe on every ride. Always prioritise correct fitment and consult manufacturer guidelines when in doubt to maintain the integrity and safety of your bicycle's braking system.
