Suzuki GSX-R1000 Fork Seal Replacement: A Comprehensive Guide

There's nothing quite like the feeling of a perfectly performing Suzuki GSX-R1000, and its handling is a huge part of that. When your front forks start to weep oil, it's not just unsightly; it can significantly compromise your bike's stability and braking performance. Leaky fork seals are a common issue for many riders, and while it might seem daunting, replacing them on a GSX-R1000 is a manageable task with the right tools and a methodical approach. This guide will take you through the entire process, from gathering your supplies to getting those new seals fitted and your forks back in tip-top condition.

Why Replace Fork Seals?

Fork seals are critical components that prevent hydraulic fluid from escaping the fork's internal mechanisms while also keeping dirt, dust, and water out. Over time, these seals can degrade due to age, exposure to the elements, and the constant flexing and pressure they endure. Signs of worn fork seals include:

• Oil leaks on the fork stanchions (the shiny inner tubes).
• A spongy or inconsistent feel during braking or cornering.
• Reduced damping performance.

Ignoring leaky seals can lead to premature wear of other internal fork components and, more importantly, can affect your bike's handling and safety. Replacing them proactively is a wise investment in your GSX-R1000's longevity and your riding experience.

Tools and Materials You'll Need:

Before you begin, ensure you have all the necessary tools and parts. Having everything ready will make the process much smoother. You'll typically need:

Step-by-Step Fork Seal Replacement:

1. Preparation and Disassembly

Begin by securing your motorcycle. Ideally, use a proper paddock stand to lift the rear of the bike, and then a front paddock stand or blocks under the engine to lift the front wheel off the ground. Ensure the bike is stable and won't move. You'll need to:

• Remove the front wheel: Loosen the axle pinch bolts on the fork legs, then unscrew and remove the front axle. Carefully support the wheel as you remove it to prevent it from falling.
• Remove the brake calipers: Typically, these are held on by two bolts each. You can usually let them hang to the side by their brake lines, or tie them up to the frame to avoid stressing the brake lines.
• Remove the front fender: This is usually held by a few bolts and will need to be removed to allow access to the fork legs.
• Loosen the triple clamp bolts: Before attempting to remove the forks, it's often easier to loosen the bolts on the upper and lower triple clamps that secure the fork legs. Do not remove them entirely at this stage, just loosen them enough so the forks can slide out.

2. Removing the Forks

With the necessary components removed, you can now extract the fork legs from the triple clamps. Carefully slide each fork leg downwards and out. Once removed, it's a good idea to place them in a vice (with soft jaws to prevent damage) or prop them up securely.

3. Draining and Disassembling the Fork Leg

This is where the actual seal replacement begins. Each fork leg is a self-contained unit. You'll need to:

• Locate the bottom drain bolt: Most GSX-R1000 forks have a small bolt at the bottom of the lower leg (the slider). Place your drain pan underneath.

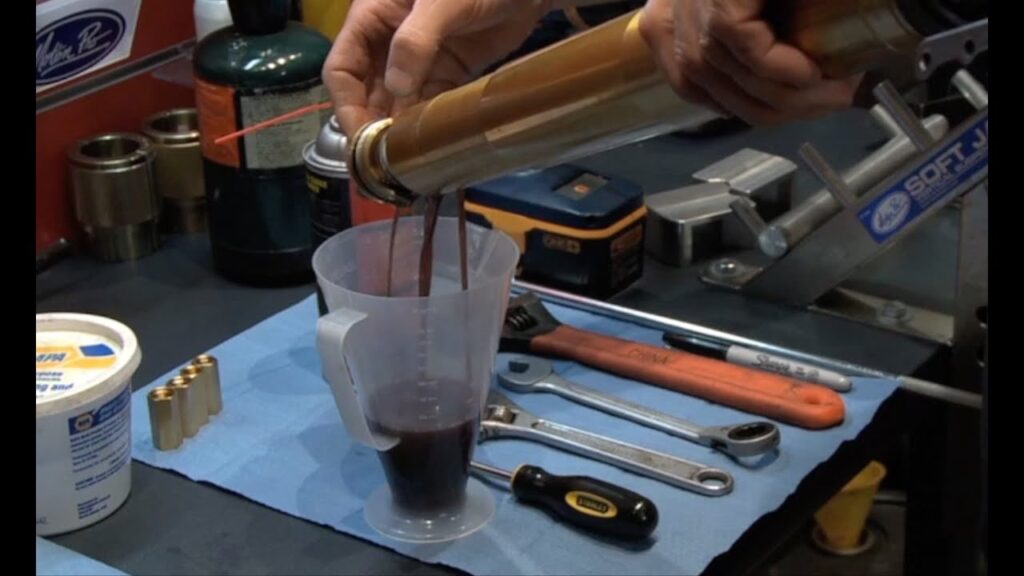

• Drain the old fork oil: Carefully loosen and remove the drain bolt. Allow all the old oil to drain out. This can take some time. Once drained, re-install the drain bolt, tightening it to the manufacturer's specified torque.
• Remove the spring preload adjuster (if applicable): Some forks have adjustable spring preload. If yours does, you may need to adjust it or remove it according to your service manual.
• Remove the top cap: The top cap of the fork is usually a large nut that holds the internal components together. You might need to compress the fork slightly or use a specialized tool to hold the damping rod while you unscrew the top cap. Be prepared for spring pressure – the spring inside is under compression.
• Remove the spring: Once the top cap is removed, you can carefully remove the fork spring. Note its orientation.
• Remove the old seal: Look for the circlip or snap ring that often holds the seal in place. Use snap ring pliers to remove it. Then, you can use a seal puller or a long, flat-bladed screwdriver to gently pry out the old fork seal. Work your way around the seal, being careful not to scratch the inner fork tube (stanchion).

4. Cleaning and Inspection

With the old seal removed, thoroughly clean the inside of the fork slider and the fork stanchion. Inspect both for any nicks, scratches, or damage that could compromise the new seal. Clean the area where the new seal will sit. Also, inspect the dust seal (the outer rubber seal) and the oil seal retainer. It's often recommended to replace both the oil seal and the dust seal at the same time.

5. Installing the New Seals

This is a critical step. It requires precision to avoid damaging the new seals.

• Lubricate the new seals: Lightly coat the new oil seal and dust seal with fresh fork oil or a suitable lubricant.
• Install the oil seal: Carefully slide the new oil seal onto the fork stanchion. Use a seal driver of the correct size, or a clean socket that matches the outer diameter of the seal. Gently tap the seal into its recess using a rubber mallet or the seal driver. Ensure it goes in straight and is seated fully. Do not force it or use excessive hammering, as this can damage the seal.
• Install the dust seal: Similarly, slide the new dust seal over the stanchion and tap it into place using the seal driver.
• Reinstall the circlip/snap ring: Once both seals are in place, reinsert the circlip to secure the oil seal.

6. Reassembly of the Fork Leg

Now it's time to put the fork back together:

• Reinstall the fork spring: Place the spring back into the fork leg, ensuring it's oriented correctly.
• Fill with new fork oil: Measure the correct amount of new fork oil as specified in your service manual. Pour it slowly into the fork leg. You may need to pump the fork leg a few times to help distribute the oil and bleed out any air. Let it sit for a few minutes to allow trapped air to escape.
• Reinstall the top cap: Screw the top cap back on. You may need to compress the fork slightly to align the threads. Once threaded in, tighten it to the manufacturer's specified torque.
• Reinstall the spring preload adjuster (if applicable).

7. Reinstalling the Forks and Final Assembly

With the fork legs reassembled, you can now reinstall them onto the motorcycle:

• Slide the fork legs back into the triple clamps.
• Tighten the triple clamp bolts to the specified torque, ensuring the forks are aligned correctly.
• Reinstall the front fender.
• Reinstall the brake calipers, tightening their bolts to the specified torque.
• Reinstall the front wheel and tighten the axle and pinch bolts to the correct torque.
• Bleed your brakes: After reassembling the calipers, it's essential to bleed your front brake system to remove any air that may have entered.

Frequently Asked Questions (FAQ)

Q: How often should I replace my fork seals?
Fork seals don't have a strict replacement interval. They should be replaced when they show signs of leakage or if you notice a significant degradation in damping performance. Regular inspection is key.

Q: Can I reuse the old fork oil?
Absolutely not. Fork oil is a specialized hydraulic fluid that degrades over time and can become contaminated. Always use fresh, new fork oil of the correct viscosity.

Q: What happens if I don't replace my fork seals?
Leaking fork seals will lead to a loss of damping fluid, which will negatively impact your bike's suspension performance. This can result in poor handling, reduced braking effectiveness, and can potentially damage other internal fork components.

Q: Do I need to replace the fork springs at the same time?
Not necessarily. Fork springs are typically replaced when they have sagged significantly or if you're changing the riding characteristics of your bike (e.g., for track use or different rider weight). If your springs are in good condition, you don't need to replace them when changing seals.

Q: What is the correct fork oil viscosity for my GSX-R1000?
This varies by model year. Always consult your Suzuki GSX-R1000's service manual for the exact specification. Common viscosities include 10W or 15W, but it's crucial to verify.

Conclusion

Replacing the fork seals on your Suzuki GSX-R1000 is a rewarding task that will restore your bike's responsive handling and ensure its safety. By following these steps carefully and using the right tools, you can successfully complete this maintenance job and enjoy a smoother, more controlled ride. Remember to always prioritize safety and refer to your motorcycle's service manual for precise torque specifications and any model-specific nuances.
