For decades, the humble carburettor was the heart of petrol engines, meticulously blending air and fuel before it entered the combustion chamber. While effective for its time, the mechanical limitations of carburetors became increasingly apparent as demands for cleaner emissions, better fuel economy, and enhanced performance grew. Their inability to precisely control the air-fuel ratio across varying engine speeds and loads led to inefficiencies and higher pollutant output. This pressing need for greater precision paved the way for a revolutionary advancement: the Electronic Fuel Injection (EFI) system. EFI marked a significant leap forward, transforming how fuel was delivered to the engine and setting the stage for the sophisticated systems we see in modern vehicles today, such as Multi-Point Fuel Injection (MPFI) and Gasoline Direct Injection (GDI).

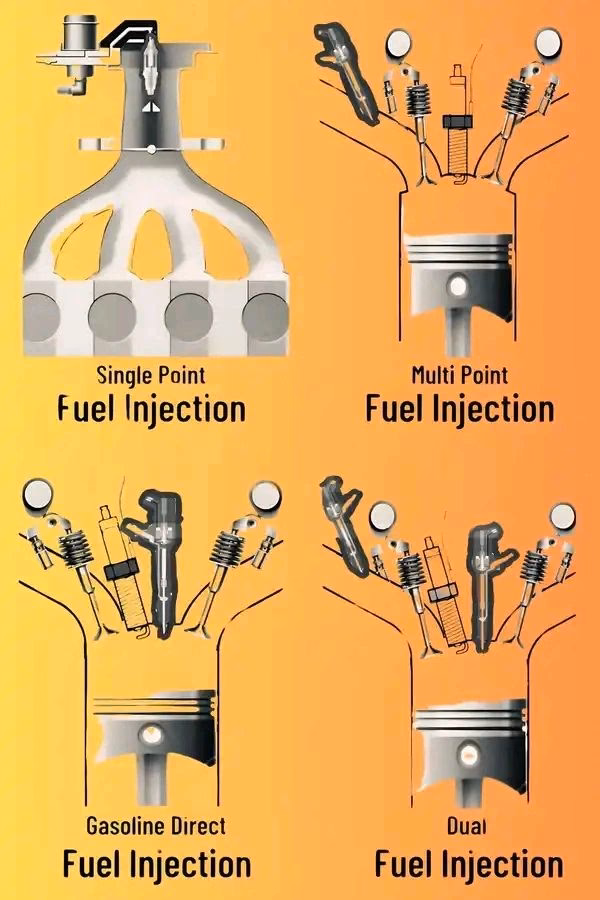

Electronic Fuel Injection (EFI) represents a broad category of fuel delivery systems that utilise electronic controls to atomise and inject fuel into the engine. Unlike the mechanical nature of carburetors, EFI systems employ an Engine Control Unit (ECU) – the 'brain' of the engine – along with an array of sensors and actuators to precisely manage fuel delivery. Early iterations of EFI emerged to address the shortcomings of carburetors, offering more accurate fuel metering and better engine response. These first-generation systems were a foundational step, providing the groundwork for more advanced fuel injection technologies.
One of the initial forms of electronic fuel injection was the Throttle Body Injection (TBI), sometimes referred to as Central Fuel Injection. In a TBI system, one or two injectors were strategically placed in the throttle body, much like a carburettor, to spray fuel into a central point from which the air-fuel mixture would then be drawn into all cylinders via the intake manifold. While an improvement over carburetors, TBI still faced limitations in achieving optimal fuel distribution to each individual cylinder, leading to some variations in combustion efficiency. Following TBI, Single-Point Fuel Injection (SPI) systems refined this concept by moving the injector from the throttle body directly into the intake manifold. This allowed for better mixing of fuel and air before the mixture travelled to the cylinders, enhancing control over the air-fuel ratio with the aid of the ECU, various sensors (like crankshaft position and manifold pressure sensors), and actuators. However, even with SPI, the fundamental challenge of delivering a perfectly uniform fuel charge to each cylinder remained, especially in multi-cylinder engines, as the fuel still had to travel a distance through the manifold to reach each intake valve.
The Rise of Multi-Point Fuel Injection (MPFI)
The quest for even greater precision and efficiency led to the development of Multi-Point Fuel Injection (MPFI), often also known as Multi-Port Fuel Injection (MPi) or Port Fuel Injection (PFI). This technology marked a significant advancement by dedicating an individual fuel injector to each cylinder. Instead of a single injector serving all cylinders, MPFI systems employ one injector positioned just upstream of the intake valve for each cylinder. This allows for a much more accurate and controlled delivery of fuel.
In an MPFI system, fuel is delivered from the fuel tank by an electric fuel pump to a component called the fuel rail. The fuel rail acts as a manifold, distributing fuel under a consistent pressure to each of the individual injectors. The ECU, constantly monitoring various engine parameters such as engine speed, load, throttle position, and oxygen content in the exhaust gases, determines the precise amount of fuel required for each combustion cycle. It then sends electrical signals to each injector, opening them for a specific duration (known as 'pulse width') to spray a finely atomised mist of fuel directly into the intake port, just before the intake valve. This strategic placement ensures that the fuel mixes thoroughly with the incoming air before entering the combustion chamber.
A key advantage of MPFI is its ability to perform 'sequential' injection. This means that the ECU can time the injection for each cylinder individually, synchronising it with the opening of the respective intake valve and the engine's firing order. This precise timing optimises the air-fuel mixture for each cylinder, leading to improved fuel efficiency, smoother engine operation, and significantly reduced emissions compared to earlier injection methods. The dedicated injector for each cylinder minimises fuel condensation on manifold walls and ensures a more uniform fuel distribution across all cylinders, contributing to better overall engine performance and responsiveness.
Key Components of an MPFI System:
- Fuel Pump: Electrically driven, it draws fuel from the tank and delivers it under pressure to the fuel rail.
- Fuel Rail: A common manifold that distributes fuel equally to all injectors.
- Fuel Injectors: Electronically controlled valves, one for each cylinder, that spray atomised fuel into the intake port.
- Fuel Pressure Regulator: Maintains a consistent fuel pressure within the rail, ensuring proper injector operation.
- Engine Control Unit (ECU): The central computer that processes sensor data and controls injector timing and duration.
- Various Sensors: Including the Crank/Cam Position Sensor (for engine timing), Manifold Pressure Sensor (for engine load), Oxygen Sensor (for exhaust gas analysis), and Throttle Position Sensor (for driver input), all providing vital data to the ECU.
Gasoline Direct Injection (GDI): The Cutting Edge
Pushing the boundaries of fuel injection technology even further, Gasoline Direct Injection (GDI) represents the pinnacle of modern petrol engine fuel delivery. Also known by various names such as Petrol Direct Injection, Spark Ignited Direct Injection (SIDI), or Fuel Stratified Injection (FSI), GDI fundamentally alters the point of fuel injection. Unlike MPFI, where fuel is sprayed into the intake manifold, GDI systems inject fuel directly into the combustion chamber itself, much like a diesel engine.
This direct injection requires a significantly higher fuel pressure compared to MPFI systems. While MPFI operates at pressures typically between 3 to 5 bar, GDI systems can generate pressures in excess of 100 bar, often reaching up to 200 bar or more. This ultra-high pressure, combined with specially designed multi-hole injectors, produces an incredibly fine mist of fuel droplets, often smaller than 20 micrometres (µm) compared to 120-200 µm in PFI. The finer atomisation allows for more efficient mixing with air and a more complete, rapid combustion process.
The sophisticated Engine Management System (EMS) in a GDI engine precisely controls the timing and pattern of this direct injection. This allows for multiple injection events within a single combustion cycle and enables different combustion modes. For instance, at low loads, GDI can operate in a 'lean-burn' or 'stratified charge' mode, where a rich fuel-air mixture is concentrated around the spark plug for ignition, while the rest of the chamber contains a leaner mixture. This drastically improves fuel economy. At higher loads, it switches to a 'homogeneous charge' mode, where fuel is more evenly distributed, similar to conventional engines, but still benefiting from the precise control and cooling effect of direct injection.
The direct injection of fuel into the combustion chamber also has a cooling effect, which allows GDI engines to operate with higher compression ratios without suffering from engine knocking or pre-ignition. This higher compression ratio directly translates to increased power output and greater thermal efficiency. Furthermore, modern GDI engines are frequently paired with turbochargers. The synergy between direct injection and forced induction is remarkable: the turbocharger packs more air into the cylinders, and the GDI system precisely delivers the necessary fuel, resulting in impressive power output, improved throttle response, and excellent fuel economy from smaller displacement engines, a concept known as 'downsizing'.
MPFI vs. Direct Injection: A Detailed Comparison
While both MPFI and GDI are highly effective electronic fuel injection systems, their fundamental difference in fuel delivery location leads to distinct characteristics and performance attributes. Understanding these differences is crucial for appreciating the advancements in automotive engine technology.
| Feature | Multi-Point Fuel Injection (MPFI) | Gasoline Direct Injection (GDI) |
|---|---|---|
| Fuel Injection Location | Into the intake manifold, just before the intake valve. | Directly into the combustion chamber. |
| Injection Pressure | Relatively low (typically 3-5 bar). | Very high (typically 100-200+ bar). |
| Fuel Atomisation | Good, but fuel can condense on manifold walls. Droplet size 120-200 µm. | Excellent, very fine mist directly in cylinder. Droplet size <20 µm. |
| Air-Fuel Mixing | Occurs in the intake manifold and cylinder. | Primarily occurs inside the combustion chamber. |
| Engine Efficiency | Good, but less efficient than GDI due to pumping losses and less precise control. | Higher efficiency due to reduced pumping losses, higher compression ratios, and precise control. |
| Power Output | Good. | Higher power output for a given displacement due to increased efficiency and higher compression. |
| Cold Starting | Excellent, as fuel is pre-mixed with air. | Excellent, with precise control over injection. |
| Emissions | Lower than carburetors, but generally higher particulate matter than GDI. | Lower CO2 and unburnt hydrocarbon emissions; can produce more particulate matter without proper filtration. |
| Cost | Generally less expensive to manufacture and maintain. | More expensive due to high-pressure components and complex controls. |
| Piston Design | Standard piston design. | Often features a modified piston crown to aid in fuel mixing and combustion. |
| Carbon Build-up | Less prone to carbon build-up on intake valves as fuel washes them. | More prone to carbon build-up on intake valves as fuel bypasses them. |
| Complexity | Less complex. | More complex due to high-pressure fuel pump, specialised injectors, and intricate EMS. |
The primary distinction lies in the fuel's journey. In MPFI, fuel is introduced into the air stream before it enters the cylinder, effectively 'washing' the intake valves. This helps keep the valves clean. Conversely, GDI injects fuel directly into the cylinder, bypassing the intake valves entirely. While this offers superior control and efficiency, it means the intake valves are no longer 'washed' by fuel, making them susceptible to carbon deposit build-up over time, a common concern for GDI engine owners. This carbon build-up can eventually restrict airflow and negatively impact engine performance, necessitating specific maintenance procedures.
Benefits of Modern Fuel Injection Systems in Petrol Engines
The evolution from carburetors to advanced EFI systems like MPFI and GDI has brought about a multitude of benefits for modern vehicles and their drivers:
- Smoother and More Reliable Engine Response: Precise electronic control allows for instant adjustments to fuel delivery, resulting in a more responsive and consistent engine feel across all driving conditions.
- Elimination of the Choke and Easier Cold Starting: EFI systems automatically adjust the air-fuel ratio for optimal cold starting, eliminating the need for manual chokes and making winter mornings far less frustrating.
- Better Engine Operation at Extreme Temperatures: Whether it's scorching heat or freezing cold, the ECU constantly monitors ambient conditions and adjusts fuel delivery to ensure stable and efficient engine operation.
- Smoother Engine Idle and Running: Accurate fuel metering prevents inconsistent combustion, leading to a much smoother idle and a more refined driving experience.
- Increased Fuel Efficiency: By delivering precisely the right amount of fuel at the right time, these systems minimise waste, leading to significant improvements in miles per gallon (MPG) or kilometres per litre.
- Reduced Emissions: The precise control over the air-fuel ratio allows catalytic converters to operate more effectively, drastically reducing harmful pollutants like carbon monoxide (CO), hydrocarbons (HC), and nitrogen oxides (NOx), contributing to cleaner air.
Maintaining Your Fuel Injection System
Given the precision and complexity of modern fuel injection systems, proper maintenance is paramount to ensure their longevity and optimal performance. Regular servicing, including fuel filter replacement, is crucial. For GDI engines, in particular, due to their susceptibility to intake valve carbon build-up, using high-quality fuels and specific fuel system cleaners can be beneficial. Some GDI engines may also require periodic intake valve cleaning procedures, often performed by a qualified mechanic, to remove accumulated carbon deposits and restore engine efficiency.
Frequently Asked Questions (FAQs)
Q1: Is GDI always better than MPFI?
While GDI generally offers superior fuel economy and higher power output for a given engine size, it comes with increased complexity and potential for intake valve carbon build-up. MPFI systems are often simpler, more cost-effective, and less prone to certain types of carbon deposits. Many modern engines now feature a 'dual injection' system, combining both MPFI and GDI to leverage the benefits of both technologies, using MPFI at lower loads to clean valves and GDI at higher loads for efficiency and power.
Q2: What are the common signs of a faulty fuel injection system?
Common signs include reduced fuel economy, a noticeable drop in engine power, rough idling, engine misfires, difficulty starting the engine, increased exhaust emissions, and the illumination of the 'check engine' light on your dashboard. If you experience any of these symptoms, it's advisable to have your vehicle inspected by a professional.
Q3: Can I use fuel additives to clean my fuel injectors?
For MPFI systems, many quality fuel additives can help keep injectors clean. For GDI systems, while some additives can help with injector tip deposits, they generally do not address carbon build-up on the intake valves because the fuel bypasses these valves. For GDI valve cleaning, a professional mechanical cleaning might be necessary.
Q4: How often should I service my fuel injection system?
Refer to your vehicle's owner's manual for specific service intervals. Generally, regular engine servicing, including fuel filter replacement, is key. For GDI engines, discussing carbon cleaning intervals with your mechanic based on your driving habits and fuel quality is a good idea.
