Optimising Fuel Injection with ANN and LM

In the intricate world of automotive engineering, achieving optimal engine performance and efficiency hinges on a myriad of critical parameters. Among these, fuel injection timing stands out as a paramount factor. Its precise control directly influences the atomisation of fuel, the formation of the air-fuel mixture, and the subsequent combustion process, all of which are fundamental to an engine's output and its environmental impact. Recognising this crucial relationship, engineers are constantly seeking innovative methods to fine-tune this parameter. This is where the power of Artificial Neural Networks (ANN), specifically trained with the Levenberg-Marquardt (LM) algorithm, emerges as a transformative tool for optimising fuel injection timing in gasoline engines, promising significant advancements in both performance and efficiency.

The Crucial Role of Fuel Injection Timing

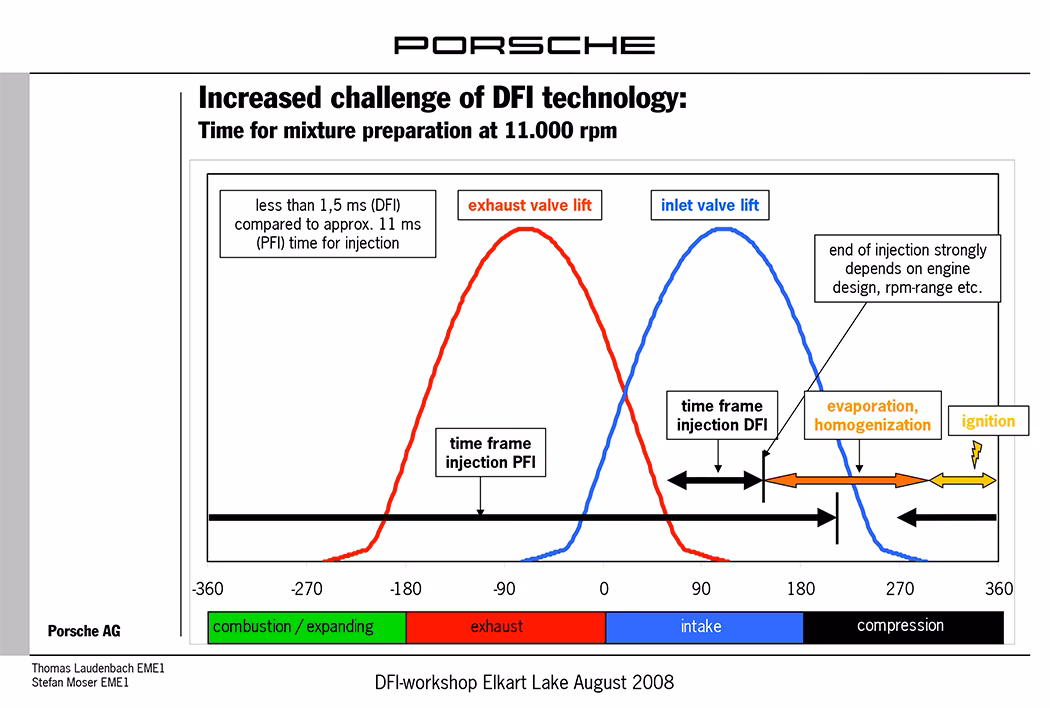

Fuel injection timing is not merely a setting; it is a dynamic variable that profoundly affects virtually every aspect of a gasoline engine's operation. When fuel is injected into the combustion chamber or intake manifold, the timing dictates how effectively it atomises into fine droplets, mixes homogeneously with air, and is prepared for ignition. An incorrectly timed injection can lead to incomplete combustion, wasted fuel, reduced power output, and an increase in harmful emissions. Conversely, precisely timed injection ensures a more complete and efficient burn, maximising energy extraction from the fuel. This translates directly into improved engine performance, greater fuel economy, and a reduction in undesirable pollutants. The challenge lies in identifying this optimal timing across a vast range of operating conditions, which traditional methods often struggle to achieve with sufficient speed and accuracy.

Understanding Artificial Neural Networks (ANN) in Engine Optimisation

Artificial Neural Networks, inspired by the biological structure of the human brain, are computational models designed to recognise patterns and learn from data. In the context of engine optimisation, an ANN can be thought of as a sophisticated system capable of learning the complex relationships between various engine operating parameters (such as speed and manifold absolute pressure) and the ideal fuel injection timing required for peak performance. The network consists of interconnected 'neurons' organised in layers, where each connection has an associated 'weight' that is adjusted during the learning process. By feeding the network a large dataset of input parameters and their corresponding optimal outcomes, the ANN 'learns' to predict the ideal timing for new, unseen operating conditions. This learning capability makes ANNs exceptionally powerful for complex, non-linear problems like engine optimisation.

The Levenberg-Marquardt (LM) Training Algorithm: A Key Enabler

While ANNs provide the framework for learning, the effectiveness of their predictions heavily relies on the training algorithm used to adjust the weights between neurons. The Levenberg-Marquardt (LM) algorithm is a widely favoured choice for training ANNs in engineering applications, particularly for its efficiency and robustness in converging to an optimal solution. LM is a hybrid optimisation algorithm that combines the best features of the Gauss-Newton algorithm (which is fast for well-behaved problems) and the gradient descent method (which is more reliable when far from a solution). This hybrid approach allows LM to find optimal solutions quickly and effectively, even in complex, non-linear landscapes. For fuel injection timing optimisation, where swift and accurate learning is paramount, the LM algorithm ensures that the ANN can rapidly identify the intricate patterns within the experimental data, leading to a highly refined and accurate prediction model.

Experimental Foundations: Data Collection and Setup

The journey to optimising fuel injection timing with ANN begins with rigorous experimental studies. To gather the necessary training and test data, a single-cylinder, four-stroke gasoline engine was utilised. This specific setup allowed for controlled and precise measurements under varying operational conditions. Experiments were meticulously conducted to measure fuel injection timing across a wide range of engine speeds, specifically from 700 revolutions per minute (rpm) up to 5000 rpm. Simultaneously, measurements were taken at different manifold absolute pressures, simulating various load conditions that an engine might experience. This comprehensive data collection process was crucial, as the quality and breadth of the experimental data directly impact the ANN's ability to learn and generalise effectively. Each data point represented a specific combination of speed and pressure, along with the corresponding measured fuel injection timing that yielded the best observed performance during the experimental run.

Training and Optimising the Neural Network

Once the extensive experimental data set was generated, it became the raw material for training the neural network. The collected data, comprising engine speed, manifold absolute pressure, and the measured fuel injection timing, was fed into the ANN. The Levenberg-Marquardt algorithm then took centre stage, iteratively adjusting the weights within the network. During this training phase, the ANN learned the complex, non-linear relationships between the input parameters (speed and pressure) and the desired output (optimised fuel injection timing). The LM algorithm's ability to navigate the error landscape efficiently ensured that the network converged rapidly towards a state where its predicted timings closely matched the experimentally observed optimal timings. This iterative process refined the network's understanding, allowing it to create a sophisticated model capable of predicting the ideal injection timing for any given operating condition within the studied range.

Validation and Empirical Confirmation

A critical step in any modelling process is validation. After the ANN was successfully trained using the initial experimental data, its predictive accuracy needed to be rigorously tested. To achieve this, further experiments were conducted on the exact same single-cylinder gasoline injected engine from which the initial training data was obtained. This time, instead of manually searching for optimal timing, the ANN's predicted fuel injection timings for various engine speeds and manifold absolute pressures were implemented and tested. The results were remarkably encouraging. The engine's performance when operating with the ANN-predicted timings was measured and compared against the performance achieved during the initial experimental runs. It was found that the ANN-predicted results were consistently within good acceptable limits, demonstrating a close agreement between the predicted and actual experimental values. This empirical validation confirmed the ANN's ability to accurately and reliably determine the optimal fuel injection timing.

Benefits of ANN Optimisation: Time and Cost Savings

The most compelling conclusion drawn from this study is the significant advantage offered by using ANN with the LM algorithm for optimising engine performance, particularly concerning injection timing. Traditionally, optimising engine parameters is a laborious and time-consuming process involving countless physical experiments, manual adjustments, and extensive data analysis. This approach is not only resource-intensive but also incurs substantial financial cost. By contrast, the ANN-based approach streamlines this process immensely. Once the initial experimental data is collected for training, the ANN can quickly and accurately predict optimal settings for a vast array of operating conditions, virtually eliminating the need for further exhaustive physical experimentation for every scenario. This dramatically reduces the development cycle, saving considerable time and financial outlay, making the optimisation process far more efficient and accessible.

Comparative Analysis: Traditional vs. ANN Optimisation

To better understand the paradigm shift that ANN brings to engine calibration, a comparative look at traditional methods versus the ANN approach is insightful:

Future Implications and Conclusion

The successful application of Artificial Neural Networks, specifically with the Levenberg-Marquardt algorithm, for optimising fuel injection timing marks a significant leap forward in engine calibration technology. This study conclusively demonstrates that ANNs can accurately predict optimal injection timings, leading to improved engine performance without the prohibitive time and cost associated with traditional methods. The ability to rapidly and reliably determine the best operating parameters for varying conditions opens new avenues for engine design and control. This approach not only enhances fuel efficiency and power output but also contributes to reduced emissions, aligning with contemporary demands for cleaner and more sustainable automotive solutions. As automotive technology continues to advance, the integration of intelligent systems like ANNs will undoubtedly become even more prevalent, paving the way for smarter, more efficient, and environmentally friendly vehicles.

Frequently Asked Questions (FAQs)

What is fuel injection timing?

Fuel injection timing refers to the precise moment fuel is delivered into the engine's combustion chamber or intake manifold relative to the engine's cycle (e.g., piston position). It's crucial for efficient fuel atomisation, mixture formation, and optimal combustion.

Why is optimising fuel injection timing important?

Optimising fuel injection timing directly impacts engine performance, fuel efficiency, and emissions. Correct timing ensures complete combustion, maximising power output and economy while minimising harmful pollutants.

What is an Artificial Neural Network (ANN)?

An Artificial Neural Network is a computational model inspired by the human brain. It learns patterns from data to make predictions or classifications, making it ideal for complex optimisation problems where relationships between variables are not easily defined by simple equations.

What is the Levenberg-Marquardt (LM) algorithm?

The Levenberg-Marquardt (LM) algorithm is a powerful and efficient training algorithm used for optimising the weights within an Artificial Neural Network. It combines the speed of the Gauss-Newton method with the robustness of gradient descent, allowing it to quickly find optimal solutions in non-linear systems.

How does ANN help save time and cost in engine optimisation?

By learning from a limited set of experimental data, the ANN can predict optimal fuel injection timings for a vast range of engine operating conditions without the need for extensive, time-consuming, and costly physical experiments for every single scenario. This significantly streamlines the development and calibration process.

Can ANN be used for other engine parameters?

Yes, the principles of ANN can be applied to optimise various other engine operating parameters, such as ignition timing, air-fuel ratio, and valve timing, demonstrating its versatility and potential for comprehensive engine management systems.
