Diesel Injector Pump Explained

The injector pump stands as a truly crucial component within the intricate fuel system of any diesel engine. Its primary, yet profoundly complex, responsibility is to precisely deliver the correct amount of fuel, at the exact right moment, and under immense pressure, from the fuel tank directly to the individual fuel injectors. Without its flawless operation, a diesel engine simply cannot function, as it's the component that transforms stored energy into the power that drives your vehicle. To truly grasp the significance of this mechanical marvel, it's essential to delve into its fundamental components and understand the sophisticated functions they perform.

What is an Injector Pump?

At its core, an injector pump is a high-pressure mechanical pump designed to meter, pressurise, and distribute diesel fuel. Unlike petrol engines, which rely on spark plugs to ignite a fuel-air mixture, diesel engines achieve combustion through compression ignition. This process demands that fuel is injected into the engine's cylinders at incredibly high pressures and atomised into a fine mist, which then spontaneously ignites due to the extreme heat generated by the compressed air. The injector pump is the unsung hero that makes this precise and powerful delivery possible, ensuring optimal combustion and the smooth running of your diesel vehicle.

Its role extends beyond mere fuel delivery; it dictates the engine's performance, fuel economy, and even its emissions. The pump precisely controls the volume of fuel injected into each cylinder per power stroke, the timing of that injection, and the pressure at which it is delivered. Any deviation from these precise parameters can lead to significant performance issues, ranging from reduced power and increased fuel consumption to excessive exhaust smoke and engine damage.

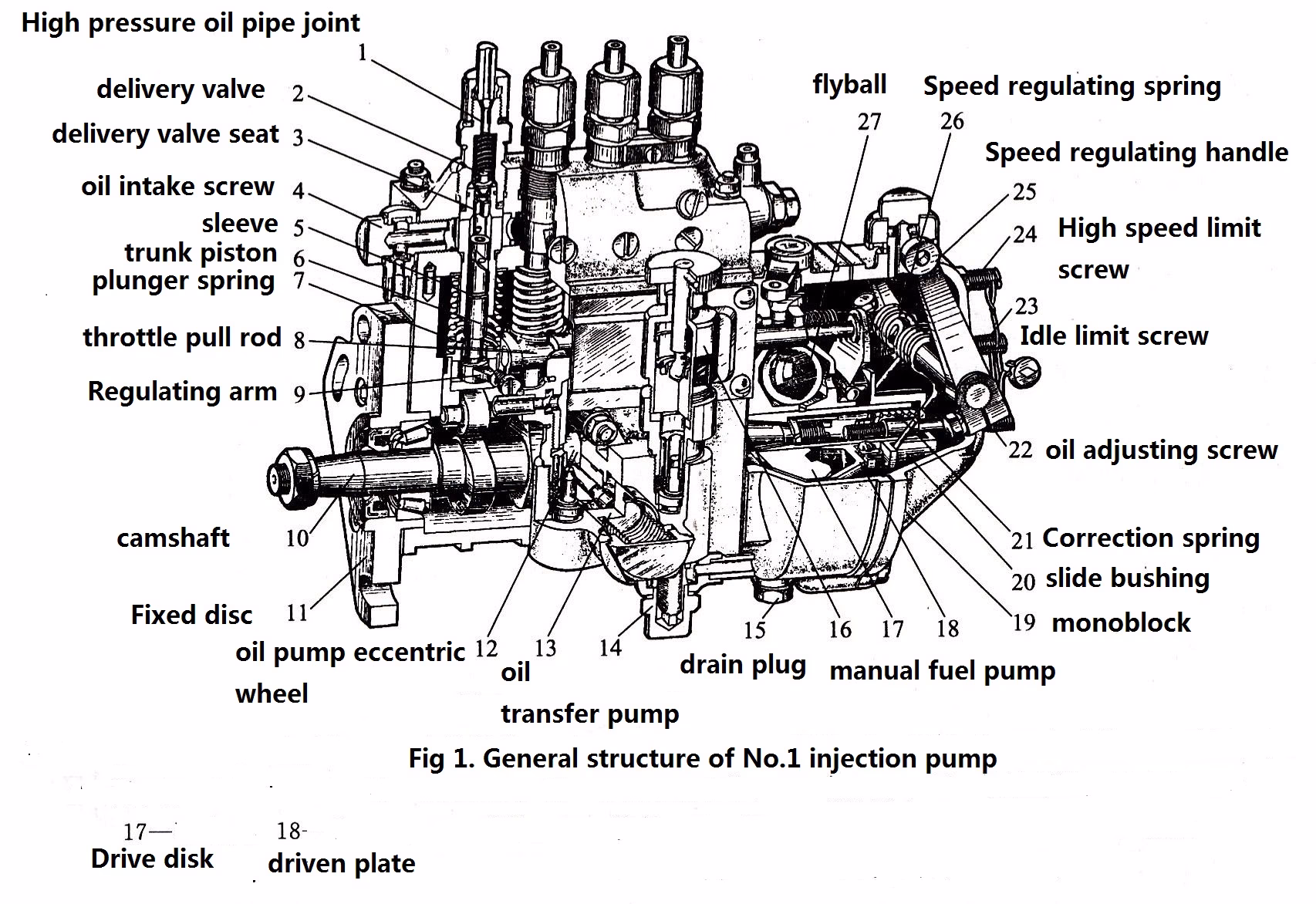

The Anatomy of an Injector Pump

While designs vary, most injector pumps share common fundamental components:

• Pump Housing: The main body that encases all internal components, often made from robust cast iron or aluminium.
• Camshaft: Driven by the engine's timing belt or chain, this shaft features lobes that actuate the plungers.
• Plungers/Pistons: These are precision-machined components that move within barrels, creating the high pressure necessary for injection. Their reciprocating motion is key to the pumping action.
• Delivery Valves: Located at the outlet of each high-pressure cylinder, these valves open to allow pressurised fuel to flow to the injectors and then snap shut to prevent backflow and maintain residual pressure in the line.
• Governor: This critical mechanism regulates the amount of fuel delivered to maintain engine speed under varying loads. Older pumps use mechanical governors, while modern ones employ electronic governors for greater precision.
• Fuel Inlet and Outlet: Ports for the low-pressure fuel supply from the tank and the high-pressure lines leading to the injectors, respectively.
• Fuel Metering Unit: This part precisely controls the quantity of fuel delivered per injection cycle, often adjusted by the governor based on engine load and speed.

Types of Diesel Injector Pumps

Over the decades, several types of injector pumps have been developed, each with its own design principles and applications. Understanding these variations helps appreciate the evolution of diesel engine technology.

In-line Pumps

Often found in older, heavy-duty diesel engines, in-line pumps feature a separate pumping element (plunger and barrel) for each engine cylinder, arranged in a line. A single camshaft within the pump drives all the plungers. Each plunger is responsible for delivering fuel to its corresponding injector. These pumps are known for their robustness and reliability, capable of generating very high pressures. They are mechanically intricate but offer excellent control over fuel delivery.

Rotary (Distributor) Pumps

Rotary pumps, such as the Bosch VE pump or Lucas DPA pump, are more compact and typically found in passenger cars and light commercial vehicles. Instead of a separate pumping element for each cylinder, a single rotating plunger distributes fuel to all injectors. The plunger rotates to align with different outlet ports, delivering fuel sequentially. While simpler in design and more cost-effective, they generally operate at lower pressures than in-line pumps and can be more susceptible to fuel contamination issues due to their intricate internal passages.

Common Rail High-Pressure Pumps

Modern diesel engines overwhelmingly utilise Common Rail Direct Injection (CRDI) systems. In this setup, the 'injector pump' is more accurately described as a high-pressure pump that continuously supplies fuel to a common rail (a high-pressure accumulator). This rail then distributes the pressurised fuel to electronically controlled injectors. Unlike older systems where the pump also handled metering and timing, in a common rail system, the high-pressure pump's primary job is to maintain incredibly high fuel pressure in the rail (often exceeding 2,000 bar or 29,000 psi). The electronic control unit (ECU) then precisely controls the opening and closing of individual injectors, allowing for multiple injections per combustion cycle (pilot, main, and post-injections), leading to significantly improved fuel efficiency, reduced emissions, and quieter operation. This system represents a significant leap in diesel technology, offering unparalleled precision in fuel delivery.

How Does an Injector Pump Work?

While the specific mechanics differ between types, the general principle of operation for all injector pumps involves several key stages:

1. Fuel Intake: Low-pressure fuel is drawn from the fuel tank into the pump's internal galleries.
2. Compression (High-Pressure Generation): The pump's plungers are actuated by a camshaft (or a rotary mechanism), rapidly compressing the fuel to extremely high pressures. This pressure is essential for atomising the fuel when it's injected into the cylinder.
3. Metering: The pump accurately meters the amount of fuel to be injected per cycle. This quantity is meticulously controlled by the governor based on engine load and speed demands.
4. Timing: The pump ensures that the high-pressure fuel is delivered to the injectors at the precise moment in the engine's combustion cycle. Correct timing is critical for optimal combustion and engine performance.
5. Delivery to Injectors: Once pressurised and metered, the fuel is routed through high-pressure lines to the individual fuel injectors, where it is then sprayed into the combustion chamber.

Why Precision Matters: The Heart of Diesel Combustion

The injector pump's ability to deliver fuel with absolute precision in terms of quantity, pressure, and timing is paramount. If the fuel is injected too early or too late, or if the pressure is insufficient, it can lead to incomplete combustion, resulting in a loss of power, increased fuel consumption, rough running, and higher emissions. Insufficient pressure can also lead to poor fuel atomisation, where the fuel doesn't break down into fine enough droplets, hindering efficient burning. This level of control is what makes the diesel engine so powerful and efficient, yet also sensitive to fuel system issues.

Common Issues and Symptoms of a Faulty Injector Pump

Given its critical role and the high pressures it handles, injector pumps can develop faults over time. Recognising the symptoms early can prevent further damage to your engine.

• Hard Starting or No Start: Insufficient pressure or incorrect timing from the pump will make it difficult, if not impossible, for the engine to ignite the fuel.
• Loss of Power/Poor Acceleration: If the pump isn't delivering enough fuel, or at the correct pressure, the engine won't produce its rated power.
• Rough Idling or Stalling: Inconsistent fuel delivery can cause the engine to run unevenly, particularly at idle.
• Increased Fuel Consumption: Inaccurate fuel metering can lead to more fuel being injected than necessary, reducing fuel economy.
• Excessive Exhaust Smoke:
  • Black Smoke: Often indicates unburnt fuel, possibly due to poor atomisation or too much fuel being injected.
  • White Smoke: Can indicate unburnt fuel due to poor atomisation or incorrect injection timing, especially noticeable when cold.
• Engine Knocking: Incorrect injection timing can cause combustion to occur at the wrong point in the piston stroke, leading to a harsh knocking sound.
• Fuel Leaks: Seals and gaskets within the pump can degrade over time, leading to visible fuel leaks.

Maintenance Tips for Your Injector Pump

While injector pumps are robust, proper maintenance is key to their longevity:

• Use Clean, High-Quality Diesel Fuel: Contaminants, especially water and particulates, are the biggest enemies of an injector pump. They can cause wear to the precision internal components.
• Regular Fuel Filter Replacement: Your fuel filter is the first line of defence against contaminants. Replace it according to your vehicle manufacturer's recommendations, or more frequently if you suspect fuel quality issues.
• Avoid Running on Low Fuel: Continuously running your fuel tank to near empty can draw sediment and moisture from the bottom of the tank into the fuel system.
• Professional Servicing: If you suspect issues, seek professional diagnosis. Injector pump repair or replacement is a specialist job due to the precision required.

Comparing Injector Pump Technologies

Here's a brief comparison of the main types of injector pump technologies:

Frequently Asked Questions (FAQs)

Can I repair an injector pump myself?

Repairing an injector pump is not recommended for the average DIY mechanic. These components require specialised tools, cleanroom conditions, and precise calibration. Incorrect reassembly or calibration can lead to severe engine damage. It's best left to experienced diesel fuel injection specialists.

How long do injector pumps last?

With proper maintenance and clean fuel, an injector pump can last for many tens of thousands of miles, often well over 100,000 miles. However, their lifespan can be significantly reduced by factors like contaminated fuel, neglected filter changes, or consistently running on low fuel.

What causes injector pump failure?

The most common causes of injector pump failure include contaminated fuel (especially water ingress), worn internal components due to high mileage, cavitation (formation of vapour bubbles due to low fuel pressure), and electrical faults in electronically controlled pumps.

Is an injector pump the same as a fuel pump?

No, they are distinct components. The 'fuel pump' (often called a lift pump or transfer pump) typically moves fuel from the tank to the injector pump at low pressure. The injector pump then takes this low-pressure fuel and pressurises it to extremely high levels for injection into the engine cylinders.

What's the difference between an injector pump and an injector?

The injector pump generates and meters the high-pressure fuel. The injector (or fuel injector) is the nozzle-like device that receives this high-pressure fuel from the pump (or common rail) and sprays it into the engine's combustion chamber at the precise moment and with the correct spray pattern for efficient combustion.

In conclusion, the injector pump is far more than just a simple pump; it is a highly engineered, precision instrument that serves as the very heart of a diesel engine's fuel delivery system. Its unwavering commitment to delivering fuel at exact pressures and timings is what enables the remarkable power, efficiency, and durability for which diesel engines are renowned. Understanding its function, types, and the importance of maintenance is crucial for any diesel vehicle owner in the UK looking to ensure the longevity and optimal performance of their engine.
