When Your Bicycle Brakes Fail: A Comprehensive Guide
Brakes are arguably the most critical safety component on any bicycle. Their ability to reliably slow and stop your ride is paramount, not just for performance but for your very safety. If your bicycle brakes aren't working correctly, it can lead to dangerous situations, accidents, and serious trouble. This often stems from a failure or damage to one or more of the brake system's components. You might be reading this because your bike's brakes are acting up, or perhaps you're just seeking a bit of general knowledge about bicycle braking systems. Whichever reason brings you here, you've landed in the right place. This article serves as an ultimate guide to understanding why your bicycle brakes might not be working and what you can do about it. Stay tuned to gain all the necessary information to keep your rides safe and your brakes in top condition.
Understanding Bicycle Brake Types
Bicycles are equipped with various types of braking systems, each with its own mechanism and characteristics. The most common types you'll encounter are the classic V-brakes, the increasingly popular disc brakes, and the highly efficient hydraulic disc brakes.
V-Brakes
If you own a simple, older, or more budget-friendly bicycle, it's likely fitted with V-brakes. These brakes operate on a straightforward principle of friction. They consist of two arms, or 'holders', attached to the frame and fork on either side of the wheel. Each arm houses a brake caliper. When you pull the brake lever, a cable connected to these arms is tensioned. This tension pulls the calipers inwards, causing them to press against the bicycle's rim. The resulting friction between the brake pads (typically made of a rubber and plastic composite) and the rim is what slows and stops the wheel. V-brakes are effective and relatively simple to maintain, offering a good amount of stopping power for general cycling.
Disc Brakes
Disc brakes are generally found on more expensive, performance-oriented bicycles such as premium road bikes and mountain bikes. They are renowned for their reliability, ease of maintenance, and longer lifespan compared to V-brakes. The disc brake system comprises a rotor (a metal disc) firmly attached to the wheel hub, and a caliper that straddles the rotor. Instead of the caliper pressing against the rim, it applies friction directly to the rotor. The connection between the brake lever and the caliper is typically mechanical, using a cable. When the lever is squeezed, the cable pulls the caliper's pistons, forcing the brake pads to clamp onto the disc, generating the friction needed to stop the bike. This design offers more consistent braking, especially in wet or muddy conditions.
Hydraulic Disc Brakes
Hydraulic disc brakes share many similarities with mechanical disc brakes in terms of components like the rotor and caliper. However, the key difference lies in the actuation system. Instead of a cable, hydraulic brakes use a fluid-filled line to transmit the force from the brake lever to the caliper. A master cylinder within the lever pushes fluid through the line, actuating the pistons in the caliper. This hydraulic system is significantly more efficient and reliable than cable-actuated brakes. It eliminates the potential for cable stretch or contamination, leading to more consistent and powerful braking, even with minimal lever pressure. They are often found on high-end mountain bikes, gravel bikes, and performance road bikes, where precise and powerful stopping is crucial.
Common Reasons for Brake Failure
Several factors can contribute to your bicycle brakes not working correctly. Brakes are wear-and-tear components, meaning their effectiveness can diminish over time and with use. If your brakes have suddenly stopped working or are performing poorly, it could be due to issues with the connection between the lever and the caliper, worn-out brake pads, damaged calipers, a damaged rim or rotor, or even air in the hydraulic system.
Why Aren't My Brakes Engaging?
If your bike's brakes aren't engaging as they should, don't panic. We'll break down the potential causes and how to address them, whether you have disc brakes, V-brakes, or hydraulic brakes.
Disc Brake Issues: What's Going Wrong?
Let's delve into the specific reasons why your disc brakes might not be performing optimally:
1. Brake Cable Failure (for Mechanical Disc Brakes)
The brake cables that connect your levers to the calipers are a common point of failure for mechanical disc brakes. These cables can become frayed, stretched, or damaged due to stress, impact, or simply wear over time. A quick diagnostic check involves squeezing the brake lever. If the caliper moves and attempts to engage the disc when the lever is pressed, the cable is likely fine, and the issue lies elsewhere. However, if the caliper remains unresponsive, a faulty cable is a strong possibility. Replacing a brake cable is a relatively straightforward task that can be done with basic tools. You'll need to purchase a new brake cable from a bicycle shop, detach the old cable from both the caliper and the lever, and then install the new one, ensuring it's properly tensioned.

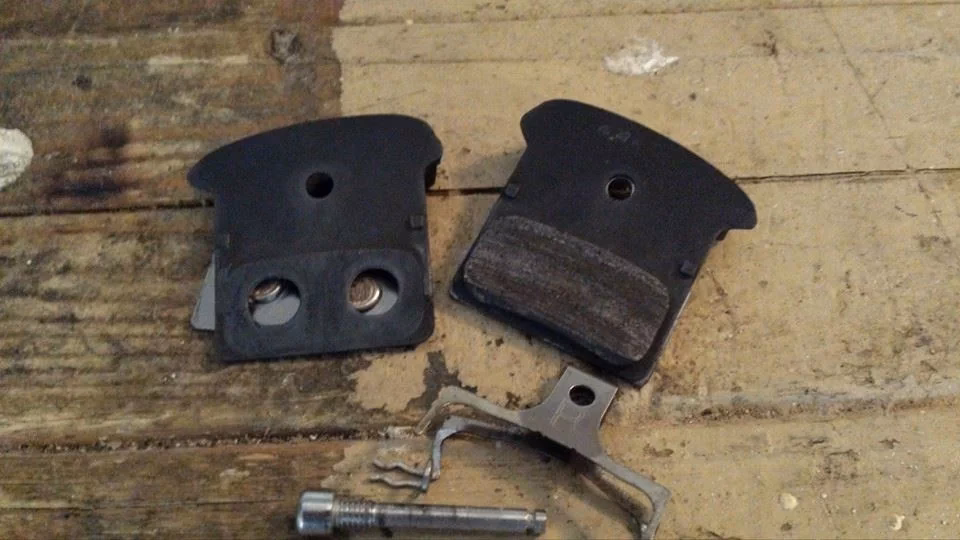

2. Worn Brake Pads
Brake pads are designed to wear down over time as they create friction against the rim or rotor. Once the pad material is significantly depleted, its ability to grip and slow the wheel is greatly reduced. Both V-brakes and disc brakes use pads that need regular inspection and replacement. You can usually see the wear indicators on the pads, or simply observe how much material is left. If the pads are thin, they need replacing. This is a common and relatively inexpensive fix.
3. Damaged Rotors or Rims
For disc brakes, the rotor can become bent or warped, especially after an impact. A bent rotor will cause the brake pads to rub against it constantly, leading to reduced performance and an annoying grinding sound. Similarly, for V-brakes, the rim itself can become damaged, dented, or excessively worn, affecting the braking surface. Inspect both the rotor (for disc brakes) and the rim (for V-brakes) for any signs of damage or excessive wear. Minor bends in a disc brake rotor can sometimes be straightened, but severely damaged rotors or rims usually require replacement.
4. Caliper Issues
The caliper itself can develop problems. For mechanical disc brakes and V-brakes, the mechanism that moves the pads can become stiff, seized, or damaged. For hydraulic disc brakes, the pistons within the caliper can become sticky or fail to retract properly, often due to contamination or internal seal damage. If the caliper isn't moving freely or applying even pressure, it might need cleaning, adjustment, or replacement.
5. Hydraulic System Problems (for Hydraulic Disc Brakes)
Hydraulic systems are generally reliable but can develop issues. The most common problem is air entering the system, which leads to a spongy or ineffective brake lever. This requires 'bleeding' the brakes, a process where the old fluid is flushed out, and new fluid is introduced to remove any air bubbles. Leaks in the hydraulic line or at the caliper can also cause a loss of braking power. If you suspect a hydraulic issue, it's often best to consult a professional mechanic, as this can be a more complex repair.
How to Fix Bike Brakes That Don't Work
Addressing brake problems involves a systematic approach:
1. Diagnose the Failure
The first and most crucial step is to identify the exact component causing the problem. Is it the cable, the pads, the rotor, the caliper, or the hydraulic fluid? A thorough visual inspection and functional test of each part will help pinpoint the issue.
2. Repair or Replace
Once the fault is identified, you have two primary options:
- DIY Repair: With the wealth of information available online, including countless YouTube tutorials, many common brake issues can be fixed by the rider themselves. This requires patience, the right tools, and careful attention to detail.
- Professional Mechanic: For more complex problems or if you're not comfortable performing the repair yourself, taking your bike to a local bicycle shop is the best course of action. Professional mechanics have the expertise and specialized tools to diagnose and fix issues efficiently and correctly.
Important Note: Always use genuine or high-quality replacement parts specifically designed for your bicycle's brake system. Using generic or incompatible parts can compromise performance and safety.
Cost of Bike Brake Repairs
The cost to fix bicycle brakes can vary significantly depending on several factors:
| Component/Issue | Estimated Cost (GBP) |
|---|---|
| Brake Cable Replacement (Mechanical) | £5 - £15 (Parts: ~£3-£8, Labour: ~£2-£7) |
| Brake Pad Replacement (V-Brake) | £10 - £25 (Parts: ~£5-£15, Labour: ~£5-£10) |
| Brake Pad Replacement (Disc Brake) | £15 - £35 (Parts: ~£8-£20, Labour: ~£7-£15) |
| Disc Rotor Replacement | £20 - £60 (Parts: ~£15-£40, Labour: ~£5-£20) |
| Hydraulic Brake Bleed | £25 - £50 (Parts: Fluid & Sealant: ~£5-£15, Labour: ~£20-£35) |
| Caliper Adjustment/Service | £10 - £25 |
| Caliper Replacement (Mechanical/V-Brake) | £20 - £50 (Parts: ~£15-£35, Labour: ~£5-£15) |
| Caliper Replacement (Hydraulic) | £60 - £150+ (Parts: ~£50-£120+, Labour: ~£10-£30+) |
These are rough estimates and can fluctuate based on the brand of your bicycle, the quality of replacement parts, and the labour rates in your specific area. Simple fixes like cable or pad replacement are generally quite affordable. More complex issues, such as hydraulic system repairs or caliper replacements, will naturally incur higher costs.
Frequently Asked Questions
Q1: How often should I check my bicycle brakes?
It's recommended to perform a quick check of your brakes before every ride, ensuring they feel firm and responsive. A more thorough inspection of brake pads, cables, and rotors/rims should be done at least once a month, or more frequently if you ride in challenging conditions.
Q2: My brake lever feels spongy. What does this mean?
A spongy brake lever, particularly on hydraulic disc brakes, usually indicates that there is air in the hydraulic system. This means the brake needs to be bled.
Q3: Can I ride my bike if the brakes are not working perfectly?
It is strongly advised not to ride your bicycle if your brakes are not functioning correctly. Even a slight compromise in braking performance can be extremely dangerous and significantly increase the risk of an accident.
Q4: What are the signs of worn brake pads?
Signs of worn brake pads include a significant increase in the distance it takes to stop, a squealing or grinding noise when braking, and visibly thin or degraded brake pad material. For disc brakes, you might also notice the brake pads not fully retracting from the rotor.
Conclusion
Understanding the components and common failure points of your bicycle's braking system is crucial for safe and enjoyable cycling. Whether you're dealing with V-brakes, mechanical disc brakes, or hydraulic disc brakes, regular maintenance and prompt attention to any issues will ensure your brakes are always ready to perform when you need them most. By following the advice in this guide, you can better diagnose problems, understand repair options, and keep your bicycle stopping reliably.
