When considering performance upgrades for your vehicle, thoughts often turn to the engine itself – the carburettor, electronic fuel injection, or perhaps a more potent block. Yet, the fuel system, the very lifeline of your engine, often receives less attention than it deserves. This crucial network, comprising the fuel tank, lines, filters, and pump, is designed with specific performance expectations in mind. As you push your vehicle's boundaries, whether for speed, improved braking, or adapting to modern fuel injection, every component within this system must be considered. Overlooking any part can lead to significant limitations, compromising overall performance and potentially causing costly damage. One such component, often misunderstood or ignored, is the pre-filter for your fuel pump. But is it truly necessary, and what role does it play?
The Anatomy of Your Vehicle's Fuel System
Before delving into the specifics of pre-filters, it's vital to understand the interconnected nature of the entire fuel delivery system. Each part plays a critical role, and the performance of one directly impacts the others.
The Fuel Tank
Your fuel tank is more than just a container; it's the starting point of your fuel supply. While an original or replacement tank might suffice for most street applications, extreme performance or racing scenarios often necessitate a fuel cell. These cells not only offer enhanced safety in a crash but many aftermarket versions include internal baffling. This baffling is crucial for keeping fuel around the pickup tube during aggressive manoeuvres like hard acceleration, cornering, and braking. Without it, the pickup tube can momentarily become uncovered, leading to air ingress into the system, causing a momentary loss of power. This issue is particularly critical for fuel injection systems, which lack the reserve capacity of a carburettor's float bowls.
For factory or replacement tanks, inspecting and potentially upgrading the pickup tube and fuel-sending unit assembly is a wise move. Many older vehicles, including some V8s, came with restrictive 5/16-inch fuel lines. For modern, higher-horsepower engines, upgrading to a 3/8-inch pickup tube is often necessary. A 3/8-inch line is roughly equivalent to a -8 AN line and can adequately supply fuel for engines up to approximately 600 horsepower. Beyond this, a fuel cell with larger -10 or -12 outlets and internal fuel control becomes a more appropriate choice.
Fuel Lines: The Veins of the System
The type and size of fuel line running from the tank to the engine are paramount. Race cars often utilise braided hose for its ease of plumbing and secure, leak-free connections. This hose, typically rubber with a braided steel exterior, offers abrasion protection and increased burst strength. While convenient for custom lengths and aesthetics, traditional braided steel lines have drawbacks for street cars. They can deteriorate over time, especially with aggressive modern fuels, often requiring replacement every few years in racing applications. Furthermore, some traditional lines can permit fuel vapour to permeate the rubber, leading to a persistent raw fuel smell in the garage. Newer conductive PTFE braided-steel lines have been developed to combat this issue, offering greater resistance to modern fuel additives.
For a street car, the expense and maintenance cycle of braided lines can be prohibitive. Hard lines, bent and flared to fit, offer a durable and long-lasting alternative. Pre-bent lines, available from specialists, can replicate original shapes while allowing for upsizing to accommodate more demanding engines.
Deciding on fuel line size can be challenging, as there's no universal formula. An engine's specific needs and the vehicle's intended use significantly influence the ideal size. A drag car needs consistent fuel for brief, wide-open throttle bursts, whereas a road race car requires sustained delivery, often not at full throttle. Critically, the fuel line is only as good as its smallest restriction. A 1/2-inch line is rendered ineffective if a pickup tube or fitting in the system is only 3/8-inch. Always check the inlets and outlets of all components to ensure consistent flow. Generally, a 3/8-inch line is sufficient for up to 600 hp, with 1/2-inch or larger (-10, -12 AN) lines being more appropriate for higher horsepower or track use. Limiting 90-degree bends is also essential, as each tight bend significantly reduces fuel flow, effectively making a larger line perform like a smaller one.
Fuel Filters: The System's Guardians
Fuel filters are a non-negotiable component for any performance vehicle. Their primary role is to protect expensive components like carburettors or fuel injection systems from debris that can cause drivability issues or even severe engine damage. Filters are rated by their ability to screen out particles, measured in microns. For carburetted applications, a filter rated at 30 to 60 microns is typically suitable. Fuel injection systems, with their much finer orifices, require a finer filter, often around 10 microns, though it's always best to consult the manufacturer's recommendations for your specific system.
Fuel Pumps: The Heartbeat of Fuel Delivery
The fuel pump, often the first component people consider upgrading, is ultimately only as effective as the rest of the fuel system it supports. For carburetted engines, mechanical fuel pumps remain a viable option for up to approximately 500 hp. They are quiet and require no complex wiring. While once considered more reliable than electric pumps, modern electric pumps have matched, if not surpassed, their reliability.
Electric pumps come in a vast array of sizes and designs, requiring careful selection based on your engine's flow and pressure demands. Vane-style pumps, like the traditional Holley units, are robust and less susceptible to contaminants but can be louder. Gerotor-style pumps, on the other hand, are quieter, generally more consistent in output, and rated for continuous duty. However, their primary drawback is a greater vulnerability to debris, making a good pre-filter absolutely essential for their longevity.
For fuel injection, geroter pumps are almost universally used, typically producing the 40 to 80 psi required by these systems. Many are designed for in-tank mounting, where they benefit from fuel cooling and reduced noise. Most performance electric pumps also necessitate a fuel pressure regulator at the engine, often sold with the pump or specifically recommended by the manufacturer. These regulators adjust fuel pressure to the precise requirements of the carburettor or injection system. While some pumps can operate in a 'dead-head' arrangement without a return line, most require a return line to relieve excess pressure back to the fuel tank, ensuring consistent pressure and preventing pump overload.

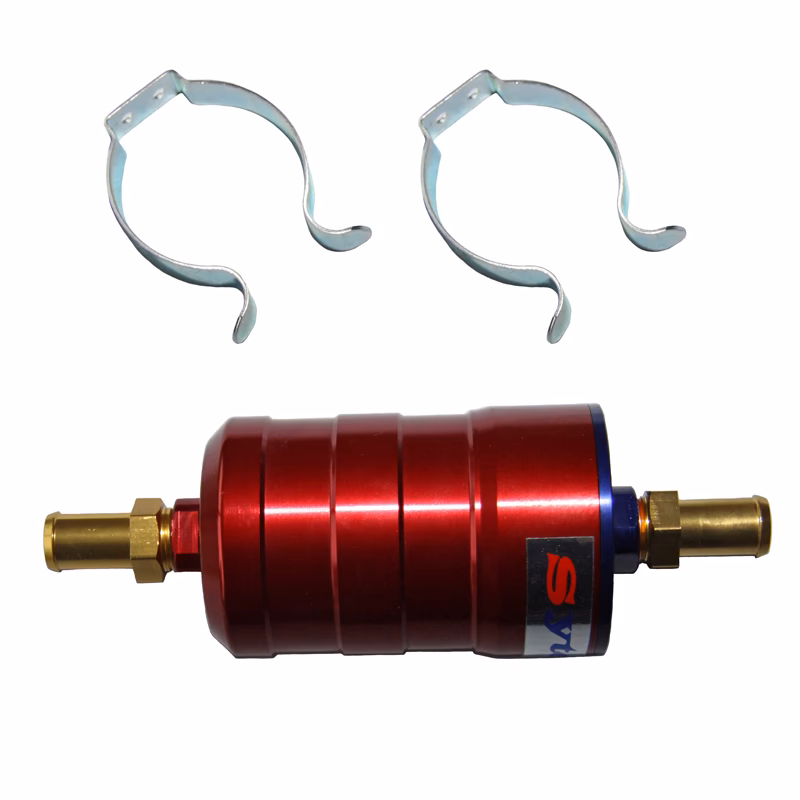

The Indispensable Pre-Filter: Protecting Your Pump
Now, to the core question: Do you need a pre-filter for your fuel pump? The answer, unequivocally, is yes, particularly if you are running an electric fuel pump. This often-overlooked component plays a critical role in the longevity and reliability of your entire fuel system.
The primary purpose of a pre-filter, often referred to as a 'straining filter', is to protect the fuel pump itself. Debris, rust, and contaminants within the fuel tank can easily enter the fuel line and reach the pump. Without a pre-filter, these particles can cause the pump to lock up, suffer internal damage, or significantly shorten its lifespan. This is especially true for the more sensitive geroter-style electric pumps, which are highly susceptible to debris.
A key characteristic of a pre-filter is that it should be less restrictive than your primary (post-pump) filter. Its job is to catch larger particles, not to achieve the ultra-fine filtration needed for the engine's fuel delivery components. Typically, a pre-filter should have a coarse rating, often between 75 and 150 microns. Many experts, including Fuelab, recommend a 100-micron rating for their straining filters. This coarseness is deliberate; it not only minimises pressure drop across the filter but also prevents the filter from becoming easily blocked by fine debris over time, which could lead to significant flow restriction.
The danger of using a finer (lower micron) filter upstream of the fuel pump cannot be overstated. While it might seem logical to provide maximum filtration, a finer filter is inherently more restrictive. Over time, as even small amounts of debris accumulate, this restriction increases, leading to a significant drop in pressure before the pump. If this pressure drop becomes too great, the fuel pump can experience cavitation. Cavitation occurs when the reduced pressure causes the fuel to boil or vaporise prematurely within the pump. This creates vapour bubbles that collapse violently, causing internal damage to the pump and leading to inconsistent fuel delivery and, ultimately, pump failure. It's crucial to understand that the same amount of pressure drop *after* the pump would not cause this type of failure, highlighting the unique vulnerability of the pump's inlet side.
Pre-filters are typically mounted as close to the fuel tank as possible, or often, directly inside the tank itself. This strategic placement ensures that the pump is protected from the very first moment fuel is drawn. Unlike post-pump filters, pre-filters, especially in-tank versions, are generally not considered part of normal maintenance schedules. Their coarse nature means they are less prone to clogging quickly, but periodic inspection or replacement, particularly during other fuel system work, is still advisable.
Pre-Filter vs. Post-Filter: A Clear Distinction
Understanding the different roles of fuel filters is paramount for a well-functioning system.
| Feature | Pre-Pump Filter (Straining Filter) | Post-Pump Filter (Primary Filter) |
|---|---|---|
| Purpose | Protects the fuel pump from large debris | Protects carburettor/injectors from fine particles |
| Micron Rating | Coarse (75-150 microns, e.g., 100) | Fine (30-60 microns for carb, ~10 microns for EFI) |
| Restriction Level | Low, to prevent cavitation | Higher, for finer filtration |
| Location | Before the fuel pump (close to tank, often in-tank) | After the fuel pump (before carburettor/injectors) |
| Maintenance | Generally not part of normal service; inspect periodically | Regularly replaced as part of routine maintenance |
| Impact of Clogging | Can cause pump cavitation and failure | Can cause fuel starvation to engine, drivability issues |
Optimising Your Fuel System: Beyond the Pre-Filter
While the pre-filter is a vital component, remember that it's part of a larger, interconnected system. A high-performance fuel pump, the correct size fuel lines, and appropriately baffled tanks all contribute to an efficient and reliable fuel delivery. Each component must be considered in harmony to support your engine's demands, managing everything from high-volume fuel flow to consistent pressure, even under extreme driving conditions. By taking a holistic approach, you ensure not just performance, but also the longevity and reliability of your vehicle's most critical systems.
Frequently Asked Questions (FAQs)
What exactly is fuel cavitation?
Fuel cavitation is a phenomenon where the liquid fuel turns into a vapour (gas) due to a sudden drop in pressure, typically at the inlet side of the fuel pump. These vapour bubbles then collapse violently as they move into higher-pressure areas of the pump. This rapid formation and collapse of bubbles can erode and damage the internal components of the fuel pump, leading to reduced fuel flow, inconsistent pressure, increased noise, and ultimately, premature pump failure. It's often caused by excessive restriction, such as a clogged or too-fine pre-filter, or an improperly sized fuel line before the pump.
Can I use a very fine pre-filter for maximum protection?
No, using a very fine (low micron rating) pre-filter is strongly discouraged. While it might seem like it offers maximum protection, its increased restriction will lead to a significant pressure drop before the pump. This pressure drop is a primary cause of fuel cavitation, which can severely damage or destroy your fuel pump. The pre-filter's role is to catch larger debris to protect the pump itself, not to provide the fine filtration needed for the engine's fuel injectors or carburettor. A coarse filter, typically between 75 and 150 microns, is ideal for this purpose.
Where is the best place to install a fuel pre-filter?
The best place to install a fuel pre-filter is as close to the fuel tank as possible, and importantly, before the fuel pump. Many modern electric fuel pumps even have a straining filter integrated into their in-tank design. This placement ensures that any debris stirred up in the tank or present in the fuel is caught before it can reach and damage the pump's delicate internal mechanisms. Mounting it far from the tank or after the pump defeats its primary protective purpose.
How often should a fuel pre-filter be inspected or replaced?
Unlike post-pump filters, which are typically part of regular maintenance, pre-filters (especially in-tank straining filters) are generally not replaced on a fixed schedule. Their coarse nature means they are less likely to clog quickly. However, it's wise to inspect the pre-filter if you notice any signs of fuel starvation, pump noise, or during any major fuel system work. If you frequently refuel from questionable sources or your fuel tank is old and prone to rust, more frequent checks might be prudent. If it's an external pre-filter, a visual inspection for cleanliness is easier. If it's an in-tank filter, replacement is usually only done if there's a suspected issue or when the fuel pump itself is being replaced.
Does a mechanical fuel pump also require a pre-filter?
While mechanical fuel pumps are generally more robust and less susceptible to damage from small particles than electric geroter-style pumps, it's still good practice to have a coarse pre-filter in place. Any debris entering the pump can cause wear or affect its internal check valves, potentially leading to inconsistent fuel pressure or pump failure over time. A simple, low-restriction pre-filter will help extend the life of a mechanical pump and maintain overall system cleanliness.
