Fuel Injection: Aviation's Powerhouse

In the realm of aviation, where precision, efficiency, and reliability are paramount, the evolution of engine technology has been a continuous pursuit of excellence. Among the most transformative advancements has been the widespread adoption of fuel injection systems. These sophisticated mechanisms have largely replaced older carburettor technologies in many modern aircraft, offering a compelling array of advantages that directly impact flight performance, operational costs, and pilot workload. From enhanced fuel atomisation to improved altitude compensation, fuel injection systems are a cornerstone of contemporary aviation engineering, ensuring that aircraft engines perform at their peak under a wide range of operating conditions.

The Evolution from Carburettors to Fuel Injection

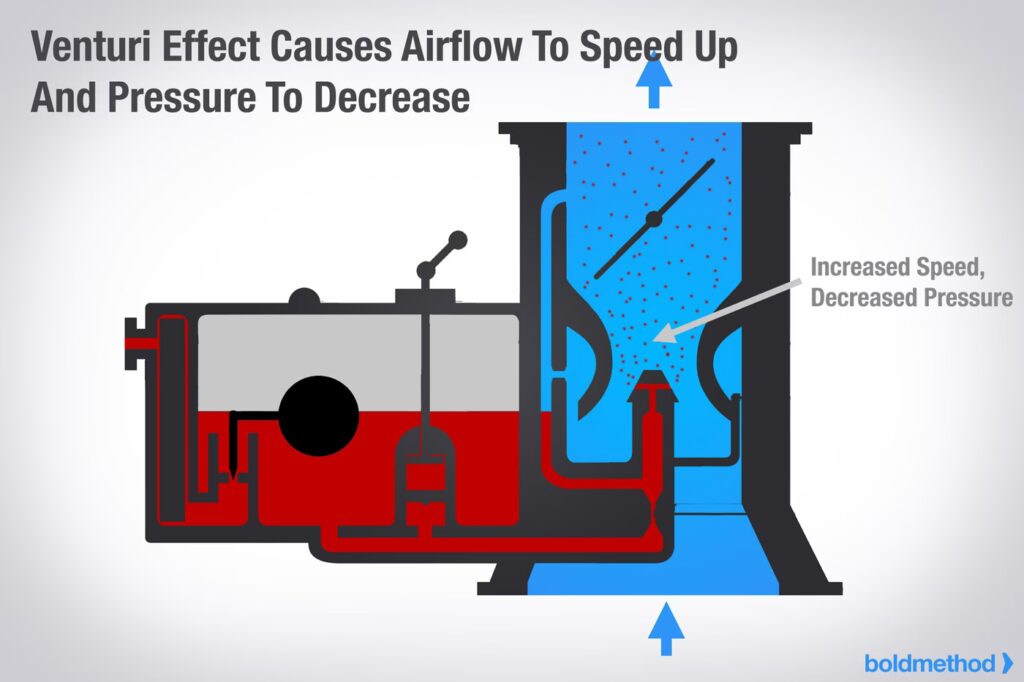

For decades, the carburettor was the standard for delivering fuel to aircraft engines. Its mechanical simplicity was a key advantage. However, carburettors have inherent limitations, particularly in their susceptibility to atmospheric changes and their less precise fuel metering. As aircraft began to operate at higher altitudes and in more varied weather conditions, the need for a more robust and adaptable fuel delivery system became apparent. This led to the development and refinement of fuel injection systems. These systems use a pump to deliver fuel under pressure to injectors, which then spray a fine mist of fuel directly into the engine cylinders or intake manifold. This direct and controlled delivery offers a significant leap in performance and efficiency compared to the suction-based operation of carburettors.

Key Benefits of Fuel Injection Systems

The advantages of fuel injection in aviation are multifaceted and contribute significantly to the overall safety and economic viability of flying. Let's delve into the most crucial benefits:

1. Improved Fuel Efficiency

One of the most significant benefits of fuel injection is its ability to deliver fuel with exceptional precision. The system precisely controls the amount of fuel entering the engine based on factors like engine speed, manifold pressure, and air temperature. This meticulous metering ensures that the engine always receives the optimal air-fuel ratio for combustion. This leads to a more complete and efficient burn of fuel, resulting in lower fuel consumption. For operators, this translates directly into reduced operating costs and extended range, making flights more economical and practical. A more efficient burn also means less unburnt fuel exiting the exhaust, contributing to lower emissions.

2. Enhanced Engine Performance and Power Output

Fuel injection systems excel at providing a consistent and finely atomised fuel spray. This fine mist mixes more thoroughly with the incoming air, leading to more efficient combustion. The result is a more powerful and responsive engine. Pilots often report smoother engine operation and a more immediate throttle response with fuel-injected engines. This improved performance is particularly noticeable during take-off and climb, where maximum power is required. The ability to maintain optimal power at various altitudes also contributes to better climb rates and overall flight capability.

3. Superior Altitude and Temperature Compensation

Carburettors struggle to adapt to changes in air density caused by altitude and temperature variations. As an aircraft climbs, the air becomes thinner, and a carburettor, if not properly adjusted, can deliver an overly rich fuel mixture, leading to reduced power and potential engine fouling. Fuel injection systems, however, are designed to automatically compensate for these changes. Sensors monitor air density, temperature, and other parameters, and the system adjusts the fuel flow accordingly. This ensures that the engine maintains the correct air-fuel ratio at all altitudes and temperatures, providing consistent performance and preventing power loss. This automatic adjustment significantly reduces pilot workload, as they do not need to constantly make manual adjustments to the mixture control.

4. Increased Reliability and Reduced Maintenance

While the initial complexity of fuel injection systems might suggest otherwise, they are often more reliable and require less maintenance than carburettors. Carburettors have many small moving parts and are more prone to wear, clogging from fuel impurities, and icing. Fuel injection systems, with fewer moving parts and a sealed design, are generally more resistant to these issues. The pressurised fuel delivery also helps to prevent vapour lock, a phenomenon where fuel can vaporise in the fuel lines, interrupting fuel flow, especially in hot conditions or at high altitudes. The robust nature of these systems contributes to greater operational reliability and reduced downtime for maintenance.

5. Easier Cold Starts

Starting an aircraft engine, especially in cold weather, can be a challenge for carburetted engines. The fuel mixture needs to be carefully controlled to ensure ignition. Fuel injection systems generally offer much easier and more reliable cold starts. The precise delivery of fuel directly into the intake manifold or cylinders ensures that the correct mixture is available for ignition, even at low temperatures. This reduces the stress on the starter motor and the engine during the critical start-up phase.

Types of Fuel Injection Systems in Aviation

While the core principle of fuel injection remains the same, there are several types of systems employed in aviation, each with its nuances:

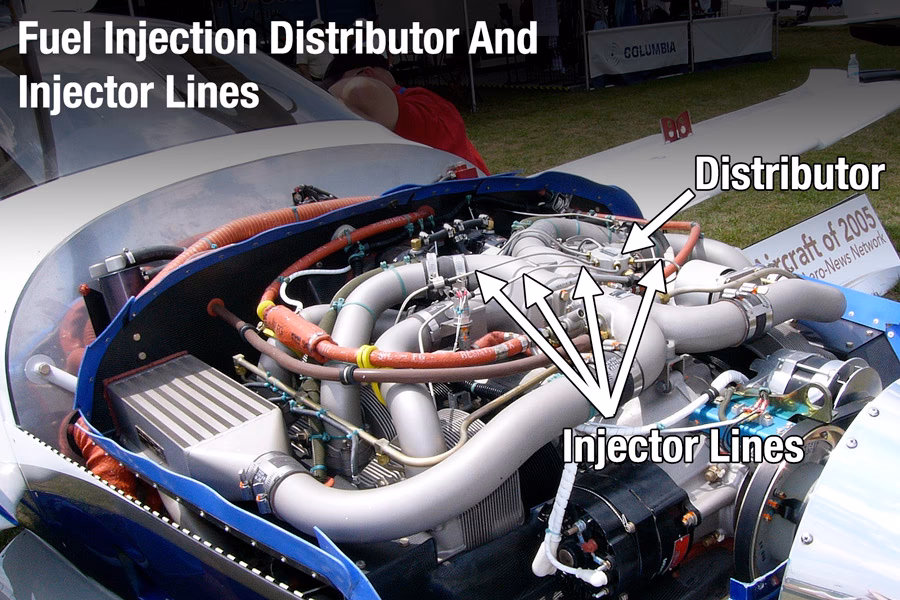

Continuous Flow Injection

This is a common type, particularly in piston-engine aircraft. Fuel is continuously metered and delivered to the intake manifold or cylinders, but not in discrete, timed pulses like in automotive systems. The fuel flow is controlled by a fuel control unit, which takes inputs from various engine sensors.

Direct Injection (DI)

In direct injection systems, fuel is sprayed directly into the combustion chamber itself. This offers the highest degree of precision and control over the combustion process, leading to the most efficient fuel burn and potentially higher power outputs. While more common in modern automotive engines, direct injection is also found in some advanced aviation engines.

Electronic Fuel Injection (EFI)

Many modern fuel injection systems utilise electronic controls. These systems employ an Engine Control Unit (ECU) or Full Authority Digital Engine Control (FADEC) system, which uses sophisticated algorithms to manage fuel delivery based on a multitude of sensor inputs. EFI offers the highest level of precision, adaptability, and diagnostic capability, further enhancing efficiency and performance.

Fuel Injection vs. Carburettors: A Comparison

To better understand the advantages, a direct comparison with carburettors is helpful:

Frequently Asked Questions

Q1: Are all aircraft equipped with fuel injection systems?
No, while fuel injection is prevalent in modern aircraft, many older aircraft still utilise carburettors. The transition is ongoing, with many new aircraft models exclusively featuring fuel injection.

Q2: Is fuel injection more expensive than carburettors?
While the initial manufacturing cost of fuel injection systems can be higher, the long-term benefits in fuel efficiency, reliability, and reduced maintenance often offset this initial investment. The overall operating cost is typically lower.

Q3: Can fuel injection systems fail?
Like any mechanical or electronic system, fuel injection systems can fail. However, they are designed with robust components and often have built-in redundancies. Proper maintenance and adherence to operating procedures are crucial for ensuring their reliability.

Q4: What is the role of sensors in aviation fuel injection?
Sensors are critical components that provide the electronic control unit (ECU) with real-time data about engine operating conditions, such as air temperature, air pressure, engine speed, and throttle position. This data allows the ECU to precisely control fuel delivery for optimal performance.

Conclusion

The benefits of fuel injection systems in aviation are undeniable. They represent a significant technological advancement that enhances safety, improves efficiency, and reduces operational costs. By providing precise fuel metering, superior altitude and temperature compensation, and increased reliability, fuel injection systems ensure that aircraft engines perform optimally under all flight conditions. As aviation continues to push the boundaries of performance and efficiency, fuel injection technology will undoubtedly remain a vital component, powering the future of flight.
