Understanding the Ford 306 CID and its Drive System
The Ford 306 CID engine is a popular choice for enthusiasts looking for a significant upgrade in performance and reliability. Whether you're building a classic muscle car, a robust truck, or a custom project, understanding the specifics of its components is crucial. One common question that arises when discussing these engines, particularly the BluePrint Engines Ford 306 CI Bronco Edition, is regarding its drive belt system. Specifically, does a Ford 306 CID engine utilise a V-belt drive?
The short answer, based on the provided information for the BluePrint Engines Ford 306 CI Bronco Edition, is yes, it requires a V-belt drive. The product description explicitly states, "Requires standard rotation water pump and V-belt drive." This is a key piece of information for anyone purchasing or working with this particular engine build.
What is a V-Belt Drive?
A V-belt drive system is a common method used in internal combustion engines to transmit power from the crankshaft to various accessories. These accessories typically include the alternator, power steering pump, air conditioning compressor, and the water pump. The belts themselves are named for their trapezoidal or V-shaped cross-section, which allows them to seat securely within corresponding grooves on the pulleys. This V-shape provides a larger contact area compared to flat belts, leading to better grip and more efficient power transfer, especially under load.
Advantages of V-Belt Drives:
- Superior Grip: The V-shape wedges into the pulley groove, reducing slippage.
- Efficient Power Transfer: Less energy is lost due to slippage, leading to better performance.
- Shock Absorption: The belt can absorb some of the torsional vibrations from the crankshaft.
- Simplicity: Relatively easy to install and replace.
The Ford 306 CID Engine: A Closer Look

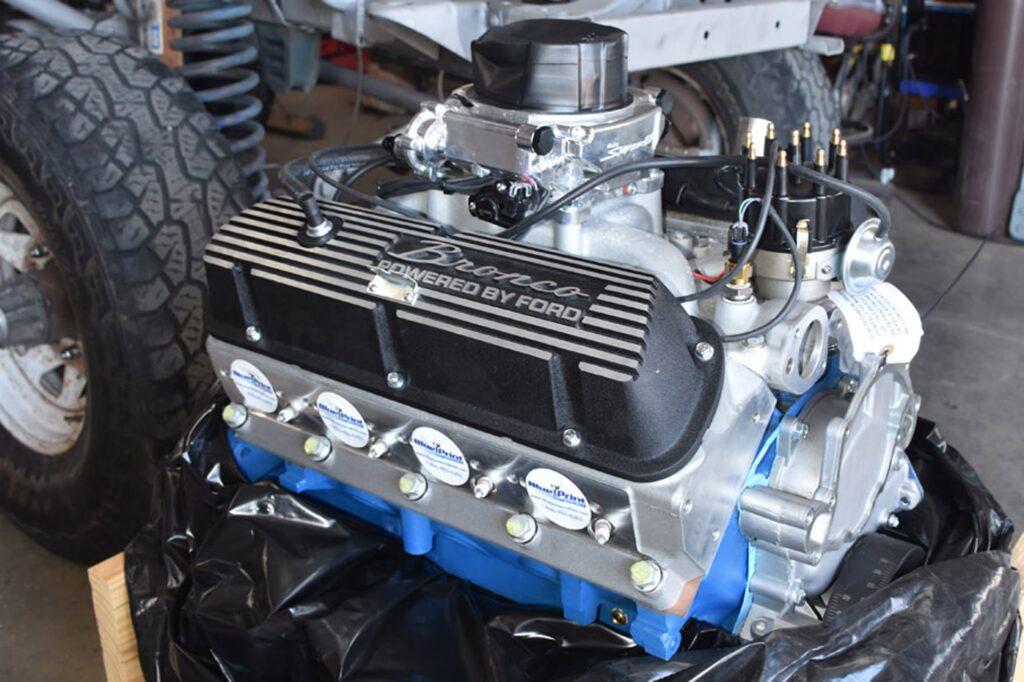

The Ford 306 CID (Cubic Inch Displacement) engine is essentially a stroked version of the venerable Ford 302 Windsor engine. By increasing the stroke of the crankshaft, the displacement is increased, leading to potential gains in torque and horsepower. The BluePrint Engines Ford 306 CI Bronco Edition, with its advertised 365 HP and 365 ft-lbs of torque, is a prime example of a high-performance, crate engine build based on this platform.
This particular build features several enhancements over a stock engine, including:
- Aluminum Cylinder Heads: Lighter and often designed for better airflow.
- Hydraulic Roller Cam: Offers improved performance and durability.
- Fuel Injection (Sniper EFI): Provides more precise fuel delivery and often better fuel economy and drivability compared to carburettors.
- Upgraded Connecting Rods: Built to handle increased power output.
The fact that this engine specifies a V-belt drive indicates that it is set up to drive common engine accessories using this traditional and reliable method. This is important to note because some modern engines have transitioned to serpentine belt systems, which use a single, wider, and often ribbed belt to drive multiple accessories.
Why the V-Belt Drive Specification Matters
When you're installing a new engine or performing maintenance, compatibility of accessory drives is paramount. If your vehicle currently has a serpentine belt system, and you're installing this 306 CID engine, you will need to adapt your accessory mounting to accommodate a V-belt system. This might involve sourcing new brackets for your alternator, power steering pump, and any other accessories you plan to run.
Conversely, if your project vehicle already utilises a V-belt system, this specification aligns perfectly, making the integration of the new engine more straightforward. It's also worth noting the mention of a "standard rotation water pump." This is another critical detail, as water pumps can be either standard rotation (clockwise) or reverse rotation (counter-clockwise). Ensuring you have the correct type of water pump for the V-belt drive setup is essential for proper engine cooling.
V-Belt vs. Serpentine Belt Systems: A Comparison
To further clarify, let's compare the two common drive belt systems:
| Feature | V-Belt Drive | Serpentine Belt Drive |
|---|---|---|
| Belt Type | Multiple, individual belts with a V-shaped cross-section. | A single, wider belt with multiple ribs on the inside. |
| Accessory Drive | Each belt typically drives one or two accessories. | A single belt drives all accessories via a system of pulleys and tensioners. |
| Tensioning | Belts are tensioned individually, often by adjusting the accessory's mounting bracket. | A spring-loaded automatic tensioner maintains belt tension. |
| Complexity | More belts mean more potential points of failure, but individual belt replacement is simpler. | Simpler in terms of belt count, but a single belt failure disables all accessories. Tensioner failure can also be an issue. |
| Efficiency | Generally good, but multiple belts can lead to slightly more drag. | Often more efficient due to better belt-to-pulley contact and automatic tensioning. |
| Common Use | Older vehicles, performance applications where simplicity or specific accessory needs dictate. | Most modern vehicles. |
Installation and Maintenance Considerations
When setting up your Ford 306 CID engine with its required V-belt drive, keep these points in mind:
- Pulley Alignment: Ensure all pulleys are perfectly aligned with each other. Misalignment is a primary cause of premature belt wear and can lead to noise and inefficiency.
- Belt Tension: Proper tension is critical. Too loose, and the belt will slip, squeal, and fail to drive accessories effectively. Too tight, and it can cause excessive wear on the belt, bearings in the accessories, and the water pump. For V-belts, a common rule of thumb is that the belt should deflect about 1/2 inch under moderate thumb pressure midway between the pulleys.
- Belt Quality: Invest in good quality V-belts. While cheaper belts might seem appealing, premium belts often last longer and perform more reliably.
- Accessory Compatibility: Make sure the pulleys you use for your alternator, power steering, etc., are designed for V-belts and have the correct groove count and size for the belts you choose.
- Harmonic Balancer: The included harmonic balancer is crucial for dampening crankshaft vibrations. Ensure it's correctly installed and in good condition.
What to do if your current setup is Serpentine?
If your vehicle is currently equipped with a serpentine system, you'll need to source or adapt brackets for your accessories (alternator, power steering, etc.) to mount them in a configuration that works with V-belts. Many aftermarket companies offer conversion kits or individual components designed for classic Ford engines that can facilitate this transition.
Frequently Asked Questions
Q1: Does every Ford 306 CID engine require a V-belt drive?
Not necessarily. While the specific BluePrint Engines Ford 306 CI Bronco Edition mentioned does, other custom builds or variations of the 306 CID engine might be configured with a serpentine system or even no accessory drive at all if it's for a specific racing application. Always check the specifications of the particular engine you are working with.
Q2: Can I convert my V-belt setup to a serpentine system on this 306 CID engine?
Yes, it is generally possible to convert a V-belt setup to a serpentine system. This usually involves purchasing a serpentine conversion kit designed for Ford Windsor engines, which typically includes new brackets, pulleys, a tensioner, and sometimes a different water pump and harmonic balancer.
Q3: What are the signs of a worn V-belt?
Common signs include cracking, fraying, glazing (a shiny, smooth surface), excessive noise (squealing, especially on startup or under load), and undercharging of the battery (indicating a slipping alternator belt).
Q4: How often should V-belts be replaced?
There's no strict mileage interval, as it depends on belt quality, driving conditions, and tension. It's best to inspect belts regularly (e.g., during oil changes) for signs of wear. A good rule of thumb is to replace them every 50,000 miles or if any significant wear is observed.
Conclusion
In summary, the BluePrint Engines Ford 306 CI Bronco Edition is explicitly designed to use a V-belt drive system. This specification is vital for ensuring correct installation and optimal performance of your engine's accessories. Understanding the differences between V-belt and serpentine systems, along with proper installation and maintenance practices for V-belts, will help you keep your 306 CID engine running smoothly and reliably. Always refer to the manufacturer's specific guidelines for your engine build.
