Unpacking the Ford Duratec 23 Engine

When discussing the powerplants that have driven countless vehicles across the UK and beyond, the Ford Duratec 23 engine often emerges as a significant player. This versatile 2.3-litre, naturally aspirated four-cylinder unit has been a workhorse for Ford Motor Company since its inception in 2001, finding its home in a diverse range of compact and midsize cars, robust pickup trucks, and popular utility vehicles, often referred to as CUVs. But what exactly makes this engine tick, and why has it proven to be such a ubiquitous choice for so many applications?

At its core, the Ford Duratec 23 is a marvel of engineering, known formally as the Mazda L engine due to its collaborative development. This partnership between Ford and Mazda, during a period of shared ownership, allowed for a unique blend of expertise to be poured into its design. Featuring a Dual Overhead Cam (DOHC) design in an inline configuration, it promises efficiency and performance. Its lineage is also notable; derived from the Duratec 20, it boasts the same bore but with a longer stroke, contributing to its increased displacement and distinct power characteristics. Furthermore, it served as the foundational blueprint for the critically acclaimed Ford 2.3L EcoBoost engine, highlighting its robust and adaptable architecture.

What Exactly is the Ford Duratec 23?

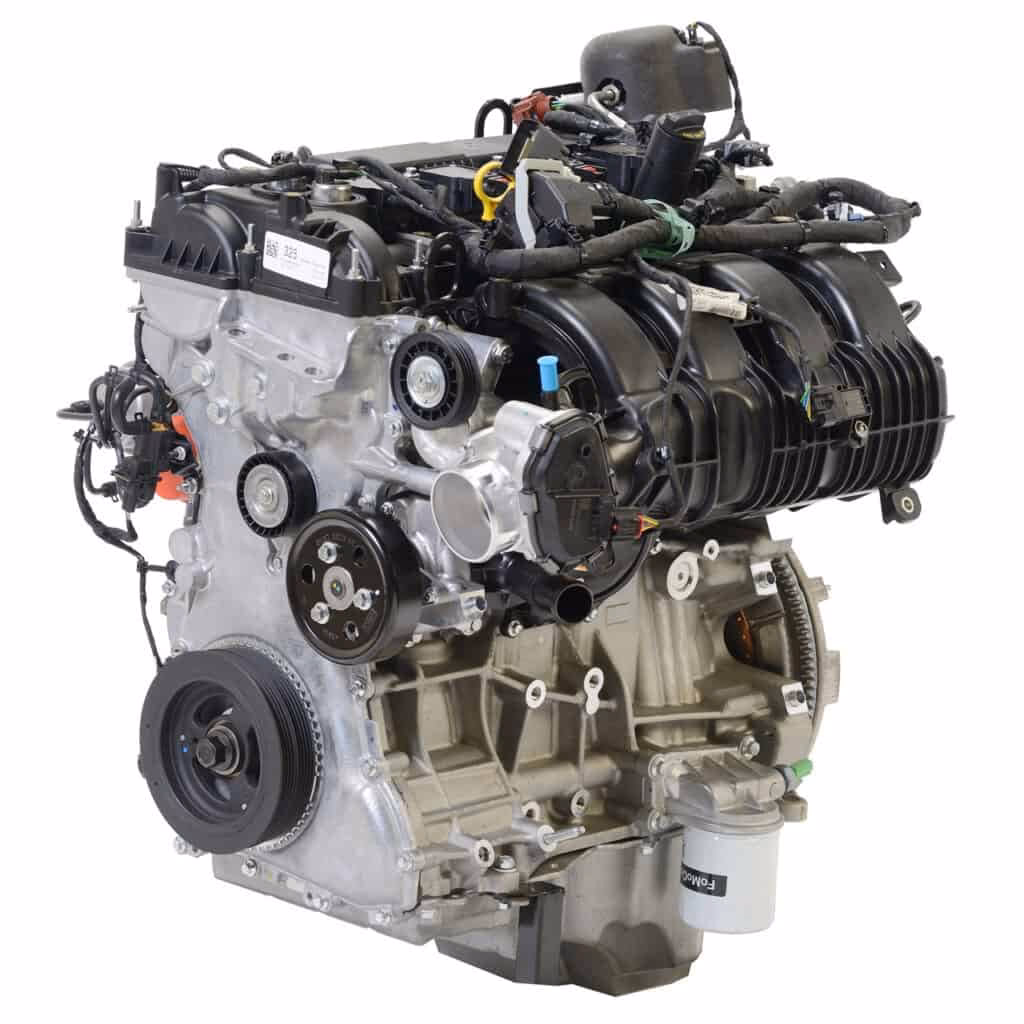

The Ford Duratec 23 engine is a 2.3-litre (2261 cm³) naturally aspirated inline-four petrol engine. Its designation, 'Duratec', is part of Ford's broader family of petrol engines, signifying modern design and efficiency. The '23' refers to its 2.3-litre displacement. As a naturally aspirated engine, it relies solely on atmospheric pressure to draw air into its cylinders, distinguishing it from its turbocharged EcoBoost descendants. The inline-four configuration is a common and highly efficient layout for engines of this size, offering a good balance of power delivery, fuel economy, and packaging. The DOHC setup, meaning it has two camshafts per cylinder bank (in this case, for its single bank of four cylinders), allows for more precise control over valve timing, leading to improved breathing, higher power output, and better fuel efficiency across the engine's RPM range. This meticulous valve control is a hallmark of modern engine design, optimising the combustion process for both performance and emissions.

A Collaborative Masterpiece: Ford and Mazda's Partnership

The story of the Duratec 23 is intrinsically linked to its development under the Mazda L engine family, also known as the MZR family. This cross-brand collaboration during Ford's ownership of Mazda was a strategic move, allowing both companies to share resources, reduce development costs, and leverage each other's engineering strengths. For the Duratec 23, this meant benefiting from Mazda's reputation for refined, rev-happy engines, combined with Ford's vast manufacturing capabilities and focus on robustness for a wide array of vehicle types. The shared architecture meant that core components and design philosophies were interchangeable, leading to a highly adaptable engine that could be tailored for different vehicle applications with relative ease. This synergy explains why a single engine platform could power anything from a compact Ford Focus to a larger Ford Ranger pickup, each with slightly different tunings and ancillary systems to suit its specific role. This collaborative approach not only brought the Duratec 23 to life but also laid the groundwork for future engine innovations within both companies.

Evolution and Innovation: Key Technologies

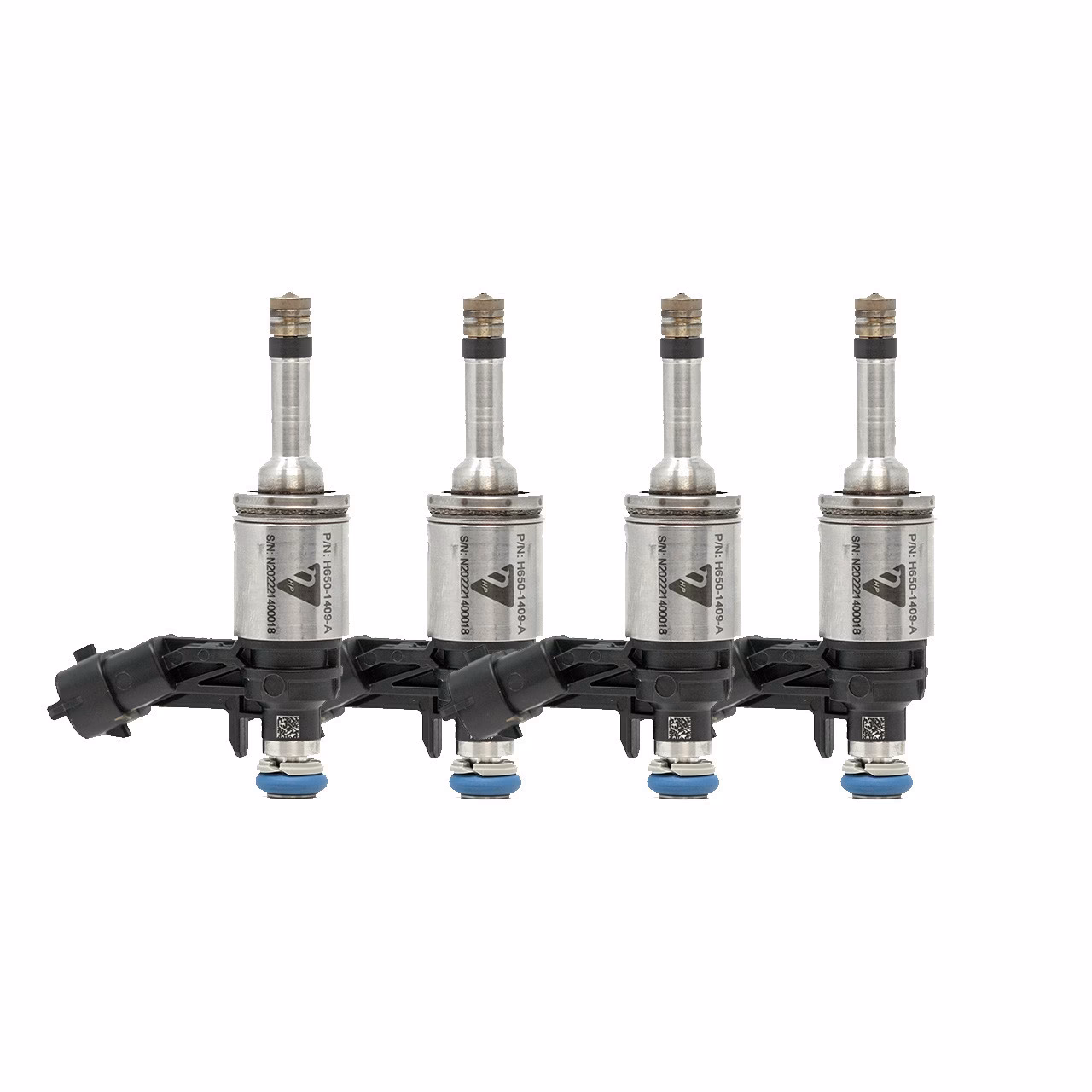

The Duratec 23 wasn't a static design; it evolved significantly over its production run, incorporating various cutting-edge technologies to enhance its performance, efficiency, and emissions profile. One of the most notable advancements was the integration of Direct Injection Spark Ignition (DISI). Unlike traditional port fuel injection, DISI sprays fuel directly into the combustion chamber, allowing for more precise fuel delivery and a higher compression ratio, which translates to improved power and fuel economy. This technology was particularly prominent in some Mazda applications of the L-series engine, showcasing the shared platform's flexibility.

Perhaps the most impactful evolution came with the introduction of turbocharging. While the Duratec 23 itself is naturally aspirated, its robust design served as the direct basis for the highly successful Ford 2.3L EcoBoost engine. The EcoBoost variant incorporated turbocharging, dramatically boosting power and torque while maintaining impressive fuel efficiency, effectively replacing larger, less efficient V6 engines in Ford's lineup. This transition underscored the fundamental strength and adaptability of the original Duratec 23's architecture.

Another crucial technology grafted onto the engine as it evolved was Ford's ubiquitous Twin Independent Variable Camshaft Timing (Ti-VCT). This system allows the engine's computer to independently control the timing of both the intake and exhaust valves. By continuously adjusting the valve overlap and lift, Ti-VCT optimises engine breathing across the entire RPM range, leading to improved low-end torque, better high-end power, and enhanced fuel economy. It also contributes to reduced emissions by ensuring more complete combustion. The inclusion of such advanced systems demonstrates Ford's commitment to continuous improvement and leveraging the Duratec 23's fundamental design to meet ever-growing demands for performance and efficiency.

The Duratec 23 in Action: Vehicle Applications

The versatility of the Ford Duratec 23 engine is best illustrated by the sheer breadth of vehicles it powered. Its robust design and adaptable nature made it an ideal choice for a variety of segments within Ford's and Mercury's lineups. From compact cars designed for urban agility to more utilitarian vehicles built for tougher tasks, the Duratec 23 proved its mettle across the board. Below is a list of prominent vehicles that benefited from this reliable engine, showcasing its ability to perform across different vehicle types and driving demands:

• Ford Escape (2005 - 2008): A popular compact SUV, the Escape utilised the Duratec 23 for a balance of power and economy, suitable for both city driving and light off-roading.
• Ford Focus (2003 - 2007): In its second generation, the Focus, a mainstay of the compact car segment, offered the Duratec 23 as a potent option, providing spirited performance for daily commutes.
• Ford Fusion (2006 - 2009): Ford's midsize saloon found a capable partner in the Duratec 23, delivering smooth power delivery for comfortable highway cruising and city driving.
• Ford Ranger (2001 - 2011): As a compact pickup truck, the Ranger required an engine that could handle hauling and towing. The Duratec 23 provided ample torque and reliability for its light-duty applications.
• Mercury Mariner (2005 - 2008): The Mariner, Mercury's counterpart to the Ford Escape, naturally shared the same reliable Duratec 23 engine.
• Mercury Milan (2006 - 2009): Similarly, the Milan, Mercury's version of the Ford Fusion, also featured the Duratec 23, ensuring consistent performance across the brands.

The engine's ability to be transversely mounted (for front-wheel-drive cars and CUVs) or longitudinally mounted (for rear-wheel-drive trucks like the Ranger) further speaks to its inherent design flexibility, allowing it to integrate seamlessly into diverse chassis architectures.

Technical Specifications at a Glance

Understanding the core specifications of the Duratec 23 provides insight into its performance characteristics and design philosophy. Here’s a detailed look:

Overview

Key Specifications

The bore and stroke figures (87.5mm x 94mm) reveal that the Duratec 23 is a 'long-stroke' engine. This design typically favours torque production at lower RPMs, making it well-suited for everyday driving and applications where pulling power is more critical than outright high-revving performance. The aluminium construction for both the cylinder head and block contributes to reduced engine weight, which benefits overall vehicle dynamics and fuel efficiency. The chain-driven camshaft is a significant advantage, offering superior longevity and reliability compared to timing belts, typically requiring less maintenance over the engine's lifespan.

Performance Variants and Their Impact

While the fundamental architecture remained consistent, the Duratec 23 saw various tunings and power outputs depending on the vehicle it powered and the specific model year. These variations were often due to differences in intake and exhaust systems, engine management software, and sometimes the inclusion or exclusion of features like variable valve timing in earlier models. Here’s a look at some of the common performance figures across its applications:

These figures illustrate how Ford tailored the engine's output to suit the intended use of each vehicle. For instance, the Ranger's slightly lower peak power but competitive torque at lower RPMs reflects its utility-focused design. The Fusion and Milan, designed for smoother road use, benefited from a higher peak power output, offering a more refined driving experience. The difference in peak power and torque figures, even within the same engine, highlights the importance of vehicle-specific tuning and how it can alter the perceived character of an engine.

Living with the Duratec 23: Maintenance and Longevity

The Ford Duratec 23 engine has generally earned a reputation for reliability and longevity, largely due to its robust design and the use of a timing chain rather than a belt. A timing chain is designed to last the lifetime of the engine, significantly reducing maintenance costs compared to engines with timing belts that require periodic replacement (typically every 60,000-100,000 miles). However, like any engine, proper maintenance is paramount to ensuring its continued performance and avoiding common issues.

Regular oil changes using the correct grade of engine oil (as specified in your vehicle's owner's manual) are perhaps the single most important maintenance item. High-quality oil lubricates moving parts, dissipates heat, and cleans the engine, preventing sludge buildup that can lead to premature wear, especially for DOHC components and the timing chain tensioners. Ignoring oil changes can lead to issues such as stretched timing chains or reduced oil pressure, which can be costly to repair.

Beyond oil, routine checks of the cooling system (coolant levels, hose condition), air filter replacement, and spark plug inspection/replacement are vital. A clean air filter ensures optimal air intake for combustion, while healthy spark plugs guarantee efficient ignition. The Duratec 23, being a naturally aspirated engine, is less sensitive to turbocharger-related issues but still benefits from a clean fuel system, so using good quality fuel and occasionally checking fuel filter condition (if applicable) is advisable.

Common wear items, as with most engines, might include sensors (e.g., oxygen sensors, camshaft position sensors), which can affect performance and fuel economy. Minor oil leaks from valve cover gaskets or front timing cover seals can develop over time but are typically manageable if caught early. Owners should also pay attention to any unusual noises, such as ticking or rattling, which could indicate issues with valve lifters or a stretched timing chain, particularly at higher mileages. Addressing these symptoms promptly can prevent more significant damage.

Overall, with diligent maintenance, many Duratec 23 engines have been known to exceed 150,000 to 200,000 miles, proving their durability as everyday workhorses. Their relatively simple naturally aspirated design, coupled with the chain-driven camshaft, contributes significantly to their long-term reliability.

Common Questions About the Duratec 23

Is the Ford Duratec 23 a reliable engine?

Generally, yes, the Ford Duratec 23 is considered a reliable engine. Its naturally aspirated design is less complex than turbocharged counterparts, and the use of a timing chain (rather than a belt) significantly reduces maintenance concerns related to timing component replacement. With regular oil changes and routine maintenance, many owners report high mileage without major issues.

What are the common issues with the Duratec 23?

While generally robust, some common issues, typically with higher mileage engines, can include minor oil leaks (e.g., from valve cover gaskets or front timing cover), occasional issues with sensors (such as oxygen sensors or camshaft position sensors that can affect performance), and in some rare cases, issues with variable valve timing (Ti-VCT) components if oil maintenance has been neglected. Stretched timing chains are rare but can occur if oil changes are severely neglected.

Does the Duratec 23 use a timing belt or chain?

The Ford Duratec 23 engine uses a timing chain. This is a significant advantage as timing chains are designed to last the lifetime of the engine and do not require regular replacement like timing belts, saving owners considerable maintenance costs and hassle over the vehicle's lifespan.

What is the fuel economy like for vehicles with the Duratec 23?

Fuel economy for vehicles equipped with the Duratec 23 varies depending on the specific vehicle model, transmission, driving conditions, and vehicle weight. As a naturally aspirated 2.3-litre engine, it offers a good balance of power and efficiency for its size. For example, a Ford Focus with this engine might achieve around 30-35 MPG (UK) combined, while a heavier Ford Escape or Ranger would likely see figures in the 20-28 MPG range. Factors like driving style and vehicle maintenance also play a crucial role.

Can I upgrade the performance of my Duratec 23 engine?

While the Duratec 23 is naturally aspirated, modest performance gains can be achieved through aftermarket modifications such as cold air intakes, exhaust system upgrades, and ECU re-tunes. However, significant power increases are often costly and typically require forced induction (turbocharging or supercharging), which transforms the engine into something closer to its EcoBoost sibling, but this is a complex and expensive modification not suitable for every owner.

Conclusion

The Ford Duratec 23 engine stands as a testament to effective engineering collaboration and adaptable design. Born from a partnership between Ford and Mazda, this 2.3-litre inline-four has powered a diverse array of vehicles, from nimble compact cars to sturdy pickup trucks, proving its versatility and reliability over many years. Its DOHC design, the adoption of advanced technologies like Ti-VCT, and its role as the foundation for the potent EcoBoost family underscore its significance in Ford's engine lineage. For owners, the Duratec 23 represents a dependable and relatively low-maintenance powerplant, particularly due to its timing chain, promising many miles of faithful service with proper care. Its legacy continues to influence Ford's engine development, making it a truly enduring piece of automotive history.
