Ford Fiesta Fuse Box Guide

It's a common query for any car owner: "Does my Ford Fiesta have a fuse box?" The short answer is a resounding yes. Every Ford Fiesta, from its earliest iterations to the most recent models, is equipped with one or more fuse boxes. These vital components act as the unsung heroes of your car's electrical system, protecting sensitive circuitry from power surges and short circuits. Without them, a simple electrical fault could lead to catastrophic damage to your vehicle's electronics, costing a small fortune to repair. Understanding the location and function of your Fiesta's fuse box is therefore a fundamental aspect of basic car maintenance, empowering you to deal with minor electrical issues and know when to seek professional help.

The Purpose of a Fuse

Before we delve into the specifics of the Ford Fiesta's fuse boxes, it's crucial to understand what a fuse actually is and why it's so important. At its core, a fuse is a safety device containing a metal wire or filament, designed to melt and break an electrical circuit when the current exceeds a safe level. Think of it as a sacrificial lamb for your car's electronics. When an appliance or circuit draws too much power, perhaps due to a fault or a short circuit, the excessive current flows through the fuse. This causes the thin metal filament inside the fuse to heat up rapidly and melt, thereby interrupting the flow of electricity and preventing damage to more expensive components like the radio, headlights, or engine control unit (ECU).

Fuses are rated according to the amount of current they can safely handle, indicated by a colour-coded casing and a number (e.g., 10A for 10 Amps). It is absolutely critical to replace a blown fuse with one of the exact same rating. Using a fuse with a higher rating might allow the circuit to function temporarily, but it defeats the purpose of the fuse and leaves your electronics vulnerable. Conversely, a fuse with a lower rating will blow unnecessarily, causing inconvenience and potential confusion.

Types of Fuses You Might Find

Ford Fiestas, depending on their age and specific model, can utilise a few different types of fuses, though the most common are:

• Blade Fuses: These are the most prevalent type in modern vehicles, including most Ford Fiestas. They consist of a plastic body with two metal prongs that slot into the fuse box terminals. Blade fuses come in various sizes and current ratings, often colour-coded for easy identification:
  • ATM (Mini): Smallest type, typically rated from 2A to 30A.
  • ATO (Standard): Larger than Mini, common in older vehicles and some accessories, rated from 3A to 30A.
  • MAXI: Larger still, designed for high-current applications like cooling fans or starter motors, rated from 20A to 60A.
  • JCASE: A newer, robust type often used for high-current applications, offering better vibration resistance.
• Cartridge Fuses: Less common in recent Fiestas but may be found in older models or for specific, high-power circuits. These are typically cylindrical with metal end caps.

When inspecting or replacing a fuse, always ensure you are using an intact fuse of the same color and amperage rating as the one you are replacing.

Locating the Fuse Box(es) in Your Ford Fiesta

The location of the fuse box(es) can vary slightly between different generations and models of the Ford Fiesta. However, there are a few common places to check:

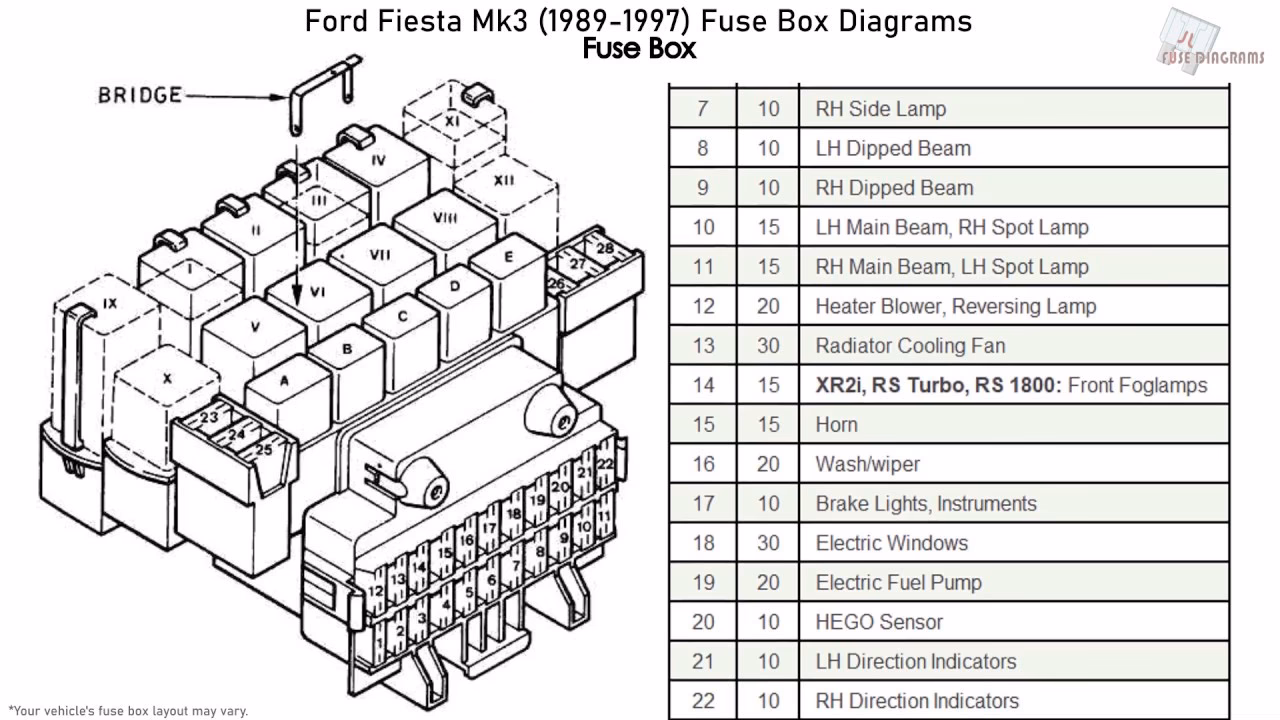

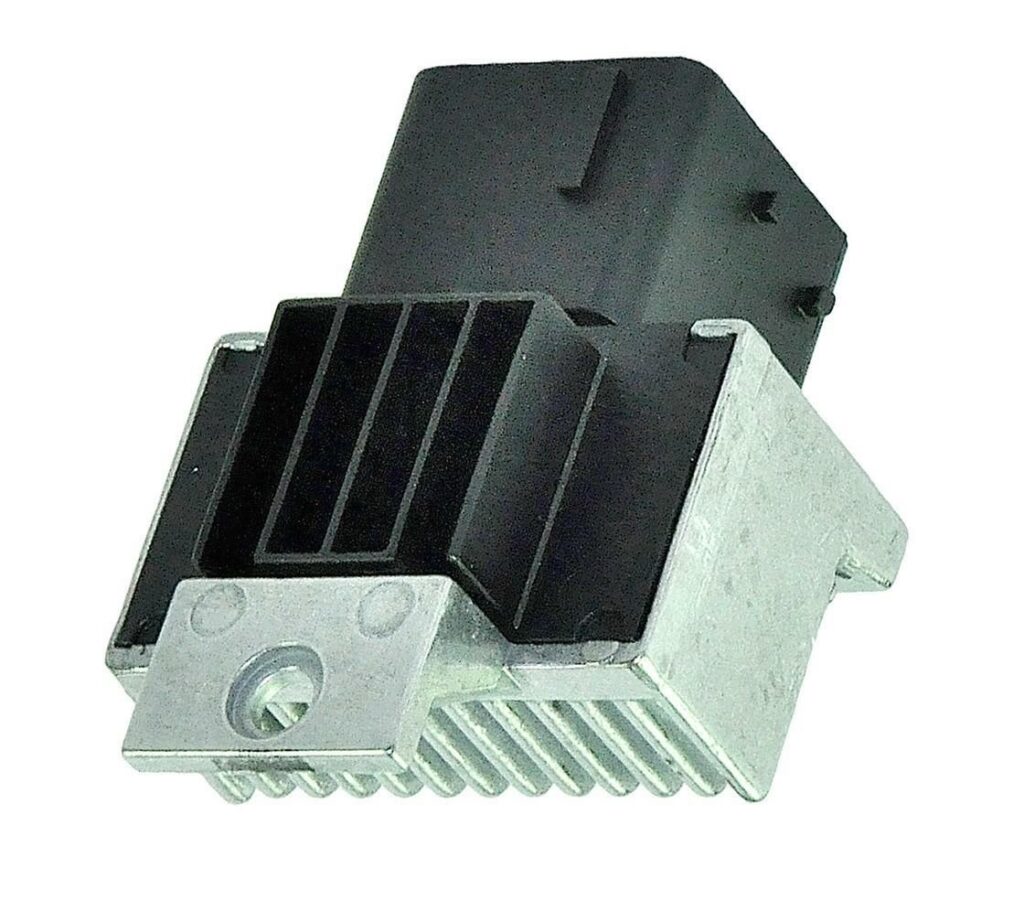

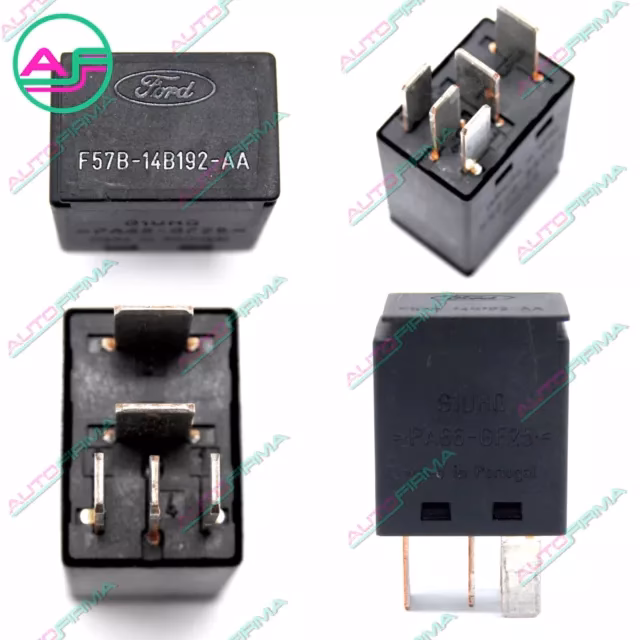

Ford Fiesta Mk3 (1989-1997) Fuse Box Location

For the Ford Fiesta Mk3, the primary fuse box is typically located within the dash panel. This usually means you'll need to access it from inside the cabin. Often, it's situated on the driver's side, behind a small removable panel or cover. You might need to consult your owner's manual for the exact location of this panel, as it can sometimes be tucked away. Once you find the panel, it will likely unclip or unscrew, revealing the array of fuses and potentially some relays.

Key takeaway for Mk3 Fiesta: Look within the dash panel, often on the driver's side behind a removable cover.

Other Fiesta Generations

While the Mk3 has a specific location, later generations of the Ford Fiesta often feature fuse boxes in similar, yet sometimes expanded, locations:

• Under the Dashboard (Driver's Side): This remains the most common location. Look for a plastic cover that can be pulled or unclipped.
• Engine Compartment: Many Fiestas also have a second fuse box located in the engine bay, often housed in a black plastic box with a lid. This box typically protects higher-current circuits like the cooling fan, headlights, and starter motor. It's usually positioned near the battery or the bulkhead (the firewall separating the engine bay from the cabin).
• Glove Box Area: In some models, a secondary fuse box might be integrated near or behind the glove compartment.

Always refer to your specific Ford Fiesta owner's manual for the definitive locations of all fuse boxes. This is the most reliable source of information for your particular vehicle.

Understanding the Fuse Diagram

Once you've located the fuse box, you'll see a collection of fuses, often with relays nestled amongst them. Each fuse is responsible for a specific electrical circuit or component. To know which fuse controls what, you need to consult the fuse diagram. This diagram is usually found:

• On the inside of the fuse box cover itself.
• In your Ford Fiesta owner's manual.
• Sometimes, there might be a separate diagram sticker elsewhere in the cabin.

The diagram will typically show a layout of the fuse box with each fuse's position clearly marked, along with the circuit it protects (e.g., "Radio," "Headlights," "Wipers," "Cigarette Lighter") and its corresponding amperage rating.

Example Fuse Box Layout (Conceptual)

Imagine a typical fuse box layout. It might look something like this:

Note: This is a generalised example. Always refer to your specific Fiesta's fuse diagram.

How to Replace a Blown Fuse

Replacing a fuse is a relatively straightforward process, but it requires care and the correct tools.

1. Identify the Blown Fuse: Turn off the ignition and all electrical accessories. Locate the relevant fuse box. Open the cover. Using the diagram, identify the fuse that corresponds to the malfunctioning circuit. You can often visually inspect a fuse by looking at the metal filament inside. If the filament is broken or melted, the fuse has blown. A fuse puller (often supplied with the fuse box or available at auto parts stores) is the best tool for this, but needle-nose pliers can be used carefully if a fuse puller isn't available.
2. Remove the Blown Fuse: Gently pull the blown fuse straight out of its socket.
3. Insert the New Fuse: Take a new fuse of the identical amperage rating and type (e.g., same size and colour-coded rating). Insert it firmly into the empty socket, ensuring the prongs are fully seated.
4. Test the Circuit: Replace the fuse box cover. Turn the ignition back on and test the circuit that was not working.
5. If it Blows Again: If the new fuse blows immediately or shortly after replacement, this indicates a more serious electrical problem, such as a short circuit or a faulty component. In this situation, you should contact a qualified service center for diagnosis and repair. Do not continue replacing fuses, as this could cause further damage or create a safety hazard.

Common Electrical Issues and Fuse Checks

Several common electrical issues in a Ford Fiesta might be resolved by checking the fuses:

• No Radio/Audio: Check the fuse labelled for the radio or audio system.
• Headlights Not Working (or only one): Fuses for headlights are usually in the engine bay fuse box, but check the cabin box too.
• Wipers Not Functioning: The wiper motor and circuit often have their own dedicated fuse.
• Interior Lights Out: Check the fuse for interior lighting or courtesy lights.
• Central Locking Failure: Fuses for the central locking system are common culprits.
• Power Window Issues: Each power window motor may have its own fuse or share one.

Remember, always disconnect the battery's negative terminal if you are performing any work that involves removing multiple components or if you are unsure about safety procedures. However, for a simple fuse replacement, this is usually not necessary, but ensuring the ignition is off is paramount.

Frequently Asked Questions (FAQs)

Q1: My Fiesta's cigarette lighter isn't working. Which fuse should I check?
A: Typically, the cigarette lighter or 12V accessory socket shares a fuse with other components like the radio or interior lights. Check your fuse diagram for the fuse labelled "Cigar Lighter," "Accessory Socket," or similar.

Q2: Can I use a higher amperage fuse if the current one keeps blowing?
A:Absolutely not. This is dangerous. A fuse is designed to protect the wiring and components. Using a higher amperage fuse will bypass this protection, potentially leading to melted wires, damaged electronics, and even a fire risk.

Q3: How do I know if a fuse has blown?
A: Visually inspect the metal filament inside the fuse. If it's broken, melted, or looks discoloured, the fuse has blown. You can also use a multimeter to test for continuity.

Q4: My Ford Fiesta has two fuse boxes. Where is the second one usually located?
A: Most Fiestas have a primary fuse box inside the cabin (under the dashboard) and a secondary one in the engine compartment, often in a black box near the battery, for higher-current circuits.

Q5: What if I can't find my owner's manual or the diagram on the fuse box cover?
A: You can usually find fuse box diagrams online by searching for your specific Ford Fiesta model and year. Many automotive forums and dedicated Ford resources share this information. Alternatively, a local mechanic or Ford dealership can provide the correct diagram.

Conclusion

The fuse box is an indispensable part of your Ford Fiesta's electrical system. Knowing where to find it, how to read the diagram, and how to safely replace a blown fuse will not only save you time and money on minor repairs but also help you understand your vehicle better. Always remember to use the correct replacement fuse and seek professional assistance if a problem persists. Regular checks and a basic understanding of your car's fuses are key to maintaining its electrical health.
