Fiat Ducato Rear Brakes: All You Need to Know

When it comes to the safety and reliability of any vehicle, particularly a workhorse like the Fiat Ducato, the braking system stands paramount. Ensuring your van can stop effectively and predictably is not just about compliance; it's about the safety of yourself, your passengers, and everyone else on the road. The Fiat Ducato, a ubiquitous light commercial vehicle and the base for countless motorhomes across Europe since 1981, has seen various iterations over its impressive production run of over 2.6 million units. Understanding the specific type of rear brakes fitted to your model is the first step towards proper maintenance and guaranteeing optimum stopping performance.

Unlike some vehicles with a singular rear brake design across their range, the Fiat Ducato can feature different setups, primarily depending on its chassis and payload capacity. This article will delve into the types of rear brakes you might find on a Ducato, explain their operation, highlight the importance of regular maintenance, and address common issues you might encounter. By the end, you'll have a clearer picture of your Ducato's rear braking system and how to keep it in peak condition.

Understanding Fiat Ducato Rear Brake Configurations

The Fiat Ducato, being a versatile platform, employs a couple of distinct rear brake designs. It's crucial for owners and mechanics alike to identify which system is present on a particular vehicle, as this dictates the maintenance procedures and parts required. Generally, you'll encounter either a full rear disc brake system or a more complex 'drum-in-hat' setup, especially on heavier chassis variants.

Rear Disc Brakes

For some Fiat Ducato models, particularly later or lighter versions, the rear wheels are equipped with disc brakes. This system mirrors the front braking setup found on most modern vehicles and consists of a brake caliper, brake pads, and a brake disc (or rotor). When the brake pedal is pressed, hydraulic pressure forces the caliper to clamp the brake pads against the spinning disc, generating friction that slows the wheel. This design is generally favoured for its excellent heat dissipation, consistent performance, and ease of maintenance, especially when it comes to replacing worn components.

If your Ducato has rear disc brakes, the process of replacing the pads and discs is relatively straightforward, similar to a front brake job. It typically involves removing the wheel, unbolting the brake caliper, sliding out the old pads, and, if necessary, removing the caliper carrier to replace the disc. While simple in concept, it does often require specific tools, such as large 'star' bits for removing the caliper carrier, which can be acquired affordably from hardware suppliers.

The 'Drum-in-Hat' System

More commonly, especially on heavier Fiat Ducato variants, such as the Fiat Maxi 1800kg payload chassis, you'll find a 'drum-in-hat' type rear brake system. This configuration is a clever hybrid that combines the advantages of disc brakes for primary stopping with a drum brake mechanism specifically for the handbrake (parking brake). Here’s how it works:

• Outer Disc Brake: The main braking force is provided by a conventional disc brake setup, much like the one described above. This means you have a brake caliper and brake pads acting on a disc for the primary service brake.
• Inner Drum Brake: Tucked away within the centre of this brake disc (the 'hat' part) is a small drum brake. This internal drum system is solely dedicated to the handbrake function. Inside this drum are the handbrake shoes, which expand outwards to press against the inner surface of the drum when the handbrake lever is engaged, securing the vehicle.

This hybrid design is often chosen for commercial vehicles and motorhomes due to its robust nature and the superior holding power of a drum brake for parking, particularly on inclines or when carrying heavy loads. However, it does introduce a layer of complexity for maintenance, as servicing the handbrake shoes requires accessing the internal drum mechanism, which often means removing the main disc and caliper assembly first.

The Critical Role of Brake Pads and Handbrake Shoes

Regardless of whether your Ducato has full rear discs or the drum-in-hat system, the friction materials – brake pads and handbrake shoes – are absolutely essential for safe operation. These components are designed to wear down over time as they convert kinetic energy into heat through friction, bringing your vehicle to a stop.

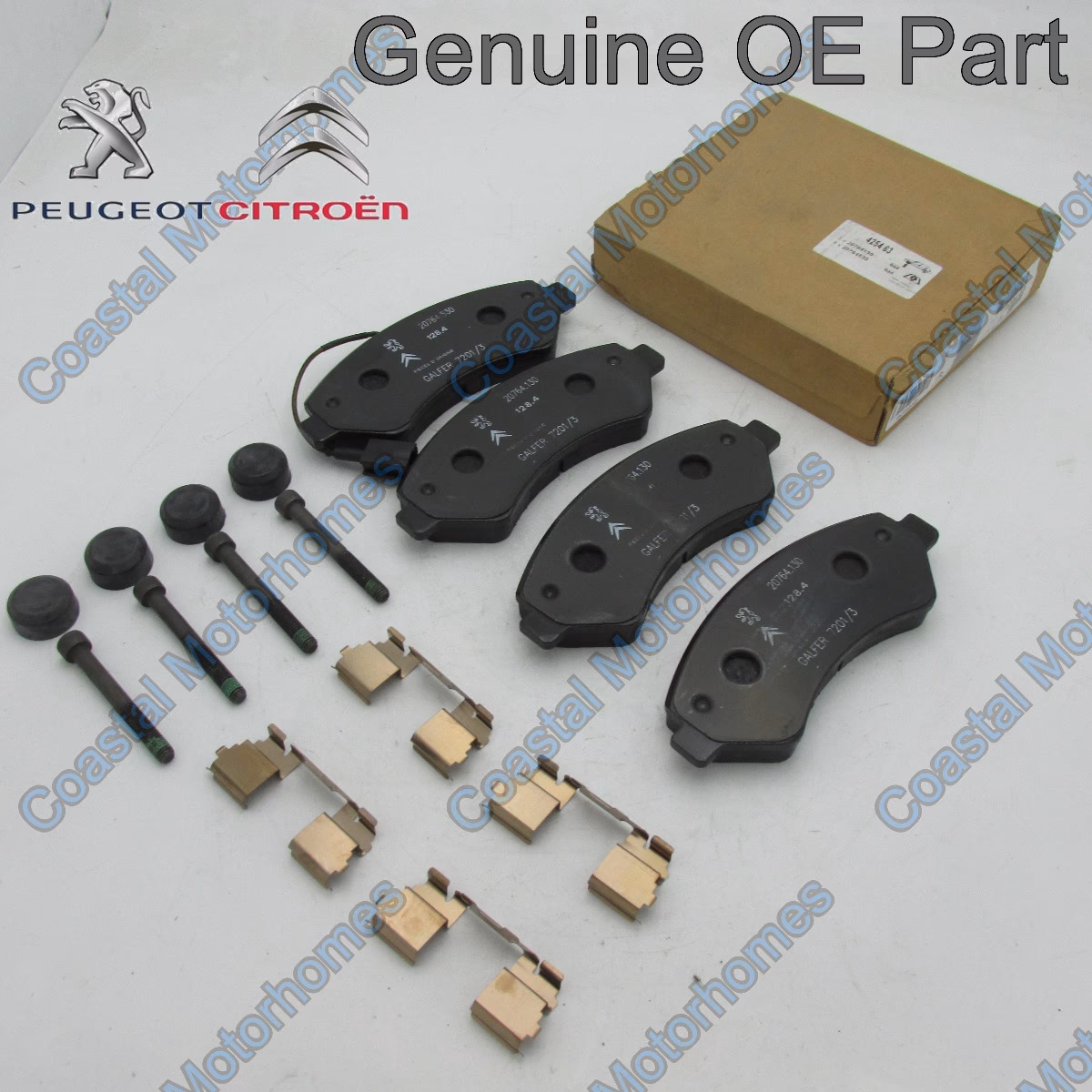

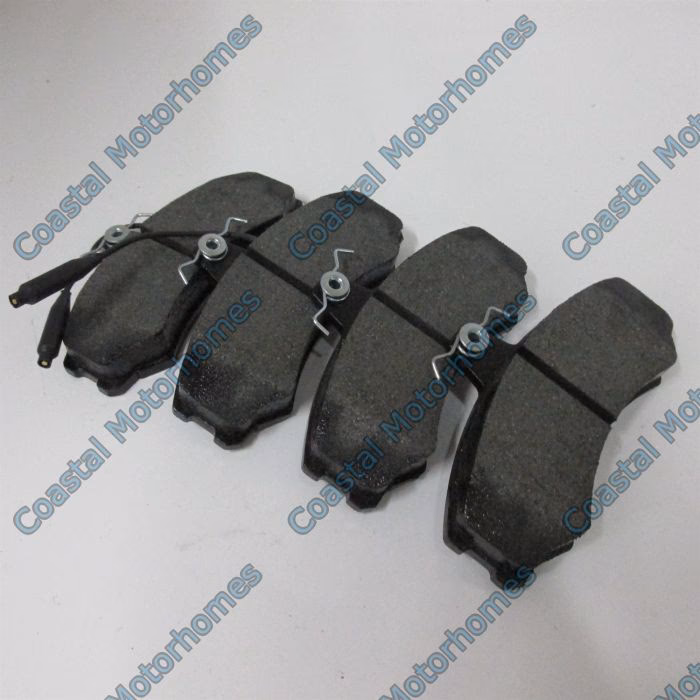

• Brake Pads: For the primary braking system (both full disc rear brakes and the disc part of the drum-in-hat system), brake pads are vital. They press against the rotating disc, generating the friction needed to slow and stop the vehicle. Worn brake pads can lead to reduced braking efficiency, increased stopping distances, and even damage to the brake discs if left unaddressed. Regular inspection and timely replacement are non-negotiable for safety.
• Handbrake Shoes: In the drum-in-hat system, the handbrake shoes are specifically for the parking brake. While they don't endure the same stresses as the main brake pads during driving, they are crucial for keeping your vehicle stationary when parked. Issues with handbrake shoes can lead to the handbrake not holding properly, or conversely, becoming 'stuck on' or 'binding', which can cause excessive heat, wear, and even vehicle damage if driven. Our online shop offers a range of nearly 66 premium handbrake shoes for the Ducato, emphasising the high technical standard and quality required for these critical parts.

Essential Maintenance and Common Issues

Regular maintenance of your Fiat Ducato's rear brakes is paramount. Given the heavy loads these vehicles often carry, and their frequent use as motorhome bases, the braking system works hard and requires diligent attention. A comprehensive workshop manual for the Fiat Ducato can guide you through various maintenance tasks, including brake fluid changes, which are just as important as inspecting the mechanical components.

Signs of Wear and When to Replace

Pay close attention to these indicators that your rear brakes may need attention:

• Squealing or Grinding Noises: Often the first sign of worn brake pads or shoes.
• Reduced Braking Performance: Longer stopping distances or a 'spongy' brake pedal.
• Vibrations: Pulsation through the brake pedal can indicate warped brake discs.
• Handbrake Issues: A handbrake that doesn't hold the vehicle, feels loose, or is difficult to engage/disengage.
• Visual Inspection: Regularly check the thickness of brake pads and discs. For drum systems, this often requires wheel removal.

Brake pads are essential for keeping you and those around you safe when driving. Explore our range of affordable Fiat Ducato brake pads from respected brands. Our dedicated team are on hand with expert advice and assistance to ensure you get the right parts for your vehicle.

Common Problems and Adjustments

Several issues can arise with Fiat Ducato rear brakes:

• Binding Brakes: This occurs when the brakes don't fully release, causing friction even when not applied. It can lead to overheating, premature wear, and reduced fuel efficiency. Causes can include sticky calipers (for disc brakes) or seized handbrake mechanisms/shoes (for drum-in-hat systems).
• Handbrake Adjustment: Many Ducato owners, particularly those with the drum-in-hat system, express confusion over the correct adjustment for the handbrake shoes. If the handbrake feels loose or doesn't hold, adjustment is necessary. Conversely, if it's binding or 'stuck on', it might be over-adjusted or seizing. Proper adjustment is critical for both safety and preventing premature wear.
• Corrosion: Given the exposure to road salt and weather, brake components can suffer from corrosion, especially on the inner drum parts of the drum-in-hat system, leading to sticking or reduced effectiveness.

For tasks like handbrake adjustment or replacing parts, the Fiat Ducato workshop manual is an invaluable resource. It can guide you through procedures that would typically be done by Fiat garages and mechanics, from basic fluid changes to more complex component replacements. Accessing parts like the handbrake shoes, which are at the core of the handbrake's quality and function, requires ensuring you source them from reputable brands to meet the highest technical standards.

DIY vs. Professional Servicing

While some maintenance tasks, such as visual inspections, can be performed by a competent DIY enthusiast, others require more specialised knowledge and tools. For instance, removing a rear disc brake caliper and carrier often requires a large set of 'star' bits, as mentioned. Handbrake adjustment, particularly on the drum-in-hat system, can also be fiddly and confusing, requiring precise knowledge to ensure it's neither too loose nor too tight.

For critical safety components like brakes, if you are unsure or lack the proper tools and experience, it is always recommended to seek professional assistance. A qualified mechanic will have the expertise to diagnose issues accurately, perform repairs safely, and ensure your Ducato's braking system meets all necessary standards.

The Evolution and Popularity of the Fiat Ducato

Since its inception in 1981 as a joint venture between Fiat and PSA Peugeot Citroën, the Fiat Ducato has undergone continuous development, contributing to its status as the most common motorhome base used in Europe, accounting for around two-thirds of all motorhomes. This long production history means that older models (like the 2006 late model X244 mentioned) might have different braking characteristics or component requirements compared to newer generations. This evolution underscores why identifying your specific model and its brake type is so important for accurate parts sourcing and maintenance.

The sheer volume of Ducatos on the road, coupled with their often demanding usage (commercial deliveries, long-distance motorhome travel), means that the braking system is under constant stress. Investing in quality replacement parts and adhering to a strict maintenance schedule will not only extend the life of your vehicle but, more importantly, safeguard your journeys.

Comparative Table: Fiat Ducato Rear Brake Types

Frequently Asked Questions About Fiat Ducato Rear Brakes

What types of rear brakes does the Fiat Ducato have?

The Fiat Ducato can have either full rear disc brakes or a 'drum-in-hat' system. The drum-in-hat system features a disc brake for primary stopping, with a smaller drum brake integrated within the disc's hub for the handbrake.

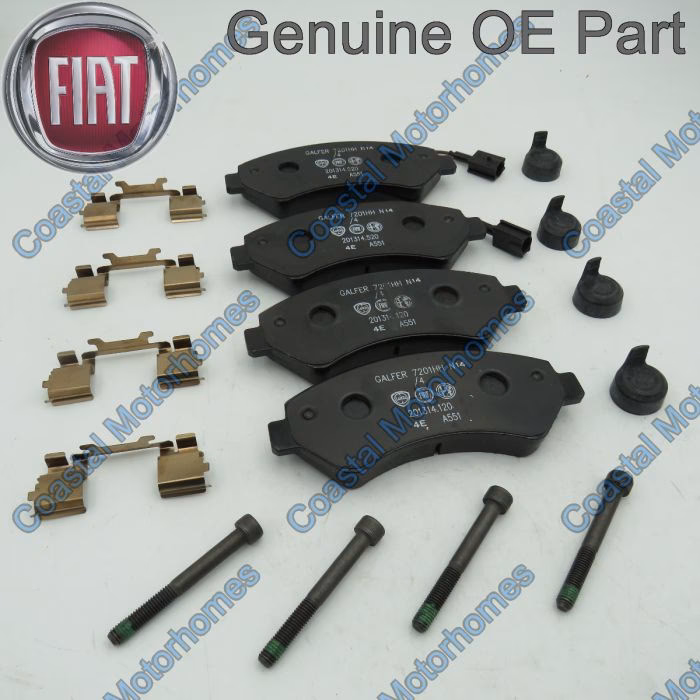

Why do I need brake pads for a Fiat Ducato?

Brake pads are essential for converting the vehicle's motion into heat through friction, allowing it to slow down and stop safely. They are a critical safety component, and worn pads can severely compromise your braking ability.

How do I know if my Fiat Ducato's rear brakes need attention?

Common signs include squealing or grinding noises when braking, a spongy brake pedal, increased stopping distances, vibrations through the pedal, or a handbrake that doesn't hold securely or feels stiff/stuck.

Is it difficult to change the rear brakes on a Fiat Ducato with a disc setup?

If your Ducato has rear disc brakes, changing the pads and discs is generally straightforward for a competent DIY mechanic, similar to front brakes. However, removing the caliper carrier often requires large 'star' bits.

What is the 'drum-in-hat' system on a Fiat Ducato?

It's a hybrid rear brake setup found on some Ducatos, particularly heavier versions. It uses a disc brake for the main stopping power, and a small drum brake located within the centre of that disc (the 'hat') solely for the handbrake function.

How do I adjust the handbrake on a Fiat Ducato with the drum-in-hat system?

Adjusting the handbrake on a drum-in-hat system can be confusing and requires access to the internal drum mechanism. It typically involves adjusting the shoes inside the drum, which often means removing the main disc and caliper first. If you're unsure, it's best to consult a workshop manual or a professional mechanic.

Can I service my Fiat Ducato's brakes myself?

Basic checks and simple pad replacements might be feasible for experienced DIYers. However, for more complex tasks, such as handbrake shoe replacement, drum-in-hat adjustments, or any work requiring specialised tools (like specific 'star' bits), professional assistance is highly recommended to ensure safety and correct operation.

Where can I find quality handbrake shoes for my Fiat Ducato?

Reputable online shops and auto parts suppliers offer a wide range of handbrake shoes (parking brake pads) for the Fiat Ducato, ensuring high quality and technical standards suitable for commercial vehicles and motorhomes.

Maintaining your Fiat Ducato's rear brakes is a critical aspect of vehicle ownership, ensuring not only compliance with road safety regulations but also peace of mind on every journey. By understanding the specific brake system on your van and adhering to regular inspection and maintenance schedules, you can ensure your Ducato remains a reliable and safe companion for years to come.
