Unveiling the Electronic Fuel Injection System

At the heart of every internal combustion engine lies a sophisticated fuel system, meticulously designed to deliver the precise amount of fuel required for combustion. While the basic concept might seem straightforward – fuel from a tank, pumped to the engine, and injected – the reality, especially when considering performance upgrades, is surprisingly complex. This comprehensive guide delves into the workings of the most common and efficient system found in modern vehicles: electronic fuel injection.

The fundamental principle is elegantly simple: a fuel tank stores the petrol, an electric pump draws it out, and fuel injectors precisely spray it into the engine at the right moment and in the correct quantity. However, as we peel back the layers, we uncover a network of interconnected components, each playing a critical role in ensuring your engine runs smoothly, efficiently, and powerfully. Understanding these elements is paramount, not just for diagnostics and maintenance, but especially for anyone contemplating engine tuning and seeking to unlock true performance potential.

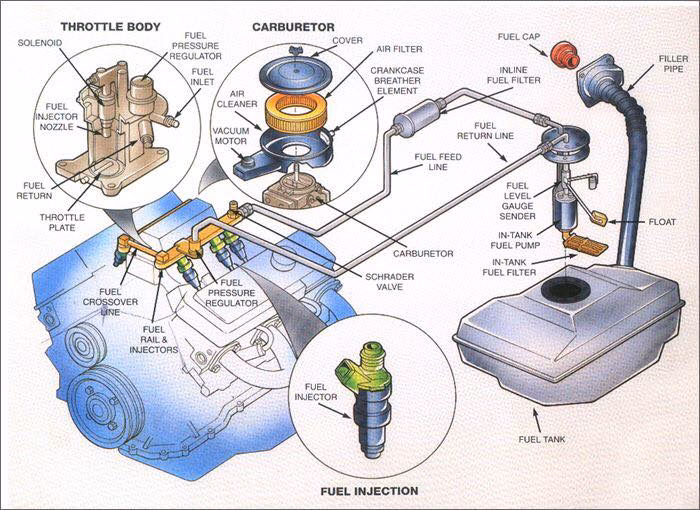

The Essential Components of a Fuel Injection System

Before we explore the intricacies of advanced setups, let's break down the core components that form the backbone of any electronic fuel injection system. Each part is engineered to work in harmony, ensuring a consistent and controlled fuel supply.

Fuel Tank/Cell

The humble fuel tank, or 'fuel cell' in performance applications, is more than just a storage container. While everyone understands its primary purpose, its design and construction can significantly impact a vehicle's safety and performance. Standard tanks are sufficient for everyday driving, but highly-tuned vehicles often benefit from upgrading to a performance fuel cell. These cells are typically constructed from more robust materials, making them significantly stronger and less prone to leakage in the unfortunate event of a crash or rollover. Furthermore, performance fuel cells are often baffled internally. Baffling helps to prevent fuel sloshing, or 'surge', during aggressive driving manoeuvres such as hard cornering, acceleration, or braking, ensuring a consistent fuel supply to the pump and often negating the need for a separate swirl pot. They are also available in a variety of sizes, allowing for customisation based on specific vehicle requirements and space constraints.

Fuel Pump

The fuel pump is the heart of the fuel delivery system, responsible for transferring fuel from the tank (or swirl pot) to the engine's injectors. Modern vehicles predominantly utilise electric fuel pumps, which offer precise control and consistent pressure. Older cars and some specialised race applications, however, might still employ mechanical pumps, occasionally even as a backup system driven directly by the engine's camshafts, as seen in some classic Sierra RS500 Cosworth race cars. While most standard electric fuel pumps can adequately manage the flow requirements of moderately tuned engines, significant power increases necessitate an upgraded pump. A powerful single pump is generally preferred over a twin-pump setup in contemporary performance builds due to inherent safety advantages, which we will discuss later. Upgraded pumps come in a vast array of designs and capacities, with some capable of flowing enough fuel to support engines producing well over 1000 horsepower.

However, it's crucial to understand that bigger isn't always better. An oversized fuel pump can flow too much fuel for your engine's actual requirements. While the fuel pressure regulator will prevent the engine itself from being 'over-fuelled' by bleeding off excess pressure, an excessively powerful pump will cause fuel to circulate through the system too frequently. This constant circulation can lead to the fuel heating up considerably, which in turn can result in a loss of performance and, more critically, an increased risk of detonation within the engine. Although specific fuel coolers are available to mitigate this issue, they are rarely seen outside of endurance racing. The optimal solution is always to select the correct sized pump for your engine's specific needs from the outset, balancing flow capacity with efficiency and thermal management.

Fuel Filter

As its name suggests, the fuel filter plays a vital role in protecting your engine by removing any foreign objects, debris, or contaminants that might be present in the fuel. These impurities, if left unchecked, could potentially block the delicate fuel injectors or cause significant damage to internal engine components. Most standard fuel filters are highly effective and can typically cope with the demands of mild power increases. However, it is absolutely essential to remember that, by its very nature, a filter will accumulate contaminants over time and become clogged. Neglecting to change the fuel filter regularly can restrict fuel flow, leading to a lean-running engine, which can cause severe and costly damage. For high-power engines or those utilising more exotic fuels, larger 'race' specification filters are available, offering increased flow capacity and filtration efficiency, though they are generally not necessary for fast road cars.

Fuel Feed and Return Lines

The fuel feed line is responsible for transporting high-pressure fuel from the main fuel pump to the fuel rail. These lines are typically constructed from metal or reinforced rubber hose. It is paramount that any hose used is specifically designed and rated to handle the high pressures associated with modern fuel injection systems. A standard, unreinforced rubber hose will quickly degrade under such conditions and could even burst, leading to dangerous fuel leaks. For engines producing significant horsepower, larger diameter fuel lines are often required to ensure adequate fuel flow. Surprisingly, however, a substantial amount of power can still be achieved with seemingly small-diameter fuel lines, highlighting the efficiency of modern fuel systems.

The return line serves a different but equally important function. It allows any excess fuel, which has been bled off by the fuel pressure regulator, to return safely to the fuel tank or swirl pot. Unlike the feed line, the fuel in the return line is not under pressure. Nevertheless, it is crucial that the return line is of a suitable diameter to accommodate the flow. If the return line is too small or becomes restricted, it will impede the flow of excess fuel, causing an undesirable increase in fuel pressure within the system, potentially affecting engine performance and longevity.

Fuel Rail

The fuel rail is essentially a robust, hollow metal bar that serves as a manifold for the fuel injectors. High-pressure fuel enters one end of the rail, circulates through it, and exits at the other end, with outlets strategically positioned along its length to accommodate each injector. The fuel pressure regulator is also typically mounted on the fuel rail. Performance fuel rails are engineered to improve fuel delivery by featuring a larger internal bore size, which allows for a higher flow rate. In some high-performance applications, fuel rails may even incorporate inlets at both ends with a central outlet. This 'through-flow' design provides a more consistent and stable fuel pressure and flow distribution to all injectors, particularly under extreme engine loads and high fuel demands.

Fuel Injectors

Fuel injectors are precision-engineered electronic solenoids, meticulously controlled by the car's Engine Control Unit (ECU). These small, yet critical, components open for precise durations and at exact moments, atomising the fuel into a fine mist as it enters the engine. This finely atomised fuel mixes more efficiently with air, leading to more complete combustion. The market offers an extensive range of injector options, making it relatively straightforward to find the right parts tailored to your engine's specific requirements. Most factory-fitted injectors have a degree of headroom for mild power increases, but for significant horsepower gains, larger capacity injectors are an absolute necessity.

While larger injectors can deliver a greater volume of fuel, they can also be more challenging to control accurately at very low pulse widths (i.e., when the engine requires very little fuel, such as at idle). This can be particularly true with less sophisticated ECUs, potentially leading to a less refined engine operation at low RPMs. Consequently, selecting the correct injector size involves a careful balancing act between maximum fuel delivery capability and maintaining optimal low-speed drivability and refinement. Modern ECUs, with their advanced processing power and sophisticated algorithms, offer significantly better control over larger capacity injectors, mitigating some of these challenges.

Fuel Pressure Regulator

The fuel pressure regulator, often positioned on the outlet side of the fuel rail, is a crucial component for maintaining a consistent and stable fuel pressure within the rail. It achieves this by allowing any excess fuel pressure to 'bleed off' into the return line, directing it back to the fuel tank. Regulators are generally simple, spring-loaded valves designed to open at a predetermined pressure point, typically around 3.5 bar for many standard systems. All aftermarket and performance regulators are fully adjustable, providing tuners with the ability to fine-tune the static fuel pressure at the fuel rail, which is vital for optimising fuel delivery. Many regulators also incorporate a reference connection to the engine's manifold pressure (via a small vacuum or boost pipe from the inlet manifold). This allows them to automatically adjust the fuel pressure in parallel with changes in manifold pressure, ensuring consistent fuel delivery across varying engine loads and boost levels.

Advanced Fuel System Concepts for Performance

For those pushing the boundaries of engine performance, several specialised components and configurations become essential to ensure reliable and consistent fuel delivery.

The Role of a Swirl Pot

On highly modified cars, a fuel swirl pot is frequently installed between the main fuel tank and the primary fuel pump that feeds the engine. A swirl pot is a relatively small-capacity, tall, and internally baffled tank, typically around two litres in volume. Its primary purpose is to prevent fuel surge. During aggressive cornering, hard acceleration, or heavy braking, the fuel in the main tank can slosh around, potentially uncovering the fuel pump pickup and causing temporary starvation, known as fuel surge. A swirl pot ensures a constant and uninterrupted supply of fuel to the main pump, even under extreme driving conditions. Swirl pots are generally fed by a low-pressure secondary pump, often referred to as a 'lift pump', from the main fuel tank, as well as by the excess fuel returned via the fuel pressure regulator.

Single vs. Twin Pump Setups

It's not uncommon to consider adding a second fuel pump to meet the high flow requirements of big-power engines. However, this configuration introduces a potential risk that owners must be acutely aware of. If one of the two fuel pumps were to fail, the single remaining pump would be unable to supply the necessary volume of fuel. This would cause a critical drop in fuel pressure, leading to the engine running severely lean, and almost certainly resulting in catastrophic engine failure. Conversely, if a single, large fuel pump were to fail, the engine would simply stall completely. Oddly, in this scenario, you are better off with the car stopping entirely rather than continuing to run with a lean mixture that is rapidly causing extensive and expensive damage. With high-quality new fuel pumps and meticulously wired electrical systems, the risk of failure is minimal, but it remains a significant factor worth considering when designing a high-performance fuel system.

Multiple Injectors Per Cylinder

You may have observed that some high-performance vehicles utilise two, and in rare cases, even three, injectors per cylinder. There are two primary configurations for this: side-by-side injectors, as seen on Escort WRC cars, and stand-off injectors, famously used on the Sierra RS500. There are three main reasons for implementing multiple injectors per cylinder. Firstly, older engine management systems could struggle to precisely control very large single injectors, making multiple smaller injectors a more manageable solution. Secondly, extreme fuel flow requirements can simply exceed the capabilities of a single injector, necessitating additional injectors. Thirdly, secondary injectors, when strategically placed further away from the inlet port, can help to lower inlet air temperatures. This cooling effect can potentially increase power output and significantly reduce the risk of harmful detonation.

However, running multiple injectors carries a similar risk to using multiple fuel pumps: the danger of a single injector failure. Should one injector fail in a multi-injector per cylinder setup, that specific cylinder will run lean, leading to a high probability of severe and costly damage. Again, while this risk is greatly minimised with new, high-quality components and expertly built electrical systems, the inherent possibility of failure is still present.

In-Tank vs. Inline Fuel Pump

As you might infer from their names, an in-tank fuel pump is submerged within the fuel tank itself, while an inline fuel pump is positioned within the fuel feed line, typically shortly after the fuel tank outlet. Most newer cars are equipped with in-tank pumps due to their quiet operation and efficient cooling from being submerged in fuel. While effective, vehicles with uprated in-tank pumps can sometimes be more susceptible to fuel surge during aggressive cornering compared to inline pump setups. To counteract this, it is often advisable to also install a fuel swirl pot feeding an external, inline pump. A performance fuel cell with integrated baffles designed to prevent fuel surge can also help significantly. However, in standard fuel tanks, the factory-fitted baffles may simply not be robust enough to prevent surge during vigorous track use.

Maintaining Your Fuel System: Injector Cleaning

Restoring the performance of fuel injectors through professional cleaning is a vital aspect of the tuning process, especially when dealing with older or second-hand components. Fuel, despite filtration, is rarely perfectly clean, and over time, contaminants can slowly clog the fine passages within an injector, leading to a gradual loss of performance. Unless the problem is severe, you might not immediately notice the degradation. If you purchase a set of used injectors, you may not realise one is partially blocked until it's too late, and you find yourself staring at a melted piston. Professional injector cleaning and flow testing are absolutely critical to ensure your engine remains safe and operates at its peak performance. Injectors are typically cleaned in an ultrasonic bath to dislodge deposits and then precisely tested and, if necessary, adjusted on specialist flow testers, such as those manufactured by injection specialist ASNU, to ensure consistent flow rates across all cylinders.

The Evolution: Direct Injection (DI)

The latest generation of engines, prominently featured in many modern Fords with their EcoBoost powerplants, utilise direct injection (DI). While the basic concept of injecting fuel remains similar to traditional electronic fuel injection, the key difference lies in the point of injection: fuel is sprayed directly into the combustion chambers at incredibly high pressure, rather than into the inlet manifold where it would then enter the combustion chamber via the inlet valve. This fundamental change offers several significant advantages.

Direct injection is a far more efficient method of fuel delivery, allowing for higher compression ratios and greater boost pressures to be run safely on standard pump fuel. This translates into overall improved drivability, enhanced fuel economy, and significantly reduced exhaust emissions. However, much like traditional port-injection systems, the standard direct injection components do have their limits when chasing substantial power gains. For example, on EcoBoost engines, a high-pressure fuel pump is mounted directly on the engine and is mechanically driven by a cam lobe. The fuel rail pressures in DI systems are vastly higher than traditional port injection, often reaching up to 200 bar. Despite these high pressures, the original equipment (OE) parts may not flow enough fuel to support all high-performance tuning goals. For big-power DI engines, a high-performance high-pressure fuel pump from specialists like Xtreme-DI is essential. In some cases, the upgraded pump alone can meet the increased fuel delivery requirements, but for highly tuned engines, the pump will need to be perfectly matched with high-flow direct injectors. These advanced components do not come cheap; for instance, a high-pressure pump and a set of 2000cc injectors for a 2.3 EcoBoost engine can easily cost over £2,500.

Hybrid Solutions: Port and Direct Injection Systems

Before the widespread availability of high-performance, high-pressure DI pumps, tuners often employed a clever strategy to supplement the DI injectors: adding another set of traditional port-injectors. In essence, this creates a dual-fuel system running simultaneously – one direct-injection, and one port-injection. While this approach adds to the cost and complexity of the fuel system, it provided an excellent method for supplying the extra fuel needed when aftermarket DI upgrades were non-existent or insufficient. Although modern high-performance DI upgrades now offer a much neater and more integrated installation, the option of adding an additional bank of traditional injectors (typically mounted in the inlet manifold) remains a viable and handy alternative for certain applications or specific tuning goals.

Comparative Table: Port Injection vs. Direct Injection

Frequently Asked Questions (FAQs)

What are the signs of a failing fuel pump?

Common signs of a failing fuel pump include difficulty starting the car, engine sputtering or stalling at high speeds, a noticeable loss of power under acceleration, a whining noise from the fuel tank area, or a sudden drop in fuel pressure. If you suspect an issue, it's best to have it checked by a professional immediately.

Why is the correct fuel pump size important?

An correctly sized fuel pump ensures adequate fuel supply without over-circulating the fuel. An undersized pump will lead to a lean condition and potential engine damage, while an oversized pump can overheat the fuel, reducing its density and potentially increasing the risk of detonation, even though the fuel pressure regulator prevents over-fuelling the engine itself.

Can I use an oversized fuel filter?

While an oversized fuel filter won't directly harm your engine, it's generally unnecessary for fast road cars. Standard filters are usually sufficient for moderate power increases. However, for high-power applications or those running exotic fuels, larger 'race' items are available and beneficial to ensure unhindered fuel flow and superior filtration.

What is fuel surge and how is it prevented?

Fuel surge occurs when the fuel in the main tank sloshes away from the fuel pump pickup during aggressive driving (cornering, braking, accelerating), causing temporary fuel starvation. It is primarily prevented by using a fuel swirl pot, which maintains a constant supply of fuel to the main pump, or by using a baffled fuel cell.

Is direct injection always better than port injection?

Direct injection offers significant advantages in efficiency, power potential, and emissions. However, it can be more prone to intake valve carbon buildup (as fuel doesn't wash over the valves) and requires higher-pressure, more expensive components for high-performance applications. For daily driving, both systems are highly effective, but DI generally offers superior fuel economy and performance potential.

How often should fuel injectors be cleaned?

There's no fixed schedule, but if you notice rough idling, misfires, reduced fuel economy, or a loss of power, clogged injectors could be the cause. It's especially recommended to have injectors cleaned and flow tested if you're using old or second-hand components, or as part of a comprehensive engine tuning process to ensure optimal performance and engine safety.

In conclusion, the fuel injection system is a masterpiece of automotive engineering, constantly evolving to meet the demands for greater efficiency, lower emissions, and higher performance. From the fundamental components that ensure basic operation to the advanced technologies like direct injection and multi-injector setups, understanding each element is crucial for anyone involved in vehicle maintenance or performance tuning. A well-maintained and correctly specified fuel system is not just about power; it's about reliability, efficiency, and the longevity of your engine. Always prioritise quality components and professional installation when upgrading or servicing this vital system to unlock your vehicle's true potential safely and effectively.
