Unlocking Performance: EFI & LS1 Injectors

When it comes to optimising your vehicle's performance, particularly with an LS1 engine or considering a modern fuel delivery system, understanding your fuel injectors and the benefits of electronic fuel injection (EFI) is paramount. The right fuel system can unlock significant improvements in power, drivability, and even fuel efficiency. This article delves into the specifics of LS1 fuel injectors and provides an in-depth look at the advantages and installation of advanced EFI systems, ensuring your classic or modern performance car runs at its absolute best.

Understanding LS1 Fuel Injectors: When to Upgrade

The LS1 engine is a powerhouse, but like any component, its stock parts have limits. Factory-fitted, the LS1 typically comes equipped with 28-pound fuel injectors. These are perfectly adequate for a standard, unmodded engine and will serve you well for everyday driving and moderate performance. However, there's a critical point where these stock injectors become a bottleneck to your engine's potential.

The general consensus among automotive enthusiasts and tuners is that the stock 28-pound LS1 fuel injectors are sufficient until your engine approaches the 400 horsepower mark. Once you start pushing beyond this threshold, whether through camshaft upgrades, cylinder head work, or forced induction, these injectors simply cannot supply enough fuel to maintain the correct air-fuel ratio under load. Running too lean can lead to detonation, engine damage, and a significant loss in performance.

At this juncture, it becomes imperative to upgrade to a more robust set of fuel injectors. Stepping up to larger injectors, capable of flowing more pounds per hour (lbs/hr), ensures that your engine receives the necessary fuel volume for its increased air intake. Crucially, when upgrading your injectors, it's also highly recommended to simultaneously swap in a higher flow fuel pump. A larger pump is necessary to maintain adequate fuel pressure and supply the increased volume of fuel that the new, larger injectors demand. Neglecting the fuel pump can lead to fuel starvation issues, even with capable injectors.

The Evolution: Carburetors vs. Electronic Fuel Injection

For decades, carburetors were the standard for fuel delivery in performance vehicles. They are undeniably effective for achieving peak horsepower in a controlled environment, such as a drag strip. However, modern performance car owners demand more than just raw power; they seek enhanced drivability, improved fuel economy, and crisp throttle response. This is precisely where electronic fuel injection (EFI) emerges as the superior choice.

The fundamental difference lies in how fuel is introduced into the combustion chamber. Carburetors rely on the suction created by air accelerating through a venturi to draw fuel into the airstream. This method is effective but is inherently tuned for specific RPMs and air densities. When environmental conditions change, such as driving to a higher elevation or experiencing significant temperature shifts, a carbureted system's tuning is disrupted, leading to suboptimal performance, poor economy, and flat spots in the power band.

In contrast, EFI systems atomise fuel by pumping it through small nozzles under pressure. More importantly, EFI systems are equipped with a sophisticated array of sensors that act like a 'mini weather station' onboard. These sensors constantly monitor various parameters such as air density, temperature, engine load, and oxygen levels in the exhaust. The Engine Control Unit (ECU) then uses these real-time signals to calculate and deliver the precise amount of fuel required for optimal performance, regardless of altitude or air density. This continuous, on-the-fly correction ensures consistent power delivery, improved fuel efficiency, and a far more responsive driving experience.

Key Differences: Carburetor vs. EFI

Introducing the FAST EZ-EFI Self-Tuning System

One of the most appealing aspects of modern EFI conversions is the advent of self-tuning systems, which significantly simplify the transition from carbureted setups. The FAST EZ-EFI Self Tuning Fuel Injection System is a prime example, designed to alleviate any installation panic with its straightforward procedure and self-learning capabilities.

FAST engineers highlight a major advantage: their self-tuning EFI kit was designed in-house from scratch. This ensures a high level of product integration and exceptional customer support, with tech lines and a robust online community providing assistance around the clock. Furthermore, the system is engineered to utilise readily available OE-type sensors, making replacements inexpensive and easy to source from local parts stores, a significant convenience for any enthusiast.

Key Features of FAST EZ-EFI:

• Standard single throttle-body system flows 1,100+ CFM and supports up to 650 horsepower.
• Throttle body features a 4150-style footprint, allowing it to work seamlessly with original carb-style linkage and accept all OEM sensors.

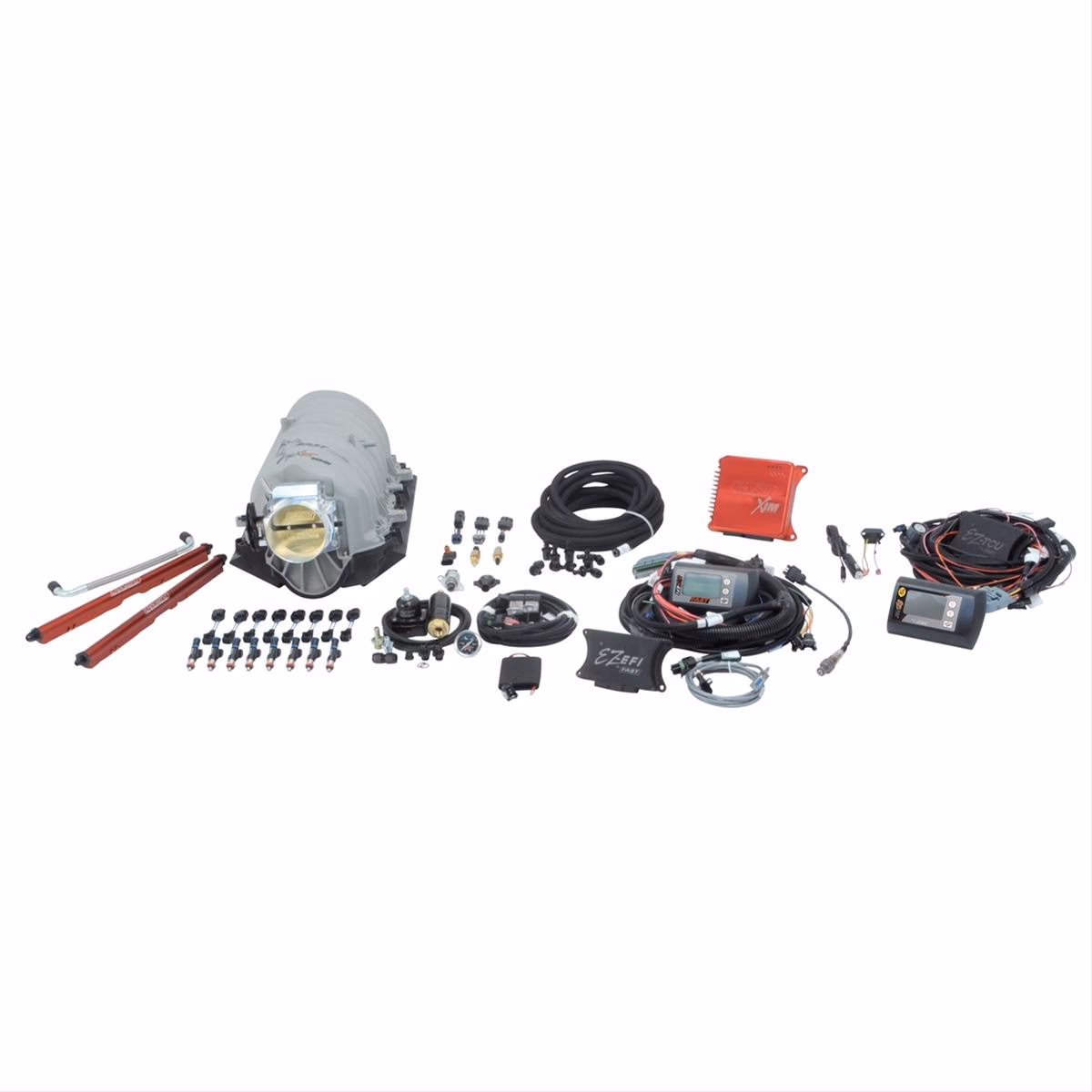

• The complete system includes a mini ECU, a wide-band O2 sensor, a clearly labelled wiring harness, injectors, a fuel pump kit, and the throttle body.
• Compatible with any ignition setup, including HEI.
• An easy-to-use Setup Wizard guides users through the initial tuning menu.
• Available in various configurations, including carb replacement, dual-quad, multi-port, 8-stack, and Jeep systems.

Installation Deep Dive: Getting Your EZ-EFI System Running

While the prospect of converting to EFI might seem daunting, the FAST EZ-EFI system is designed for garage enthusiasts with basic maintenance skills and common hand tools. Here's a breakdown of the typical installation process:

O2 Sensor Installation

For the EZ-EFI system to function correctly, an oxygen sensor must be installed in the exhaust system. This typically requires welding a sensor bung onto the header or downpipe. Many aftermarket headers now come with pre-welded bungs, but if not, a local muffler shop can perform this task affordably. It's crucial to have the O2 sensor bung welded in place before attempting to install the rest of the system to ensure a smooth process.

Fuel Pump and Filter Installation

FAST recommends mounting the fuel pump as close to the fuel tank as possible and low, ideally allowing it to be gravity-fed. All standard safety precautions related to fuel systems must be observed: ensure components are kept away from heat sources and moving parts, confirm the fuel tank is properly vented, and use a pressure regulator with a vacuum reference port to adjust fuel pressure based on manifold vacuum changes.

The EZ-EFI 600 HP inline fuel pump kit (part #307503) includes an adjustable fuel pressure regulator, an inline electric EFI fuel pump, a fuel pressure gauge, a reusable billet fuel filter, and a plug-and-play relay harness. The system's baseline fuel pressure is 43 psi, at which the four injectors and EZ-EFI throttle body can support up to 550 horsepower. For higher horsepower applications, the system can support more by increasing the fuel pressure; the injectors themselves are rated at 88 lbs/hr at 60 psi.

The EZ-EFI fuel pump hose and fitting kit (part #307600) provides 25 feet of push-lock fuel hose, straight and 90-degree push-on fittings, and Gator clamps. A useful tech tip for installing the push-on fittings is to soak the hose ends in boiling water to make them more pliable. Once cut to length and secured with a hose clamp, the fittings are ready for connection.

Fuel System Wiring

The fuel-pump-relay harness, included in the fuel pump kit, simplifies wiring considerably. It consists of a long red wire for power to the fuel pump, a connector wire to the main EZ-EFI wire harness, and a black ground wire. The entire setup is designed for straightforward connections, largely plug-and-play, minimising the chance of wiring errors.

Main Wiring Harness and ECU Mounting

FAST has meticulously designed its EZ-EFI wiring harness with clear labels that correspond directly to the instruction manual, making hook-up to the vehicle's electrical system remarkably smooth. It is vital to make positive and negative battery connections directly to the battery itself to prevent electrical noise issues. A switched 12-volt source, active when the key is in the 'on/run' and 'start' positions, is also required.

Connectors for various sensors (injectors, idle motor, throttle, air temp, MAP sensor, coolant temp, O2 sensor) and the hand-held controller are all clearly labelled and sized uniquely to prevent incorrect connections. While some connections, like those for the tach/RPM module, fuel-pump relay/controller, and air conditioning switch, may require specific wiring, detailed diagrams are provided in the manual.

The ECU itself features a watertight connection to the harness. FAST recommends mounting the ECU inside the car's cockpit, with the harness connector facing downwards to reduce any chance of moisture ingress. When choosing a mounting location, consider the length of the wire harness and the hand-held controller communication cable. Longer cables are available if needed, and importantly, the hand-held controller is not required to be connected after the initial setup for the engine to run.

Throttle Body Installation and Initial Setup

Installing the EZ-EFI throttle body is typically a straightforward process. After disconnecting the existing throttle linkage and removing the old carburetor, the EZ-EFI throttle body bolts directly onto the intake manifold's 4150 square-bore flange. It uses Holley-style throttle linkage, so your existing linkage should mount up easily, with a ball stud and lock nut included for completion. As with any carburetor or throttle-body installation, a throttle return spring should always be used for safety.

The system setup begins with the EZ-EFI hand-held controller, which serves as a multi-tool. It functions as a code reader/scan tool, can clear error codes, and allows for real-time monitoring and adjustments of engine data while driving. The 'Setup Wizard' menu guides users through the initial configuration, asking whether to start a new tune or reset the ECU. Starting a new tune automatically resets parameters like the learning feature, rev limiting, air/fuel ratio targets, and electric-fan operating temperature.

Once basic engine details are entered into the Setup Wizard, the vehicle is ready to start. The self-learning procedure commences immediately, with the ECU fine-tuning the fuel map. During test drives, users often observe significant correction percentages (e.g., 15-20%) as the system continuously adapts and refines its tune on the fly. This adaptive capability ensures optimal performance and efficiency, adapting to driving styles and environmental conditions.

The Real-World Impact: Drivability and Economy

The most compelling benefit of converting to an EFI system like the FAST EZ-EFI is the tangible improvement in driving experience. Test drivers frequently report a noticeable smoothing out of the throttle response the more the system learns. Initial start-ups, particularly in cold conditions, often require holding the throttle at different targets until the engine reaches operating temperature, but the self-learning function quickly adapts to desired idle RPMs and other parameters, making subsequent starts effortless.

Beyond the immediate improvements in throttle feel and cold starting, the gains in fuel economy are often remarkable. While individual results vary depending on factors such as the previous carburetor's tuning quality, gains of two to three miles per gallon are commonly observed, with some conversions even reporting increases of up to seven MPG. This enhanced efficiency, combined with consistent performance across diverse conditions, makes EFI a highly worthwhile upgrade for any classic muscle car or performance vehicle.

The beauty of the EZ-EFI system lies in its accessibility. With basic mechanical aptitude and common garage tools, an enthusiast can realistically undertake the installation over a weekend. Imagine starting on a Saturday morning and by Saturday evening, cruising your classic muscle car with the benefits of modern electronic fuel injection – it's a transformation that truly brings vintage vehicles into the 21st century without sacrificing their soul.

Frequently Asked Questions

Q1: What horsepower can the stock LS1 injectors handle before an upgrade is needed?

The stock 28-pound fuel injectors on an LS1 engine are generally sufficient until your engine reaches approximately 400 horsepower. Beyond this point, you'll need to upgrade to larger, higher-flowing injectors to adequately fuel the engine and avoid running lean.

Q2: What is the baseline fuel pressure for the FAST EZ-EFI system?

The baseline fuel pressure recommended for the FAST EZ-EFI system is 43 PSI. At this pressure, the system, with its four injectors and throttle body, can support up to 550 horsepower. For higher horsepower applications, the system can support more power by increasing the fuel pressure, as the injectors are rated at 88 lbs/hr at 60 PSI.

Q3: Can I install the FAST EZ-EFI system myself, or do I need professional help?

The FAST EZ-EFI system is designed with the DIY enthusiast in mind. Many users with basic mechanical skills and common hand tools can successfully install the system. The clear instructions, labelled wiring harness, and self-tuning capabilities make the process relatively straightforward. However, tasks like welding an O2 sensor bung might require professional assistance if you lack the equipment or expertise.

Q4: Does converting to an EFI system like FAST EZ-EFI improve fuel economy?

Yes, significantly. One of the major benefits of converting from a carburetor to an EFI system is improved fuel economy. Users commonly report gains of two to three miles per gallon, with some experiencing even higher improvements (up to seven MPG), depending on factors like the previous carburetor's tuning and driving habits. This is due to the EFI system's precise, real-time fuel metering.

Q5: Is the hand-held controller always required to be connected after the initial setup?

No, the hand-held controller for the FAST EZ-EFI system is not required to be connected after the initial setup for the engine to run. It's primarily used for the initial configuration via the 'Setup Wizard', monitoring live engine data, reading/clearing error codes, and making on-the-fly adjustments if desired. Once the system has learned and is running optimally, you can disconnect it.
