04/12/2013
Converting a classic car from a traditional carburettor setup to Electronic Fuel Injection (EFI) has become the go-to solution for enthusiasts seeking improved reliability, smoother performance, and better fuel economy. For years, companies like Fuel Air Spark Technology (FAST) have simplified this conversion, offering user-friendly, self-learning systems that transform your driving experience with minimal fuss. However, when you push the boundaries of performance, particularly with forced induction, the game changes entirely. This is where the advanced capabilities and mandatory tuning of the FAST XFI 2.0 system become not just beneficial, but absolutely essential.
The Evolution of EFI: From Carburettors to FAST
Gone are the days of scouring scrapyards for EFI components. Modern, standalone EFI conversion kits provide a straightforward path to better starts, a smoother idle, and enhanced fuel efficiency. Systems like the FAST EZ-EFI are designed for simplicity, often fitting standard 4150-style carburettor flanges, making them incredibly easy to install. Even for popular engine swaps, such as LS engines in classic vehicles, the EZ-EFI 2.0 kit offers a plug-and-play solution where the system handles the complex task of tuning itself, leaving you to enjoy the installation process.
The Simplicity of EZ-EFI: Self-Learning Prowess
The FAST EZ-EFI system, particularly the 2.0 version, is a marvel of automotive technology for the average enthusiast. Its core appeal lies in its self-tuning strategies, which largely eliminate the need for a laptop and advanced computer skills. Once installed and the engine is started for the first time, the system immediately begins to learn and make its own adjustments. This continuous self-learning capability ensures optimal fuel delivery and performance without constant manual intervention.
Key features that make the EZ-EFI so attractive include minimal hardware requirements, straightforward electrical connections, and a self-contained throttle body that houses all necessary injectors and sensors. This design facilitates an exceptionally easy installation. Furthermore, the EZ-EFI 2.0 system is robust enough to support engines producing up to 1,200 horsepower, significantly broadening its appeal beyond entry-level swaps which typically cap out around 600 horsepower.
The benefits are indisputable: consistent and precise fuel delivery leads to enhanced drivability, lower emissions, and improved fuel economy. For off-road enthusiasts, EFI conversions eliminate the common carburettor float-level problems encountered when driving off-camber or climbing steep hills. The system's sophisticated algorithm continuously monitors engine conditions such as RPM, throttle position, and oxygen-sensor readings. It then intelligently determines whether a point requires learning and adjusts fuel delivery accordingly, always aiming for safe, optimal performance.
The EZ-EFI 2.0 ECU comes pre-programmed with base maps, ensuring a safe initial startup and allowing for preliminary adjustments to components like the fuel regulator and throttle-position sensor. While the system is designed to learn on its own, users can access an advanced menu to fine-tune parameters such as fan control and air/fuel ratios for idle, cruising, and wide-open throttle (WOT). This flexibility allows users to personalise the tune for specific performance goals, such as dialling in a precise 13.2:1 air/fuel ratio for peak power if desired.

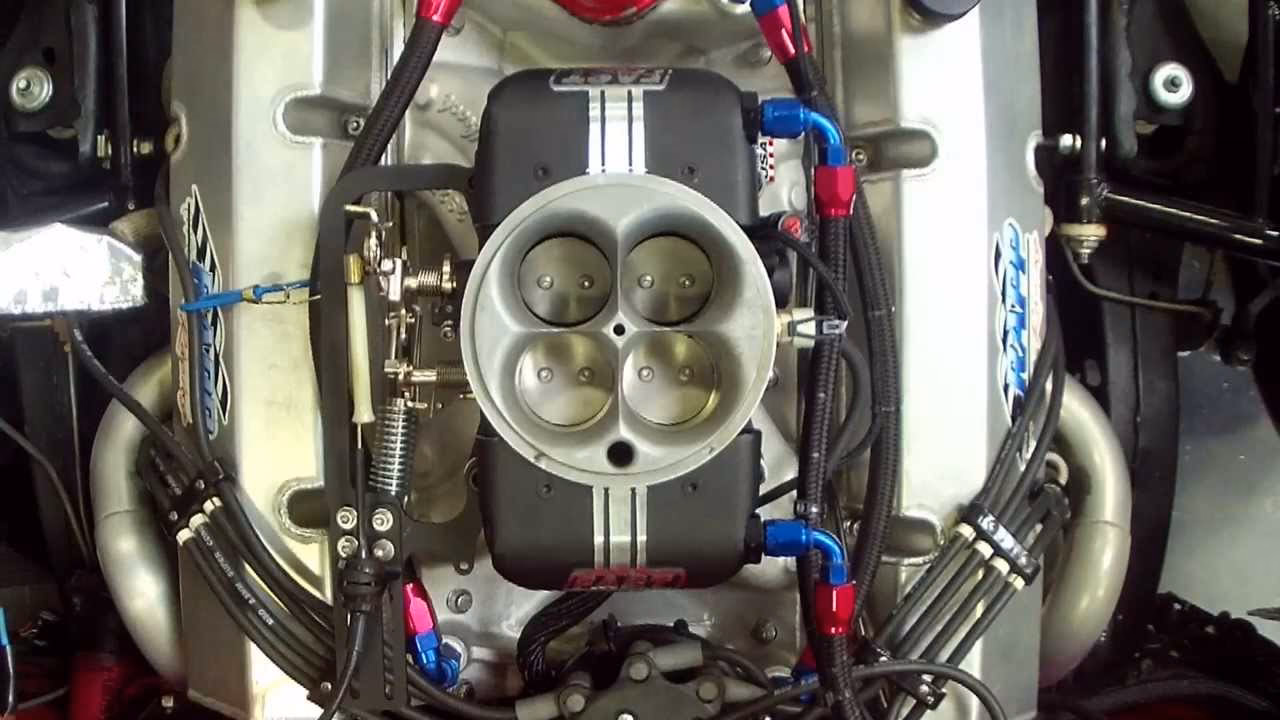

A complete FAST EZ-EFI 2.0 kit typically includes the throttle body, ECU, wiring harness, and a handheld programmer. Users can also choose between in-tank or in-line fuel systems, or integrate their own custom fuel delivery setup. Crucial to any EFI system's success is the wideband O2 sensor, which accurately monitors the air/fuel ratio. Proper placement of this sensor, ideally at least 12 inches from the exhaust outlet to mitigate reversion issues from large camshafts, is paramount for accurate readings and effective tuning.
When Self-Learning Isn't Enough: Enter FAST XFI 2.0
While the EZ-EFI shines in its simplicity and self-learning capabilities, there are applications where a more hands-on, precise approach to tuning is not just desired, but absolutely mandatory. Consider builds like Project MaxStreet, a 1966 Chevy Nova equipped with a 555 cubic inch big-block, an F-2 ProCharger, and a water-methanol injection kit. This beast is designed to put down close to 1,000 horsepower at the wheels. While some FAST EFI systems can handle high horsepower, adding boost dramatically changes the tuning requirements.
Forced induction, such as a supercharger, introduces significant complexities. It not only increases cylinder pressure and compression but also uniquely influences the wideband O2 sensor's readings, potentially leading the system to misinterpret fuel needs. In such high-stress environments, relying solely on a self-learning system can be detrimental. The risk of engine damage, specifically detonation, becomes a very real concern if fuel delivery is not precisely controlled across all operating conditions.
This is precisely where the FAST XFI 2.0 system steps in. Unlike its EZ-EFI counterpart, the XFI 2.0 is a fully tunable EFI conversion that demands a custom tune. For applications with power adders, a laptop becomes an indispensable tool, empowering the tuner to make critical decisions that the computer simply cannot on its own. Expert intervention, like that of Joe Trujillo from Westech Performance, is invaluable. As Joe explains, you cannot simply install an EFI system with boost and expect it to automatically sort out fuel delivery. The sheer number of parameters that need to be addressed is vast.
The Art of XFI 2.0 Tuning: Precision for Power
Tuning a boosted engine with the FAST XFI 2.0 is a meticulous process. Fuel requirements vary dramatically at the same RPM depending on whether you are accelerating, decelerating, or simply cruising. An expert tuner's job involves making initial dyno runs to establish the baseline air/fuel ratio (A/FR) and then observing its patterns as power builds. This data is then used to precisely map the fuel delivery, ensuring the engine receives adequate fuel when needed and that ignition timing is appropriately retarded when advancing too much.
The complexity further increases with the addition of water-methanol injection. This requires additional modifications to the tune to prevent potential piston damage caused by incorrect fuel delivery. Through this detailed process, Project MaxStreet achieved an impressive 900 rear-wheel horsepower and 799.10 lb-ft of torque on the Dynojet 224xLC dynamometer. While impressive, the potential for even more power was evident, highlighting the ongoing nature of high-performance tuning.
Joe Trujillo noted that tuning the XFI system isn't excessively difficult for an experienced hand, but it demands constant monitoring of fuel maps. This includes observing how the engine behaves during transmission shifts and load changes, all to ensure smooth transitions and maintain the A/FR precisely where it needs to be for optimal performance and engine longevity.
EZ-EFI vs. XFI 2.0: A Comparative Look
Understanding the key differences between these two powerful FAST systems is crucial for selecting the right one for your build.
| Feature | FAST EZ-EFI 2.0 | FAST XFI 2.0 |
|---|---|---|
| Primary Tuning Method | Self-learning / Handheld Programmer | Laptop-based custom tuning |
| Laptop Requirement | Not required for basic operation | Mandatory for boosted/high-HP applications |
| Maximum Horsepower Support | Up to 1,200 HP | Virtually unlimited with custom tuning |
| Ideal Application | Street cars, mild performance, carburettor replacement, plug-and-play swaps | High-horsepower, forced induction (boosted), race applications, highly modified engines |
| Complexity of Installation | Simple, minimal wiring | More involved, requires attention to advanced sensors and inputs |
| Level of Expertise Needed | Beginner to intermediate | Advanced, often requires professional tuner |
| Detonation Prevention | Good for naturally aspirated | Critical, precise control for boosted engines |
| Fuel System Options | Return or Returnless (with damper) | Typically requires return-style for precise control with boost |
Frequently Asked Questions About EFI Tuning
Q: Can I use the EZ-EFI 2.0 with a supercharger?
A: While the EZ-EFI 2.0 can handle engines up to 1,200 horsepower, adding significant boost introduces complexities that are best addressed by the more granular control offered by the XFI 2.0 system and custom tuning. The self-learning system may struggle to accurately compensate for the unique fuel and timing demands of boosted applications, potentially leading to engine damage.
Q: What is detonation and why is EFI tuning crucial to prevent it?
A: Detonation, or 'engine knock', occurs when the air/fuel mixture ignites prematurely or uncontrollably in the cylinder, leading to extreme pressure spikes that can severely damage pistons, connecting rods, and crankshafts. In boosted applications, the increased cylinder pressure makes detonation a higher risk. Precise EFI tuning ensures the correct amount of fuel is delivered and ignition timing is optimised for all load and RPM conditions, preventing this destructive phenomenon.
Q: Do I need a professional tuner for my FAST XFI 2.0?
A: For boosted or extreme high-horsepower applications, it is highly recommended to have a professional tuner with experience in the FAST XFI 2.0 system calibrate your engine. Their expertise ensures that all parameters are correctly mapped, maximising power output while maintaining engine safety and reliability. While it is possible for an advanced DIY enthusiast, the learning curve is steep and the consequences of error are severe.
Q: How often should I re-tune my XFI 2.0 system?
A: After the initial comprehensive tune, re-tuning may be necessary if you make significant modifications to the engine (e.g., cam change, head swap, increase in boost pressure), change fuel types, or if you notice any changes in performance or drivability. For race applications, minor adjustments might be made based on track conditions or atmospheric changes.
Q: What's the difference between a return and returnless fuel system?
A: A return-style fuel system cycles unused fuel back to the fuel tank, helping to keep the fuel cool and maintaining consistent pressure at the fuel rail. A returnless system delivers only the necessary fuel to the engine, which simplifies plumbing but can lead to hotter fuel, especially under sustained high load. For high-horsepower and boosted applications, a return-style system is generally preferred for its ability to maintain more stable fuel pressure and reduce fuel heating.
Conclusion: Tailoring EFI to Your Ambition
The choice between FAST's EZ-EFI and XFI 2.0 systems ultimately depends on your vehicle's application and your performance aspirations. For those seeking a straightforward, reliable carburettor replacement that offers improved drivability and economy with minimal fuss, the self-learning EZ-EFI 2.0 is an outstanding choice. It truly lives up to its name, providing exceptional ease of installation and daily driveability.
However, when your ambition extends to extreme horsepower figures and the complexities of forced induction, the FAST XFI 2.0 system becomes the definitive solution. While it demands a more hands-on approach and often requires the expertise of a professional tuner and a laptop, it unlocks unparalleled precision in fuel delivery and ignition timing. This granular control is vital for preventing engine damage in high-stress scenarios and for extracting every last bit of performance from your highly modified engine.
Much like a carburettor, the XFI 2.0 allows for meticulous tuning, but with the added advantage of a sophisticated computer that can be taught to react to changing variables with incredible accuracy. If you're unsure which EFI conversion system is right for your unique build, reaching out to FAST's technical support team is always a wise step. Rest assured, even for the most demanding, high-horsepower, boosted applications like Project MaxStreet, there's a robust EFI solution waiting to elevate your classic car's performance to new heights.
