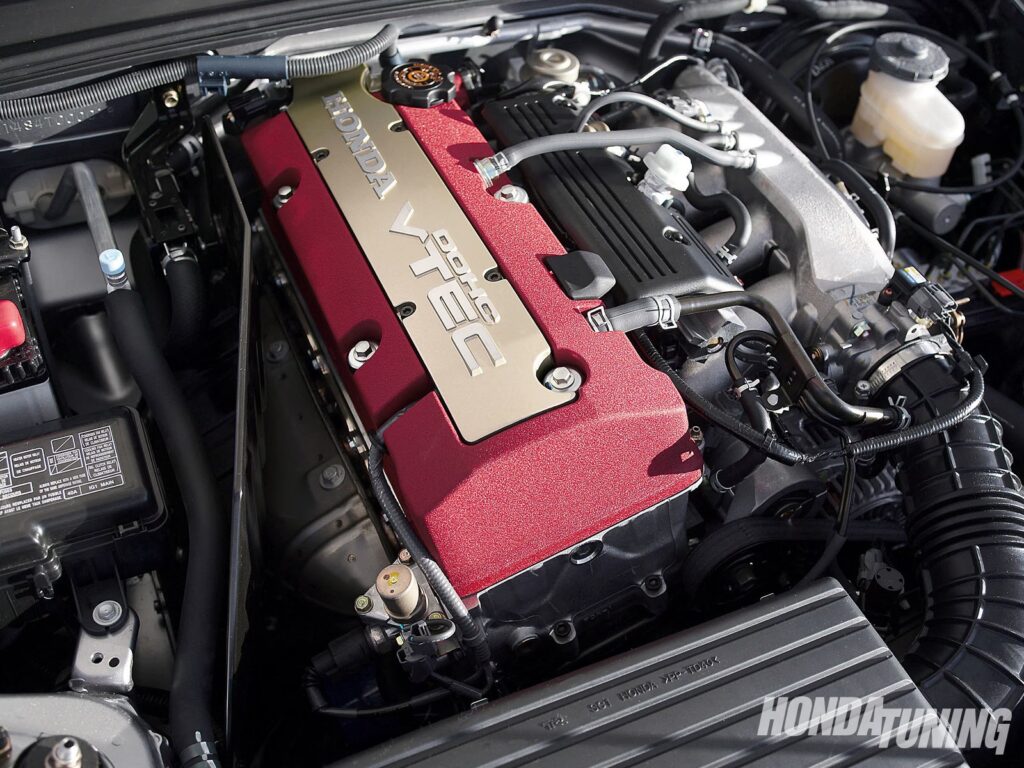

The Honda F22C engine, found in the later models of the iconic S2000, is a testament to Japanese engineering prowess. Renowned for its high-revving nature and robust construction, it's a popular choice for enthusiasts looking to push the boundaries of performance. While the stock F20C and F22C blocks are commendably stout, capable of handling significant power increases without internal modifications, achieving ambitious horsepower targets, particularly with forced induction, often necessitates a closer look at the engine's fundamental parameters. This is where understanding and modifying the compression ratio becomes paramount.
The Need for Compression Reduction in Turbocharged F22C Engines
The stock F22C engine boasts a relatively high compression ratio of 11.0:1. While this is ideal for naturally aspirated efficiency and responsiveness, it presents a significant hurdle when introducing a turbocharger. Higher compression ratios increase the likelihood of detonation, or 'knock', under boost. Knock is an uncontrolled combustion event that can lead to catastrophic engine damage. To safely run higher boost pressures and extract more power from a turbocharged F22C, reducing the compression ratio is a fundamental step.
A common and effective target compression ratio for a turbocharged F22C, especially when aiming for around 500 crank horsepower on 91 octane fuel and utilising a catalytic converter, is 9.5:1. This reduction provides a much safer margin against detonation, allowing for more aggressive boost levels and more optimal ignition timing.
Internal Engine Components: The Foundation for Forced Induction
When embarking on a forced induction build for the F22C, upgrading internal components is crucial to handle the increased cylinder pressures and thermal loads. The original text highlights the use of Mahle Gold Series pistons and Carrillo PRO-H connecting rods, which are excellent choices for this application.
Mahle Gold Series Pistons for FRM Liners
Honda's F-series engines utilise Fiber Reinforced Metal (FRM) liners, also known as Metal Matrix Composite (MMC). These liners are a lightweight alternative to traditional cast-iron liners, but they require specific piston coatings for compatibility to prevent premature wear. Mahle's Gold Series pistons are specifically designed for use with FRM liners, featuring an Anti-Friction Skirt Coating that ensures smooth operation and longevity.
These pistons are forged from 2618 alloy aluminium, a material known for its strength and durability under high stress. The design incorporates generous fillet radii to reduce stress risers, a critical feature for boosted applications. Furthermore, the top ring groove is hard anodized to withstand the extreme pressures and piston speeds experienced in a high-performance turbocharged engine. Mahle's attention to detail is evident in features like the phosphate coating on the piston, which acts as a dry lubricant in the pin bores and ring grooves, protecting against galling during cold starts.
Key Features of Mahle Gold Series Pistons:
| Feature | Benefit |
|---|---|
| Forged 2618 Alloy Aluminium | Superior strength and durability |
| FRM Liner Compatible Coating | Prevents wear with Honda's specific liners |
| Hard Anodized Top Ring Groove | Withstands high cylinder pressures and speeds |
| Phosphate Coating | Dry lubrication for critical areas, preventing galling |
| Included Piston Pin | Stiff design with thick walls for added strength |
Carrillo PRO-H Connecting Rods
Transferring the combustion forces from the pistons to the crankshaft requires robust connecting rods. The Carrillo PRO-H connecting rods are a premium choice, engineered to handle significant power outputs. Rated for approximately 275hp per rod, they provide ample safety margin for a build targeting around 500 crank horsepower, which equates to roughly 125hp per rod. This under-stressing ensures excellent fatigue life and reliability.
The strength of these rods is derived from their manufacturing process: forging, heat treatment to reduce internal stresses, and shot peening to enhance fatigue strength. Features like the small end bushing with oil feed holes for the piston pin further underscore their high-performance design.
Connecting Rod Strength Considerations:
| Engine Component | Approximate Strength Rating | Target Build Requirement | Safety Margin |
|---|---|---|---|
| Carrillo PRO-H Rods | ~275 HP each | ~125 HP each (for 500 crank HP) | Excellent |

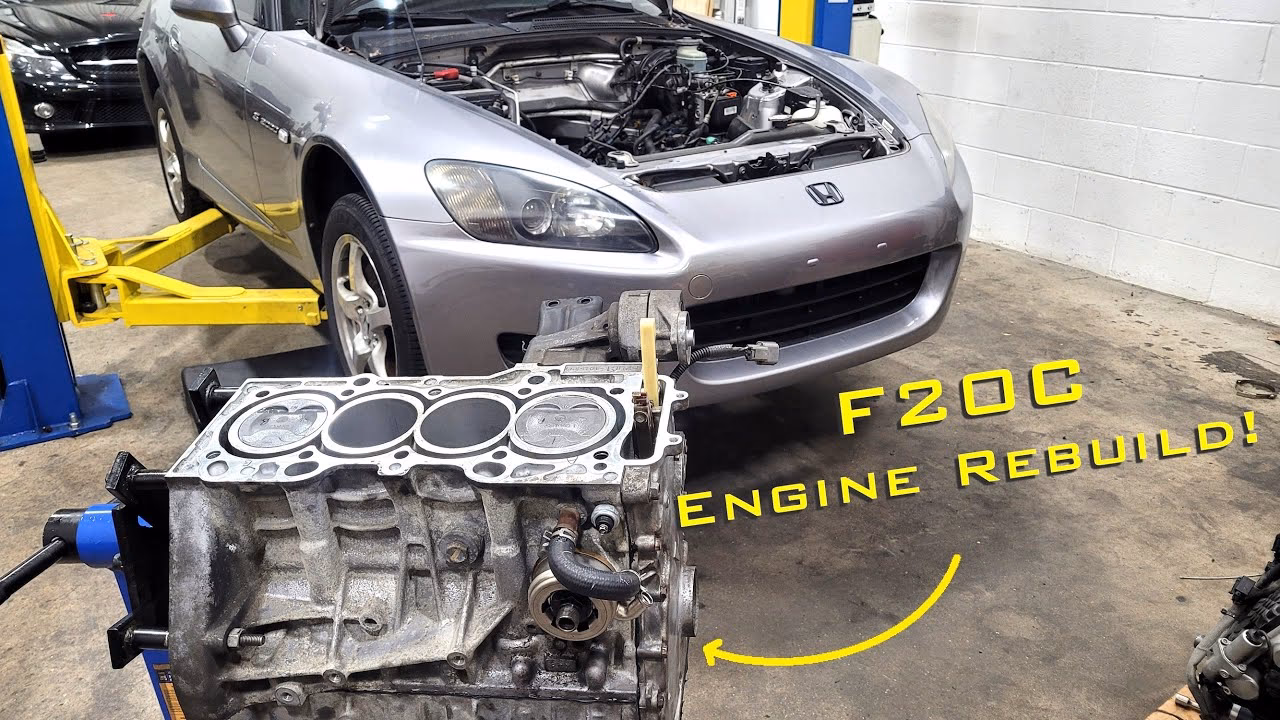

Understanding the F20C vs. F22C Difference
It's important to distinguish between the F20C and F22C engines, as they have key differences that influence tuning strategies:
- F20C: Found in earlier S2000 models (2000-2003), this engine has a displacement of 2.0 litres and an impressive redline of 9,000 rpm, making most of its power at the upper end of the rev range.
- F22C: Introduced from 2004 onwards, this engine features a larger displacement of 2.2 litres due to a longer stroke. Its redline is slightly lower at 8,000 rpm, but it offers a modest increase in peak power and, more notably, improved mid-range torque.
Both engines are highly tuneable, and while the F20C is known for its extreme revability, the F22C's increased displacement and torque can be advantageous in a boosted application. The core internal strength and tuning principles largely apply to both, with the compression reduction being a universal requirement for significant turbocharging.
Tuning the F Series: Beyond Compression
While lowering the compression ratio is a critical first step, a comprehensive tuning strategy involves several other areas:
Camshafts
Camshaft upgrades can significantly alter an engine's power and torque delivery. 'Fast road' cams typically increase power across the rev range, potentially sacrificing a small amount of low-end torque for better mid to high-rpm performance. 'Motorsport' or 'race' cams prioritise peak power at very high RPMs, but often result in a rough idle and poor low-end drivability, making them unsuitable for daily use. For a daily driver, optimising the torque band for your specific usage is key. When selecting cams, consider that each engine responds differently, and a balance between aggressive lift and duration versus streetability is important.
Engine Management (ECU Tuning)
An aftermarket ECU, such as the Hondata K-Pro, or a well-executed reflash of the factory ECU (if possible, as some are locked), is essential for managing the increased airflow and fuel demands of a turbocharged engine. Proper tuning allows for precise control over ignition timing and fuel delivery, optimising performance while preventing detonation. Bumped-up redlines, as mentioned with the F22C reaching 8,500 rpm with Hondata K-Pro, are achievable with careful ECU calibration and appropriate internal components.
Intake and Exhaust Systems
While intake and exhaust upgrades on their own may not yield significant power gains on a stock engine, they become crucial in a tuned setup. They help reduce restrictions, allowing the engine to breathe more freely and enabling other modifications to perform at their best. A free-flowing exhaust system, typically between 1.5 to 2.5 inches in diameter (though shape and material are often more critical than bore size), and a performance catalytic converter can improve exhaust gas scavenging.
Forced Induction Upgrades
Turbocharger or supercharger upgrades are the most efficient way to increase an engine's power output. The choice of turbocharger size is critical; larger turbos provide more top-end power but can suffer from lag at lower RPMs, while smaller turbos spool faster but may limit peak power. For the F22C, pairing the turbocharger with the correct fuel injectors, fuel pump, and airflow sensors (like a 4-bar map sensor) is vital to support the increased air volume.

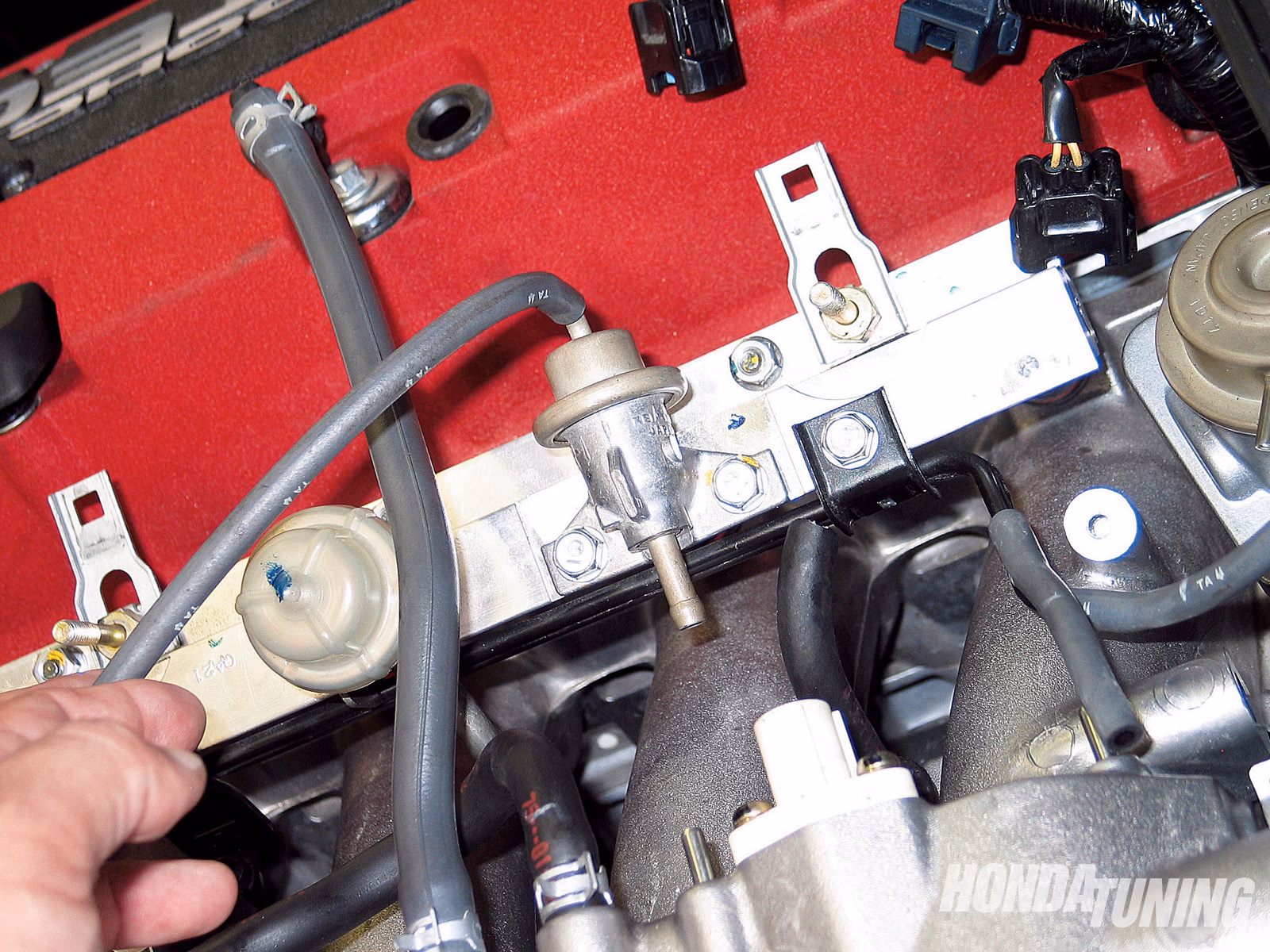

Fueling System
As power increases, so does the fuel requirement. Upgrading fuel injectors and the fuel pump is non-negotiable. For a 500hp target, injectors in the 700-900cc range are typically recommended, with a rule of thumb to add a 20% capacity buffer. Properly sized injectors ensure adequate fuel delivery for optimal combustion.
Head Work
Porting and polishing the cylinder head, along with valve seat upgrades (like a 3-angled valve job), can improve airflow into and out of the combustion chamber. While the S2000 head is already well-designed, these modifications can further enhance performance, especially when combined with other upgrades.
Weaknesses and Maintenance
Despite their robust nature, F-series engines, particularly when tuned, have a few areas to watch:
- Carbon Buildup: Like many engines, carbon can accumulate around the valves, potentially reducing performance. Regular maintenance and occasional cleaning can mitigate this.
- Clutch: The clutch is often cited as a weak point in tuned F-series engines, as it may struggle to handle the increased torque. An upgraded clutch is often necessary.
- Oil Changes: Regular oil changes with high-quality oil are paramount, especially in a high-performance, boosted engine, to ensure longevity and reliability.
- Compression Testing: Periodically testing the compression ratio can help identify engine wear and potential issues before they become severe. A loss exceeding 20% warrants investigation.
Conclusion
Turbocharging the Honda F22C is a rewarding endeavour that can unlock significant power potential. The key to a successful and reliable build lies in understanding and addressing the limitations of the stock engine. Reducing the compression ratio to around 9.5:1 is a non-negotiable step for safely running boost. Complementing this with high-quality internal components like Mahle Gold Series pistons and Carrillo connecting rods, coupled with a comprehensive tuning strategy encompassing ECU management, intake/exhaust improvements, and a robust fueling system, will pave the way for a potent and durable turbocharged F22C.
Frequently Asked Questions
Q1: What is the stock compression ratio of the F22C engine?
A: The stock compression ratio for the F22C is 11.0:1.
Q2: What is the recommended compression ratio for a turbocharged F22C?
A: For a turbocharged F22C aiming for around 500 crank horsepower on 91 octane, a compression ratio of 9.5:1 is commonly recommended.
Q3: Why is lowering the compression ratio important for turbocharging?
A: Lowering the compression ratio reduces the risk of detonation (knock) under boost, allowing for safer operation and more aggressive tuning.
Q4: What are the main differences between the F20C and F22C engines?
A: The F20C is a 2.0-litre engine with a higher redline (9,000 rpm), while the F22C is a 2.2-litre engine with a longer stroke and a slightly lower redline (8,000 rpm), offering more mid-range torque.
Q5: Are the stock F22C internals strong enough for moderate turbocharging?
A: The stock F22C block is very strong and can handle moderate boost levels. However, for significant power increases (e.g., 500+ hp), upgrading pistons, rods, and potentially the clutch is highly recommended.
