Prius Oil Filter Removal: A UK DIY Guide

Changing your car's engine oil and filter is arguably one of the most fundamental and crucial maintenance tasks you can perform to keep your vehicle running smoothly and extend its lifespan. For Toyota Prius owners in the UK, this process might seem a little different due to its unique cartridge-style oil filter system. While some might be intimidated by the idea of DIY car maintenance, understanding how to remove and replace your Prius oil filter is a straightforward task that can save you money and give you a greater appreciation for your vehicle's mechanics. This comprehensive guide will walk you through every step, ensuring you have the knowledge and confidence to tackle this essential job.

Why Regular Oil Changes Matter for Your Prius

Engine oil is the lifeblood of your Prius's internal combustion engine. It lubricates moving parts, reduces friction, cools engine components, and helps to keep the engine clean by suspending contaminants. Over time, oil degrades, loses its viscosity, and accumulates dirt, metal particles, and sludge. A dirty oil filter, in turn, becomes less effective at trapping these contaminants, allowing them to circulate and cause wear within the engine. Regular oil and filter changes are paramount for:

• Maintaining engine efficiency and performance.
• Preventing premature wear of engine components.
• Improving fuel economy.
• Reducing harmful emissions.
• Prolonging the overall life of your engine.

Given the hybrid nature of the Prius, its petrol engine cycles on and off, which can sometimes lead to more condensation and sludge build-up compared to a continuously running engine. Therefore, adhering to the manufacturer's recommended oil change intervals – typically every 10,000 miles or 12 months, whichever comes first – is vital.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process much smoother and more efficient:

• New oil filter cartridge (specific to your Prius model year).
• New O-rings (usually come with the filter).
• Engine oil (check your owner's manual for the correct grade and quantity, typically 0W-20 fully synthetic).
• Oil drain pan (large enough to hold roughly 4-5 litres).
• Socket wrench and a set of sockets (14mm for the drain plug).
• Torque wrench (essential for proper tightening).
• Oil filter cap wrench (a specific 64mm, 14-flute tool is required for the Prius plastic housing).
• Oil filter drain tool (small plastic spigot, often included with the new filter or filter wrench).
• Flathead screwdriver or small pick (for plastic clips).
• Funnel.
• Gloves (nitrile or similar).
• Rag or shop towels.
• Jack and jack stands (if you need more clearance, though often not strictly necessary for a Prius).
• Wheel chocks (for safety if jacking up the car).
• Safety glasses.

Preparation: Safety First

Always prioritise safety when working under your vehicle. Ensure the car is on a level surface. If you need to raise the car, use a reliable jack and secure it with sturdy jack stands. Engage the parking brake. It's often best to perform an oil change when the engine is warm but not hot, as warm oil flows more easily, but hot oil can cause burns. A short drive beforehand is usually sufficient.

Accessing the Undercarriage and Draining the Old Oil

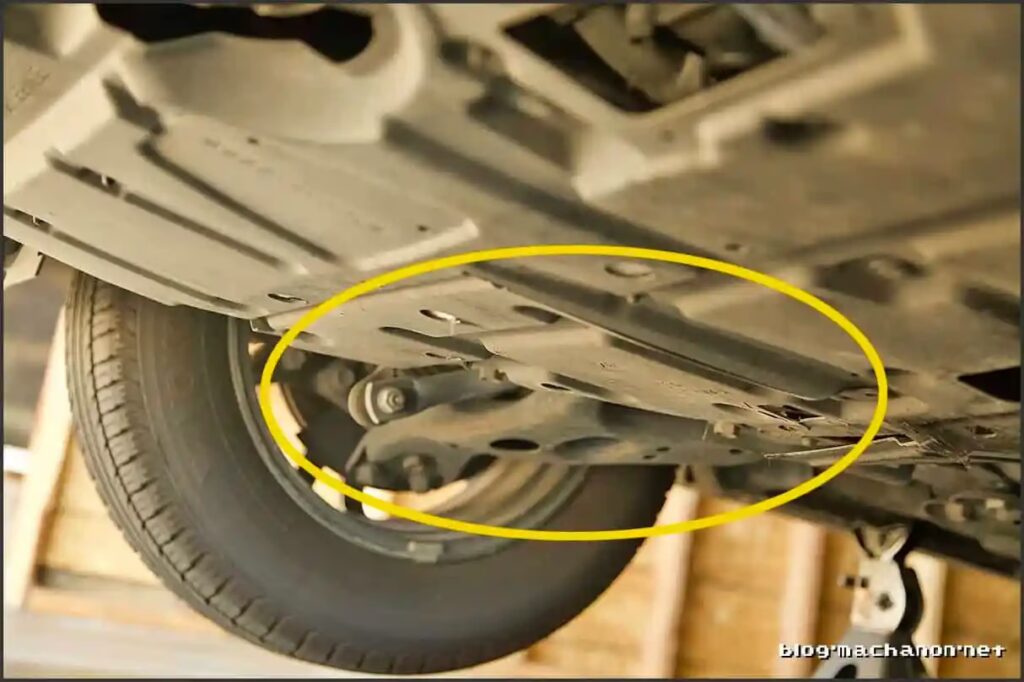

The first step is to get to the drain plug and oil filter housing. Your Toyota Prius may have a plastic lower engine cover, sometimes referred to as a skid plate. This cover needs to be opened or partially removed to access the components.

To open the cover, locate the push pin clips. These can typically be removed with a flathead screwdriver or a small pick. Simply insert the tool under the head of the clip and gently pry it up, then pull the entire clip out. Once enough clips are removed, the cover should swing open, revealing the drain plug and the oil filter housing.

Draining the Sump

The drain plug is located on the back of the oil pan and requires a 14mm socket or wrench. Before you loosen the bolt, position your drain pan directly underneath. Bear in mind that if your vehicle has been running for any length of time, the oil will be quite warm. It also tends to shoot out quickly at first before slowing down to a steady drip, so adjust your oil pan accordingly to prevent spills.

A couple of important notes here: The drain plug can be quite tight, either due to weather corrosion or previous overtightening. Try to get into the best possible position to maximise your leverage when attempting to remove it. Start by applying steady, even pressure. If it doesn't budge, try making a fist with your free hand and tapping it against the bottom of the hand holding the wrench. This additional force can sometimes help to break it free. If it's still stubborn, you may need to use a breaker bar for extra leverage. Always take great care to use the correct size of wrench and ensure it is properly seated on the bolt to avoid stripping the bolt head, which can lead to a much larger problem.

Once the oil flow slows to a drip, you can reinsert the drain plug. It's good practice to replace the drain plug washer (crush washer) with a new one each time you change the oil to ensure a proper seal and prevent leaks. Tighten the drain plug to the manufacturer's specified torque setting, which is typically around 27-30 Nm (20-22 ft-lbs). Do not overtighten, as this can damage the oil pan threads.

Removing the Oil Filter Housing

Unlike many conventional cars that use a spin-on canister filter, the Toyota Prius utilises a cartridge-style filter housed within a plastic (or sometimes aluminium, depending on the year) housing. This housing is typically located near the drain plug, usually facing downwards or slightly towards the front.

Before attempting to unscrew the entire housing, it's highly recommended to drain the oil from within the filter housing itself. Most aftermarket oil filter wrenches designed for the Prius come with a small plastic drain tool (or spigot). Locate the small nipple or cap on the very bottom of the oil filter housing. Thread the plastic drain tool into this nipple. As you thread it in, it will push open a check valve, allowing the oil contained within the filter housing to drain out into your oil pan. This prevents a messy spill when you finally remove the main housing.

Once the oil has drained from the housing, unthread the drain tool. Now, place your oil filter cap wrench over the housing. Ensure it's properly seated, then use your socket wrench to carefully turn the housing counter-clockwise to loosen it. The plastic housing can be fragile if mishandled, so apply steady pressure. Once loose, you can often unscrew it by hand. Be prepared for a small amount of residual oil to drip out as you remove it.

With the housing removed, pull out the old filter cartridge. It will likely be saturated with dark, dirty oil. Dispose of it responsibly along with the old engine oil.

Replacing the O-Rings and Installing the New Filter

This is a critical step for a leak-free oil change on your Prius. Your new oil filter should come with at least two new O-rings: a large one for the main housing and a smaller one for the housing's drain plug (if applicable, or for the centre stem). Some kits may include a third tiny O-ring for the drain nipple on the housing itself.

1. Carefully remove the old large O-ring from the main housing groove. You might need a small pick or screwdriver to gently pry it out, being careful not to scratch the housing.
2. Clean the housing thoroughly with a rag, removing any old oil or debris.
3. Lubricate the new large O-ring with a small amount of fresh engine oil.
4. Roll the new large O-ring into its groove on the housing, ensuring it's seated properly and not twisted.
5. If your filter kit includes it, replace the smaller O-ring on the housing's drain plug or centre stem, lubricating it with oil as well.
6. Place the new filter cartridge into the housing. Ensure it's oriented correctly (there's usually only one way it fits).

Reinstallation and Refilling

Now it's time to reassemble everything and add the fresh oil.

1. Carefully thread the oil filter housing back into the engine block by hand. Make sure it's not cross-threaded.
2. Once it's hand-tight, use your oil filter cap wrench and torque wrench to tighten the housing to the specified torque. This is extremely important for the plastic housing, as overtightening can crack it, leading to leaks or expensive repairs. The typical torque specification for the plastic housing is around 25 Nm (18 ft-lbs). Refer to your owner's manual or the new filter packaging for the precise value.
3. Ensure the drain plug is securely tightened with its new crush washer.
4. Locate the oil filler cap on top of your engine. Remove it.
5. Place a clean funnel into the oil filler neck.
6. Carefully pour in the new engine oil. Consult your owner's manual for the exact capacity, but a Prius typically takes around 4.2-4.5 litres (4.4-4.8 US quarts) of 0W-20 oil. Pour slowly to avoid spills.
7. Once you've added most of the recommended amount, replace the oil filler cap.

Post-Procedure Checks and Final Steps

After refilling the oil, there are a few crucial steps to complete:

1. Start the engine and let it run for a minute or two. This allows the new oil to circulate throughout the engine and fill the new filter.
2. While the engine is running, carefully check underneath the car for any leaks around the drain plug or the oil filter housing. Address any leaks immediately.
3. Turn off the engine and wait for about 5-10 minutes to allow the oil to settle back into the sump.
4. Remove the dipstick, wipe it clean, reinsert it fully, then remove it again to check the oil level. The oil level should be between the "low" and "full" marks. Add more oil in small increments if necessary, rechecking each time, until it reaches the full mark. Do not overfill.
5. If you removed the lower engine cover completely, reattach it securely with all the push pin clips.
6. Reset your maintenance reminder light. The procedure varies slightly by Prius generation, but typically involves turning the ignition to ON (not start), pressing the ODO/TRIP button until "TRIP A" is displayed, turning the ignition OFF, then holding the ODO/TRIP button while turning the ignition to ON again until the service light flashes and resets.
7. Properly dispose of your old engine oil and filter at an authorised recycling centre. Many garages and local councils offer facilities for this. This is an important part of being an eco-friendly car owner.

Troubleshooting and Tips

• Stripped Drain Plug or Filter Housing: Prevention is key here. Always use the correct tools and torque specifications. If you encounter a stripped drain plug, it's a more serious issue that might require professional help to re-tap the threads or replace the oil pan. A stripped plastic filter housing might necessitate replacing the entire housing.
• Leaking After Oil Change: Most common causes are an improperly tightened drain plug, a missing or pinched O-ring on the filter housing, or an old/damaged crush washer on the drain plug. Double-check all these points.
• Choosing the Right Oil: Always stick to the viscosity and specifications (e.g., API SN Plus or ILSAC GF-5/6) recommended by Toyota for your specific Prius model year. Using the wrong oil can negatively impact engine performance and longevity.
• Filter Quality: While aftermarket filters are available, many prefer genuine Toyota filters for their precise fit and quality.

Comparison: Prius Cartridge Filter vs. Traditional Spin-On Filter

Understanding the differences can help appreciate the Prius system.

Frequently Asked Questions (FAQs)

How often should I change the oil and filter in my Toyota Prius?

Toyota generally recommends changing the oil and filter every 10,000 miles or 12 months, whichever comes first. However, if you do a lot of stop-and-go driving, short trips, or driving in extreme conditions, more frequent changes (e.g., every 5,000 miles) might be beneficial.

Can I use conventional oil in my Prius instead of synthetic?

Toyota specifically recommends 0W-20 fully synthetic oil for most modern Prius models. Using conventional oil is not recommended and could lead to reduced fuel economy, increased engine wear, and potentially void your warranty. Always stick to the manufacturer's specification.

My oil filter housing is really tight. What should I do?

Ensure you are using the correct 64mm, 14-flute oil filter cap wrench that fits snugly. Apply steady, firm pressure. If it's still stuck, a small amount of penetrating oil might help, but be cautious with plastic housings. Avoid excessive force that could crack the housing. If it's extremely stubborn, it might be best to seek professional assistance to avoid damaging the housing.

Why are there multiple O-rings with the new filter?

The Prius oil filter housing relies on these O-rings to create a watertight and oil-tight seal. The large O-ring seals the main housing to the engine block, while smaller O-rings seal the internal parts or the housing's drain nipple. Replacing all provided O-rings is crucial to prevent leaks and ensure proper sealing.

What should I do with the old oil and filter?

It is illegal and environmentally damaging to pour used engine oil down the drain or dispose of it in household waste. Collect the old oil in a sealed container and take it, along with the old filter, to an authorised waste recycling centre, a local garage, or a designated collection point. Many auto parts stores also accept used oil.

Mastering the art of changing your Toyota Prius oil filter is a rewarding endeavour that contributes significantly to the longevity and efficiency of your hybrid vehicle. By following these detailed steps, paying close attention to the specific requirements of the Prius's cartridge filter system, and prioritising safety, you'll ensure your car remains a reliable and fuel-efficient companion on the road. Embrace the satisfaction of DIY maintenance and keep your Prius purring.
