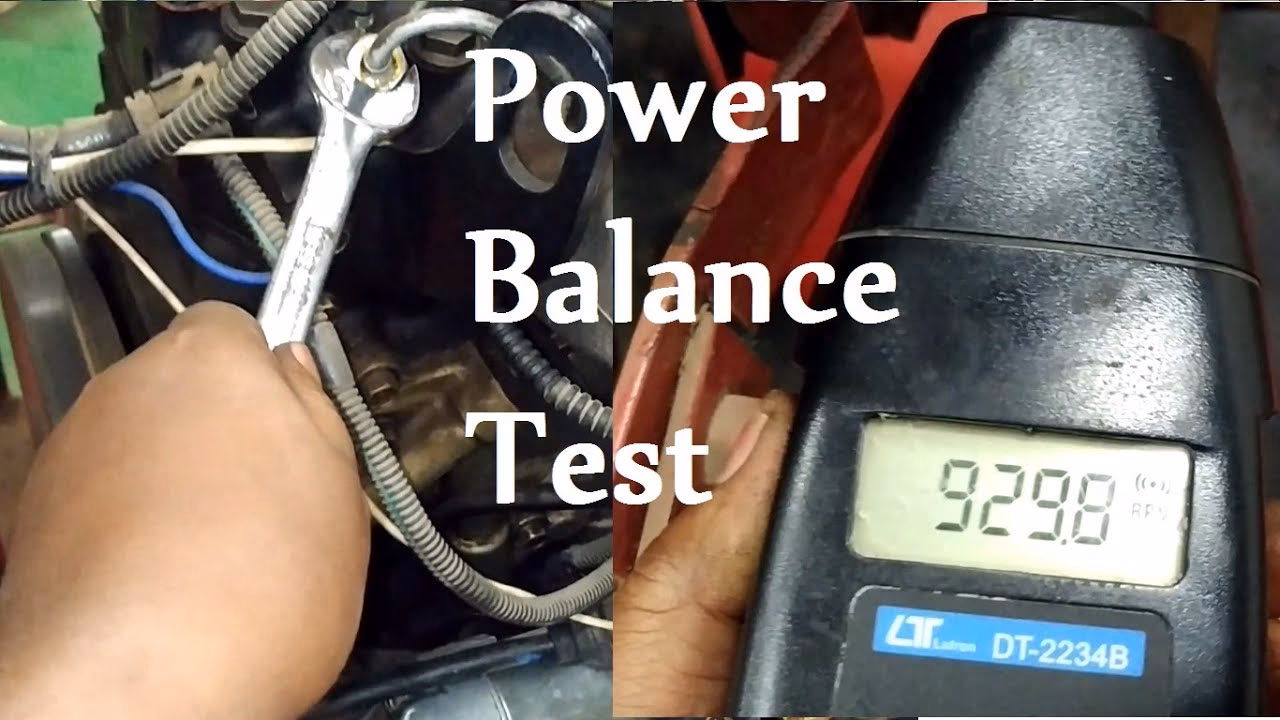

Mastering the Engine Power Balance Test

A healthy engine hums along smoothly, delivering consistent power across all its cylinders. However, when one or more cylinders aren't pulling their weight, your vehicle can develop a noticeable rough running condition, poor fuel economy, and a general lack of performance. Pinpointing the exact culprit can be a challenge, but one of the most effective diagnostic tools in a mechanic's arsenal is the engine power balance test. This crucial procedure helps identify which specific cylinder or cylinders are underperforming, paving the way for targeted repairs and restoring your engine's optimal function.

This guide will walk you through the intricacies of performing an engine power balance test, explaining its purpose, the tools you'll need, and how to accurately interpret the results. By the end, you'll have a clear understanding of how to diagnose the heart of your engine's performance issues.

Understanding the Engine Power Balance Test

Often referred to as a cylinder power balance test, this diagnostic procedure is designed to assess whether all the engine's cylinders are producing a comparable amount of power. In an ideal scenario, every cylinder contributes equally to the engine's overall output, resulting in smooth, efficient operation. When this balance is disrupted, it signifies a problem within one or more cylinders that needs addressing.

It's vital not to confuse this with an injector balance test. While fuel delivery is undoubtedly a critical component of engine power, an injector balance test specifically checks the performance of the fuel injectors themselves. The engine power balance test, on the other hand, provides a broader overview, indicating a power discrepancy that could stem from various issues, not just fuel. If the power balance test reveals an imbalance, then investigating the fuel system, perhaps with an injector balance test, would be a logical next step in the diagnostic process.

Why a Power Balance Test is Crucial

The primary reason to perform this test is to diagnose a rough-running engine. Common symptoms that point towards an engine imbalance include:

• Rough idling: The engine feels shaky or vibrates excessively when stationary.
• Loss of power: The vehicle feels sluggish, especially during acceleration.
• Poor fuel economy: An inefficient engine burns more fuel.
• Engine misfires: A feeling of hesitation or a 'skip' in the engine's rhythm.
• Unusual engine noises: Ticking, knocking, or other sounds that weren't present before.

By systematically isolating and testing each cylinder, you can quickly identify the weak link. This targeted approach saves time and effort, preventing unnecessary component replacements and ensuring that repairs are focused on the actual source of the problem. Without this test, diagnosing a misfire or rough idle could involve a much longer and more costly trial-and-error process.

Tools of the Trade for Accurate Diagnosis

While the fundamental principle of the power balance test remains the same, the methods and tools used have evolved over the years. Here's a look at the most common approaches:

• Automotive Multi-metre with RPM Inductive Pick-up: This is a highly recommended and widely used method for its accuracy and ease of use. An inductive pick-up clamps around a spark plug lead and senses the ignition pulses, providing real-time RPM readings. When a cylinder is cancelled, the immediate and precise drop in RPM can be observed and recorded.
• Diagnostic Scan Tool with Cylinder Cancel Feature: Many modern vehicles equipped with an Engine Control Module (ECM) or Powertrain Control Module (PCM) offer enhanced diagnostic modes accessible via a scan tool. These tools allow a mechanic to electronically disable individual cylinders without physically disconnecting anything, making the process safer and often more precise. Car manufacturers use these OBDII functions to calculate and set engine misfire codes.
• Traditional (Manual) Method: In older vehicles, or for those without access to advanced tools, the test can be performed by physically disconnecting spark plug leads or by carefully shorting out the spark with a test light connected to a strong ground. This method requires extreme caution due to the high voltage involved and the risk of damaging ignition components or receiving an electric shock. If using a test light to pierce a wire, the hole should be sealed with silicone afterwards, or the wire replaced.
• Historical Tools (e.g., Sun Scope): Back in the 1980s, large engine analysers like the Sun Scope were common. These devices displayed ignition wave patterns on a CRT monitor and often had convenient buttons to manually or automatically cancel cylinders. While largely superseded by modern digital tools, they illustrate the long-standing importance of this diagnostic principle.

Here’s a comparative look at the common methods:

Step-by-Step Guide to Performing the Test

Regardless of the tools you use, the fundamental steps for performing an engine power balance test remain consistent. Always consult your vehicle's specific repair manual for any unique procedures or warnings.

1. Preparation is Key

• Engine Temperature: Ensure the engine is at its normal operating temperature. A cold engine will not yield accurate results.
• Stable RPM: For consistency, it's recommended to set the engine speed to a slightly elevated idle, typically around 1,000 RPM. This can often be achieved by shimming the throttle pedal or, in some modern cars, using cruise control to hold a specific RPM. This creates a stable baseline for observation.
• Connect Your Tools: Attach your chosen diagnostic tool. If using an inductive RPM pick-up, ensure it's correctly clamped to a spark plug lead (usually cylinder 1, but check instructions). If using a vacuum gauge, connect it to a suitable intake manifold port. Monitoring vacuum alongside RPM can provide additional diagnostic clues.
• Safety First: Ensure the vehicle is in park (automatic) or neutral (manual) with the handbrake firmly engaged. Work in a well-ventilated area.

2. The Cancellation Process

The core of the test involves temporarily disabling each cylinder one at a time and observing the impact on engine speed.

• Cancel Cylinder 1: Using your chosen method (scan tool, inductive shorting tool, or carefully disconnecting the spark plug lead), disable the first cylinder.
• Observe and Record: Immediately note the drop in engine RPM. If you're also using a vacuum gauge, record any change in manifold vacuum.
• Time Limit: Do not run the engine with a cylinder cancelled for more than 10 to 15 seconds. Unburnt fuel entering the exhaust system can rapidly damage the catalytic converter, which is an extremely expensive component to replace.
• Re-enable and Stabilise: Re-enable the cylinder and allow the engine to run on all cylinders for at least a minute or two. This helps clear any residual unburnt fuel from the exhaust system and allows the engine to stabilise before moving to the next cylinder.
• Repeat for All Cylinders: Systematically repeat this process for every cylinder in the firing order. It’s crucial to be methodical and record the RPM drop (and vacuum change) for each one.

Interpreting Your Power Balance Test Results

Once you have recorded the RPM drop for each cylinder, it's time to analyse the data. This is where the true diagnostic value of the test comes to light:

• Consistent RPM Drop: If all cylinders produce a relatively similar and noticeable drop in RPM (e.g., within 50-100 RPM of each other), it indicates that all cylinders are contributing power fairly equally. In this scenario, the rough running condition is likely caused by something other than a cylinder power imbalance, such as a faulty engine mount or an accessory issue.
• Little or No RPM Drop: This is the key indicator of a weak cylinder. If you disable a cylinder and the engine RPMs barely change, or don't change at all, it means that cylinder was hardly contributing any power in the first place. The engine speed doesn't drop significantly because it wasn't relying on that cylinder for much power. This immediately flags the cylinder as problematic.
• Significantly Greater RPM Drop: While less common, if disabling a cylinder causes a much larger RPM drop than the others, it could indicate a cylinder that is actually over-contributing power, perhaps due to a lean condition causing it to run hotter, or an issue with other cylinders that are underperforming so drastically that the 'good' cylinder's contribution becomes disproportionately large. However, the 'little or no drop' scenario is far more common for identifying issues.

Remember, the automotive scanner can read RPM from the data stream, but for this test, the fast and accurate readings from a digital inductive pick-up on a multi-metre often provide a more immediate and clear indication of the RPM drop.

Common Culprits Behind Engine Imbalance

Once you've identified a weak cylinder, the next step is to investigate the underlying cause. A cylinder's power output depends on four critical factors: compression, fuel, spark, and exhaust. Problems in any of these areas can lead to an imbalance. Here are some of the most common causes:

• Compression Issues: This is a frequent cause of weak cylinders. Problems can include worn piston rings (allowing compression to escape past the piston), damaged or bent valves (failing to seal properly), a leaking head gasket (allowing combustion gases to escape or coolant/oil to enter the cylinder), or a cracked cylinder head/block. A compression test is the logical next step here.
• Fuel System Problems: A faulty fuel injector that is clogged, leaking, or not opening properly can starve a cylinder of fuel or flood it, leading to reduced power. A dedicated injector balance test or fuel pressure test might be necessary here.
• Ignition System Failures: A weak or absent spark will prevent combustion. This could be due to a faulty spark plug, a damaged spark plug lead, a failing ignition coil (especially in coil-on-plug systems), or an issue with the distributor (in older vehicles).
• Valvetrain Issues: Beyond bent valves, problems with the valvetrain can include worn camshaft lobes, sticky lifters, or incorrect valve timing. These issues can prevent valves from opening or closing fully, impacting compression and exhaust flow.
• Exhaust Restrictions: While less common for a single cylinder, a severely clogged catalytic converter or a blocked exhaust manifold could theoretically affect a specific bank of cylinders, though it's usually a more widespread issue.

For issues like a leaking head gasket, a specific testing fluid can be used to check for the presence of hydrocarbons (combustion gases) in the coolant, providing a quick confirmation of the problem.

Safety First: Essential Precautions

Working on an engine, especially when it's running, always carries inherent risks. Adhere to these safety precautions:

• Wear Safety Gear: Always use safety glasses to protect your eyes from debris, sparks, or fluids.
• Avoid Moving Parts: Keep hands, tools, and clothing clear of rotating engine components like belts, fans, and pulleys.
• High Voltage: Be extremely cautious around the ignition system. Spark plug leads and coils carry very high voltage, capable of delivering a painful and potentially dangerous electrical shock.
• Hot Components: The engine and exhaust system will be hot. Avoid touching them directly.
• Ventilation: Ensure you are working in a well-ventilated area to avoid inhaling exhaust fumes, which contain harmful carbon monoxide.
• Consult Manuals: Always refer to your vehicle's repair manual for specific instructions and warnings related to your make and model.

Beyond the Test: What Next?

Identifying a weak cylinder is a significant step, but it's just the beginning of the diagnostic journey. Once you've pinpointed the problematic cylinder, you'll need to perform further, more specific tests to determine the exact cause. This might include:

• Compression Test: To check cylinder sealing.
• Leak-Down Test: To identify where compression is being lost (valves, rings, head gasket).
• Spark Test: To verify the presence and strength of the spark.
• Fuel Injector Test: To check the operation of the fuel injector.
• Visual Inspection: Looking for obvious damage to spark plugs, leads, or other visible components.

By systematically following these steps, you can accurately diagnose and repair the issue, restoring your engine's power and smoothness.

Frequently Asked Questions (FAQs)

Q: What is the difference between an engine power balance test and an injector balance test?

An engine power balance test assesses the overall power contribution of each cylinder, which is influenced by compression, fuel, and spark. An injector balance test, on the other hand, specifically checks the fuel delivery of individual injectors to ensure they are providing the correct amount of fuel.

Q: How long can I run the engine with a cylinder cancelled?

You should limit running the engine with a cylinder cancelled to no more than 10-15 seconds. Running it longer can cause unburnt fuel to enter the catalytic converter, leading to severe and costly damage.

Q: Can I perform this test without a professional scan tool?

Yes, you can. While a scan tool with a cylinder cancel feature is ideal for modern vehicles, you can use an automotive multi-metre with an inductive RPM pick-up or, with extreme caution, the traditional manual method of disconnecting spark plug leads on older vehicles. Always prioritise safety.

Q: What does 'little or no RPM drop' indicate during the test?

This indicates a weak or dead cylinder. If the engine's RPMs don't drop significantly when a cylinder is disabled, it means that cylinder wasn't contributing much power in the first place. This immediately flags it as the source of your engine's imbalance.

Q: Is this test suitable for all vehicles?

The principle of the power balance test is applicable to most internal combustion engines. However, the specific method and tools might vary. Always consult your vehicle's repair manual for the appropriate procedures for your make and model, especially for computer-controlled engines where certain components might need to be disconnected before attempting the test.

Q: Why is it important to let the engine run for a minute between cancellations?

Allowing the engine to run on all cylinders for a minute or two between cancelling each cylinder helps to clear out any accumulated unburnt fuel from the exhaust system and allows the engine to stabilise its operating parameters, ensuring more accurate readings for the subsequent cylinder test.

Q: Can a vacuum gauge provide additional information during this test?

Yes, connecting a vacuum gauge to the intake manifold can offer supplementary diagnostic information. A steady vacuum reading indicates a healthy engine. When a cylinder is cancelled, a sudden, significant drop or erratic behaviour in the vacuum reading, alongside the RPM drop, can help confirm a cylinder's poor performance and provide clues about the nature of the issue (e.g., valve problems, rich/lean conditions).

Conclusion

The engine power balance test is an indispensable diagnostic tool for any mechanic or DIY enthusiast looking to troubleshoot a rough-running engine. By systematically evaluating each cylinder's contribution to overall power, you can accurately pinpoint underperforming cylinders and narrow down the potential causes of an engine imbalance. Remember to prioritise safety, use the correct tools, and carefully interpret your results. With this knowledge, you're well-equipped to restore your engine's smooth operation and get your vehicle running at its best.
