The Crucial Role of Elevator Brakes

The Unseen Guardian: Understanding Elevator Brake Importance

When we step into an elevator, we often take for granted the smooth ascent or descent, the seamless stopping at our desired floor, and the overall sense of security. Much of this relies on a critical, yet often overlooked, component: the elevator brake. This electromechanical device is the unsung hero of vertical transportation, working diligently to ensure both operational efficiency and, most importantly, passenger safety. Without a properly functioning brake system, elevators would be unreliable and, frankly, quite dangerous. This article delves into the fundamental importance of elevator brakes, their working principles, essential operating conditions, and their multifaceted functions.

How Does an Elevator Brake Work? The Electromagnetic Dance

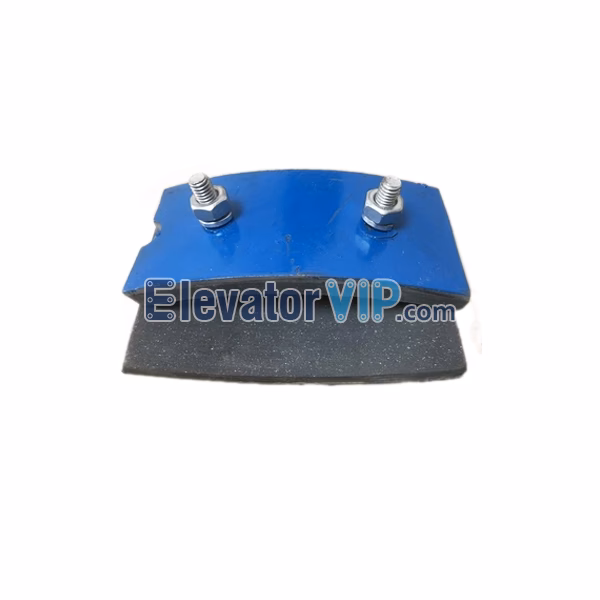

The elevator brake is primarily an electromagnetic device, intricately linked to the traction drive motor, particularly in systems like escalators and many modern elevators. Its operation is a fascinating interplay of electromagnetism and mechanical force. When the elevator is in motion, or when power is supplied to the motor, the brake is designed to disengage. This is achieved through an electromagnetic coil within the brake assembly. When electrified, this coil generates a powerful magnetic field, creating an electromagnetic thrust. This thrust acts against the brake mechanism, causing the brake pads to retract and separate from the rotating brake wheel. This allows the motor, and consequently the elevator car, to move freely. Conversely, the moment the power supply to the motor is interrupted, the electromagnetic force ceases to exist. In this state of electrical disengagement, the brake mechanism relies on a pre-applied force, typically generated by robust brake springs. These springs exert pressure on the brake pads, forcing them back into contact with the brake wheel. This friction-based engagement effectively halts the rotation of the motor, thereby bringing the elevator to a secure stop. This fail-safe mechanism is paramount for safety, ensuring that the elevator remains stationary when power is lost or when the system is commanded to stop. It's crucial to understand that this system is designed for rapid and smooth operation. The electromagnetic force engages and disengages the brake swiftly, contributing to the fluid start and stop experience that passengers expect. The reliability of this two-way electromagnetic thrust is a cornerstone of elevator safety engineering.

The Indispensable Safety Net: Why Brakes are Paramount

The primary reason for the importance of elevator brakes lies in their role as a critical safety device. In the event of a power failure, a malfunction in the motor, or when the elevator reaches its designated floor, the brake is the component that ensures the car remains stationary. Without this reliable stopping mechanism, an elevator car could continue to move uncontrollably, posing a severe risk to passengers. The safety and dependability of the elevator brake are therefore directly linked to the overall safety of the elevator's operation. It acts as the final line of defence against uncontrolled movement. Consider the scenario of a power outage. As soon as electricity is cut off from the traction motor, the electromagnetic force that held the brake disengaged vanishes. The powerful brake springs immediately engage the brake wheel, arresting the motor's rotation and holding the elevator car securely in place. This automatic braking action is a fundamental safety feature that prevents the elevator from descending unexpectedly or becoming stranded between floors. Furthermore, the brake system is designed to maintain the elevator's position even under load. When an elevator stops at a floor, the brake must possess sufficient strength to counteract the weight of the car and its passengers. Specifically, elevator brakes are engineered to hold the car stationary under 125% of its rated load. This margin of safety ensures that even with a full load, the brake can effectively prevent any unwanted movement.

Key Functions of an Elevator Brake

The elevator brake performs several vital functions that contribute to the safe and efficient operation of the elevator system:

• Automatic Stopping: The most critical function is its ability to automatically stop the elevator car when the power supply is interrupted. This fail-safe mechanism ensures that the elevator does not continue to travel when it shouldn't.
• Holding Stationary: When the elevator reaches its destination floor and the motor is de-energized, the brake reliably holds the car in a stationary position. This prevents drifting and ensures precise landing at each floor.
• Load Bearing: The brake must be capable of holding the elevator car stationary under various load conditions, including its maximum rated capacity plus a safety margin (typically 125%). This ensures stability regardless of how many passengers are inside.
• Controlled Deceleration: While primarily for stopping and holding, the responsive nature of electromagnetic brakes also contributes to the smooth deceleration of the elevator car, enhancing passenger comfort.

Conditions for Optimal Performance: Ensuring Reliability

For an elevator brake to function optimally and reliably, it must operate within specific environmental and electrical parameters. These conditions are outlined to ensure the longevity and safety of the braking system:

Adherence to these conditions is crucial. For instance, operating at excessively high altitudes can affect the motor's cooling and the electromagnetic field strength. High humidity can lead to corrosion and insulation breakdown, while extreme temperatures can impact the performance of the springs and electromagnetic components. Voltage fluctuations outside the specified range can lead to inefficient operation or premature wear. The IP55 protection class indicates that the brake is protected against dust ingress and low-pressure water jets, ensuring its integrity in typical operating environments.

The Brake Mechanism in Action: A Step-by-Step Breakdown

Let's visualize the process step-by-step to fully appreciate the brake's role:

1. Elevator at Rest: When the elevator is stationary, there is no electrical current flowing to the traction motor's coil or the electromagnetic brake. Consequently, the electromagnet is not energized. The brake springs are in their natural state, applying pressure to the brake pads, which clamp down firmly on the brake wheel. This mechanical lock prevents the motor from rotating, keeping the elevator car in place.
2. Initiating Movement: When the operator calls the elevator or selects a floor, power is supplied to the traction motor. Simultaneously, current flows through the coil of the electromagnetic brake. This energizes the electromagnet, creating a strong magnetic field. This magnetic field attracts the armature, pulling it away from the brake wheel. This action overcomes the force of the brake springs, causing the brake pads to retract completely from the brake wheel. The motor is now free to rotate, and the elevator begins its journey.
3. Stopping at a Floor: As the elevator approaches the desired floor, the power supply to the traction motor is cut off. In sync with this, the current to the electromagnetic brake coil is also interrupted. The magnetic force instantly disappears. The brake springs, no longer opposed by the magnetic attraction, forcefully push the brake pads back onto the brake wheel. This immediate friction brings the motor to a halt, and the elevator car stops precisely at the floor level.

This cycle repeats for every movement, showcasing the constant and reliable work of the elevator brake.

Frequently Asked Questions about Elevator Brakes

• What happens if an elevator brake fails? A failure in the elevator brake is a serious safety concern. Modern elevators are equipped with multiple safety systems, including secondary braking mechanisms and safety gears, which are designed to engage if the primary brake fails. However, regular maintenance is crucial to prevent such failures.
• How often should elevator brakes be inspected? Elevator brakes should be inspected regularly as part of routine elevator maintenance. The frequency of inspection is typically determined by local regulations and the elevator manufacturer's recommendations, but annual comprehensive inspections are common.
• Can an elevator move without its brake functioning? No, an elevator is designed to be held stationary by its brake when power is applied to the motor, or when stopped. The brake is integral to its operation and safety. If the brake were to fail, other safety systems would engage.
• What is the difference between a motor brake and an elevator brake? While both are braking systems, an elevator brake is specifically designed and integrated into the elevator's traction system to ensure the safe stopping and holding of the car, often under significant load and in response to power interruptions. Motor brakes can be more general-purpose.
• Are all elevator brakes electromagnetic? While electromagnetic brakes are very common due to their speed and reliability, some older or specialized elevator systems might use other types of braking mechanisms, such as mechanical brakes. However, the principle of safely arresting motion remains the same.

In conclusion, the elevator brake is far more than just a component; it is a critical safeguard. Its reliable operation, governed by the principles of electromagnetism and mechanical force, ensures that our journeys in elevators are not only convenient but, above all, safe. Understanding its function underscores the sophisticated engineering that goes into everyday vertical transportation.
